Model # 1039887811 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 1039887811 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

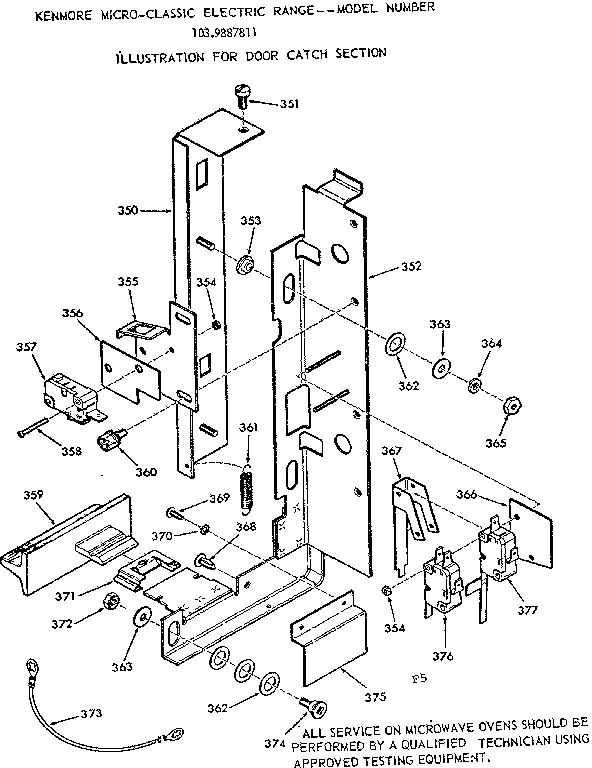

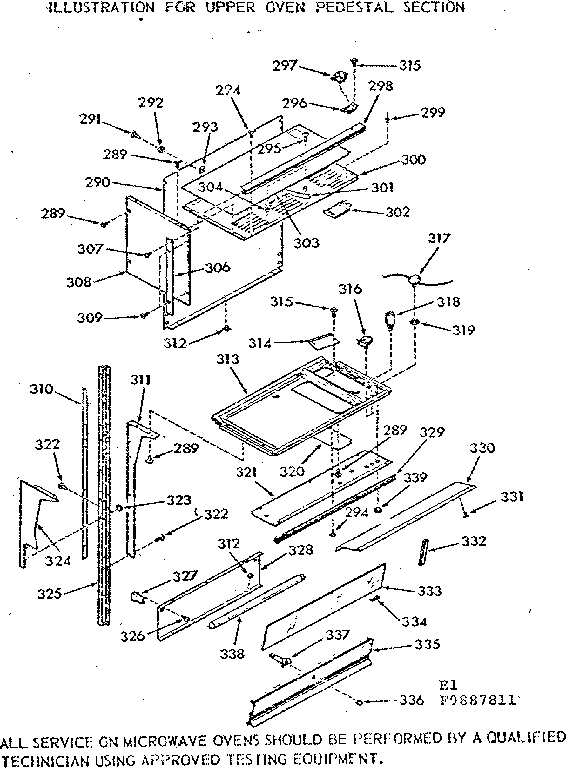

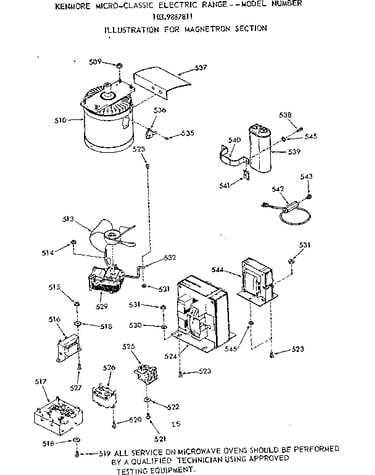

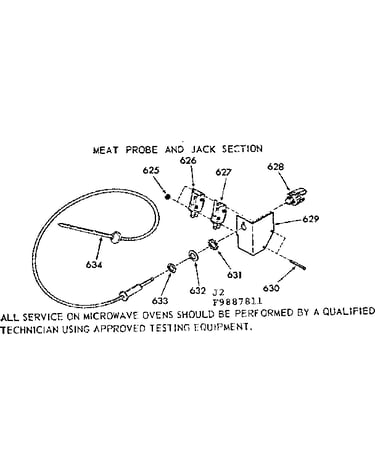

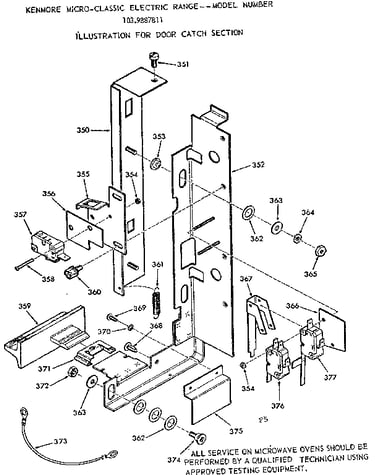

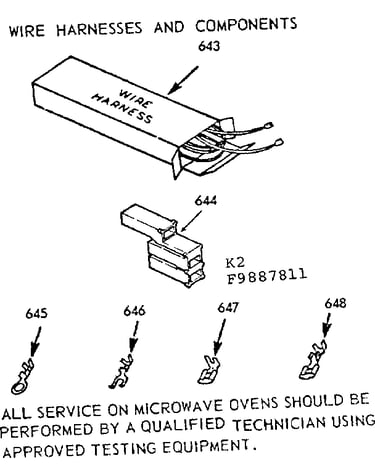

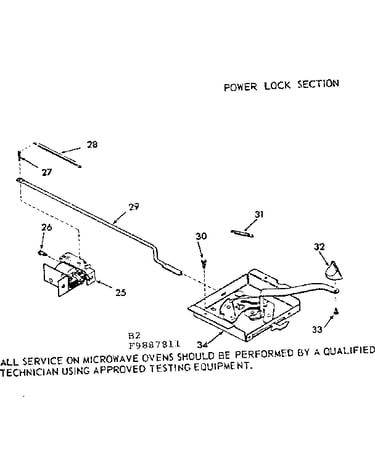

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 394 parts  |

Lamp Bulb STD372401
Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Seal 302935
#165

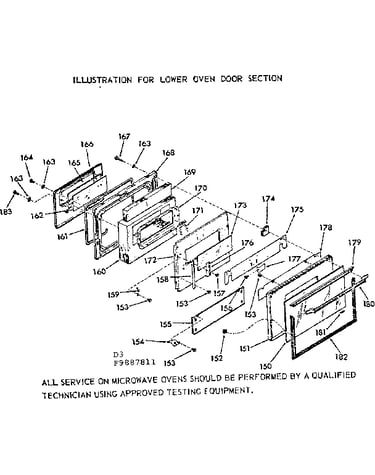

Lower oven door section diagram

Seal

Part #302935

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 302935. Substitute parts can look different from the original.
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Infinite Switch 301820
#480

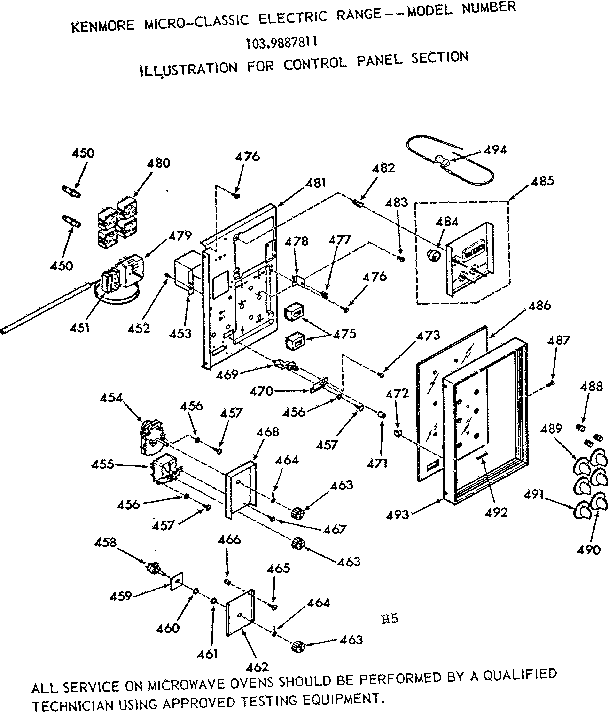

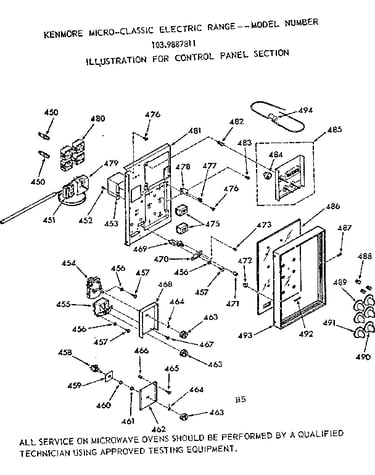

Control panel section diagram

Infinite switch

Part #301820

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 301820. Substitute parts can look different from the original.
$68.34
7% OFF Phone Price : $73.34
In Stock
Gasket 292244
#161

Lower oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27
6% OFF Phone Price : $84.27
In Stock
Sealant M13D2
#408A

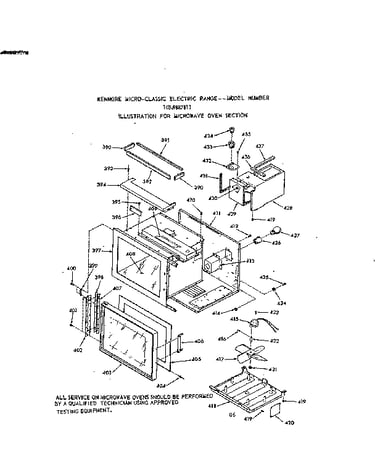

Microwave oven section diagram

Sealant

Part #M13D2

Replaced by #RTV102

?
Manufacturer substitution
This part replaces M13D2. Substitute parts can look different from the original.
$17.30
10% OFF Phone Price : $19.30
In Stock
Control Lens 310447
#486

Control panel section diagram

Control lens

Part #310447

In Stock
Screw 75871
#18

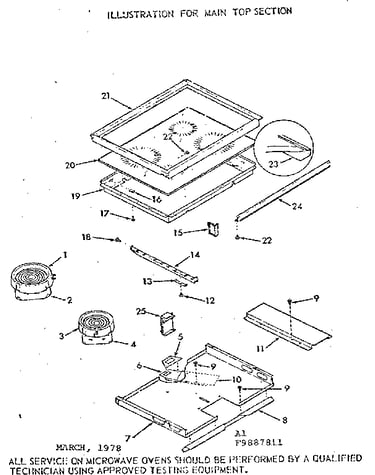

Main top section diagram

Screw

Part #75871

This item is not returnable
In Stock
Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#126A

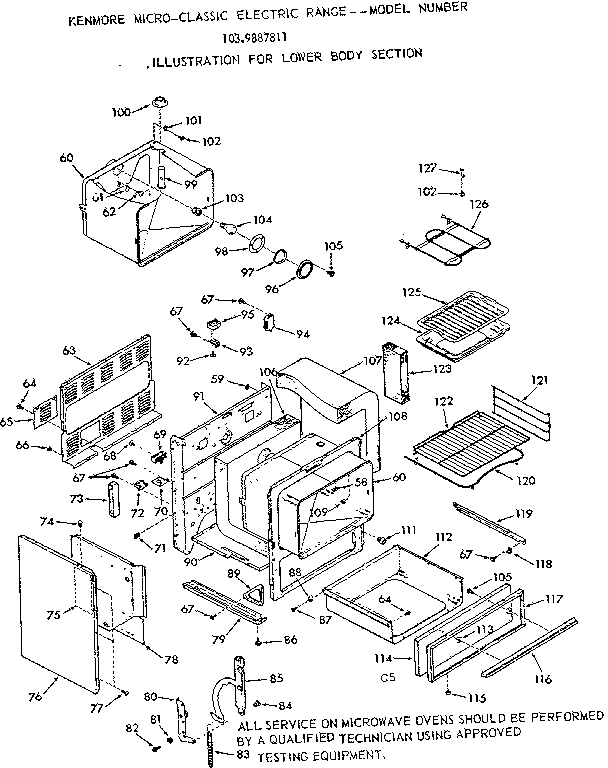

Lower body section diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07
7% OFF Phone Price : $73.07
In Stock
