Whirlpool WOEC5030LW00 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Whirlpool WOEC5030LW00 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

Whirlpool WOEC5030LW00 electric oven/microwave combo
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWOEC5030LW00 Electric Oven/Microwave Combo

  • Inverter Hol for Whirlpool WOEC5030LW00 - Part W11646907

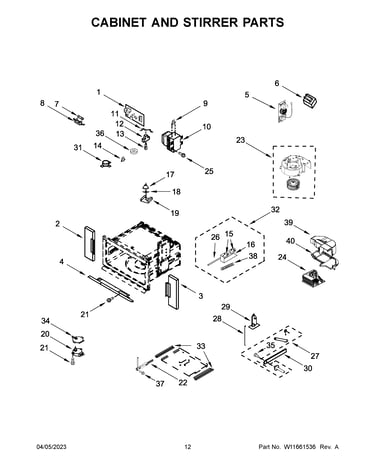

    Cabinet and stirrer parts diagram

    Housing, Upper Inverter

    Part #W11591019

    Replaced by #W11646907

    Info Icon
    Manufacturer substitution
    This part replaces W11591019. Substitute parts can look different from the original.
    In Stock
    $96.75
    Minus Item
    Qty
    Plus Item
  • Fuse for Whirlpool WOEC5030LW00 - Part W11188752

    Cabinet and stirrer parts diagram

    Fuse Mda 20a

    Part #241908600053

    Replaced by #W11188752

    Info Icon
    Manufacturer substitution
    This part replaces 241908600053. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.41
    15% OFF Phone Price : $13.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Inner Panel Assembly for Whirlpool WOEC5030LW00 - Part W11684570

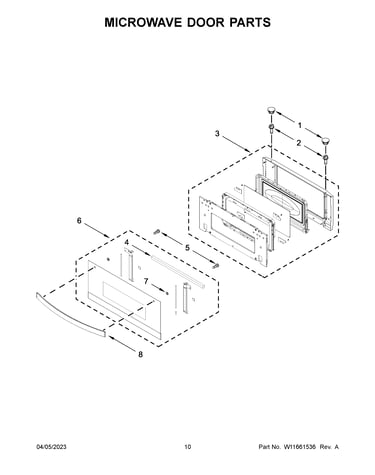

    Microwave door parts diagram

    Inner Door Assembly

    Part #W11328745

    Replaced by #W11684570

    Info Icon
    Manufacturer substitution
    This part replaces W11328745. Substitute parts can look different from the original.
    Delayed Shipping IconOversize item
    This part exceeds standard shipping size or weight limits, so an additional oversize shipping charge will apply. Oversize shipping surcharges are not eligible for any discounts or promotions. It will be shown in your order total at checkout.
    In Stock
    $444.67
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for Whirlpool WOEC5030LW00 - Part W11110134

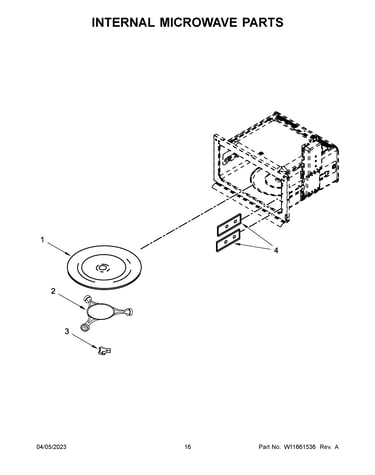

    Internal microwave parts diagram

    Microwave Turntable Tray Support

    Part #W10367316

    Replaced by #W11110134

    Info Icon
    Manufacturer substitution
    This part replaces W10367316. Substitute parts can look different from the original.
    In Stock
    $61.17
    9% OFF Phone Price : $67.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Outer Panel Assembly (black) for Whirlpool WOEC5030LW00 - Part W11654062

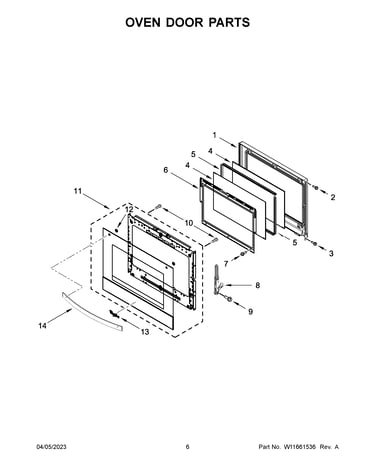

    Oven door parts diagram

    Door Kit Ass

    Part #W11499217

    Replaced by #W11654062

    Info Icon
    Manufacturer substitution
    This part replaces W11499217. Substitute parts can look different from the original.
    Delayed Shipping IconOversize item
    This part exceeds standard shipping size or weight limits, so an additional oversize shipping charge will apply. Oversize shipping surcharges are not eligible for any discounts or promotions. It will be shown in your order total at checkout.
    In Stock
    $419.85
    Minus Item
    Qty
    Plus Item
  • Bottom Chass for Whirlpool WOEC5030LW00 - Part W11598115

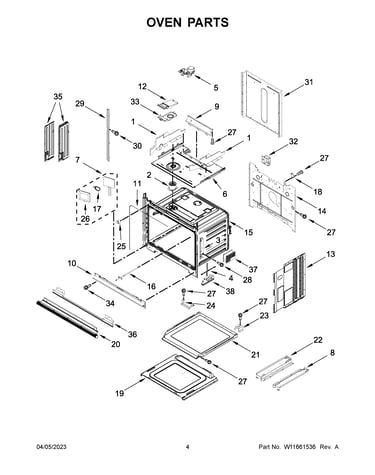

    Oven parts diagram

    Base, Chassis

    Part #W11135103

    Replaced by #W11598115

    Info Icon
    Manufacturer substitution
    This part replaces W11135103. Substitute parts can look different from the original.
    In Stock
    $115.44
    Minus Item
    Qty
    Plus Item
  • Turntable Gl for Whirlpool WOEC5030LW00 - Part W11460385

    Internal microwave parts diagram

    Turntable Gl

    Part #W11340342

    Replaced by #W11460385

    Info Icon
    Manufacturer substitution
    This part replaces W11340342. Substitute parts can look different from the original.
    In Stock
    $64.99
    8% OFF Phone Price : $70.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Convect Moto for Whirlpool WOEC5030LW00 - Part W11602629

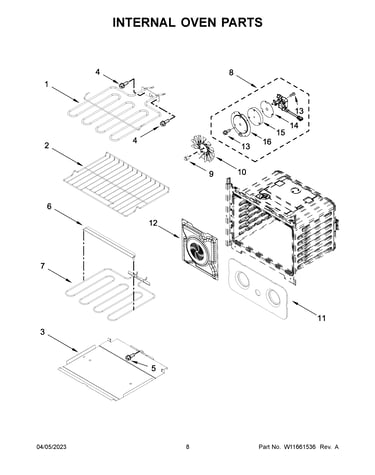

    Internal oven parts diagram

    Plate, Convect Motor

    Part #W11251715

    Replaced by #W11602629

    Info Icon
    Manufacturer substitution
    This part replaces W11251715. Substitute parts can look different from the original.
    In Stock
    $108.49
    Minus Item
    Qty
    Plus Item
  • Screw Bag As for Whirlpool WOEC5030LW00 - Part W11602626

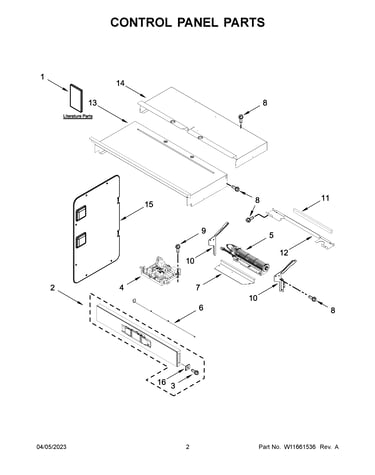

    Control panel parts diagram

    Bag, Hardware

    Part #W11394923

    Replaced by #W11602626

    Info Icon
    Manufacturer substitution
    This part replaces W11394923. Substitute parts can look different from the original.
    In Stock
    $37.01
    Minus Item
    Qty
    Plus Item
  • 8-32 X .860 for Whirlpool WOEC5030LW00 - Part W11602624

    Screw (black)

    Part #W11317731

    Replaced by #W11602624

    Info Icon
    Manufacturer substitution
    This part replaces W11317731. Substitute parts can look different from the original.
    In Stock
    $39.12
    Minus Item
    Qty
    Plus Item
