Model # 1501A Official Tractor Accessories the big wheel cultivator

Here are the diagrams and repair parts for Official Tractor Accessories 1501A the big wheel cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Lock Washer 30127
#7

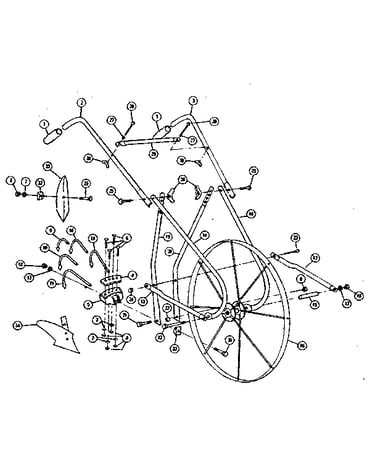

Replacement parts diagram

Lock washer

Part #30127

The manufacturer no longer makes this part, and there's no substitute part

Bolt 30175-1
#25

Replacement parts diagram

Bolt

Part #30175-1

The manufacturer no longer makes this part, and there's no substitute part

Mold Plow 10219
#34

Replacement parts diagram

Mold plow

Part #10219

The manufacturer no longer makes this part, and there's no substitute part

Tie Tube 30407
#13

Replacement parts diagram

Tie tube

Part #30407

The manufacturer no longer makes this part, and there's no substitute part

Shvl Mdl 30474-1
#10

Replacement parts diagram

Shvl mdl

Part #30474-1

The manufacturer no longer makes this part, and there's no substitute part

Hdle Spader 10217
#29

Replacement parts diagram

Hdle spader

Part #10217

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 30019-1
#21

Replacement parts diagram

Hex bolt

Part #30019-1

The manufacturer no longer makes this part, and there's no substitute part

Handle 30405
#14

Replacement parts diagram

Handle

Part #30405

The manufacturer no longer makes this part, and there's no substitute part

Carriage Belt 30119-4
#35

Replacement parts diagram

Carriage belt

Part #30119-4

The manufacturer no longer makes this part, and there's no substitute part

Washer 30130
#27

Replacement parts diagram

Washer

Part #30130

The manufacturer no longer makes this part, and there's no substitute part
