Model # 56090001 Official LXI dual-speed tape recorder

Here are the diagrams and repair parts for Official LXI 56090001 dual-speed tape recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

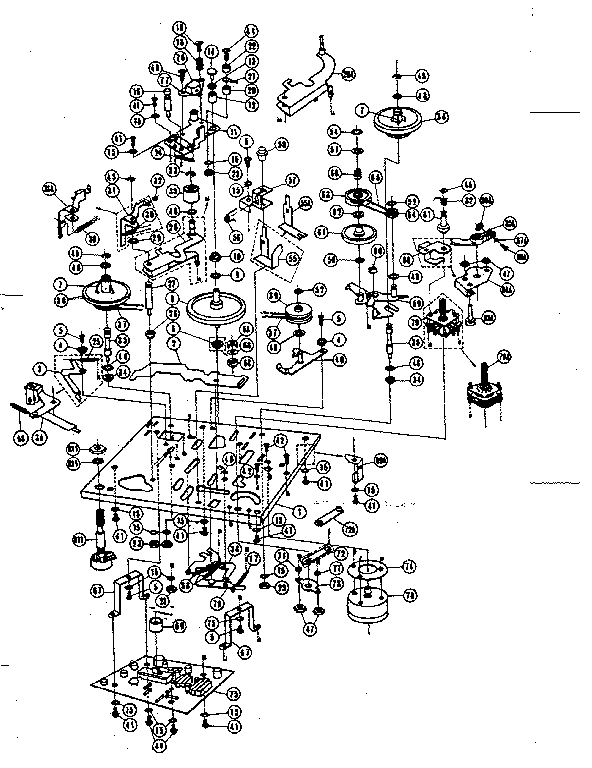

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Nut NH3X1.8BN
#23

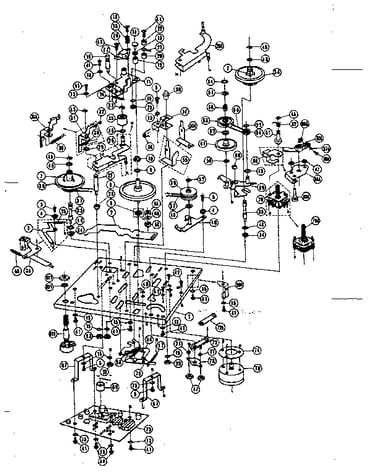

Mechanism chassis diagram

Nut

Part #NH3X1.8BN

Replaced by #46-5630-3

?
Manufacturer substitution
This part replaces NH3X1.8BN. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw, 1 Used With Key No. 3, 1 Used With Key No. 40, 1 Used With Key No. 57, 2 Used With Key No. 67. SP+3XSSN
#5

Mechanism chassis diagram

Screw, 1 used with key no. 3, 1 used with key no. 40, 1 used with key no. 57, 2 used with key no. 67.

Part #SP+3XSSN

The manufacturer no longer makes this part, and there's no substitute part

Lever TC-3193-02
#55A

Mechanism chassis diagram

Lever

Part #TC-3193-02

The manufacturer no longer makes this part, and there's no substitute part

Bearing TC-3130
#4

Mechanism chassis diagram

Bearing

Part #TC-3130

The manufacturer no longer makes this part, and there's no substitute part

Stopper TC-3110
#6A

Mechanism chassis diagram

Stopper

Part #TC-3110

The manufacturer no longer makes this part, and there's no substitute part

Washer WT2X5X0.2
#49

Mechanism chassis diagram

Washer

Part #WT2X5X0.2

The manufacturer no longer makes this part, and there's no substitute part

Washer WT4X8X0.2
#48

Mechanism chassis diagram

Washer

Part #WT4X8X0.2

The manufacturer no longer makes this part, and there's no substitute part

Knob TC-3902-01
#58

Mechanism chassis diagram

Knob

Part #TC-3902-01

The manufacturer no longer makes this part, and there's no substitute part

Drive CS-1120
#39

Mechanism chassis diagram

Drive

Part #CS-1120

The manufacturer no longer makes this part, and there's no substitute part

Sleeve TC-3194
#82

Mechanism chassis diagram

Sleeve

Part #TC-3194

The manufacturer no longer makes this part, and there's no substitute part
