Model # ROS20VSK Official Bosch sander

Here are the diagrams and repair parts for Official Bosch ROS20VSK sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Housing 2609100553
#1

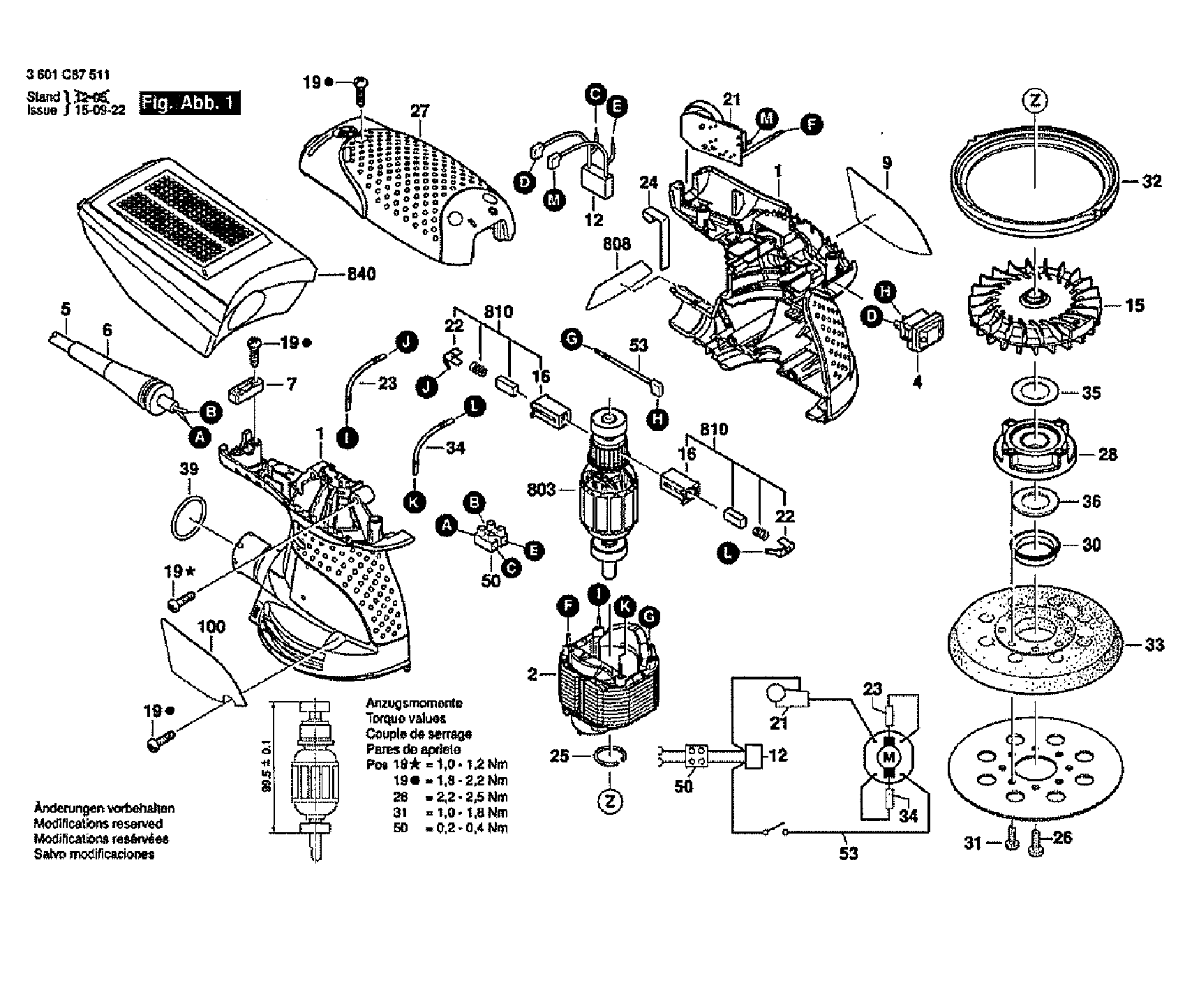

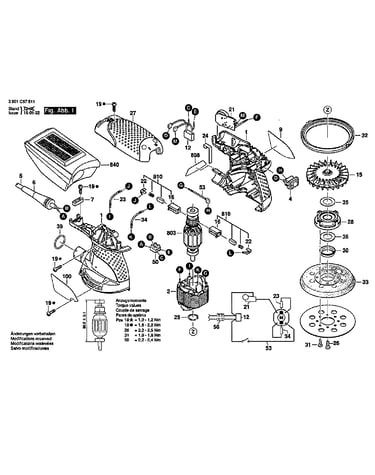

Main asy diagram

Housing

Part #2609100553

The manufacturer no longer makes this part, and there's no substitute part

Felt 2609170084
#36

Main asy diagram

Felt

Part #2609170084

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2609131736
#808

Main asy diagram

Nameplate

Part #2609131736

The manufacturer no longer makes this part, and there's no substitute part

On-off Sw 1607200190
#4

Main asy diagram

On-off sw

Part #1607200190

The manufacturer no longer makes this part, and there's no substitute part

Holder 2610320548
#16

Main asy diagram

Holder

Part #2610320548

The manufacturer no longer makes this part, and there's no substitute part

Armature 2609199166
#803

Main asy diagram

Armature

Part #2609199166

The manufacturer no longer makes this part, and there's no substitute part

Field 2609120195
#2

Main asy diagram

Field

Part #2609120195

The manufacturer no longer makes this part, and there's no substitute part

Ring 2609170071
#32

Main asy diagram

Ring

Part #2609170071

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 2916540005
#25

Main asy diagram

Retaining ring

Part #2916540005

The manufacturer no longer makes this part, and there's no substitute part

Cable 2609120284
#53

Main asy diagram

Cable

Part #2609120284

The manufacturer no longer makes this part, and there's no substitute part
