Model # 137322850 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 137322850 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Special Bolt 3LK3
#3LK3

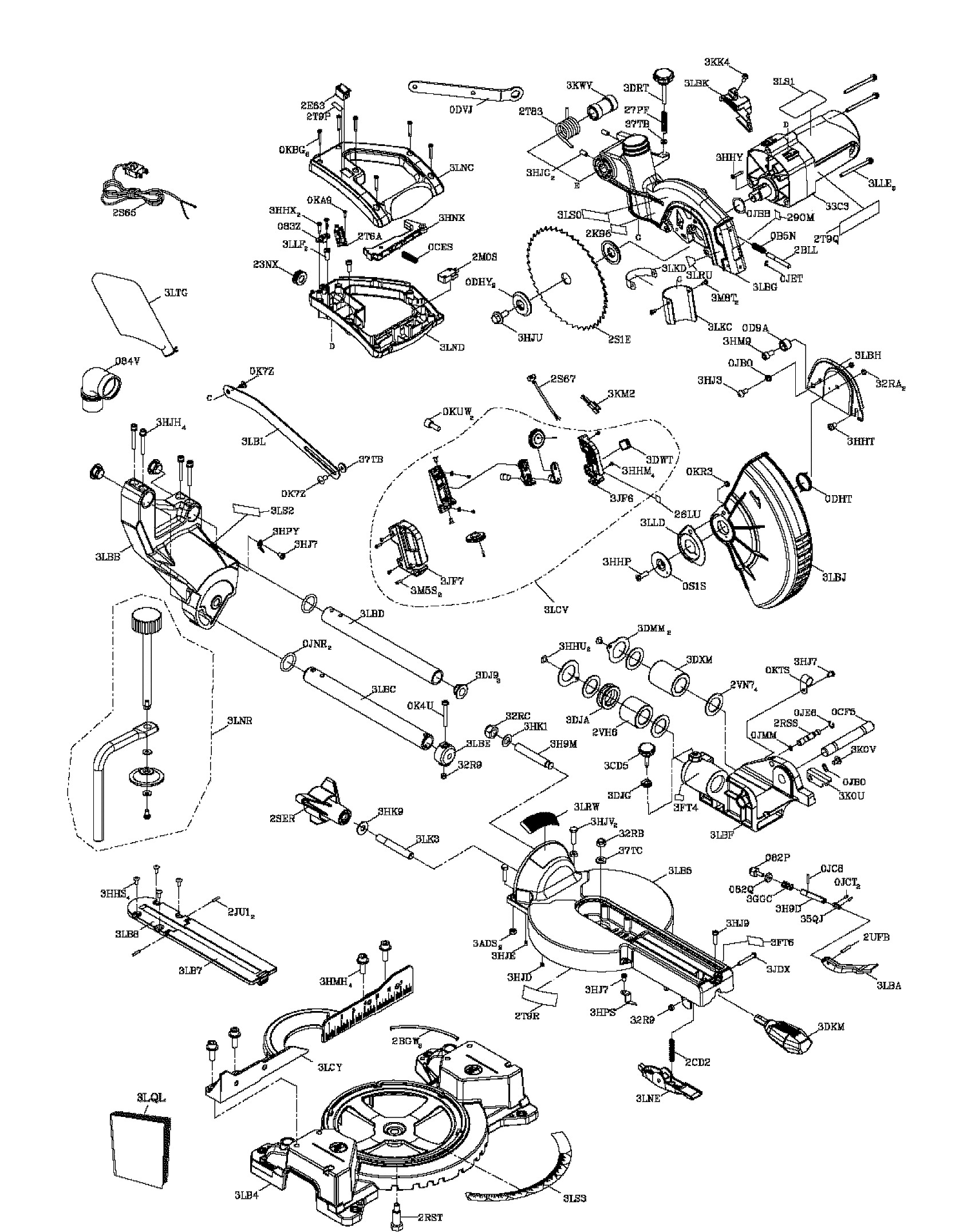

Saw assy diagram

Special bolt

Part #3LK3

The manufacturer no longer makes this part, and there's no substitute part

Handle 3LNC
#3LNC

Saw assy diagram

Handle

Part #3LNC

The manufacturer no longer makes this part, and there's no substitute part

Screw 3KK4
#3KK4

Saw assy diagram

Screw

Part #3KK4

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Power Cord Clamp 083Z
#83Z

Saw assy diagram

Miter saw power cord clamp

Part #083Z

The manufacturer no longer makes this part, and there's no substitute part

Pointer 3HPY
#3HPY

Saw assy diagram

Pointer

Part #3HPY

The manufacturer no longer makes this part, and there's no substitute part

Guard 23NX
#23NX

Saw assy diagram

Guard

Part #23NX

The manufacturer no longer makes this part, and there's no substitute part

Lever 35QJ
#35QJ

Saw assy diagram

Lever

Part #35QJ

The manufacturer no longer makes this part, and there's no substitute part

Table 3LB5
#3LB5

Saw assy diagram

Table

Part #3LB5

The manufacturer no longer makes this part, and there's no substitute part

Shaft 2BMS
#2BMS

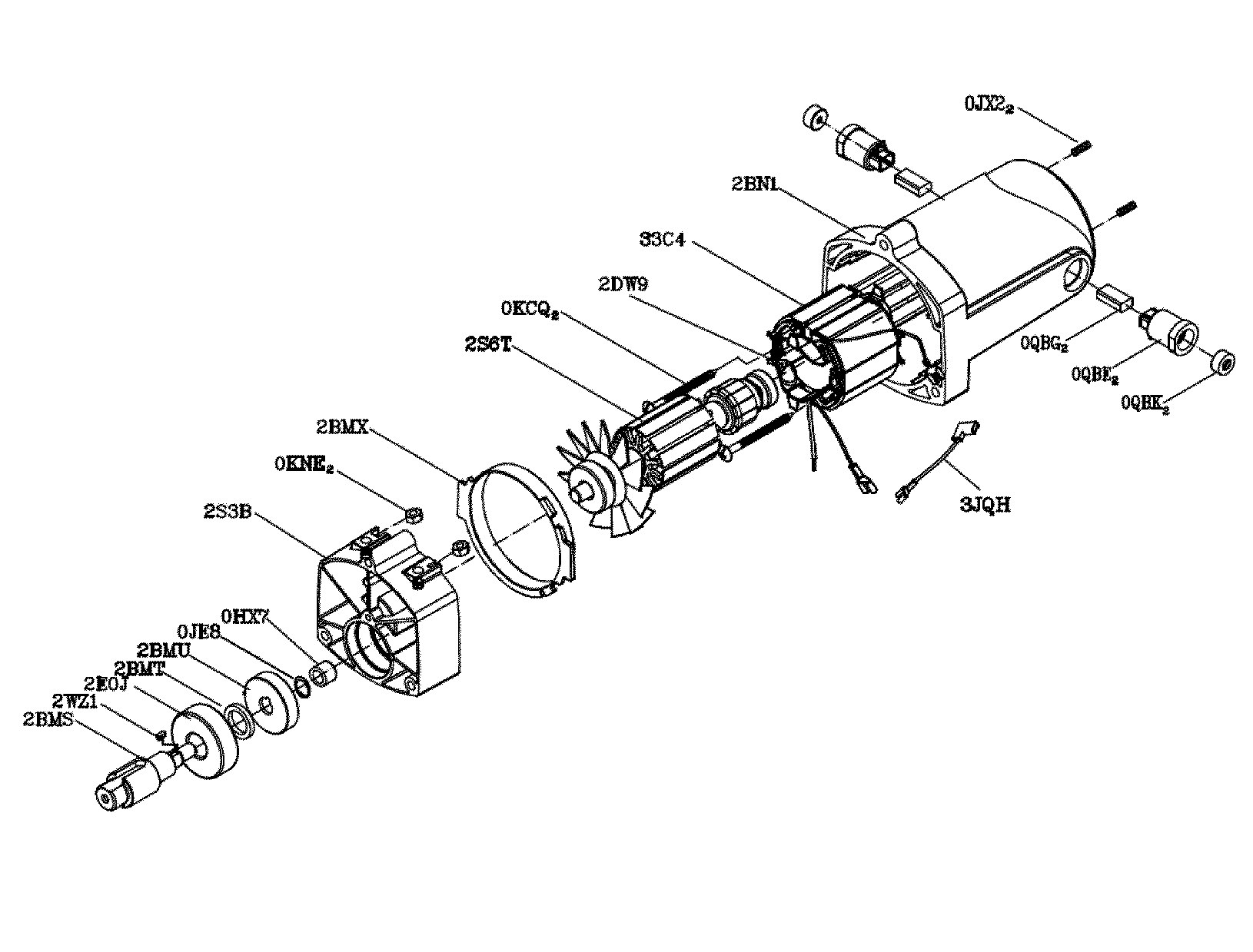

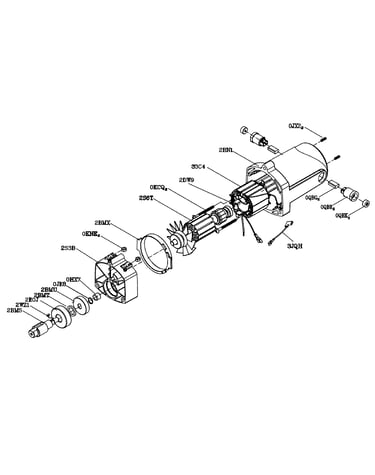

Motor assy diagram

Shaft

Part #2BMS

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Arbor Key 2WZ1
#2WZ1

Motor assy diagram

Miter saw arbor key

Part #2WZ1

The manufacturer no longer makes this part, and there's no substitute part
