KitchenAid KOEC530PWH00 electric oven/microwave combo Parts

Name: KitchenAid KOEC530PWH00 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KOEC530PWH00
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KOEC530PWH00 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

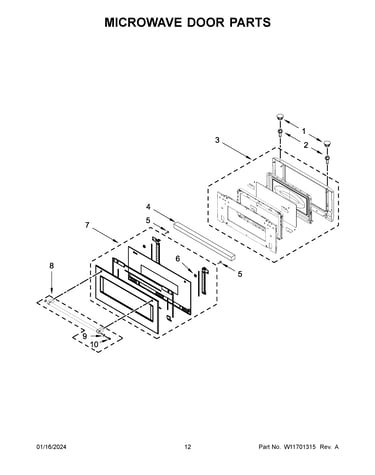

Browse Parts for KOEC530PWH00 Electric Oven/Microwave Combo

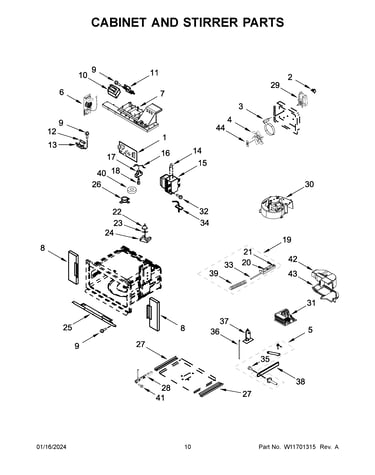

Cabinet and stirrer parts diagram
Switch
Part #461967848881
Replaced by #W10211972
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
In Stock
$37.39
14% OFF Phone Price : $43.39
Qty

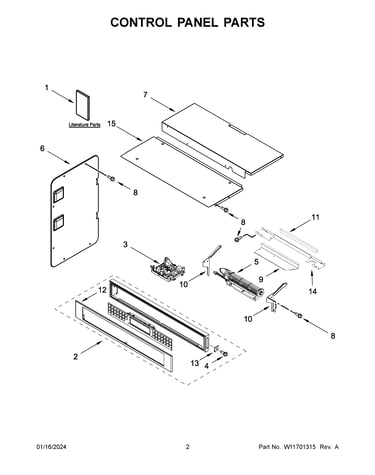

Control panel parts diagram
Blower
Part #W11397930
Replaced by #W11598119
Manufacturer substitution
This part replaces W11397930. Substitute parts can look different from the original.
In Stock
$153.23
10% OFF Was : $170.26
Qty
Optional parts (not included) diagram
Adhesive
Part #482338
Replaced by #WP482338
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
In Stock
$33.32
15% OFF Phone Price : $39.32
Qty

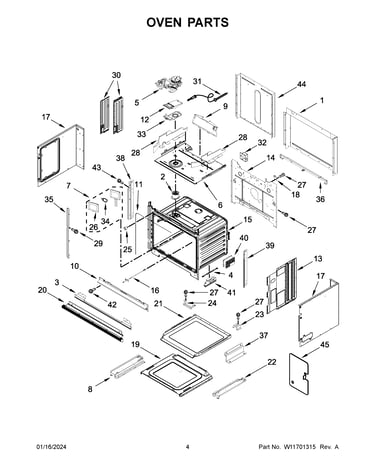

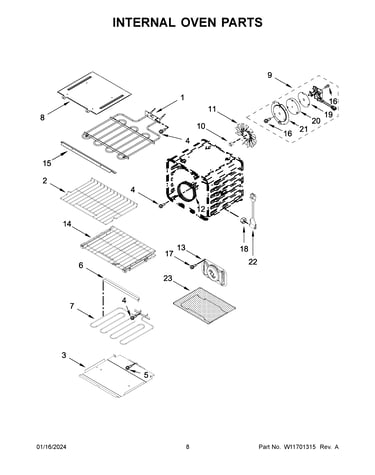

Oven parts diagram
Range High-limit Thermostat
Part #4449751
Replaced by #WP4449751
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
In Stock
$75.39
7% OFF Phone Price : $81.39
Qty
Cabinet and stirrer parts diagram
Magnetron 2m
Part #W11504545
Replaced by #W11578959
Manufacturer substitution
This part replaces W11504545. Substitute parts can look different from the original.
In Stock
$157.46
Qty
Oven parts diagram
Probe, Sensor
Part #W11346074
Replaced by #W11598120
Manufacturer substitution
This part replaces W11346074. Substitute parts can look different from the original.
In Stock
$27.26
18% OFF Phone Price : $33.26
Qty

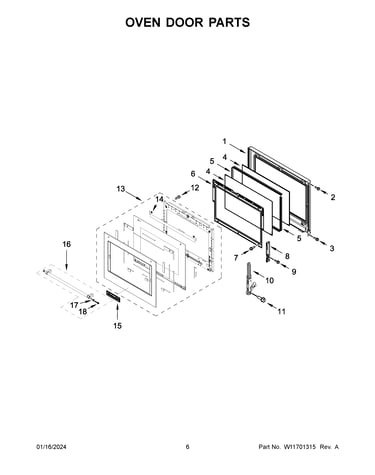

Oven door parts diagram
Wall Oven Door Inner Glass
Part #W10618107
Replaced by #WPW10618107
Manufacturer substitution
This part replaces W10618107. Substitute parts can look different from the original.
In Stock
$131.21
8% OFF Phone Price : $143.21
Qty
Cabinet and stirrer parts diagram
Fuse Mda 20a
Part #241908600053
Replaced by #W11188752
Manufacturer substitution
This part replaces 241908600053. Substitute parts can look different from the original.
This item is not returnable
In Stock
$11.41
15% OFF Phone Price : $13.41
Qty
Cabinet and stirrer parts diagram
Holder, Switch
Part #W10876593
Replaced by #W11214928
Manufacturer substitution
This part replaces W10876593. Substitute parts can look different from the original.
In Stock
$48.16
Qty

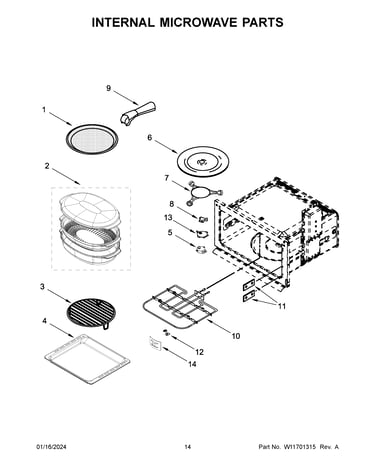

Internal microwave parts diagram
Microwave Turntable Tray Support
Part #W10367316
Replaced by #W11110134
Manufacturer substitution
This part replaces W10367316. Substitute parts can look different from the original.
In Stock
$34.49
15% OFF Phone Price : $40.49
Qty
