How to replace a snowblower stop switch

By Lyle Weischwill
How to replace a snowblower stop switch

This DIY repair guide gives instructions for replacing the stop switch on a snowblower. The stop switch prevents the engine from starting until you insert the key, and it stops electrical current to the spark plug when you remove the key. Replace the snowblower stop switch with the manufacturer-approved replacement part if the engine runs without the key or if the switch prevents the spark plug from sparking with the key inserted.

This repair procedure works for Craftsman, Bolens, MTD, Troybilt, Huskee and Yard Machines snowblowers.

Quick links
Tools required
Work gloves
Phillips screwdriver
Slot screwdriver
Needle-nose pliers
Wrench set
Socket and ratchet set
Repair difficulty
Time required
30 minutes or less
Repair difficulty
Time required
30 minutes or less
Replacing a stop switch on a snowblower

This video shows how to replace the stop switch on a snowblower.

Instructions

  1. 01.

    Disconnect the spark plug wire

    Pull the spark plug wire up and off the plug.

  2. 02.

    Remove the electric starter switch

    Remove the mounting screws and pull the starter switch off the bracket.

    Let the starter switch hang by the electrical cord.

    Remove the electric starter switch.

    Remove the electric starter switch.

  3. 03.

    Remove the engine shroud

    Remove the key.

    Pull off the choke and throttle knobs.

    Remove the acorn nuts that secure the carburetor to the engine.

    Remove the muffler shroud mounting screws.

    Work the engine shroud off the carburetor mounting studs to access the back of the stop switch, leaving the primer hose and breather hose connected.

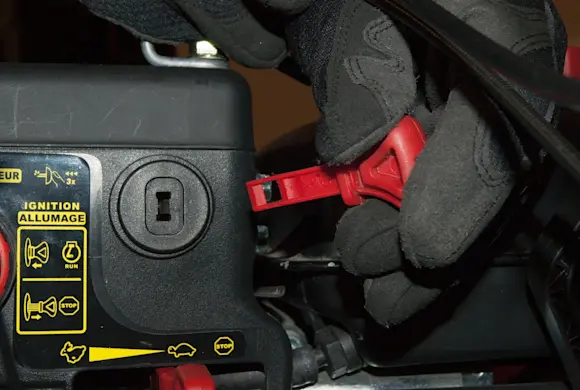

    Remove the key.

    Remove the key.

    Pull off the throttle knob.

    Pull off the throttle knob.

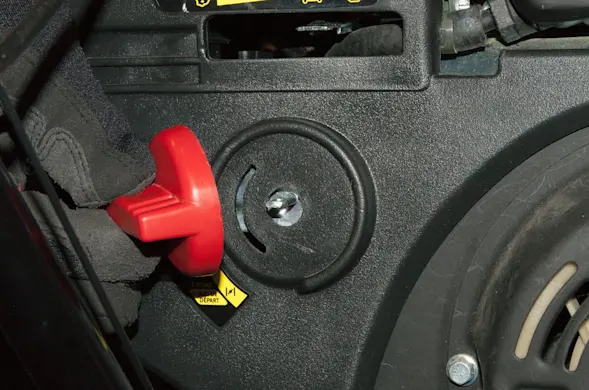

    Remove the choke knob.

    Remove the choke knob.

    Remove the acorn nuts.

    Remove the acorn nuts.

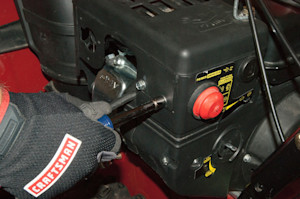

    Remove the muffler shroud screws.

    Remove the muffler shroud screws.

    Pull out the engine shroud.

    Pull out the engine shroud.

  4. 04.

    Remove the stop switch

    Disconnect the stop switch wires.

    Press in the stop switch locking tabs and work the stop switch out of the engine shroud.

    Disconnect the stop switch wires.

    Disconnect the stop switch wires.

  5. 05.

    Install the new stop switch

    Push the new stop switch into the engine shroud.

    Reconnect the stop switch wires.

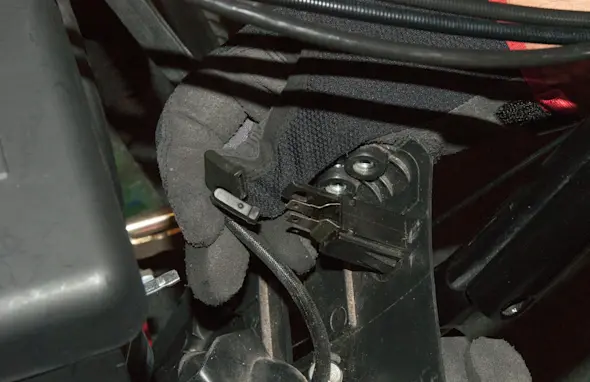

    Push the new stop switch into the shroud and reconnect the wires.

    Push the new stop switch into the shroud and reconnect the wires.

  6. 06.

    Reinstall the engine shroud

    Pull off the muffler shroud before reinstalling the engine shroud.

    Remove the belt cover mounting bolts and pull off the belt cover.

    Remove the bolts from the red chute support bracket and pull the support bracket forward, releasing the control rod from the 4-way control rod receiver.

    Remove the front muffler shroud mounting bolts.

    Release the wire control cables from the retainer clip and pull off the muffler shroud.

    Pull the breather hose off the rocker cover and reconnect the breather hose to the fitting on the engine shroud.

    Align the choke knob shaft and the 2 carburetor mounting posts with the openings on the engine shroud and work the engine shroud onto the engine. Make sure that the breather hose passes through the opening and lines up with the rocker cover breather hose fitting.

    Slide the breather hose over the rocker cover fitting and secure the hose with the clamp.

    Reinstall the 2 acorn nuts to secure the engine shroud to the engine.

    Slide the wire control cables into the retainer clip and position the muffler shroud on the engine.

    Reinstall the muffler shroud mounting bolts.

    Push the control rod back into the 4-way control rod receiver and line up the support bracket with the mounting holes.

    Reinstall the bolts in the red chute support bracket.

    Reinstall the belt cover using the mounting bolts.

    Reinstall the choke and throttle knobs.

    Tip: Removing the muffler shroud is necessary because the engine shroud fits under the bottom lip of the muffler shroud. You can remove the engine shroud without removing the muffler shroud but the muffler shroud must be removed for reassembly.

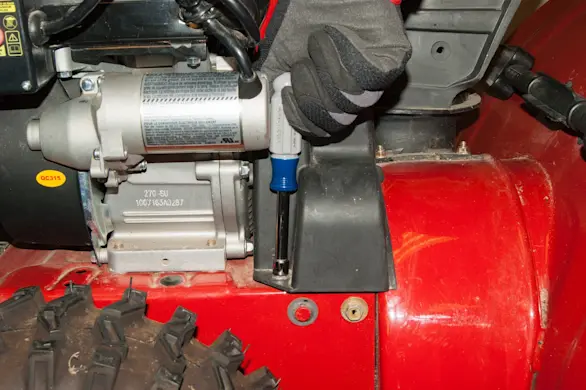

    Remove the belt cover bolts.

    Remove the belt cover bolts.

    Remove the belt cover.

    Remove the belt cover.

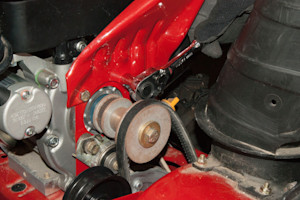

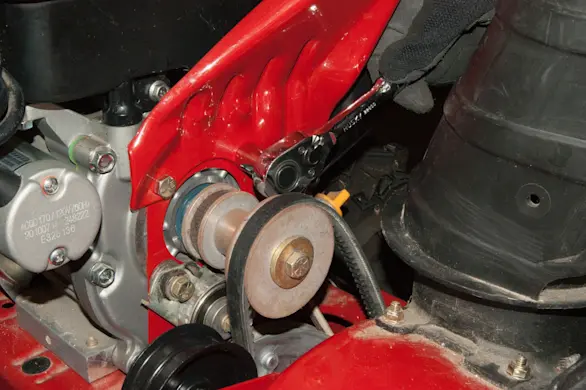

    Remove the chute support bolts.

    Remove the chute support bolts.

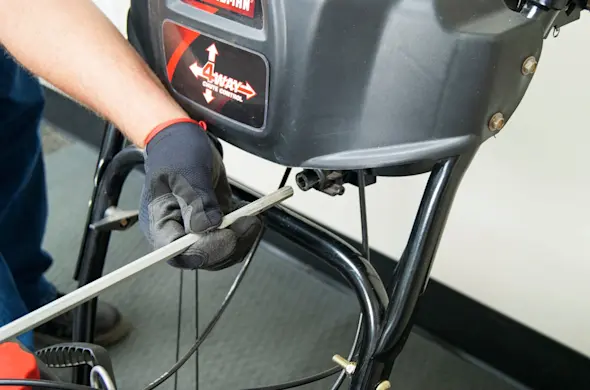

    Release the control rod.

    Release the control rod.

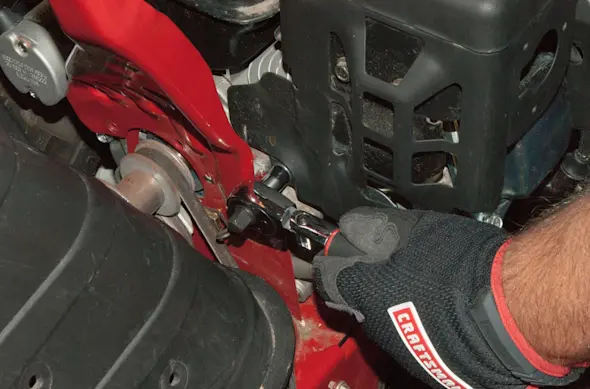

    Remove the muffler shroud bolts.

    Remove the muffler shroud bolts.

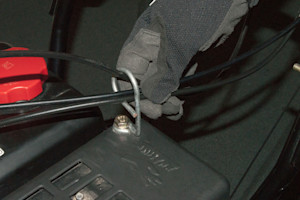

    Release the control cable.

    Release the control cable.

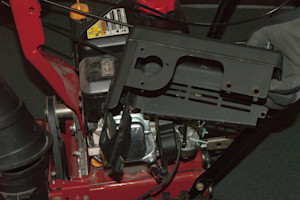

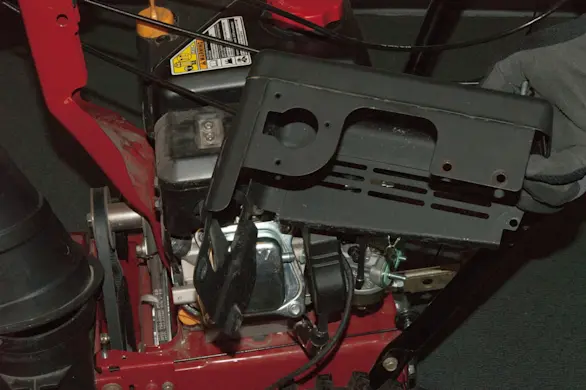

    Remove the muffler shroud.

    Remove the muffler shroud.

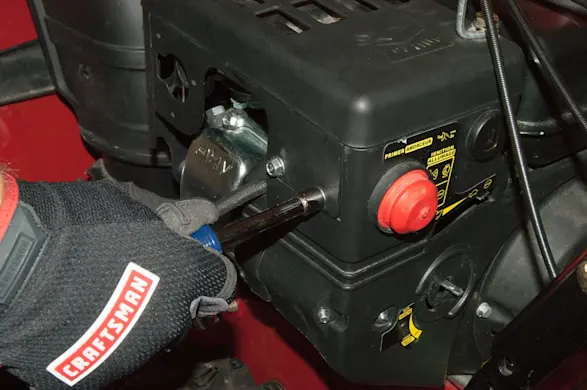

    Reinstall the muffler shroud.

    Reinstall the muffler shroud.

    Reinstall the control rod.

    Reinstall the control rod.

    Reinstall the chute support bracket.

    Reinstall the chute support bracket.

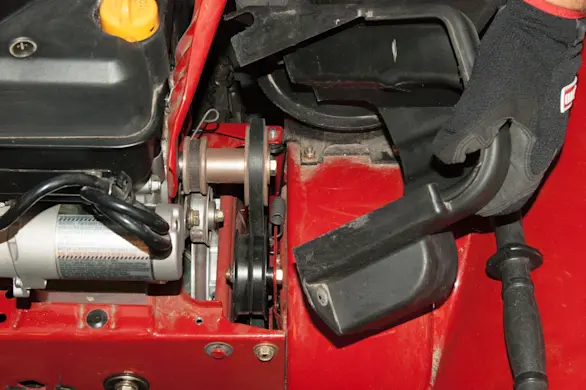

    Reinstall the belt cover.

    Reinstall the belt cover.

    Reinstall the choke knob.

    Reinstall the choke knob.

  7. 07.

    Reinstall the electric starter switch

    Position the electric starter switch on the switch bracket and reinstall the mounting screws.

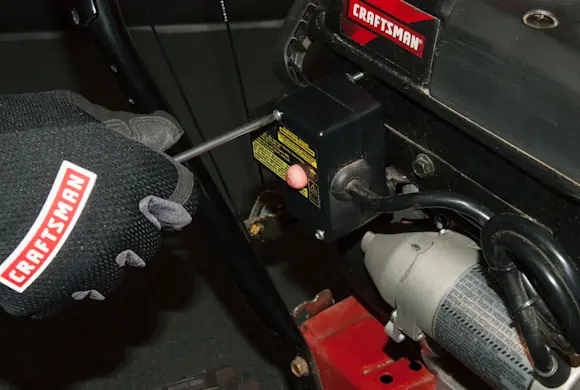

    Reinstall the starter switch.

    Reinstall the starter switch.

  8. 08.

    Reconnect the spark plug wire

    Reconnect the spark plug wire.

  9. 09.

    Reinstall the key

    Push the key into the slot.

    Insert the key.

    Insert the key.
