CONFIRM THE PART FITS
Water Heater Electronic Control Board Kit 6910605
Part #6910605
Part Information

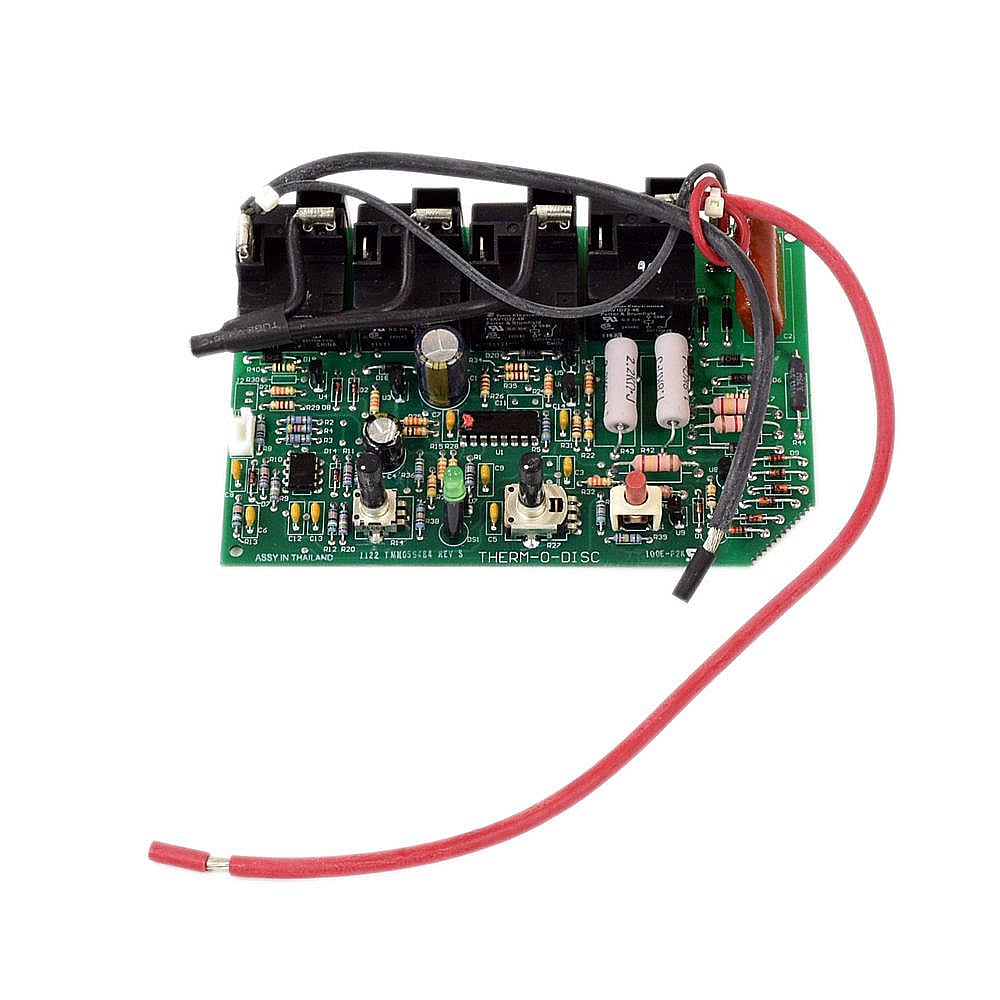

This electronic control board kit (part number 100093769) is for water heaters.

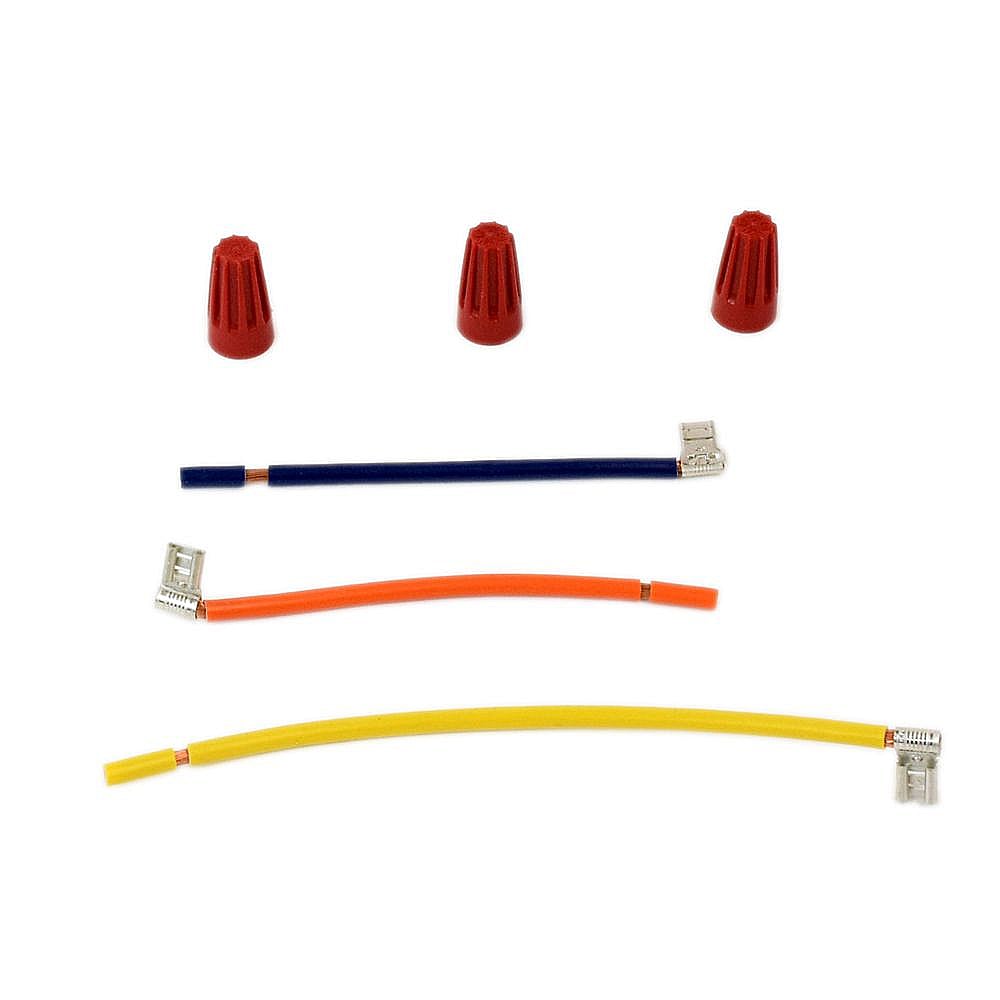

Electronic control board kit 100093769 controls the heating elements and monitors water temperature in the water heater. The kit may include multiple parts; refer to your parts diagram for a list of parts included.
Disconnect electrical power to the water heater before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #EE2H50HD045V American Water Heaters electric water heater | EE2H50HD045V | Water heater |
| Model #EE2H50RD045V American Water Heaters electric water heater | EE2H50RD045V | Water heater |
| Model #EE12340R045DV American Water Heaters electric water heater | EE12340R045DV | Water heater |
| Model #EE3J50HD055V American Water Heaters electric water heater | EE3J50HD055V | Water heater |
| Model #EE9250H045D American Water Heaters electric water heater | EE9250H045D | Water heater |
| Model #EE2H80HD045V American Water Heaters electric water heater | EE2H80HD045V | Water heater |
| Model #EE6340R045DV American Water Heaters electric water heater | EE6340R045DV | Water heater |
| Model #EE12350R045D American Water Heaters electric water heater | EE12350R045D | Water heater |
| Model #EE12380H045DV American Water Heaters electric water heater | EE12380H045DV | Water heater |
| Model #EE12340H045DV American Water Heaters electric water heater | EE12340H045DV | Water heater |
Reviews
Easy to follow directions
I am a contractor, part not available thru local supply house, first purchase in recent years thru Sears , order arrived in timely fashion in good condition at fair price. Will consider Sears Parts on future projects.
Ter1, Fort Worth
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Water heater Control board
It was extremely easy to install and honestly took about 20 to 30 minutes. The instructions were easy to read and to follow.
JStewy2, Texas
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Had to modify
Yes it was easy to install however the red cord to house power was not long enough. I removed the old one and put it on the new board which solved the problem.
Redraider71, Arkansas
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Was easy to install
My nephew had installed in just a few minutes. Water heater is now working perfectly.
Charlene, Nelsonville, Ohio
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
easy to install
I t was easy to follow the instructions
wood m, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Water Heater electronic Control Board
Took the 9 year old control unit off and replaced with new one. New control board had wires already soldered to them so the old wires on old control board had to be cut. Placed Electrical twist Ties on the wires to make connections. The new module also had a red re-set button and could not fit cover on. Had to drill hole on cover to make it fit. Turned on the power and it worked. Now have hot water again. It just took a little bit of work to make the new board fit but it only took about 40 minutes to get the job done.
Poodles5, Fort Worth, Texas
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Fast delivery
Item was easy to install in about 20 min and works well.
Annel, Cocoa, FL
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Easy to install but showed sensor failure on start
Showed sensor failure on startup. I put the old control back on and heater started up without issue.
Dephcaje, Virginia
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
