CONFIRM THE PART FITS
Part Information

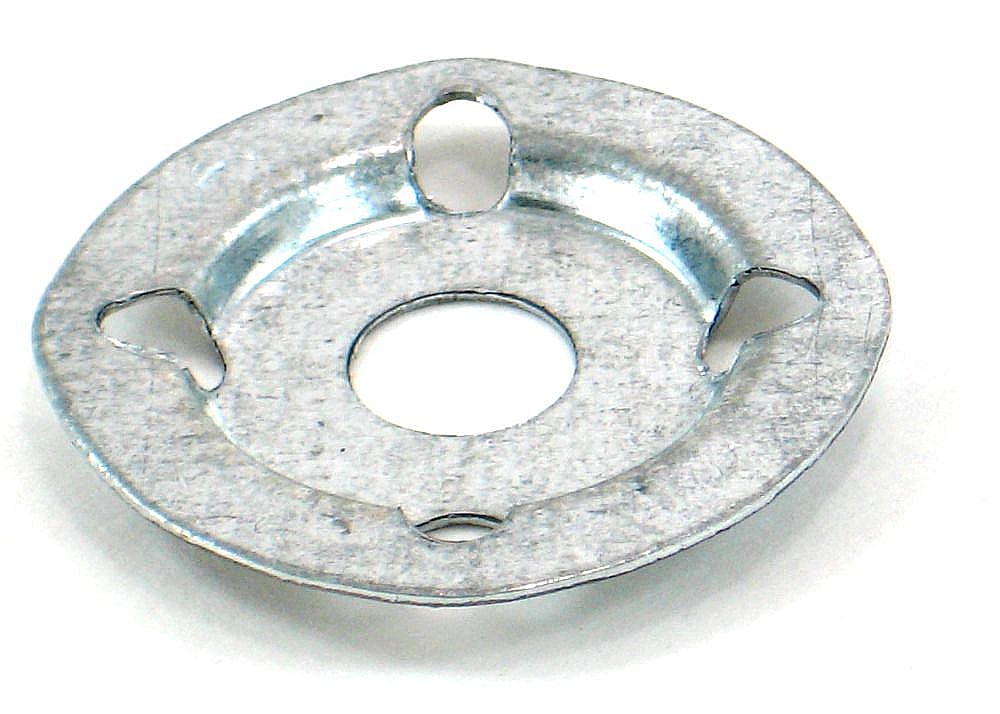

This plunger rod cup spreader (part number 2-3017-1) is for lawn sprayers.
Plunger rod cup spreader 2-3017-1 spreads the plunger cup against the pump barrel to form a tight seal, preventing air from escaping as the plunger rod moves up and down.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #78615320 Craftsman farming | 78615320 | Assembly and repair |
| Model #78615371 Craftsman farming | 78615371 | Replacement parts |
| Model #78615151 Craftsman farming | 78615151 | Replacement parts |
| Model #78614410 Craftsman farming | 78614410 | Compressed air sprayer |
| Model #78615632 Craftsman farming | 78615632 | Replacement parts |
| Model #78615121 Craftsman farming | 78615121 | Replacement parts |
| Model #78615210 Craftsman farming | 78615210 | Compressed air sprayer |
| Model #78614420 Craftsman farming | 78614420 | Replacement parts |
| Model #78615450 Craftsman farming | 78615450 | Compressor air sprayer |
| Model #78615321 Craftsman farming | 78615321 | Replacement parts |
Reviews
Pump seal for stee lgarden sprayer Model 786.15320
Associated seal is not available through Sears. So am wasting over $3.for a useless repair. Plus $8 for shipping for an under 1 ounce product.
fastedy, Great Falls, MT
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
