CONFIRM THE PART FITS
Part Information

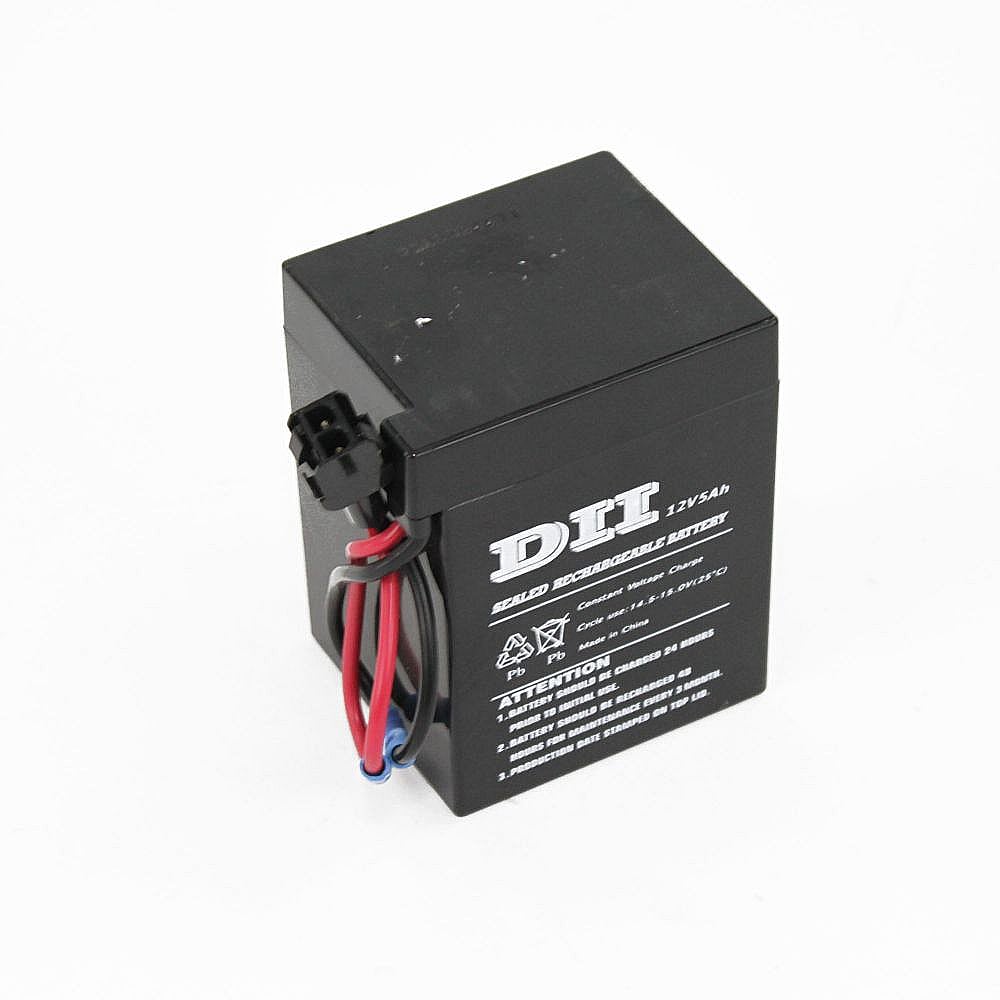

This manufacturer-approved battery (part number 196355) is for lawn mowers.
Battery 196355 provides the power to start the mower engine for the electric start system.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #917377030 Craftsman gas walk-behind mower | 917377030 | Engine/housing/handle |
| Model #917371800 Craftsman gas walk-behind mower | 917371800 | Engine/housing/handle/grassbag |
Reviews
Top fell off before I installed. Didn't even get a
Do not buy. Broke immediately. Didn't even get a chance to install.
Drsrocks, Boston
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Quick fix
Same as battery I was replacing. Take old one out. Put the new one in. Charge. Voila!
cecef, Example: New York, NY
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Easy to install
Battery is located under the panel on the handle. Fold the handle forward to make accessing the battery easy. The battery box is held in place by 2 short bolts. Remove the bolts and slide the box to the left (if you are behind the mower where you would be if you were pushing it to mow the grass) Note the orientation of the battery when it is in the box so you can place the new battery in the same orientation. Un-clip the battery cable and set the old battery aside (to be recycled properly) and then clip in the new battery. The connector will only allow the clip to go on one way so you don't have to worry about positive / negative. (just to be thorough, note that the red wire should be connected to the red wire on the mower and the black to the black) Place the battery back in the box and place the box back in position and slide it to the right. Replace the 2 bolts. Charge the battery for at least 24 hours before using it. Took about 5 minutes to replace the battery.
cj9of12, Indiana
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Easy to Install
It was easy to install and only took 20 minutes to do
dabugkiller, Charlotte, NC
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Replacement Lawn mower battery. Quick and easy
Battery was easy to find online. It arrived in a timely manner and had installed in 10 minutes. Great value
Tom T, HOUSTON
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
wrong connection
make sure the battery connection matched the one one your mower, this one didnt.
Geneo721, NJ
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Fit my mower
It only took 5 minutes to install. 24 hours to charge. :)
Philip D, VA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Easy to install OEM Part
Battery was simple to install, fit right in, and had proper plug for electrical connection
TCW158, Niagara Falls NY
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
