CONFIRM THE PART FITS
Part Information

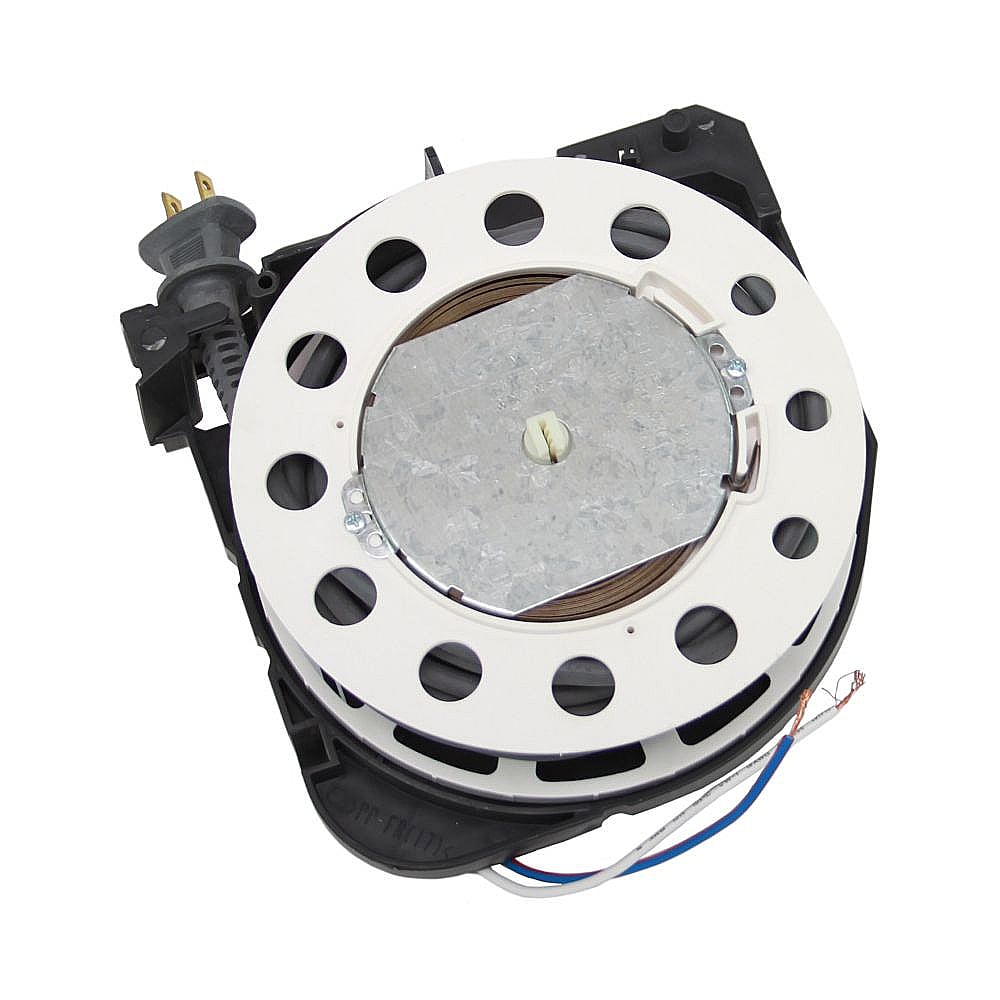

This cord reel assembly (part number 8192089) is for vacuums.
Cord reel assembly 8192089 stores the power cord inside the vacuum. It has a recoil mechanism that rewinds the power cord when you activate it.
Unplug the vacuum before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #11624212404 Kenmore canister vacuum | 11624212404 | Cord reel |
| Model #11624212403 Kenmore canister vacuum | 11624212403 | Cord reel |
| Model #11624213400 Kenmore canister vacuum | 11624213400 | Cord reel |
| Model #11622313202 Kenmore canister vacuum | 11622313202 | |
| Model #11624213403 Kenmore canister vacuum | 11624213403 | Cord reel |
| Model #11624212401 Kenmore canister vacuum | 11624212401 | Cord reel |
| Model #11622312205 Kenmore canister vacuum | 11622312205 | Power cord reel |
| Model #11624212402 Kenmore canister vacuum | 11624212402 | Cord reel |
| Model #11622313203 Kenmore canister vacuum | 11622313203 | Power cord reel |
| Model #11622312203 Kenmore canister vacuum | 11622312203 | Power cord reel |
Reviews
Fairly Easy Install
The two rear screws are under the HEPA cover as are the two front screws, and those are the tougher ones to unscrew. That's because the other door limits the height of the screwdriver used. The cord reel simply slides up but requires cutting two wires to the reel to be able to totally remove it from the case. Two wire nuts or crimp style connectors will be needed. Reinstall the four screws, reinstall the HEPA cover and you're finished. Perhaps 15 minutes of work if you have your screwdrivers, wire cutters and wire nuts ready when you start.
Pudgy9967, Elberta, AL
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy install.
Took about ten minutes to install. The only tool needed was a screwdriver.
Tobino, Santa Fe, NM
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Quick and easy
Very quick and simple repair. Easy to install. Worked great.
Paul B, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
