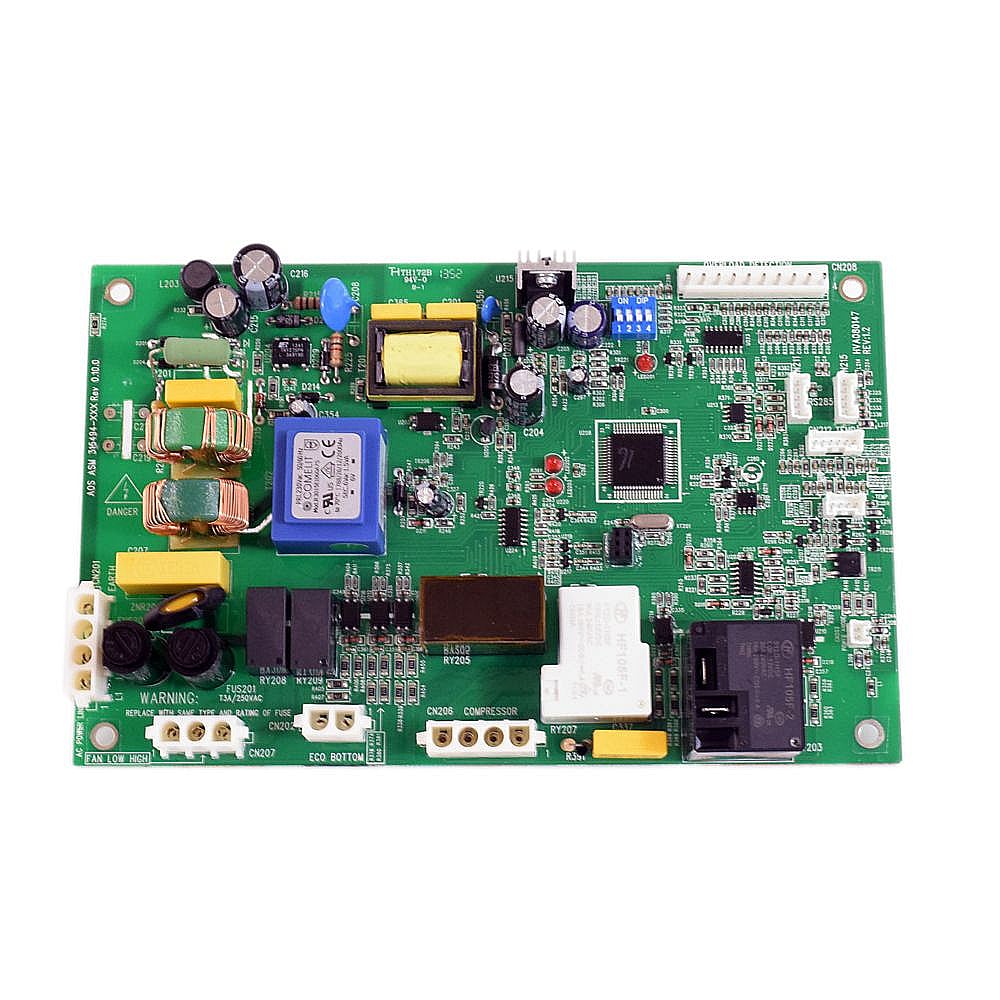

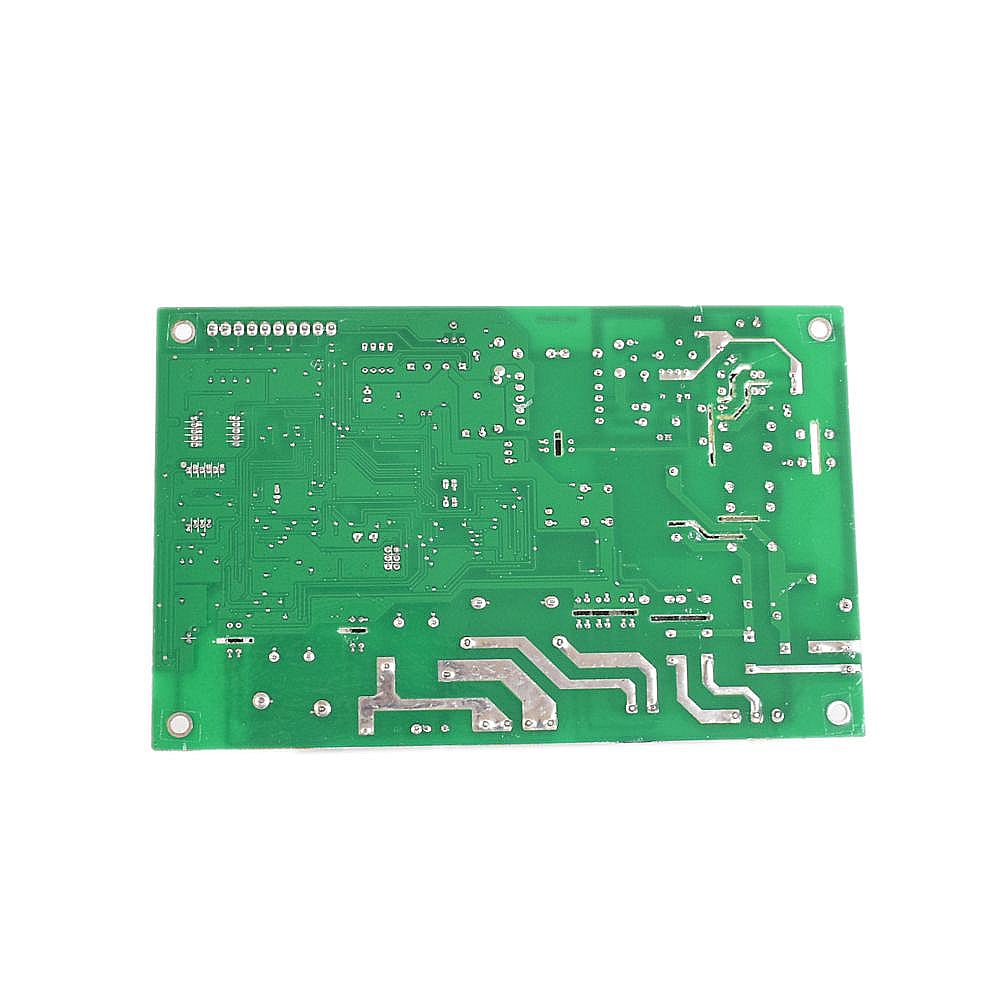

Water Heater Electronic Control Board 9007477005

Part #9007477005

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This electronic control board (part number 9007477005) is for water heaters.

Electronic control board 9007477005 controls the heating elements and monitors water temperature in the water heater.

Disconnect electrical power to the water heater before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #153321160 Kenmore Elite electric water heater153321160
Water heater
Shop Parts
Model #153321180 Kenmore Elite electric water heater153321180
Water heater
Shop Parts
Model #153321181 Kenmore Elite electric water heater153321181
Water heater assy
Shop Parts
Model #153321161 Kenmore Elite electric water heater153321161
Water heater assy
Shop Parts
