CONFIRM THE PART FITS
Part Information
Special details: The function of belt M74747 varies depending on the model. Use the illustration for your model and key number of the belt to confirm this is the belt you need before ordering.

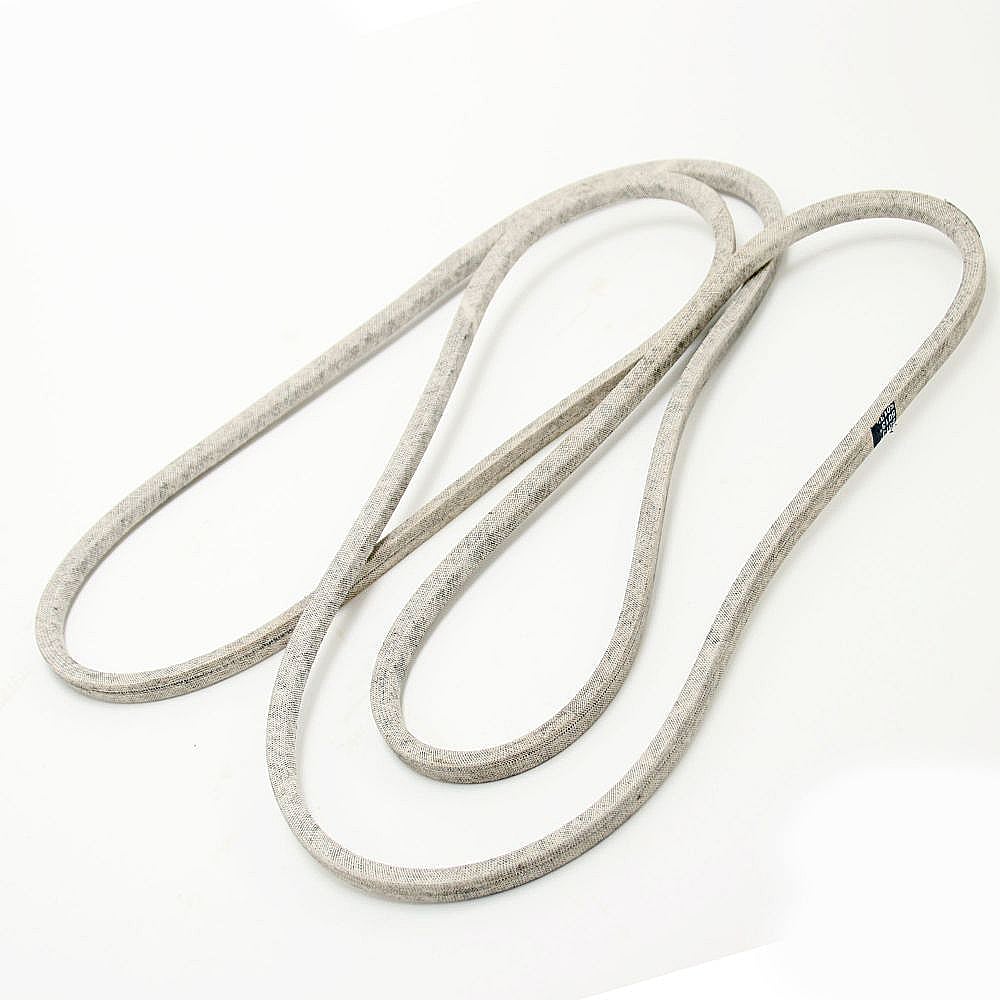

This ground drive or blade drive belt (part number M74747) is for lawn tractors.
Belt M74747 is used in multiple locations on various models. The belt turns the deck pulley to spin the blades on some models; on others, the belt turns the transmission pulley to move the tractor.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #750256050 Craftsman front-engine lawn tractor | 750256050 | Belt drive and idlers |
Model #1546 Sabre front-engine lawn tractor | 1546 | Belt drive and idlers |
Model #1338 GEAR GXSABRF Sabre front-engine lawn tractor | 1338 GEAR GXSABRF | Belt drive and idlers (gear) |
Model #1538 HYDRO GXSABRB Sabre front-engine lawn tractor | 1538 HYDRO GXSABRB | Belt drive and idlers (gear) |
Model #1546 GEAR GXSABRC Sabre front-engine lawn tractor | 1546 GEAR GXSABRC | Belt drive and idlers (gear) |
Model #15538 GEAR GXSABAJ Sabre front-engine lawn tractor | 15538 GEAR GXSABAJ | Belt drive and idlers (gear) |
Model #15538 HYDRO GXSABH Sabre front-engine lawn tractor | 15538 HYDRO GXSABH | Belt drive and idlers (gear) |
Model #1646 HYDRO GXSABRD Sabre front-engine lawn tractor | 1646 HYDRO GXSABRD | Belt drive and idlers (gear) |
Model #1646 HYDRO GXSABRE Sabre front-engine lawn tractor | 1646 HYDRO GXSABRE | Belt drive and idlers (gear) |
