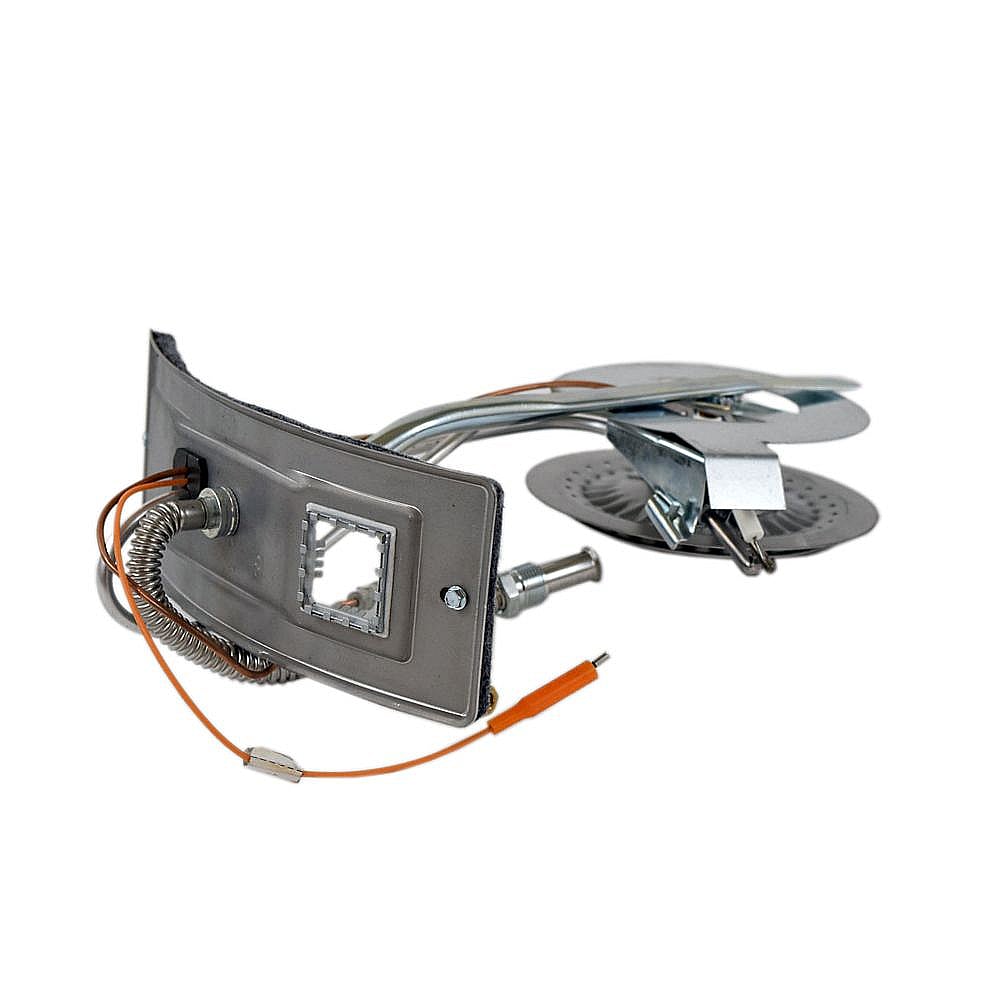

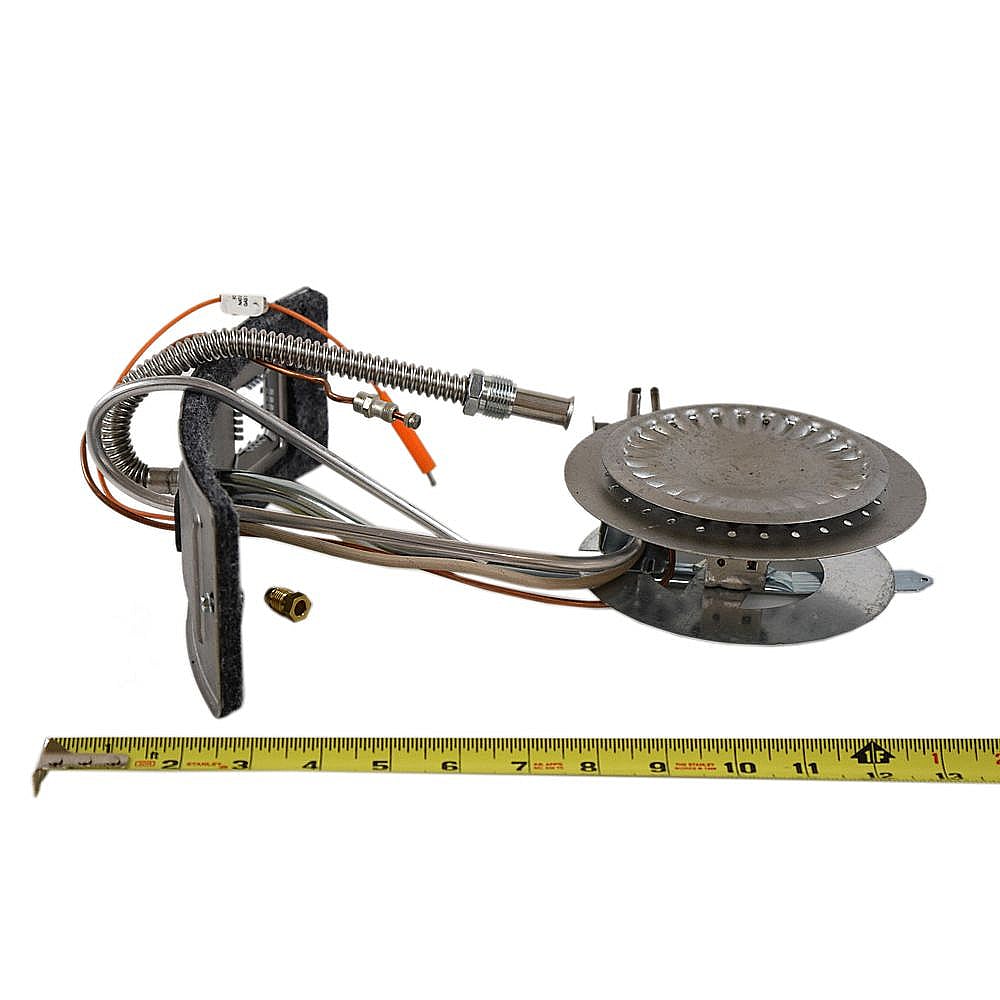

Water Heater Manifold Door and Burner Assembly 9006524005

Part #9006524005

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This manifold door and burner assembly (part number 9006524005) is for water heaters.

Manifold door and burner assembly 9006524005 connects the burner to the gas supply tube and holds the burner in place. The assembly includes multiple parts; refer to your parts diagram for a complete list of parts included.

Shut off the gas supply before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #GS640YBDS State gas water heaterGS640YBDS
Water heater
Shop Parts
Model #640YBDS Reliance gas water heater640YBDS
Water heater
Shop Parts
