How to replace a garage door opener drive chain and cable assembly

Use a step ladder to access the garage door opener’s power cord and motor unit.

Unplug the garage door opener.

Pull the emergency release rope to release the trolley from the garage door.

Shut the garage door if it's not already closed.

Remove the fastener ring from the straight door arm connected to the outer trolley.

Pull out the clevis pin while supporting the straight arm to disconnect the garage door from the outer trolley.

Lower the straight and curved arms and rest them against the garage door. Use a helper if necessary.

Open the light cover to access the wall control and safety sensor wires connected to the motor unit.

Take a digital photo of the wall control and safety sensor wires connected to the motor unit. You’ll refer to the photo later when reconnecting the wires.

Disconnect the wall control and safety sensor wires from the motor unit.

Close the light cover.

Remove the nuts, bolts and lock washers that secure the motor unit to the ceiling bracket.

Support the motor unit with one hand as you remove the last bolt from the ceiling bracket.

Carefully lower the motor unit down and rest it securely on top of the step ladder.

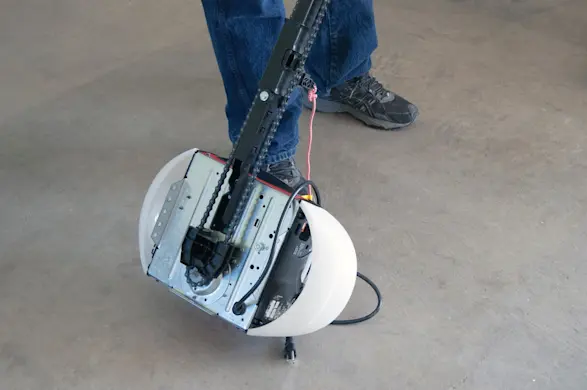

Climb down the step ladder and lower the motor unit down to the garage floor.

Move your step ladder by the garage door so you can remove the rail from the header bracket.

Remove the fastener ring from the header bracket clevis pin.

Pull the clevis pin out of the rail and header bracket while supporting the rail with one hand.

Lower the rail to the garage floor.

Slide the outer trolley away from the inner trolley.

Mark the rail to indicate the position of the inner trolley so that you can reinstall it in the same place after replacing the chain and cable assembly.

Remove the outer nut from the trolley threaded shaft.

Pull the threaded shaft out of the trolley.

Pull the chain off the motor unit sprocket.

Pry off the master link clip-on spring from the master link cap on the trolley.

Pull off the master link bar and master link cap.

Remove the idler pulley nut and lock washer.

Pull out the idler pulley bolt and slide the idler pulley out of the rail window.

Pull the chain cable out of the rail window.

Disconnect the trolley threaded shaft from the chain by removing the master link clip-on spring, master link cap and master link bar.

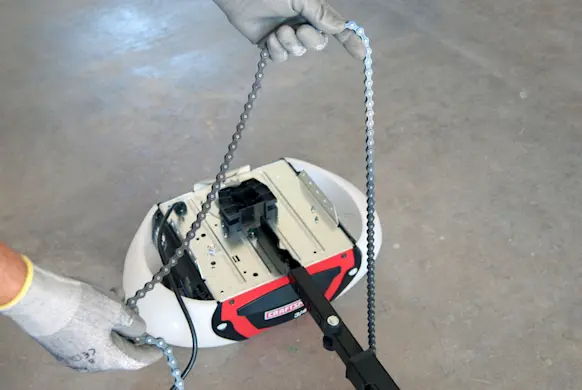

Remove the chain and cable assembly.

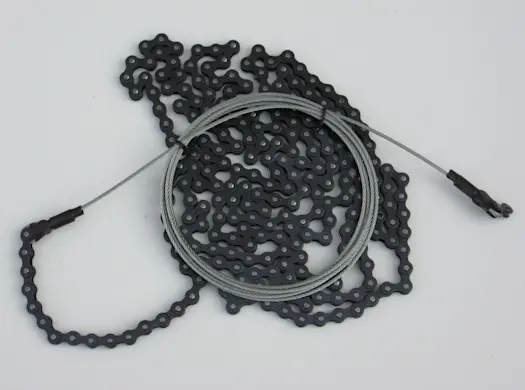

Lay the new chain and cable assembly beside the rail.

Grasp the end of the chain cable and pass approximately 12 inches of cable through the rail window.

Add general-purpose grease to the idler pulley center hole if it's dry.

Insert the idler pulley into the rail window behind the chain cable and line up the mounting hole.

Reinstall the idler pulley bolt and tighten it firmly with the lock washer and nut.

Make sure the idler pulley spins freely after tightening the nut.

Connect the chain cable to the retaining slot by pushing the pins of the master link bar up through the cable link and trolley slot.

Push the master link cap over the master link bar pins and past the pin notches.

Slide the clip-on spring over the master link cap and onto the pin notches until both pins are securely locked in place.

Position the inner trolley to the previously marked position on the rail.

Align the rest of the chain and cable assembly along the rail, routing the cable onto the idler pulley and threading the chain through the chain spreader and around the motor sprocket, making sure not to twist the chain.

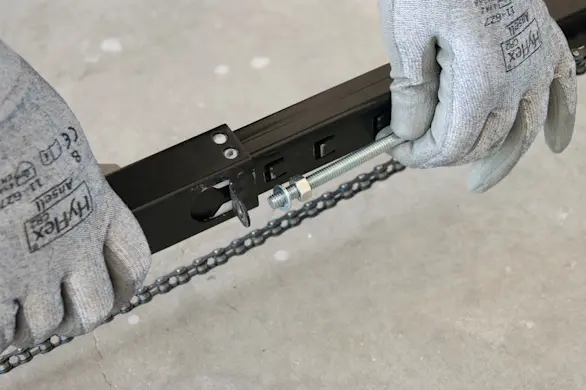

Connect the trolley threaded shaft to the new chain by pushing the pins of the master link bar up through the threaded shaft mounting hole and the end link of the new chain.

Push the master link cap over the master link bar pins and past the pin notches.

Slide the clip-on spring over the master link cap and onto the pin notches until both pins securely lock in place.

Thread the inner nut up to the top of the trolley threaded shaft and reinstall the inner lock washer on the threaded shaft.

Making sure not to twist the chain, insert the trolley threaded shaft through the hole in the trolley. Using channel lock pliers, apply tension to the trolley.

Insert the lock washer on the trolley threaded shaft and loosely thread the outer nut onto the threaded shaft.

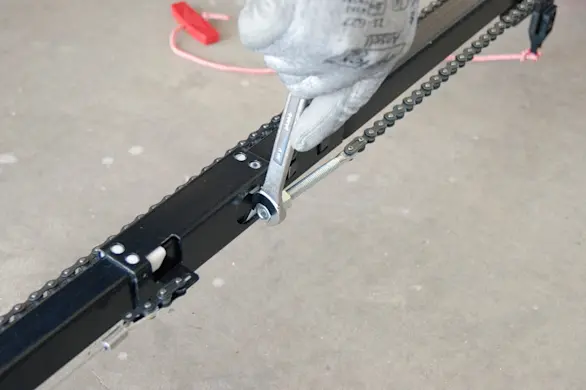

Tighten the outer nut to pull the trolley threaded shaft into the trolley, tightening the chain until the chain is about 1/4-inch above the base of the rail at its midpoint.

Tighten the inner nut against the trolley to secure the adjustment.

Reconnect the rail end to the header bracket using the clevis pin and fastener ring.

Position your step ladder under the motor unit ceiling bracket and carefully set the motor unit on top of the step ladder.

Climb the step ladder and reinstall the motor unit to the ceiling bracket using the nuts, bolts and lock washers.

Open the light cover to access the wall control and safety sensor terminals on the motor unit.

Using your digital photo for reference, reconnect the wall control and safety sensor wires to the motor unit.

Close the light cover.

Reconnect the straight door arm to the outer trolley using the clevis pin and fastener ring.

Re-engage the trolley.

Plug in the garage door opener.

Run the garage door opener through a complete travel cycle to check upper and lower travel limits.

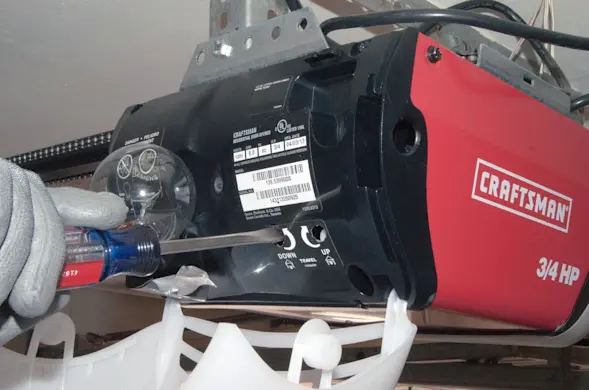

If the garage door doesn't close completely, adjust the down travel and cycle the door open and closed to test the adjustment. Continue to adjust the down travel until the door closes completely.

If the door doesn't open completely, adjust the up travel in the same manner.
