How to replace a freezer defrost heater

By Lyle Weischwill
How to replace a freezer defrost heater

This DIY repair guide explains how to replace the defrost heater in a freezer. The defrost heater melts frost and ice from the freezer's evaporator fins. If the defrost heater stops working, frost builds up on the evaporator and the freezer warms up. Replace the defrost heater with the manufacturer-approved replacement part if the heater no longer works.

Use this basic procedure to replace the defrost heater in Kenmore, Frigidaire, Electrolux, Whirlpool, KitchenAid, GE, Crosley, Gibson and Kelvinator freezers.

Quick links
Tools required
Phillips screwdriver
Work gloves
Repair difficulty
Time required
45 minutes or less
Repair difficulty
Time required
45 minutes or less
How to replace an upright freezer defrost heater repair guide video.

Replacing a freezer defrost heater video.

Instructions

  1. 01.

    Disconnect the electrical power

    Unplug the freezer or shut off the circuit breaker for the freezer.

    Tip: Move highly perishable food to a cooler or other cooled space. The freezer will be without power for about 45 minutes, which shouldn't affect most frozen foods.
  2. 02.

    Remove the evaporator cover

    Remove the drawers and shelves from the freezer.

    Remove the screws from the evaporator cover at the back of the freezer.

    Pull the evaporator cover out of the freezer.

    Remove the freezer drawers.

    Remove the freezer drawers.

    Remove the evaporator cover screws.

    Remove the evaporator cover screws.

    Pull out the evaporator cover.

    Pull out the evaporator cover.

  3. 03.

    Remove the defrost heater

    Remove the two aluminum straps at the bottom of the evaporator.

    Remove the Styrofoam insulators from both sides of the evaporator.

    Unplug the defrost heater wires.

    Pull the defrost heater out.

    Warning: The aluminum fins of the evaporator are sharp. Wear work gloves to protect your hands.

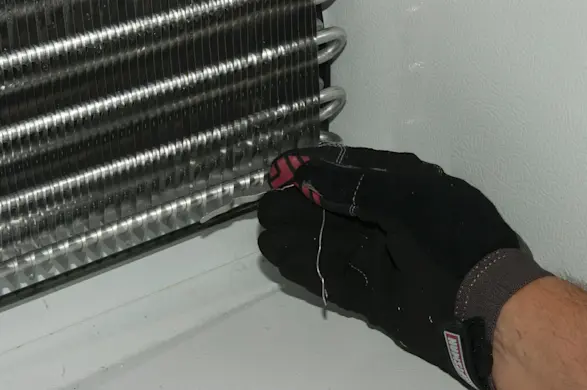

    Remove the aluminum mounting straps.

    Remove the aluminum mounting straps.

    Remove the styrofoam insulation blocks.

    Remove the styrofoam insulation blocks.

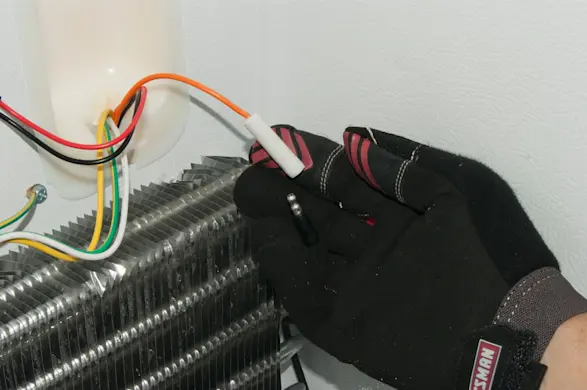

    Unplug the defrost heater wires.

    Unplug the defrost heater wires.

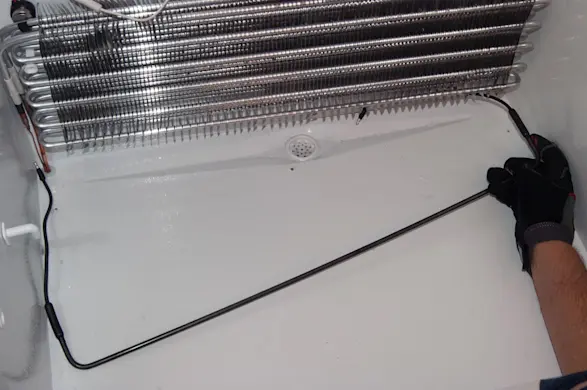

    Pull the defrost heater out.

    Pull the defrost heater out.

  4. 04.

    Install the new defrost heater

    Push the new defrost heater into the evaporator.

    Reinstall the two aluminum straps and the Styrofoam insulators.

    Connect the defrost heater wires.

    Push the new defrost heater into place.

    Push the new defrost heater into place.

    Reinstall the aluminum mounting straps.

    Reinstall the aluminum mounting straps.

    Reinstall the styrofoam insulation blocks.

    Reinstall the styrofoam insulation blocks.

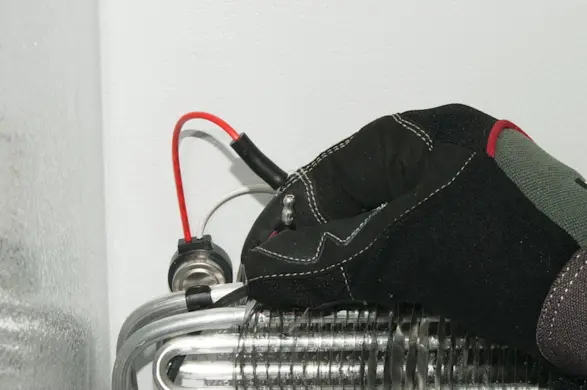

    Plug in the defrost heater wires.

    Plug in the defrost heater wires.

  5. 05.

    Reinstall the evaporator cover

    Position the evaporator cover on the back wall and reinstall the mounting screws.

    Reinstall the drawers and shelves inside the freezer cabinet.

    Reisntall the evaporator cover.

    Reisntall the evaporator cover.

    Reinstall the evaporator cover gasket.

    Reinstall the evaporator cover gasket.

  6. 06.

    Restore electrical power

    Plug in the freezer or turn on the house circuit breaker to restore power.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
