November 1, 2015

How to replace a downdraft vent up/down button pad

By Kim Hillegass
How to replace a downdraft vent up/down button pad

This DIY repair guide shows how to replace the up/down button pad on a downdraft vent. The up/down button pad activates the up/down switch when you push the pad. If the pad wears out or is damaged, the pad won’t activate the switch, and the vent won’t move. Replace a damaged or worn pad with the manufacturer-approved replacement part.

This repair procedure works for Kenmore, Broan, GE, Whirlpool, KitchenAid, Frigidaire and Electrolux downdraft vents.

Quick links
Tools required
Rubbing alcohol
Cleaning cloth
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less

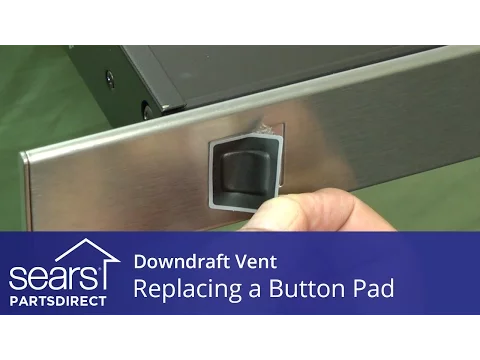

How to replace a downdraft vent button pad repair guide video.

Replacing a downdraft vent button pad video.

Instructions

  1. 01.

    Shut off the electricity

    Unplug the power cord from the wall outlet.

  2. 02.

    Remove the up/down button pad

    Grasp one corner of the up/down button pad and peel the pad off from the top cover.

    Peel off the button pad.

    Peel off the button pad.

  3. 03.

    Clean the mounting surface

    Clean adhesive and residue from the mounting surface using rubbing alcohol.

    Clean the button pad mounting surface.

    Clean the button pad mounting surface.

  4. 04.

    Install the new up/down button pad

    Peel off the adhesive backing on the new up/down pad. Center the up/down button pad above the switch and press down around the outer edges.

    Peel off the adhesive backing.

    Peel off the adhesive backing.

    Attach the new button pad.

    Attach the new button pad.

  5. 05.

    Restore power

    Reconnect the power cord.

Warning: Undertaking repairs or maintenance to appliances or power equipment can be hazardous. Should you choose to undertake repairs or maintenance, you are assuming the risk of injury to your person or property. In an effort to reduce the risk, use the proper tools and safety equipment noted in the applicable guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs or maintenance, however, should only be performed by a qualified technician.
