How to install a dryer gas valve coil kit

By Lyle Weischwill
How to install a dryer gas valve coil kit

This DIY dryer repair guide gives step-by-step instructions for how to replace the gas valve coils on a gas dryer. The valve coils open the gas valves while the dryer is running. If the dryer heats initially but then stops heating, the problem is usually the gas valve coils. That's because weak coils can open the valves when you first start the dryer, but when the burner cycles off and then tries to light again, weak coils can't open the valves correctly. Replace the failed valve coils with the manufacturer-approved replacement part.

Some dryer models require removing the dryer drum to reach the valve coils. Here's a repair guide that shows how to remove a dryer drum.

This procedure works for Kenmore, Whirlpool, Maytag, Amana, Roper, Crosley and Estate gas dryers with a lint screen housing located in the top cabinet panel. Although the procedure for opening the dryer cabinet differs, you also can use the same basic repair steps to replace gas valve coils in Frigidaire, GE and Electrolux models.

Quick links
Tools required
Nut driver set
Phillips screwdriver
Putty knife
Work gloves
Slot screwdriver
Vacuum cleaner or shop vac
Repair difficulty
Time required
90 minutes or less
Repair difficulty
Time required
90 minutes or less
Installing a gas valve coil kit on a dryer

This video explains how to replace the gas valve coil kit in a gas dryer.

Instructions

  1. 01.

    Shut off the power and gas supply

    Unplug the dryer to disconnect electrical power. Shut off the gas supply to the dryer.

    Wear work gloves to protect your hands.

  2. 02.

    Raise the cabinet top

    Pull the lint screen out of the housing in the top panel of the dryer.

    Use a Phillips screwdriver to remove the 2 screws that secure the lint screen housing to the top panel. To release the clips that lock the top of the dryer in place, push a putty knife under the lid near the left and right edges of the front of the dryer.

    Lift the top and prop it securely against the wall behind the dryer.

    Remove the lint screen.

    Remove the lint screen.

    Remove the lint screen housing screws.

    Remove the lint screen housing screws.

    Release the panel locking clips.

    Release the panel locking clips.

    Lift the top panel.

    Lift the top panel.

  3. 03.

    Remove the front panel

    Use a slot screwdriver to release the locking tab on the wire harness plug for the door switch. Disconnect the wire harness.

    Use a 5/16-inch nut driver to remove the front panel mounting screws from the inside of the cabinet.

    Pull the front panel forward slightly, and then lift and unhook it from the 2 bottom hangers.

    Pull the front panel off of the dryer and set it aside.

    Disconnect the wire harness for the door switch.

    Disconnect the wire harness for the door switch.

    Remove the front panel mounting screws.

    Remove the front panel mounting screws.

    Remove the front panel.

    Remove the front panel.

  4. 04.

    Remove the coils

    Pull the wire harness plugs off of the valve coils.

    Remove the mounting screws from the mounting bracket and then pull the mounting bracket off of the top of the valve coils.

    Pull the valve coils off of the burner assembly.

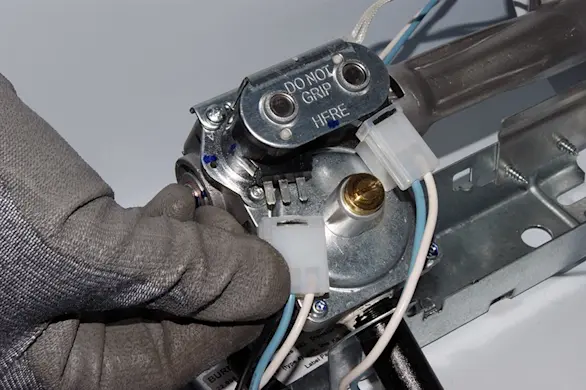

    Remove the wires from the valve coils.

    Remove the wires from the valve coils.

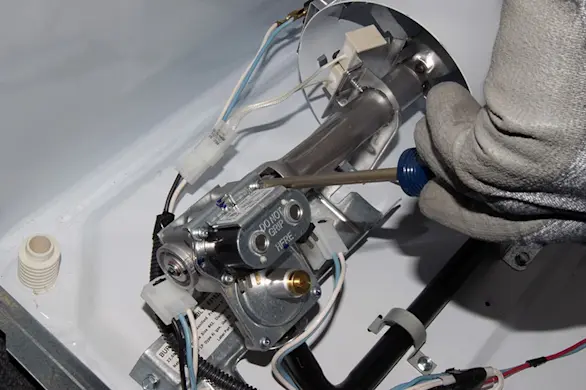

    Remove the valve coil mounting screws.

    Remove the valve coil mounting screws.

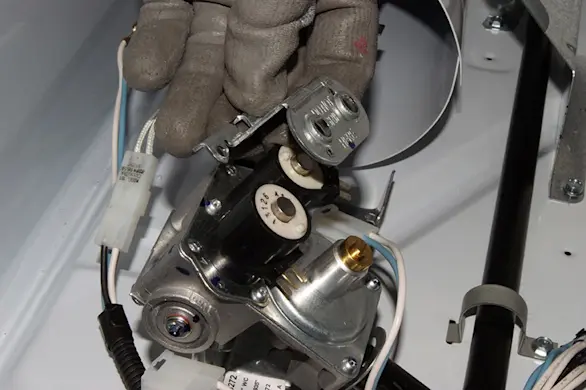

    Pull the mounting bracket off the top of the valve coils.

    Pull the mounting bracket off the top of the valve coils.

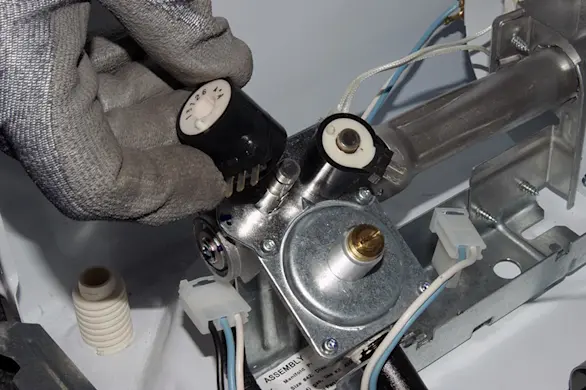

    Remove the valve coils.

    Remove the valve coils.

  5. 05.

    Install the new coils

    Attach the new coils to the burner assembly.

    Reinstall the bracket and reinstall the screws.

    Replace the wire harness plugs on the new valve coils.

    Tip: While the cabinet is open, vacuum the dust and lint from inside the dryer cabinet.
  6. 06.

    Reinstall the front panel

    Position the front panel on the hangers at the bottom of the cabinet.

    Line up the mounting holes and reinstall the screws in the top of the front panel to secure it to the dryer cabinet. Plug the wire harness back into the plug on the door switch. Make sure the locking tab engages properly.

  7. 07.

    Reassemble the top panel

    Lower the top panel and snap it into place.

    Reinstall the screws in the lint duct housing and reinstall the lint screen.

  8. 08.

    Restore power and the gas supply

    Plug the dryer into the wall outlet. Turn on the gas supply to the dryer.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
