How to calibrate a washer after a repair video
If you own a Kenmore, Maytag or Whirlpool top-load washer with a vertical modular drive system*, you have to calibrate the washer’s electronic control board if you replace any of these parts:
Electronic control board
Drive motor
Motor capacitor
Tub suspension springs
If you don’t calibrate the washer, the washer might not fill with the right amount of water for the load, or the washer might have frequently unbalanced loads.
*Your Whirlpool, Maytag or Kenmore washing machine has a vertical modular drive system if it was made in 2010 or later, has a control dial for setting the wash load and stays locked whenever the washer is running. The end of this article has a list of models that have to be calibrated after one of these repairs.
With the washer shut off, the basket empty (no water or clothes) and the lid closed, enter the diagnostic mode:

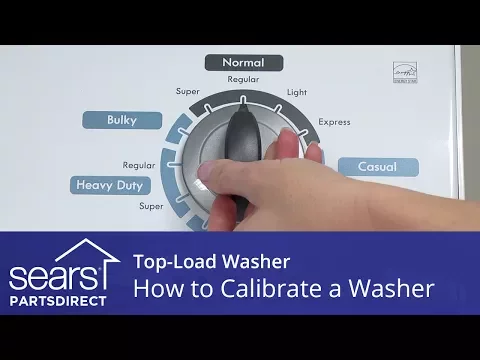

Turn the control dial 1 complete rotation counterclockwise.
Quickly (within about 6 seconds) turn the control dial 3 clicks clockwise, one click counterclockwise, and one more click clockwise. All the status lights blink green when you successfully activate the diagnostic mode. If the status lights don’t blink, turn the control dial one complete rotation counter-clockwise to reset the control and then repeat steps 1 and 2, this time turning the knob faster during step 2.
Turn the control dial 4 clicks clockwise.
When the Rinse light turns on, press Start to begin the calibration cycle
The calibration cycle runs for 2 to 3 minutes. When the calibration cycle ends, the lid unlocks, and the washer shuts off.
VMW washer models that require calibration:
110.2002201
110.20022011
110.20022012
110.20022013
110.20022014
110.2010231
110.20102311
110.20102312
110.2011231
110.20112311
110.2110201
110.21102011
110.21102012
110.21102013
110.2111201
110.21112011
110.2118201
110.21182011
110.21182012
110.21182013
110.2120201
110.21202011
110.2125211
110.21252111
110.21252112
110.2129201
110.21292011
110.21292012
110.21292013
110.2130201
110.21302011
110.21302012
110.21302013
110.2135211
110.21352111
110.21352112
110.2139201
110.21392011
110.21392012
110.21392013
110.2149231
110.21492311
110.2210231
110.22102311
110.22102312
110.2234251
110.2244251
110.2310231
110.23102311
110.2510231
110.25102311
110.2513241
110.2600201
110.26002011
110.26002012
110.2601201
110.26012011
110.26012012
110.2611231
110.2710231
110.2712231
110.2800201
110.28002011
110.28002012
110.2801201
110.28012011
110.28012012
110.299231
110.507201
110.5072011
110.5072012
MVWC400XW
MVWX500XW
MVWX550XW
MVWX600XW
MVWX700XW
WTW4950XW
WTW5500XW
WTW5550XW
WTW5600XW
WTW5700XW
