Huebsch
Dryer

Model # 30EG Official Huebsch commercial dryer

Here are the diagrams and repair parts for Official Huebsch 30EG commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

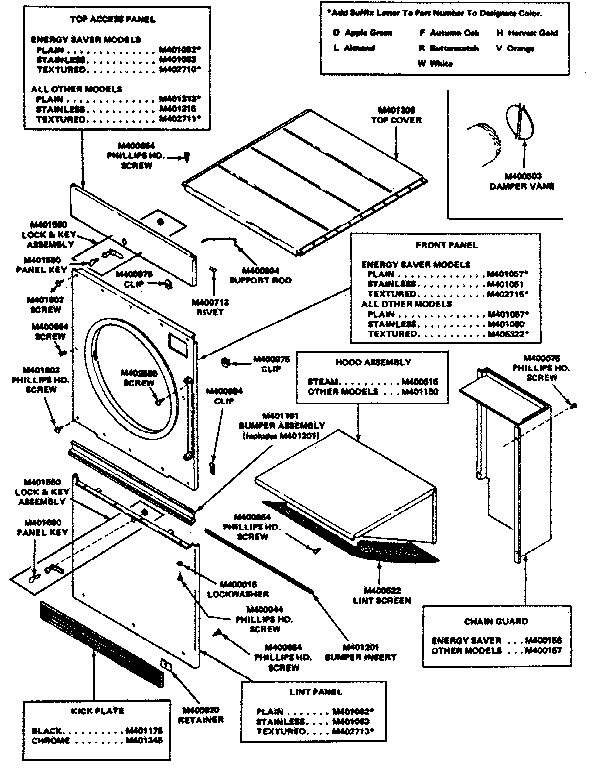

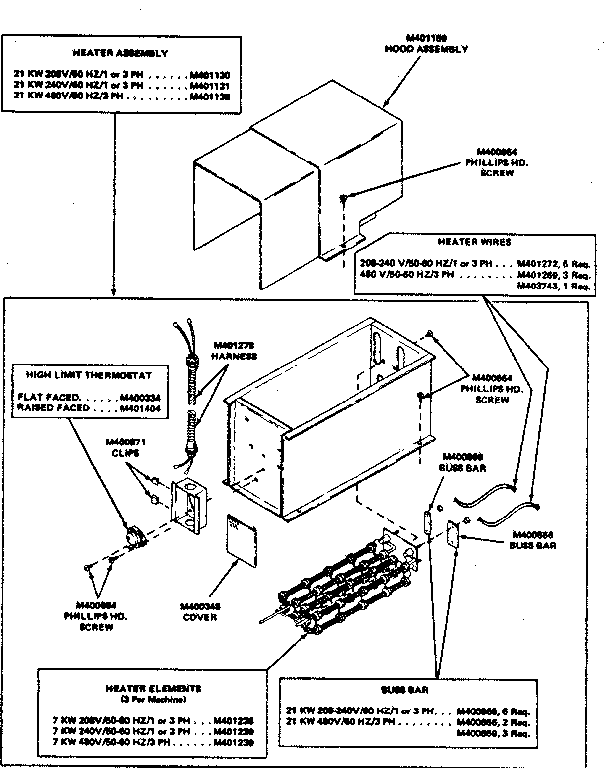

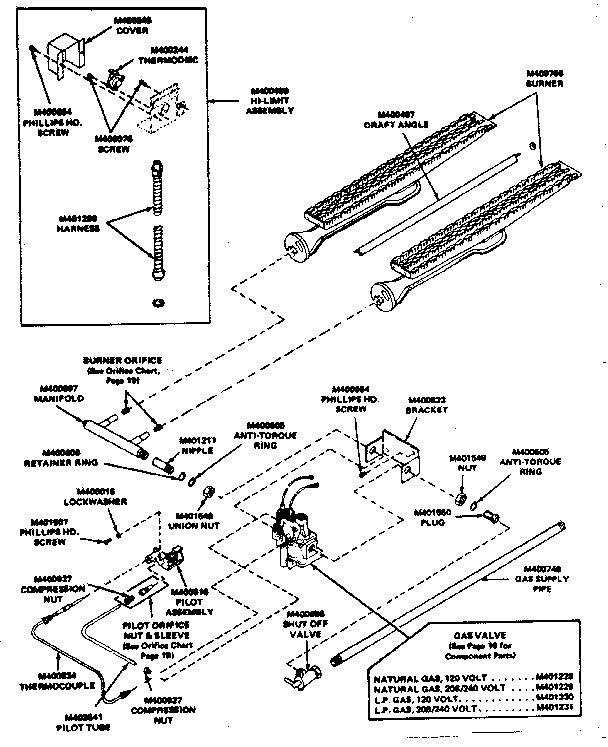

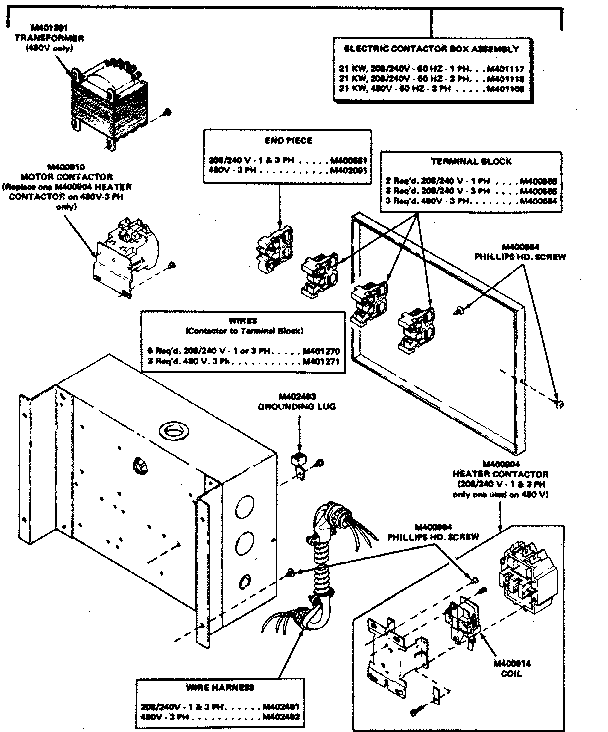

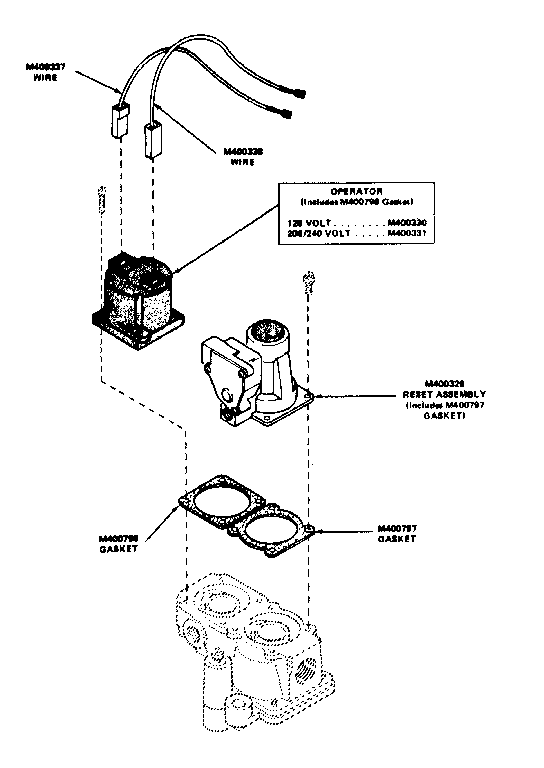

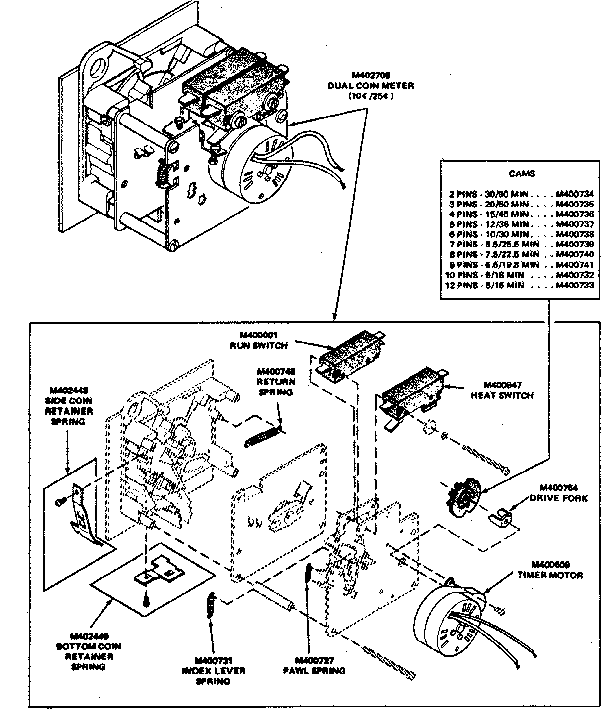

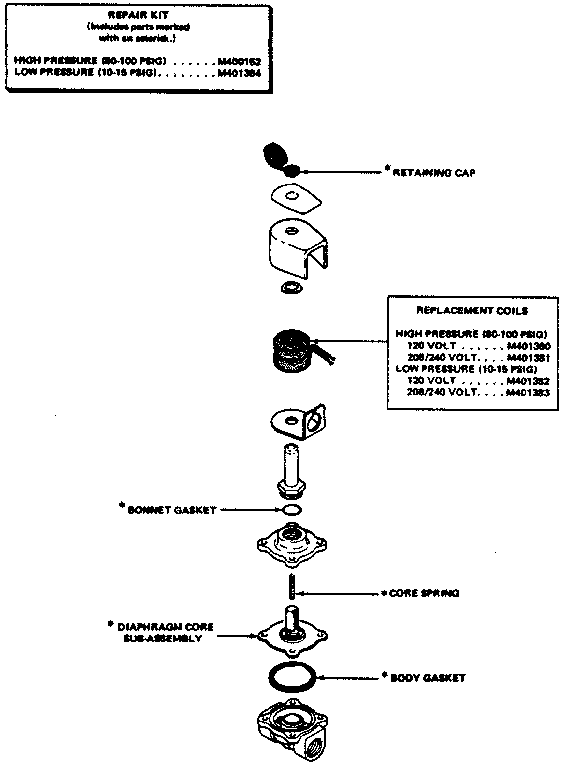

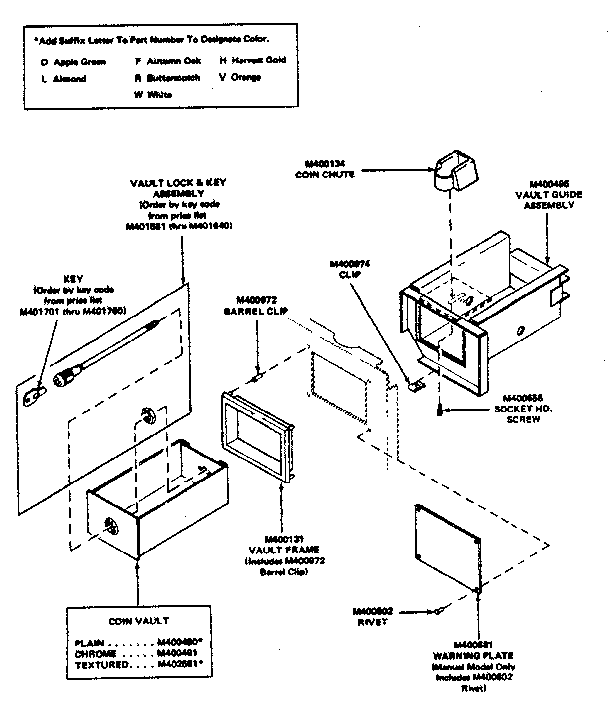

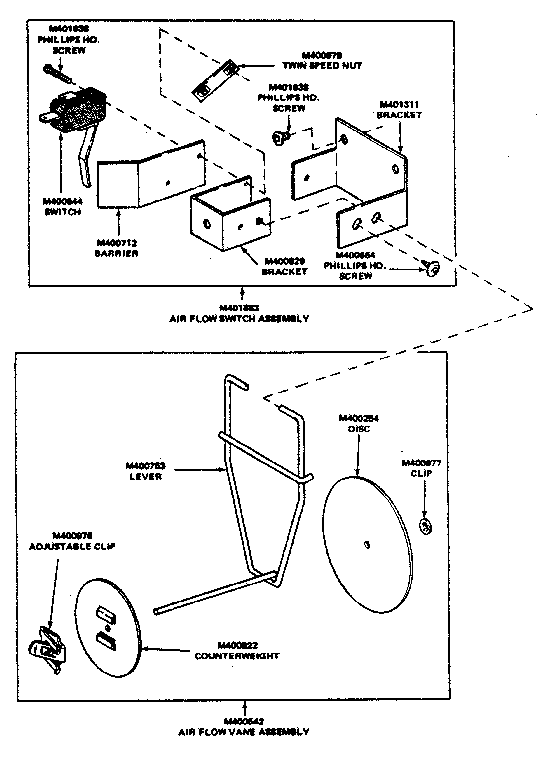

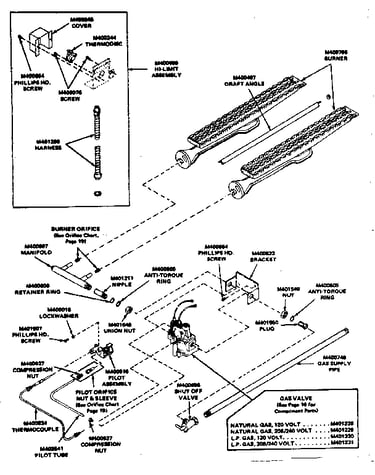

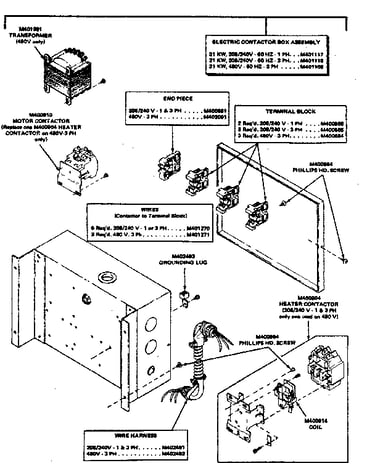

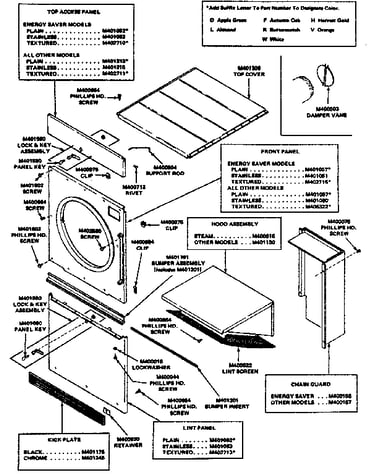

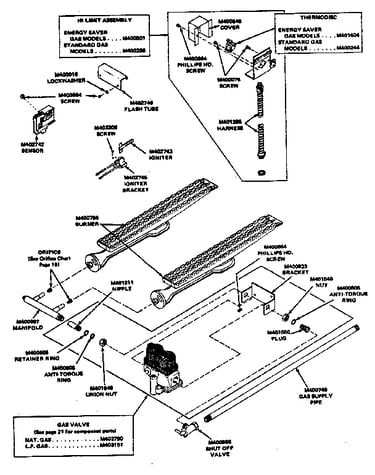

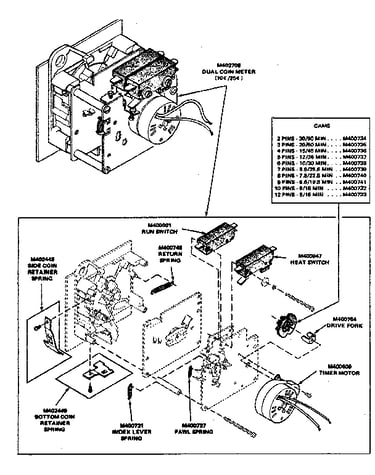

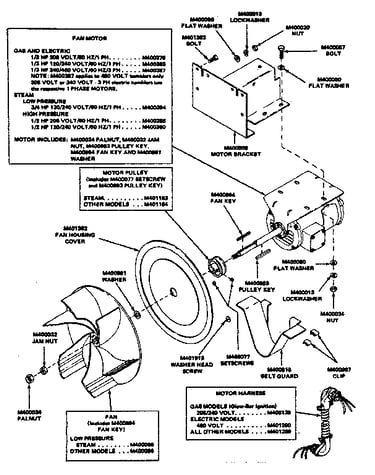

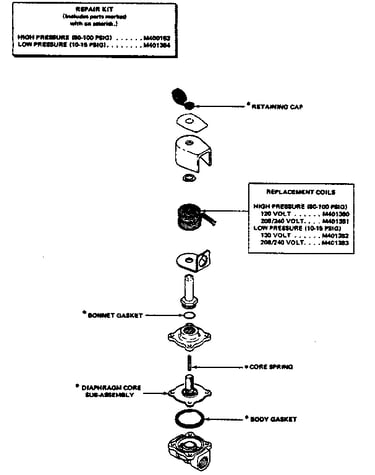

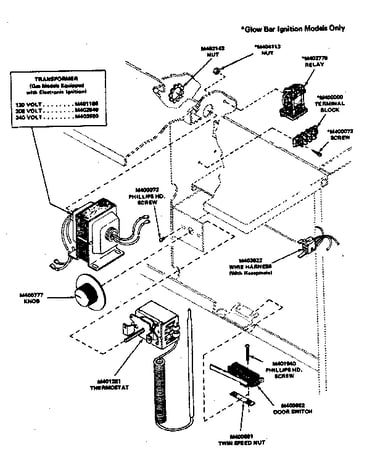

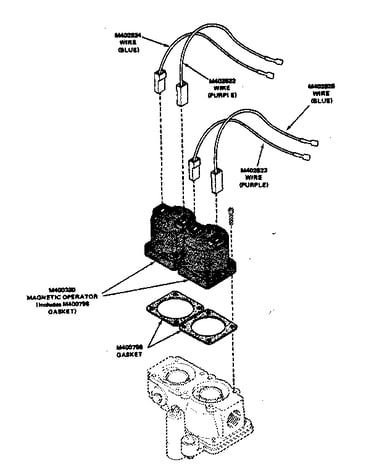

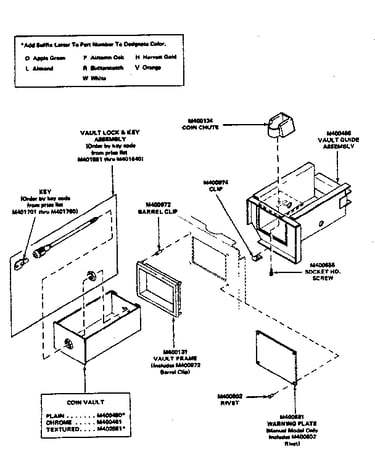

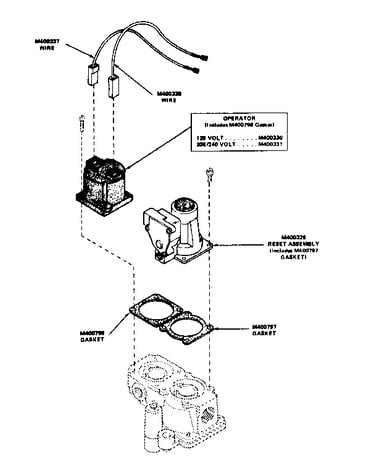

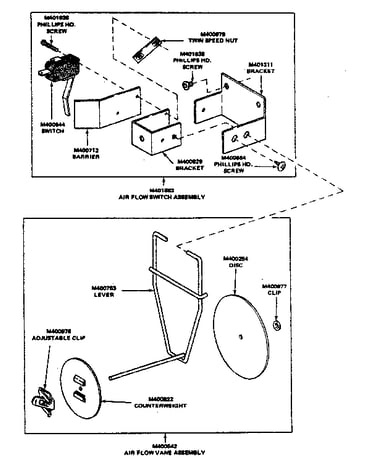

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 397 parts  |

Plt Elct Asm M402591
#25

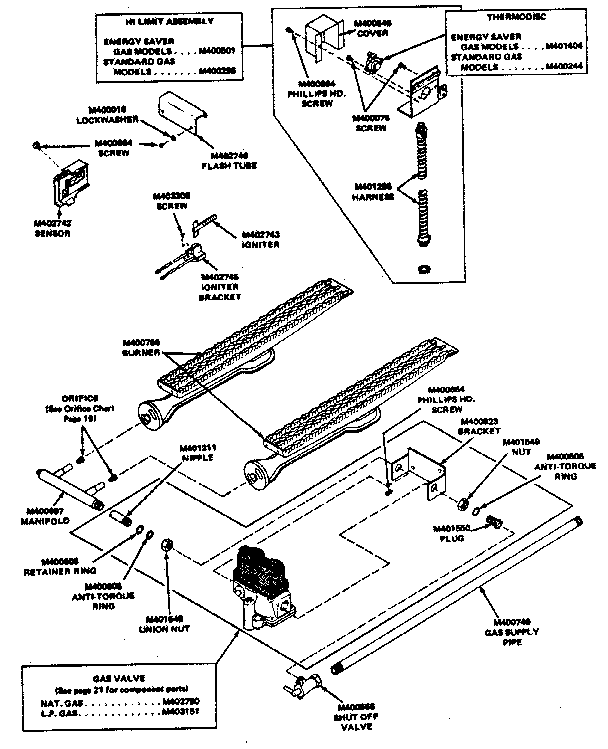

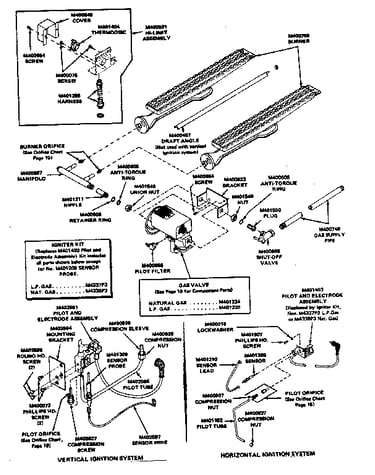

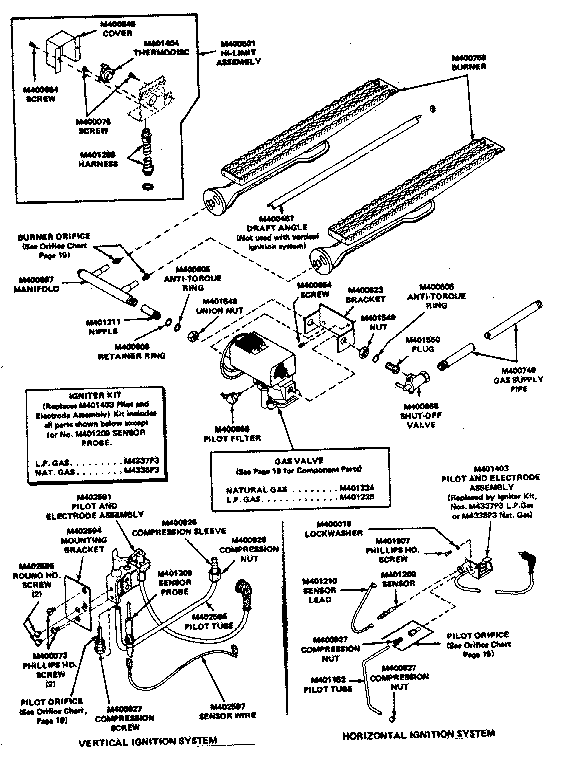

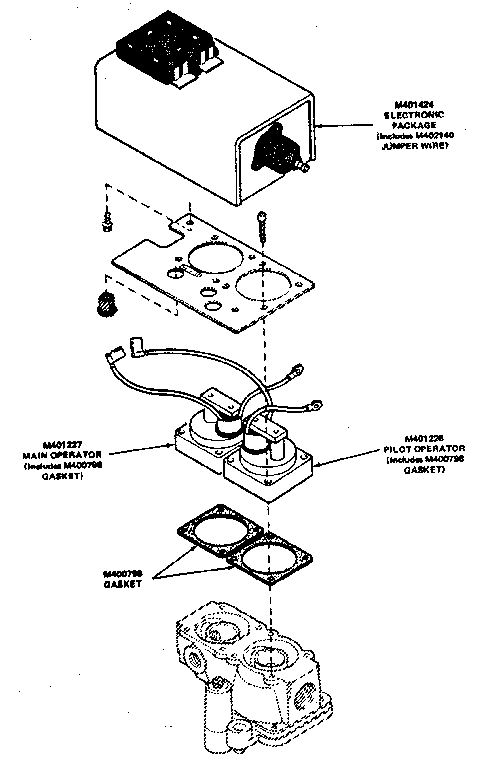

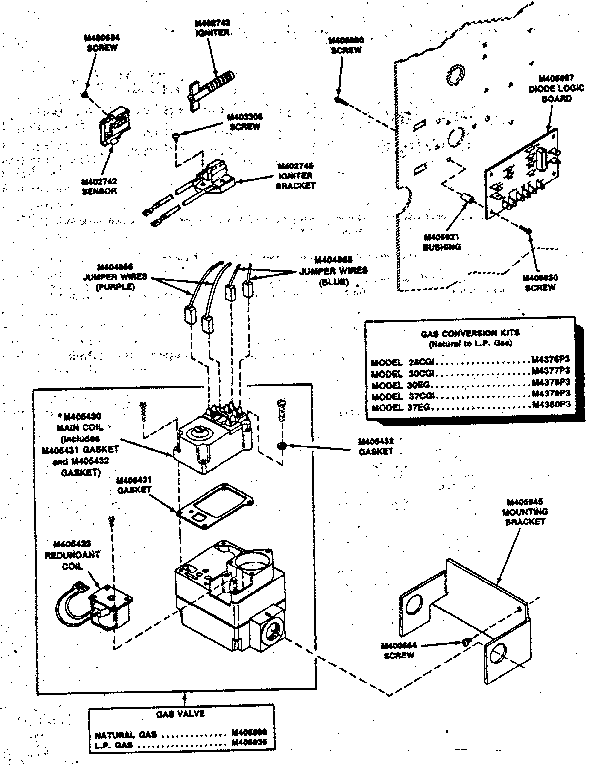

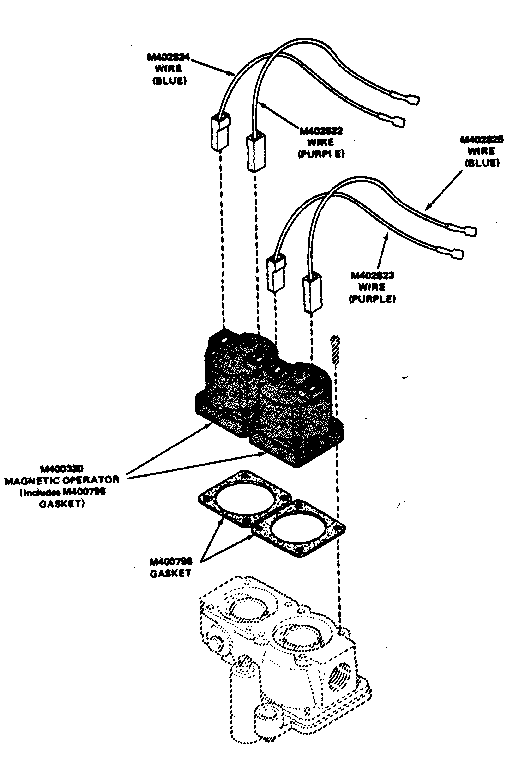

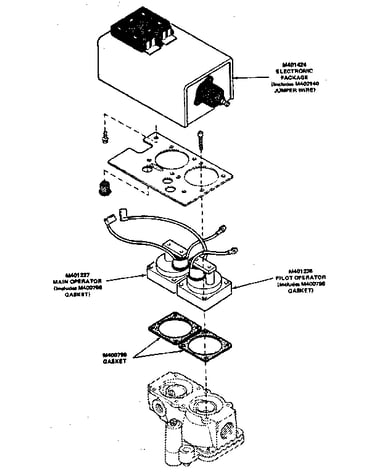

Gas heater assembly (automatic ignition) diagram

Plt elct asm

Part #M402591

In Stock
Washer M401946
#6

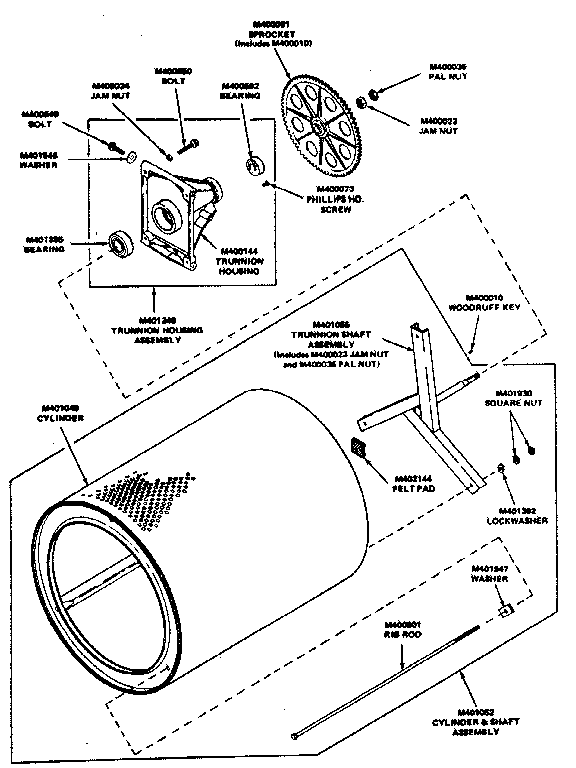

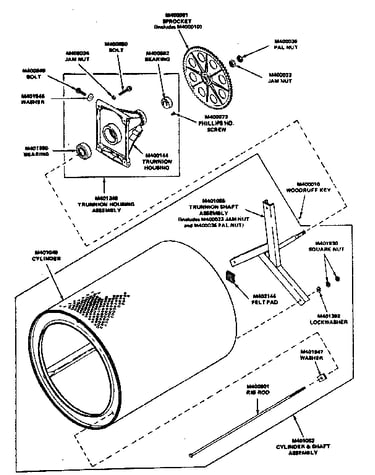

Cylinder and trunnion assemblies diagram

Washer

Part #M401946

This item is not returnable
In Stock

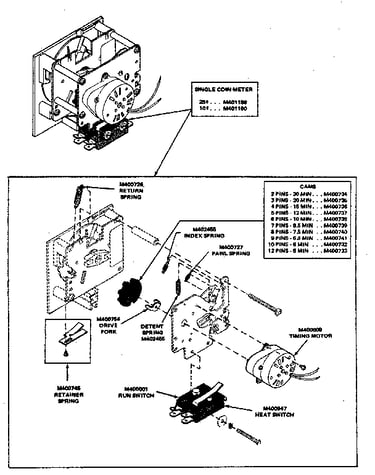

Spring M402455
Spring

Part #M402455

In Stock

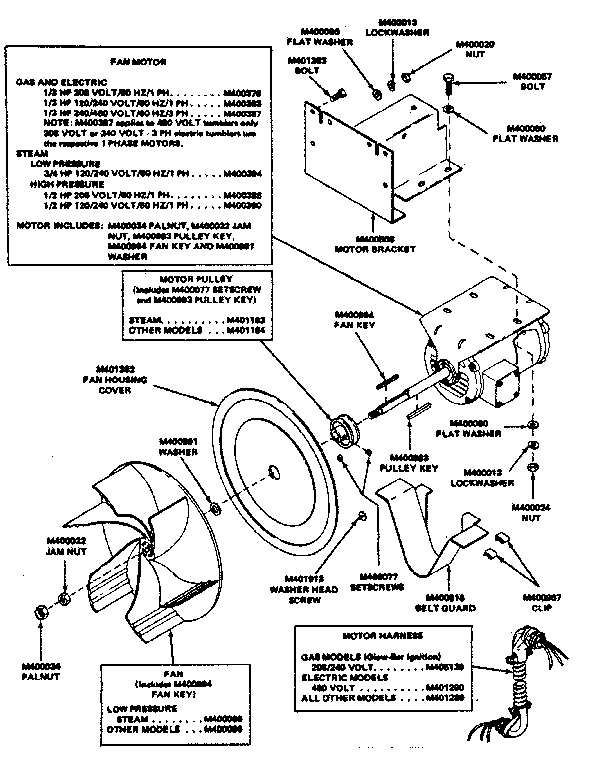

Motor M400794
#2B

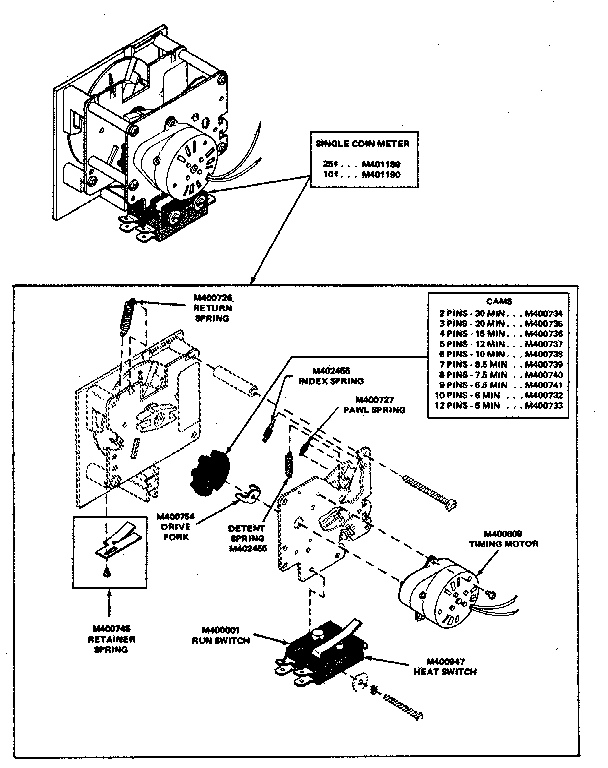

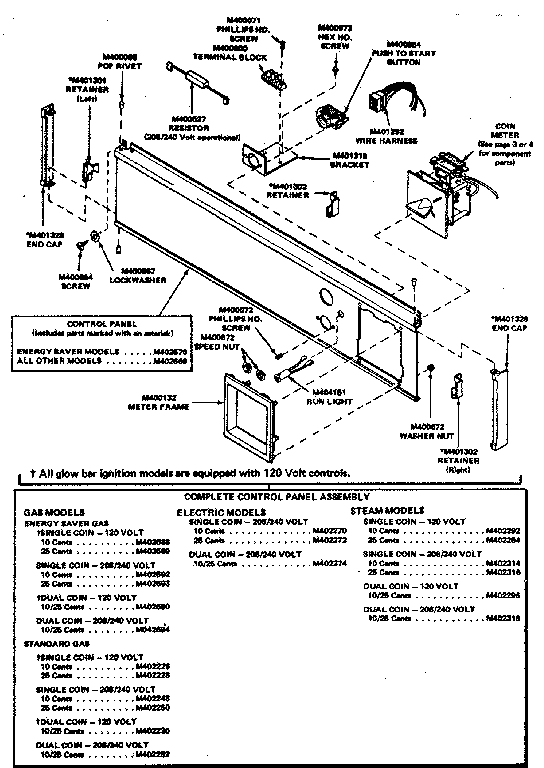

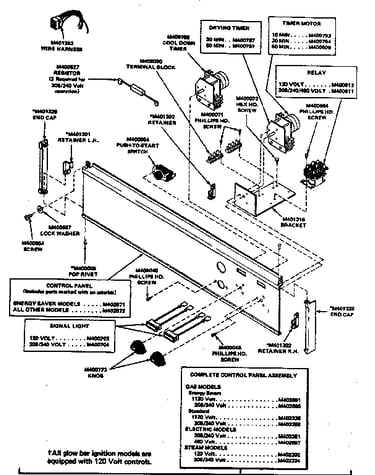

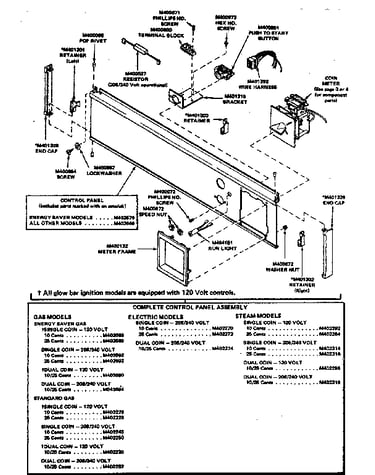

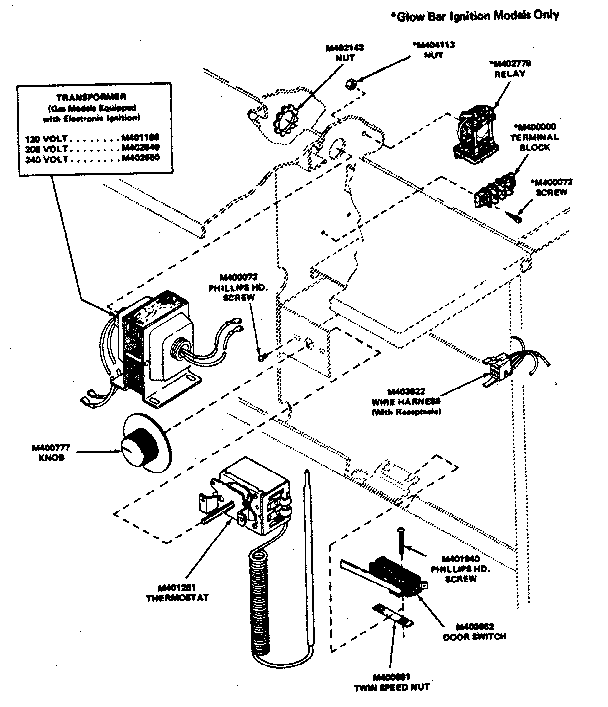

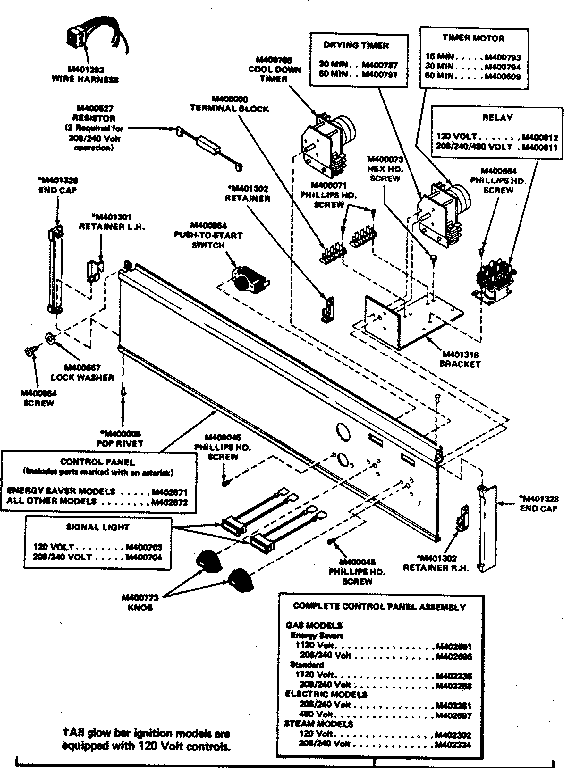

Control panel assembly (manual) diagram

Motor

Part #M400794

In Stock
Plug M401550
Plug

Part #M401550

In Stock
Speed Queen Washer M400081
#7

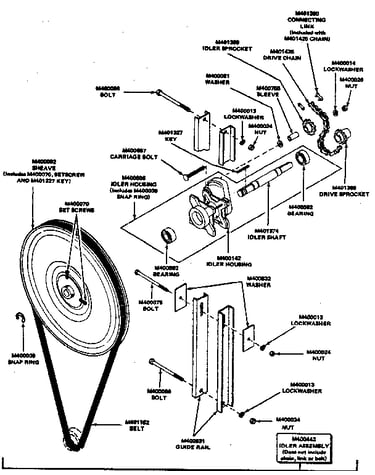

Idler drive components diagram

Speed queen washer

Part #M400081

This item is not returnable
In Stock
Screw M401938
Screw

Part #M401938

In Stock
Speed Queen Dryer Screw M400653
#3

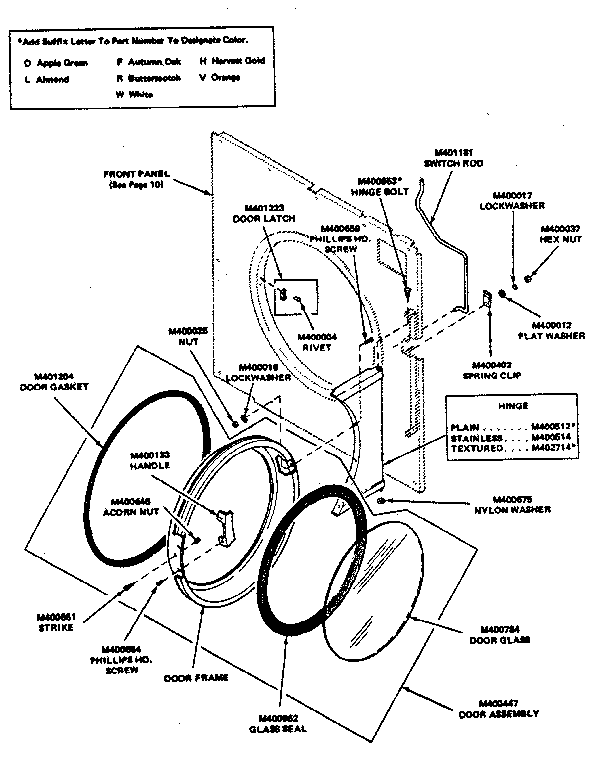

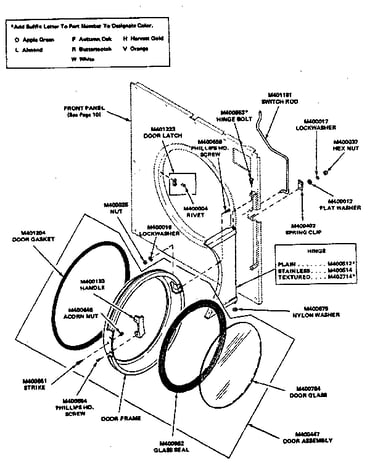

Loading door and switch rod assembly diagram

Speed queen dryer screw

Part #M400653

In Stock
Nut M400023
#8

Cylinder and trunnion assemblies diagram

Nut

Part #M400023

This item is not returnable
In Stock
Dryer Thermostat M401257
#2

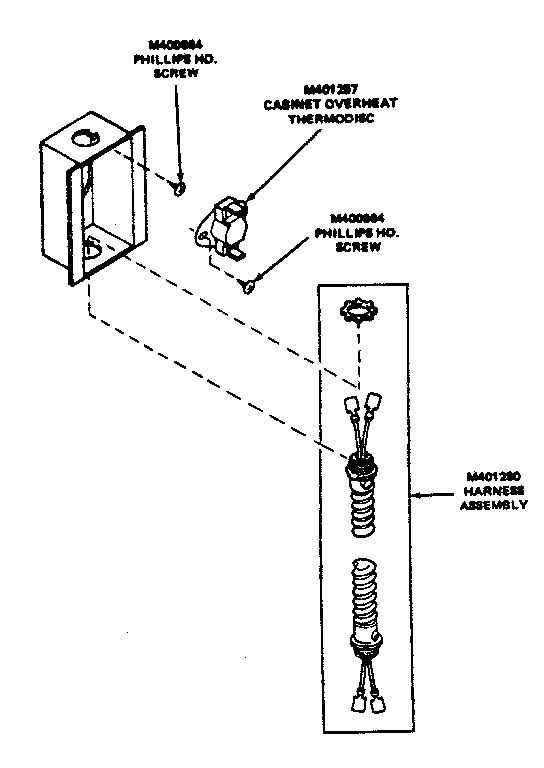

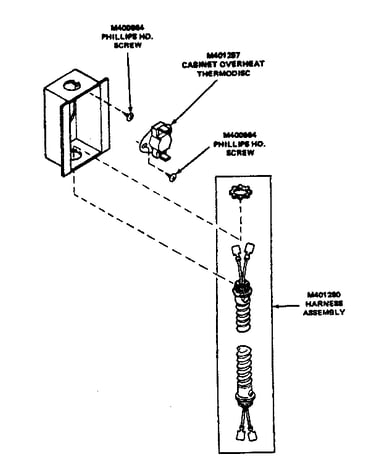

Cabinet high limit assembly (energy saver gas models only) diagram

Dryer thermostat

Part #M401257

In Stock
