Kenmore
Electronic Sewing Machine

Model # 3851950180 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 3851950180 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

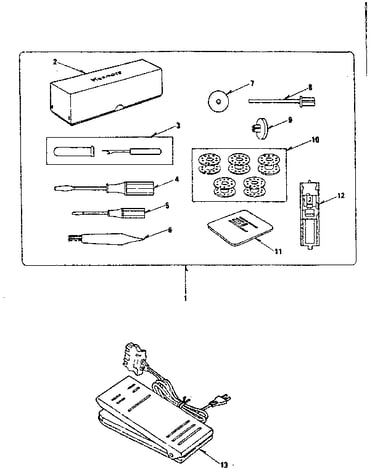

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Plate 823099001
#18

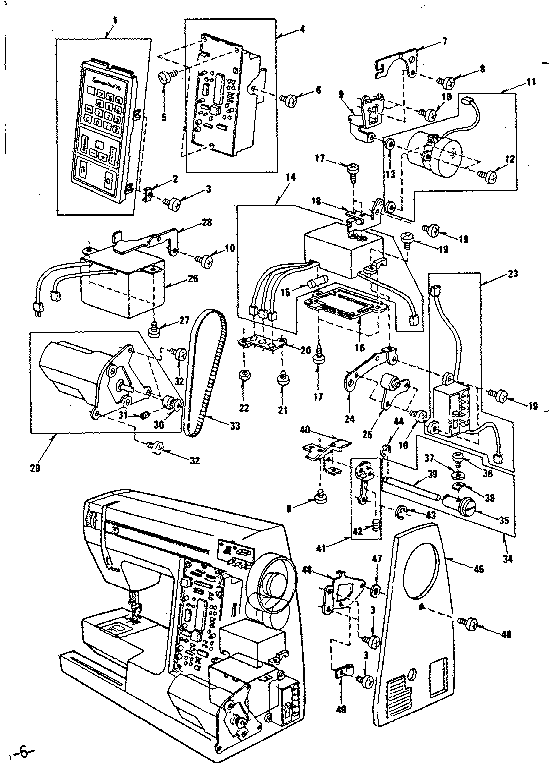

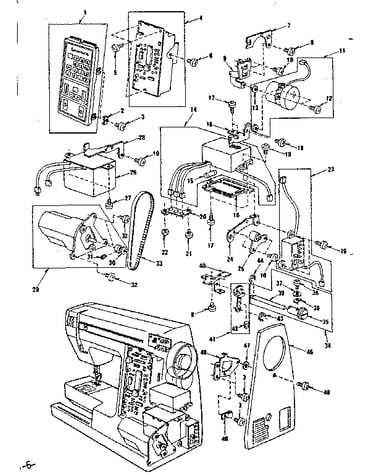

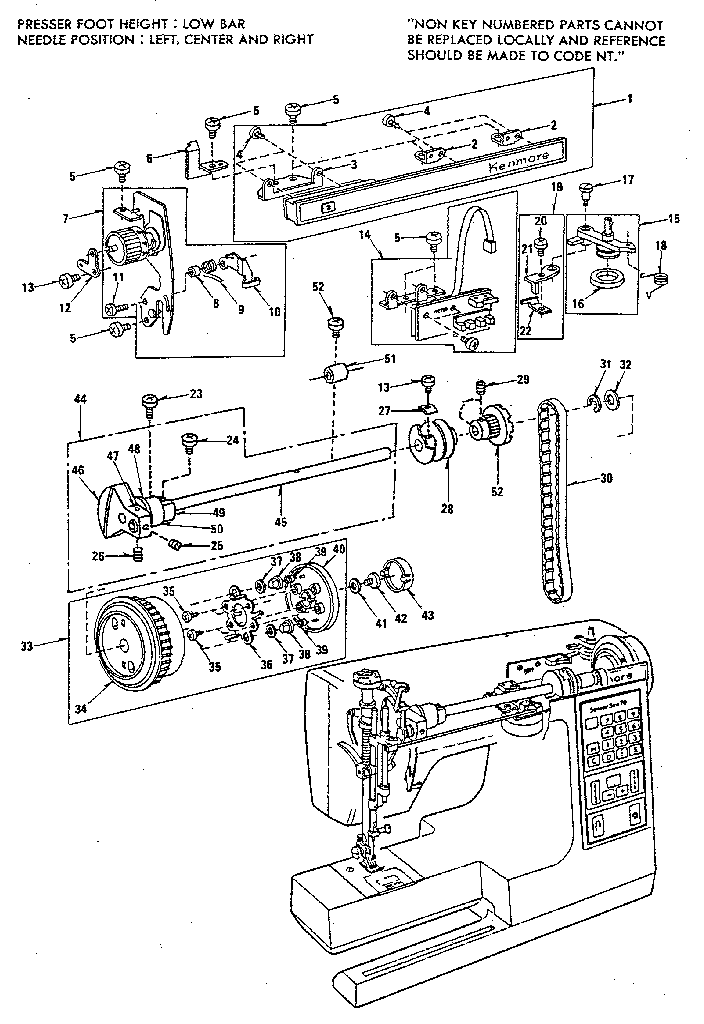

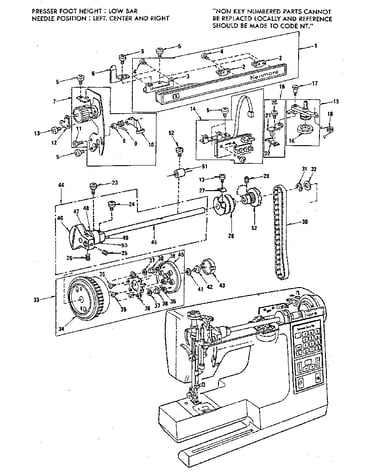

Motor assembly diagram

Plate

Part #823099001

The manufacturer no longer makes this part, and there's no substitute part

Base Cushion 650181009
#31

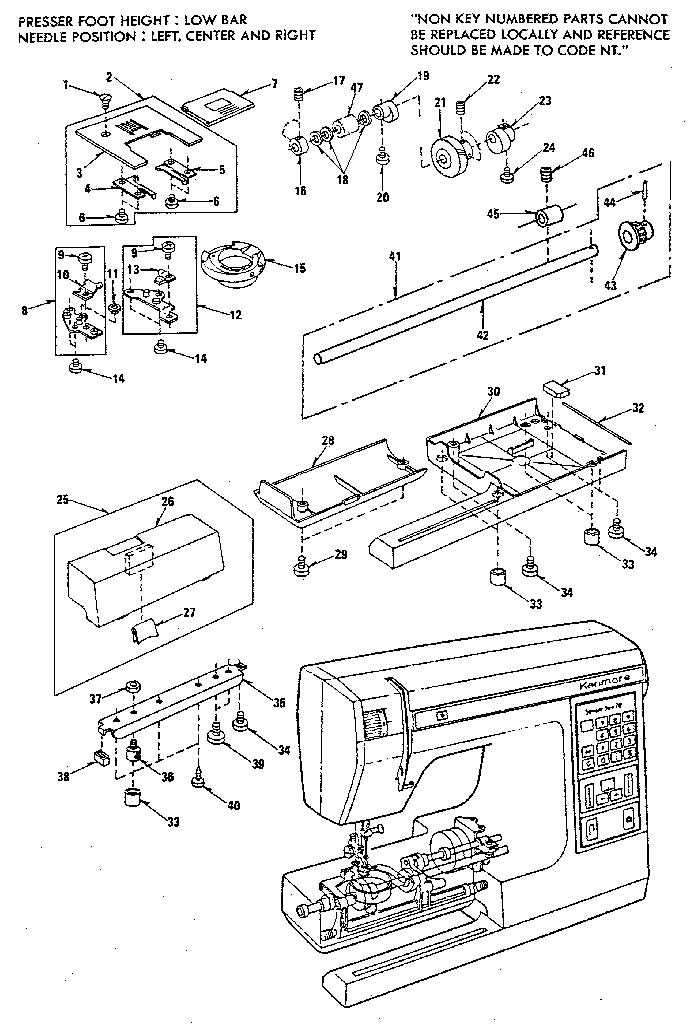

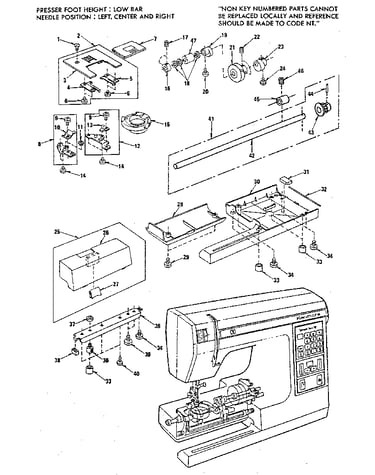

Lower shaft assembly diagram

Base cushion

Part #650181009

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 000103509
Sewing machine set screw

Part #000103509

The manufacturer no longer makes this part, and there's no substitute part

Nut 822314002
#11

Lower shaft assembly diagram

Nut

Part #822314002

The manufacturer no longer makes this part, and there's no substitute part

Motor Pulley 013050108
#30

Motor assembly diagram

Motor pulley

Part #013050108

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Thread Guide 823022003
#48

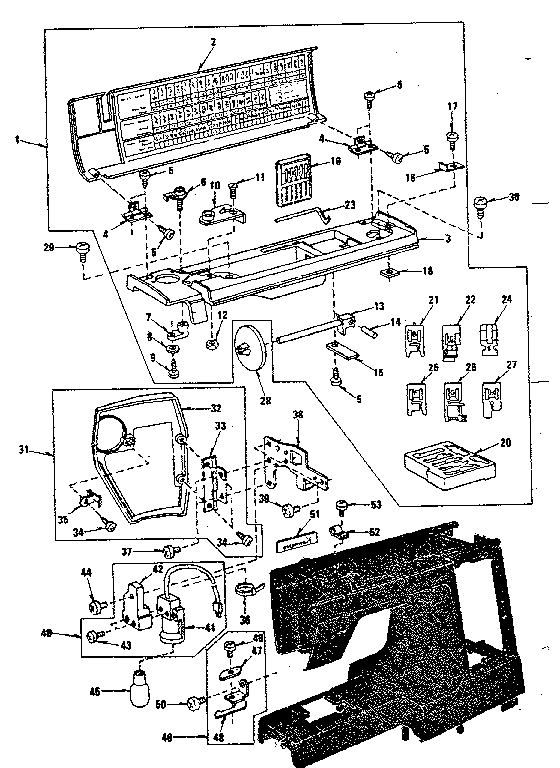

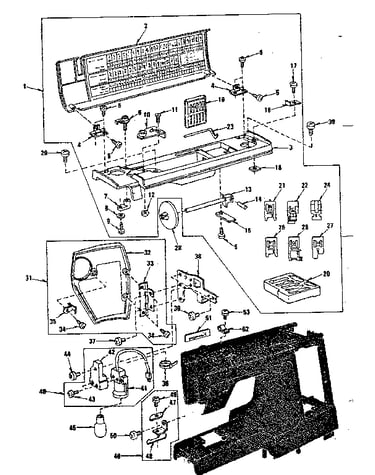

Base assembly diagram

Sewing machine thread guide

Part #823022003

The manufacturer no longer makes this part, and there's no substitute part

Janome Washer 000036603
#22

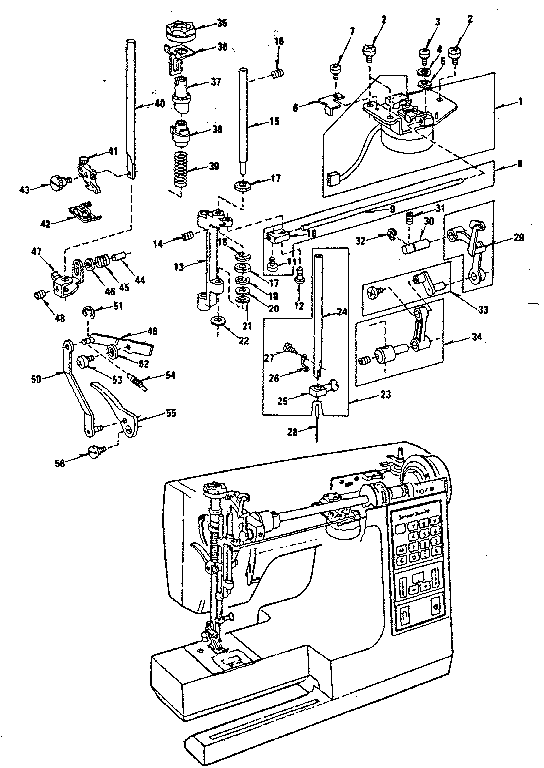

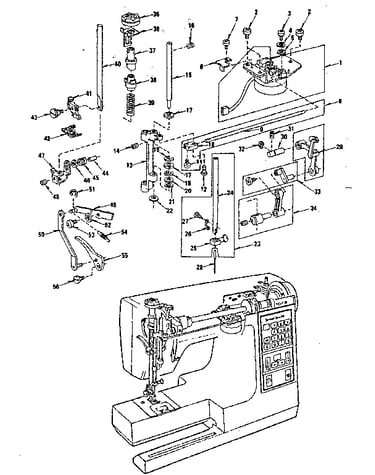

Presser bar assembly diagram

Janome washer

Part #000036603

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Hook Race Bottom Plate 627191000
#33

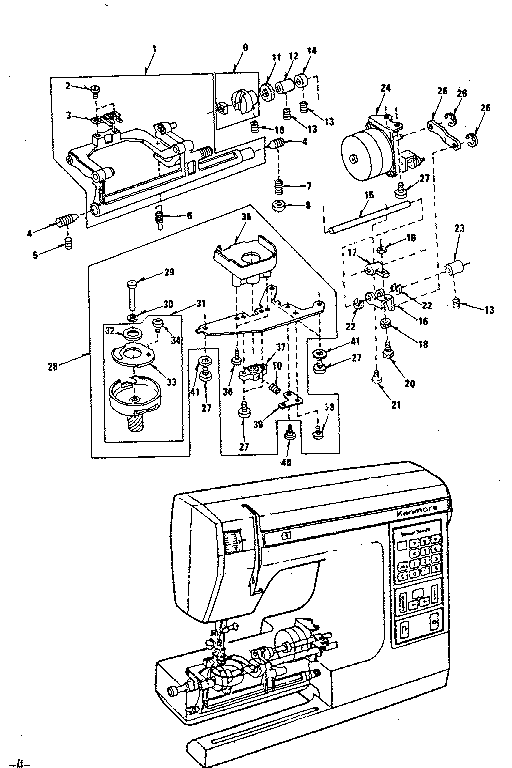

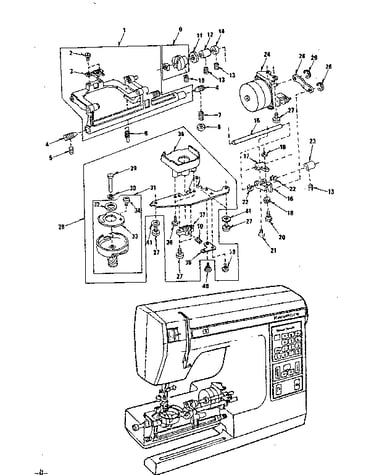

Shuttle assembly diagram

Janome sewing machine hook race bottom plate

Part #627191000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Socket Holder 823102008
#42

Base assembly diagram

Kenmore socket holder

Part #823102008

The manufacturer no longer makes this part, and there's no substitute part

Janome Ring 820387000
#14

Shuttle assembly diagram

Janome ring

Part #820387000

The manufacturer no longer makes this part, and there's no substitute part
