Model # WFVC844PUC/22 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFVC844PUC-22 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

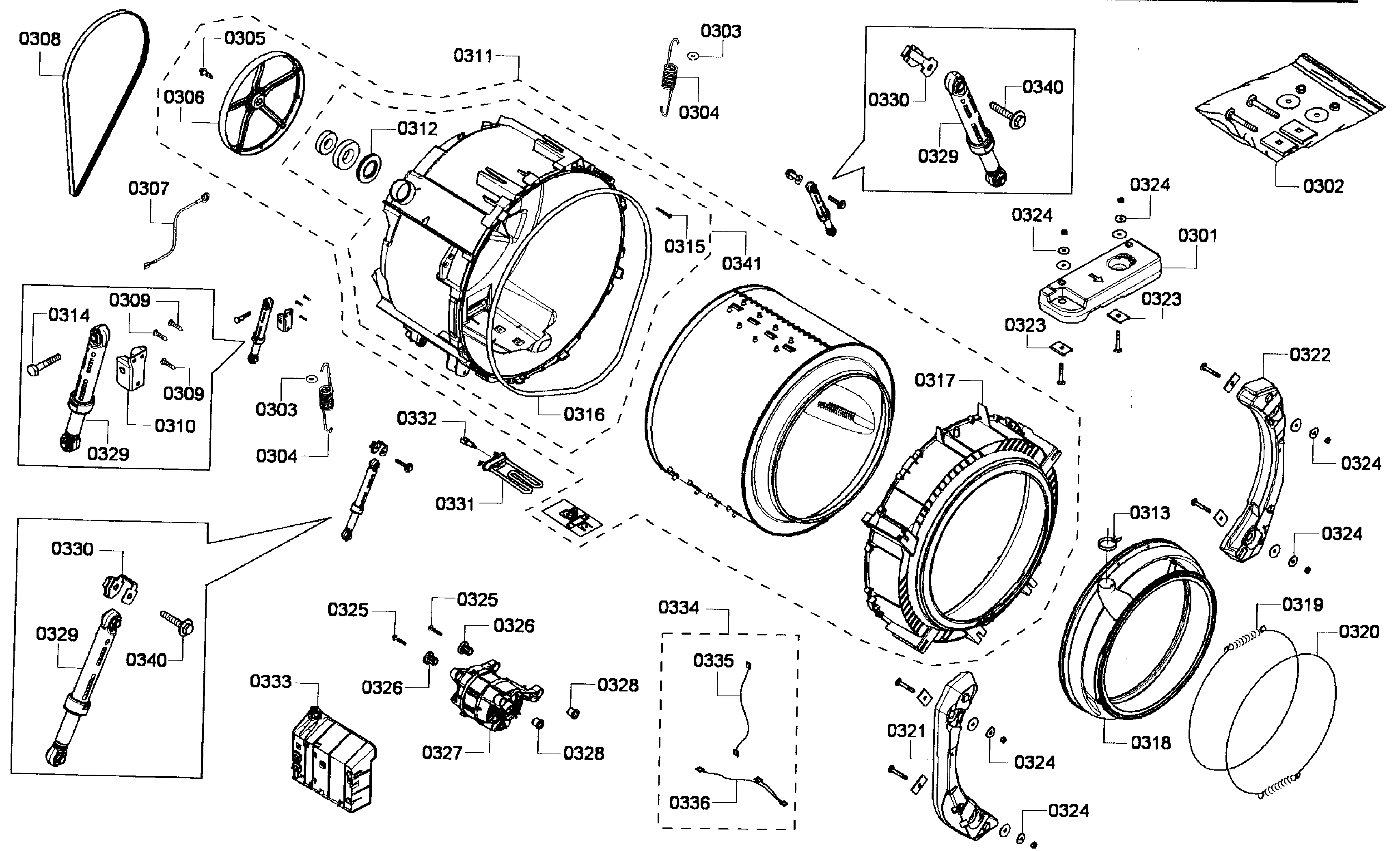

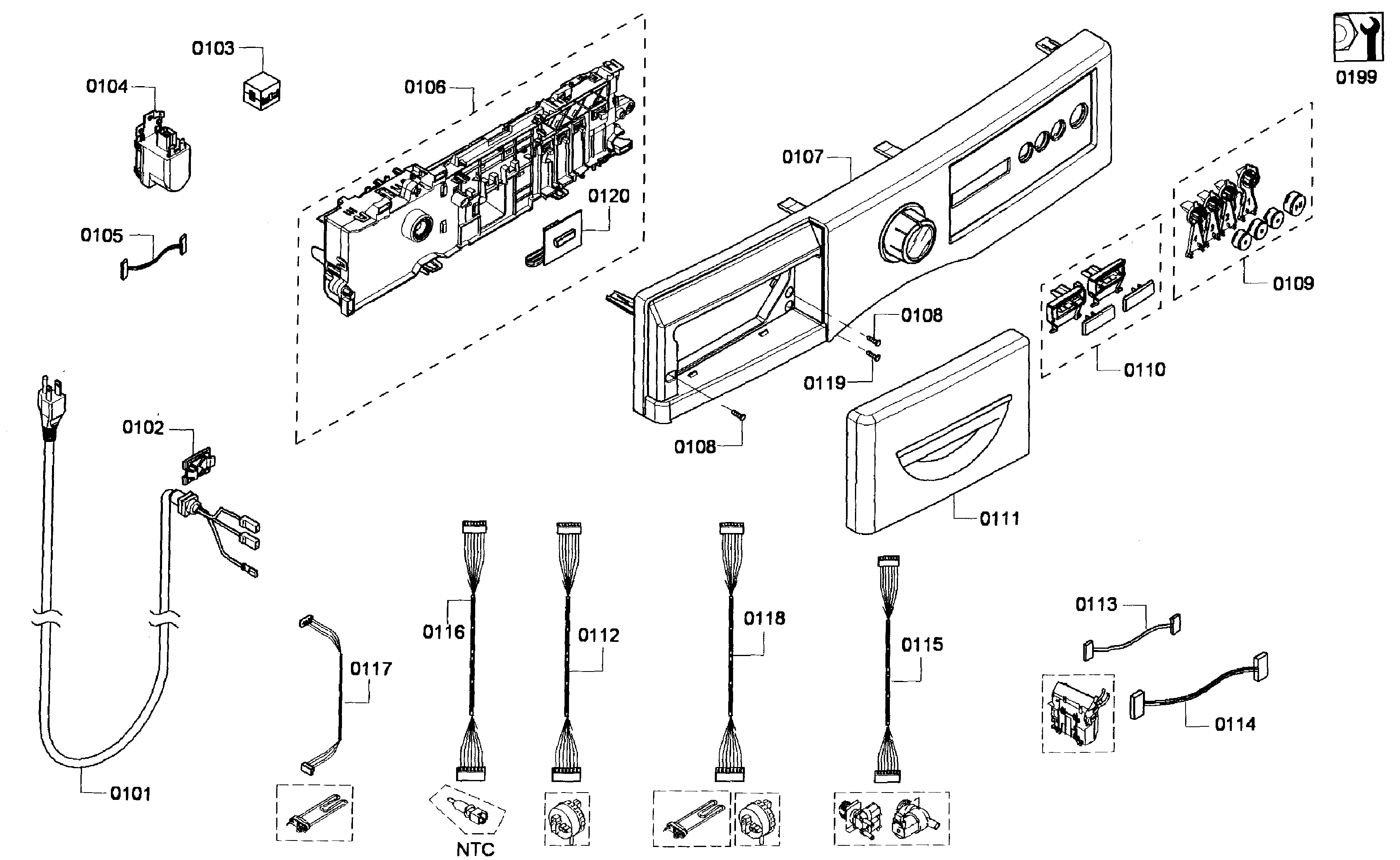

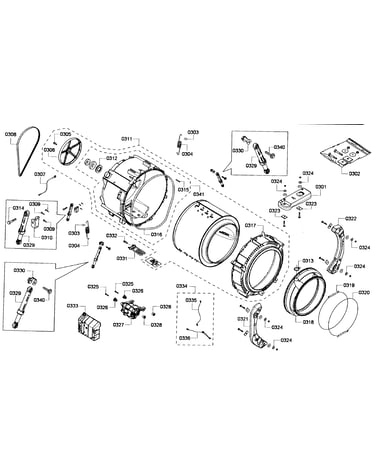

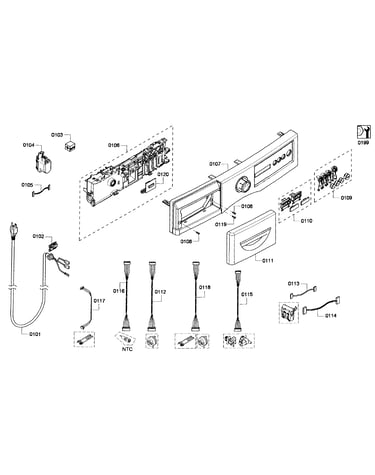

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Washer Hot Water Inlet Valve 422245
#407

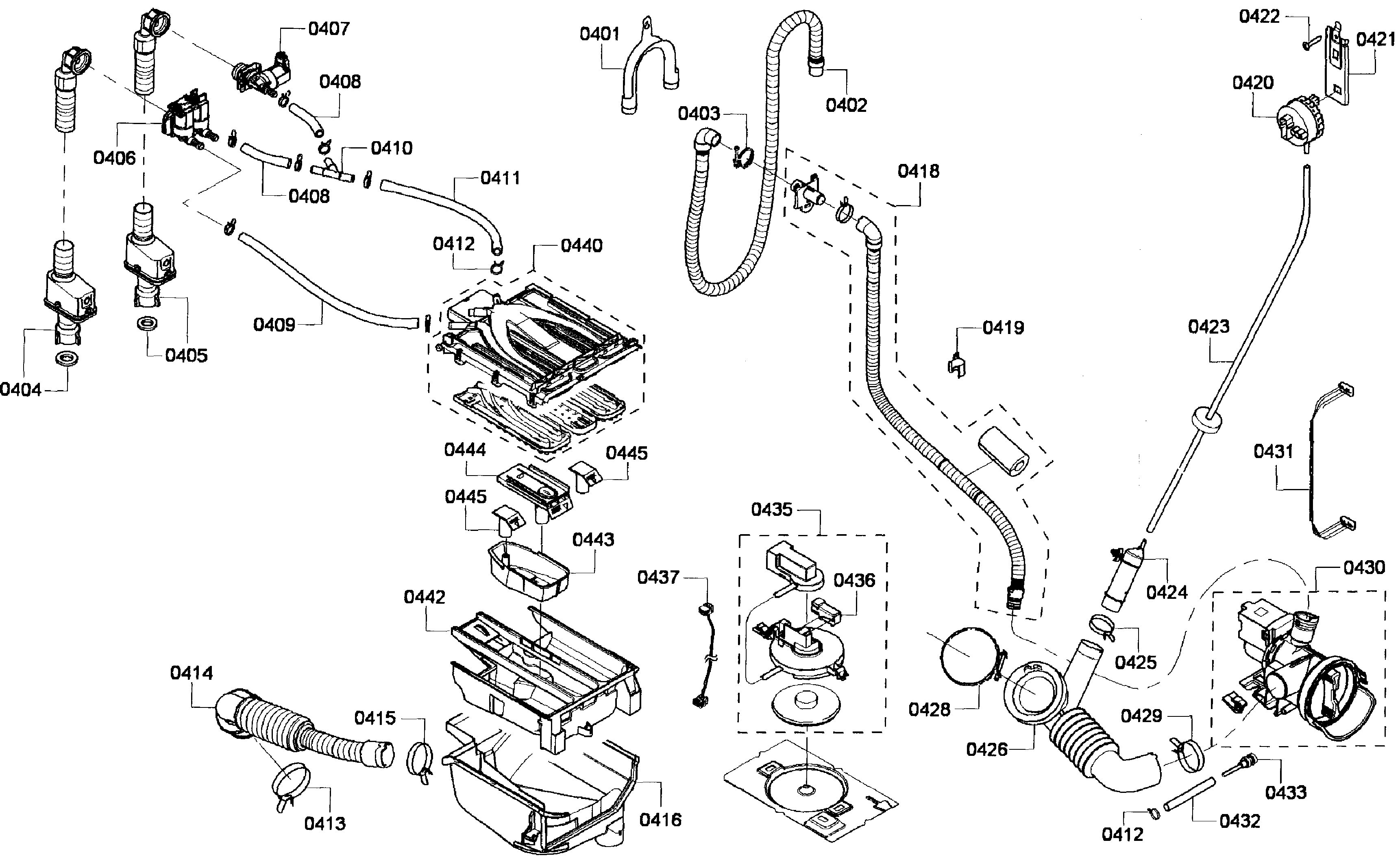

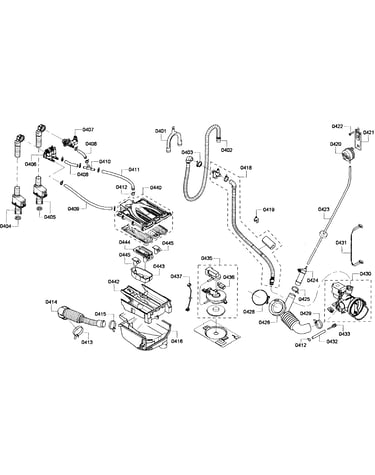

Dispenser diagram

Washer hot water inlet valve

Part #422245

Replaced by #00422245

?
Manufacturer substitution
This part replaces 422245. Substitute parts can look different from the original.
$38.99 |
11% OFF Phone Price : $43.99
In Stock
Dryer Door Hinge 649704
#219

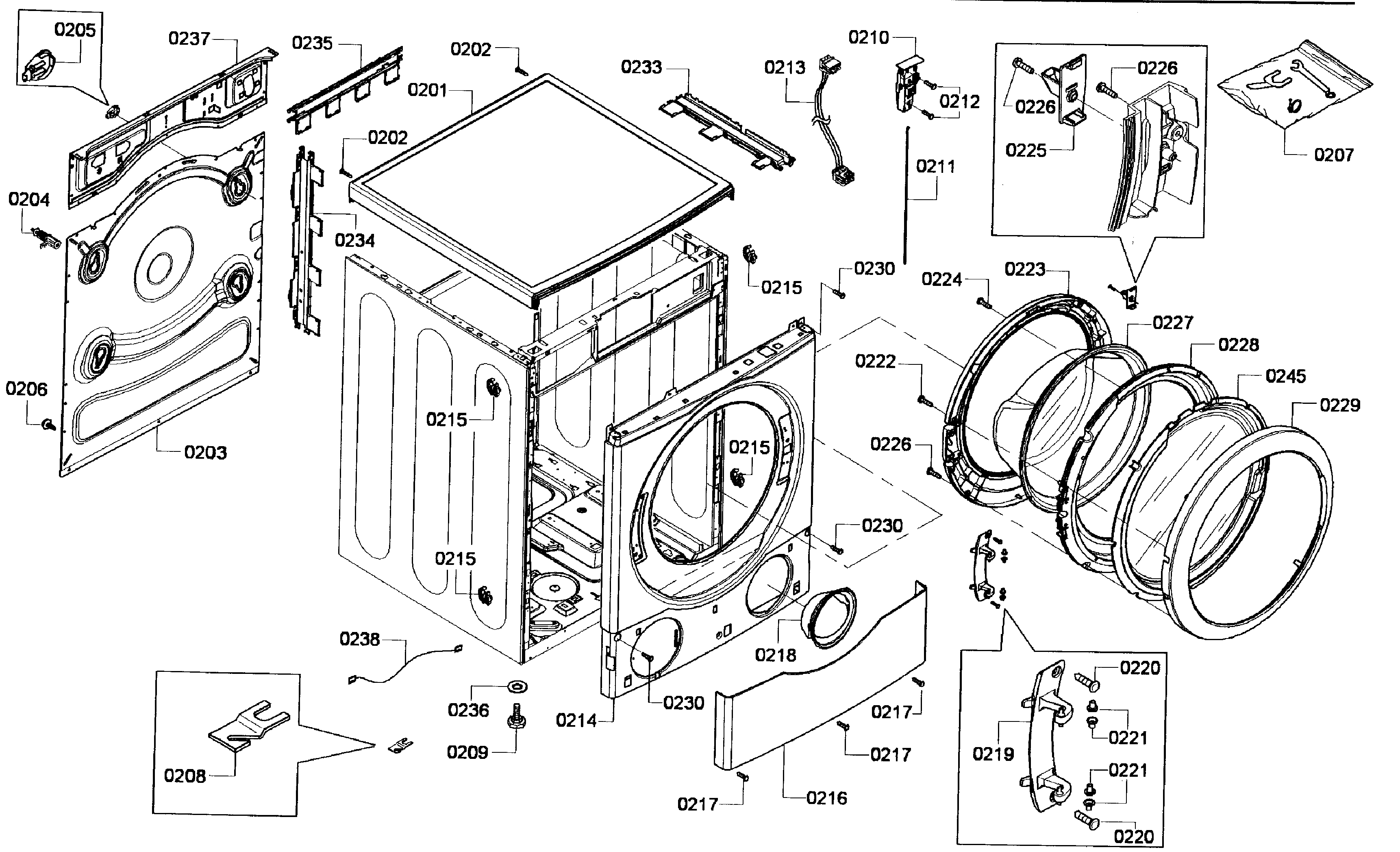

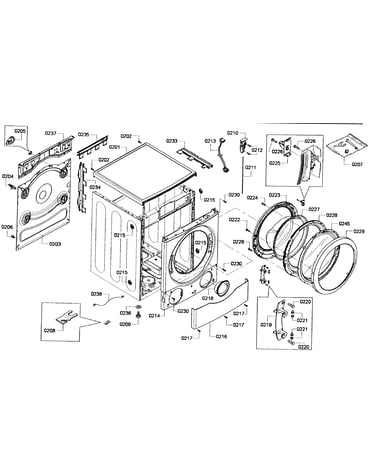

Cabinet diagram

Dryer door hinge

Part #649704

Replaced by #00649704

?
Manufacturer substitution
This part replaces 649704. Substitute parts can look different from the original.
$26.69 |
16% OFF Phone Price : $31.69
In Stock
Foot 610643
#209

Cabinet diagram

Foot

Part #610643

Replaced by #00610643

?
Manufacturer substitution
This part replaces 610643. Substitute parts can look different from the original.
This item is not returnable
$14.26
In Stock
Inner Door 684147
#228

Cabinet diagram

Inner door

Part #684147

Replaced by #00684147

?
Manufacturer substitution
This part replaces 684147. Substitute parts can look different from the original.
$31.89
In Stock
Washer Flat Washer, 10 X 20.5-mm 605059
#236

Cabinet diagram

Washer flat washer, 10 x 20.5-mm

Part #605059

Replaced by #00605059

?
Manufacturer substitution
This part replaces 605059. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Ring 421488
#413

Dispenser diagram

Ring

Part #421488

Replaced by #00421488

?
Manufacturer substitution
This part replaces 421488. Substitute parts can look different from the original.
$8.40
In Stock
Magnet Valve 422244
#406

Dispenser diagram

Magnet valve

Part #422244

$59.49 |
8% OFF Phone Price : $64.49
In Stock
Washer Drain Pump 674704
#430

Dispenser diagram

Washer drain pump

Part #674704

$68.99
In Stock
Washer Screw 420264
Washer screw

Part #420264

Replaced by #00617527

?
Manufacturer substitution
This part replaces 420264. Substitute parts can look different from the original.
$15.20
In Stock
Dispenser Case 649277
#416

Dispenser diagram

Dispenser case

Part #649277

Replaced by #00649277

?
Manufacturer substitution
This part replaces 649277. Substitute parts can look different from the original.
$91.84
In Stock
