Kenmore
Dryer

Model # 1105907501 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 1105907501 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 263 parts  |

Lock 230555
#42

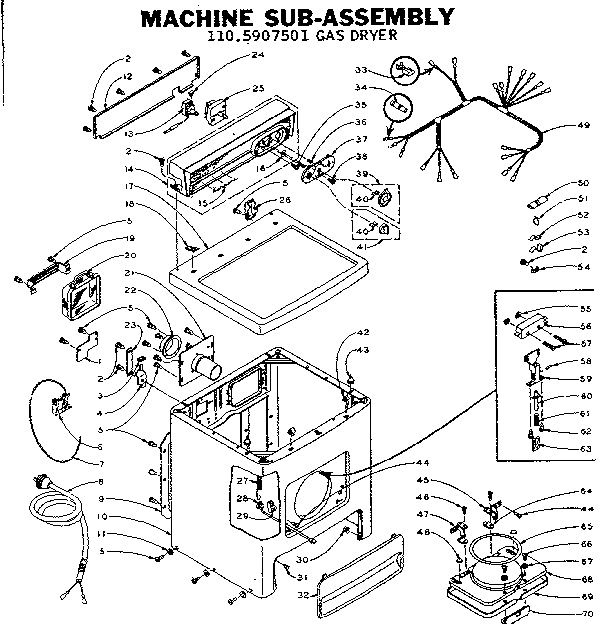

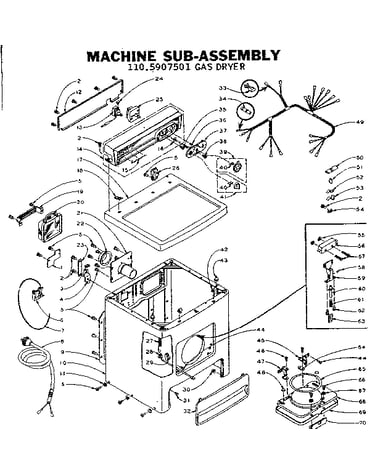

Machine sub-assembly diagram

Lock

Part #230555

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 230555. Substitute parts can look different from the original.
This item is not returnable
$7.55
12% OFF Phone Price : $8.55
In Stock
Screw 148545
#46

Machine sub-assembly diagram

Screw

Part #148545

Replaced by #WP488627

?
Manufacturer substitution
This part replaces 148545. Substitute parts can look different from the original.
This item is not returnable
$7.49
12% OFF Phone Price : $8.49
In Stock
Door Seal 234800
#65

Machine sub-assembly diagram

Door seal

Part #234800

Replaced by #W11613302

?
Manufacturer substitution
This part replaces 234800. Substitute parts can look different from the original.
In Stock
Cap (white) 233863
#48

Machine sub-assembly diagram

Cap (white)

Part #233863

Replaced by #WP660975

?
Manufacturer substitution
This part replaces 233863. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock

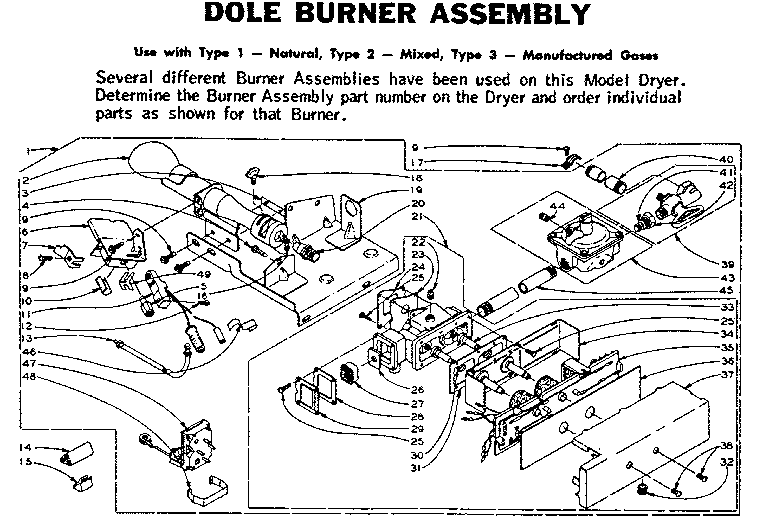

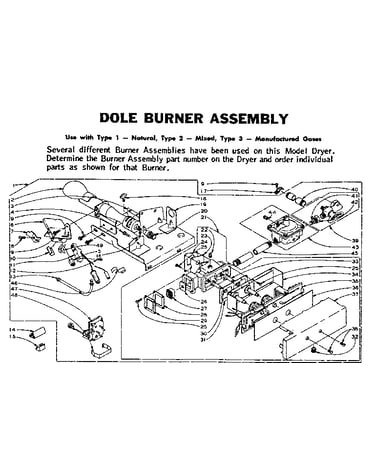

Burner Orifice 234868
Burner orifice

Part #234868

Replaced by #WP234868

?
Manufacturer substitution
This part replaces 234868. Substitute parts can look different from the original.
$21.19
19% OFF Phone Price : $26.19
In Stock
Washer Lid Hinge Bumper 18849
#3

Machine sub-assembly diagram

Washer lid hinge bumper

Part #18849

$16.79
11% OFF Phone Price : $18.79
In Stock
Screw 90422
#43

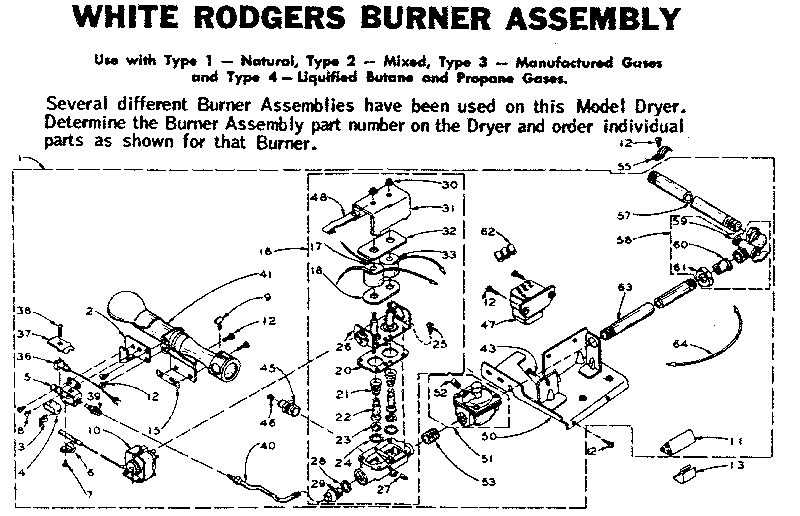

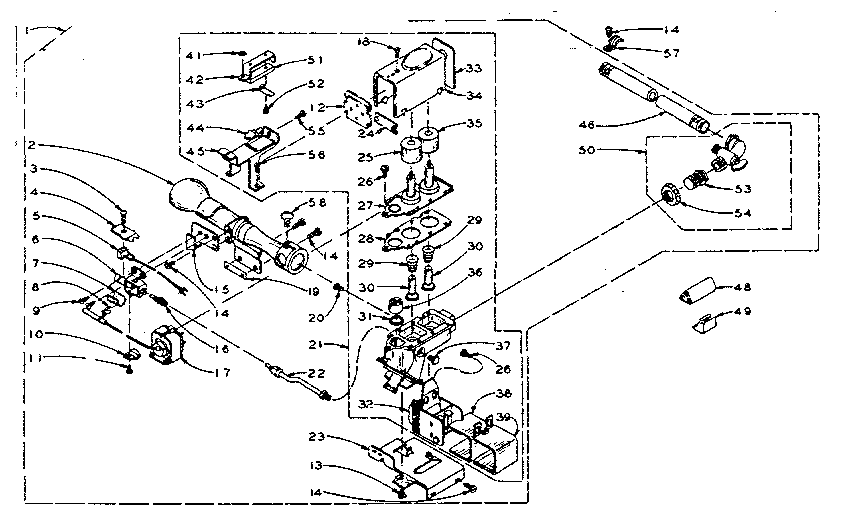

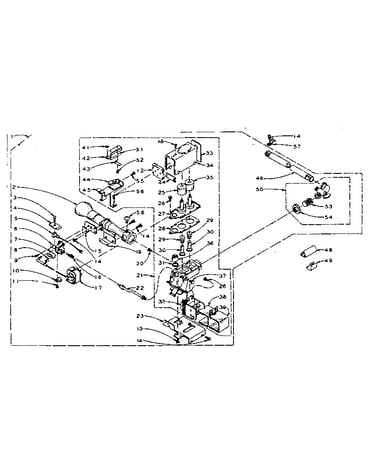

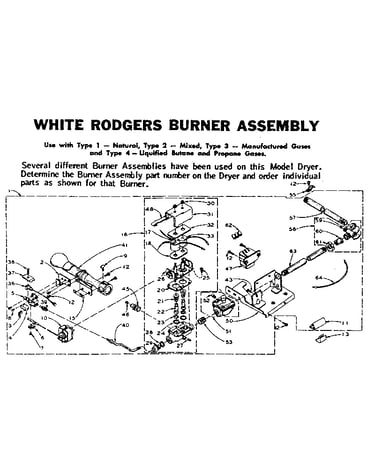

White rodgers burner assembly diagram

Screw

Part #90422

This item is not returnable
In Stock
Clamp 232402
#14

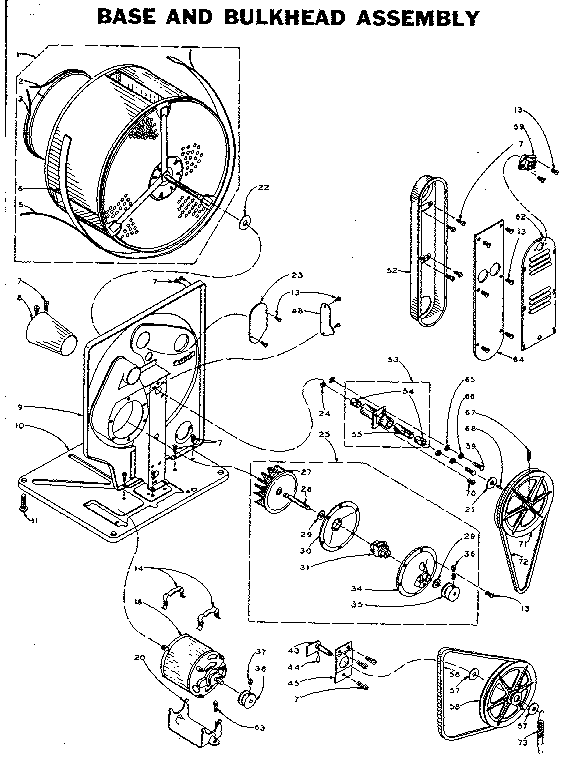

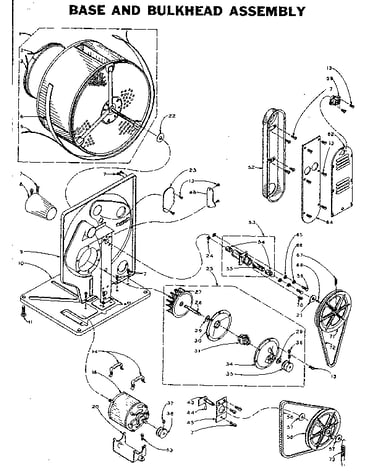

Base and bulkhead assembly diagram

Clamp

Part #232402

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 232402. Substitute parts can look different from the original.
This item is not returnable
$6.49
59% OFF MSRP : $16.00
In Stock
Tail Pipe 233077
Tail pipe

Part #233077

Replaced by #3393767

?
Manufacturer substitution
This part replaces 233077. Substitute parts can look different from the original.
In Stock
Screw 90464
Screw

Part #90464

The manufacturer no longer makes this part, and there's no substitute part
