Model # GLTF2940EE0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire GLTF2940EE0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

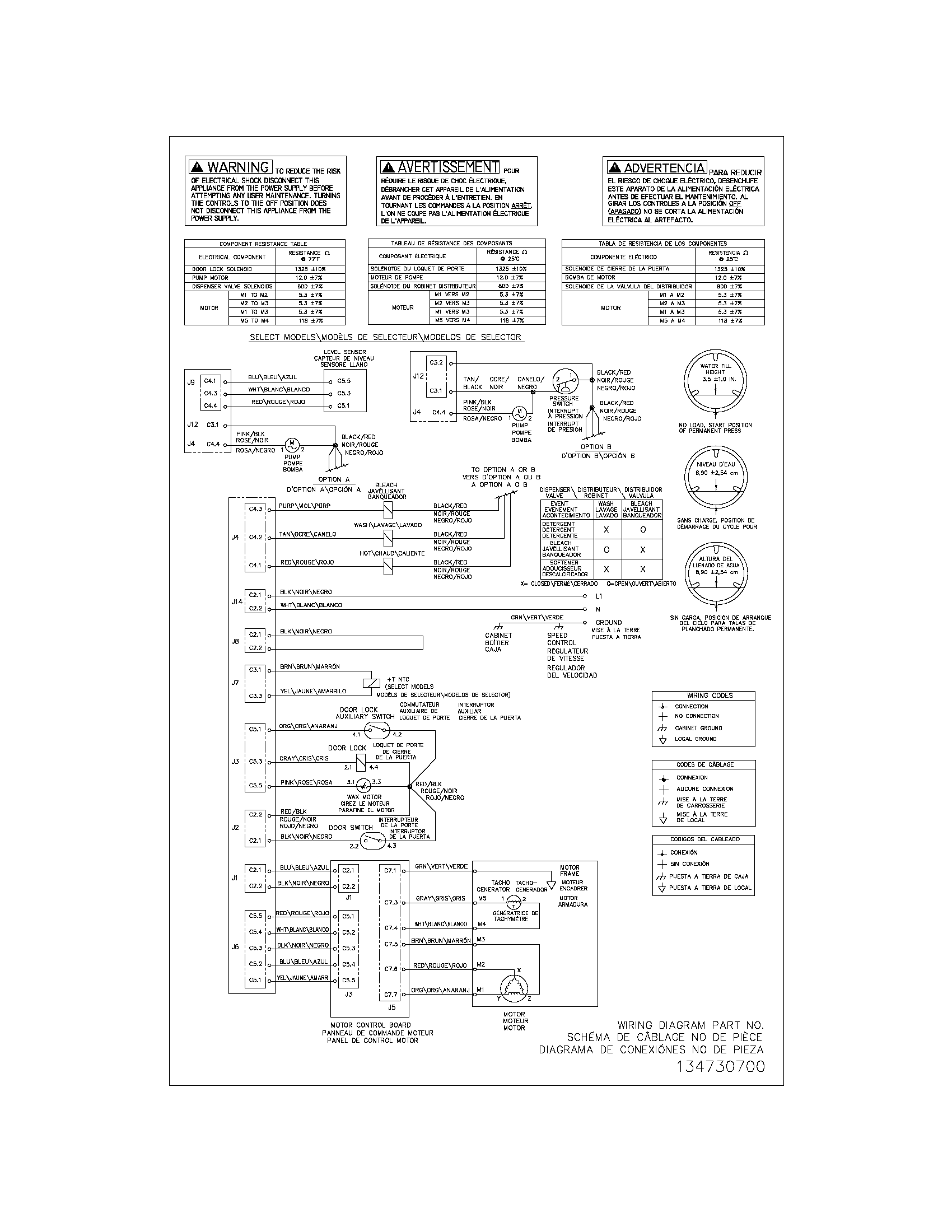

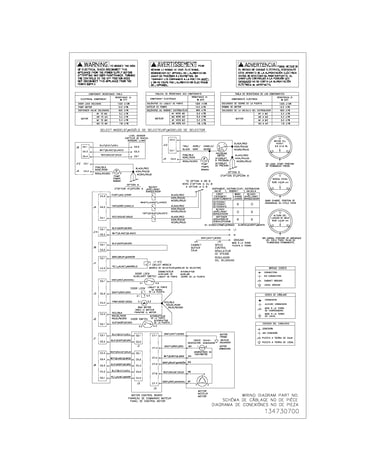

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |

Door Lock Switch 131763245
#8

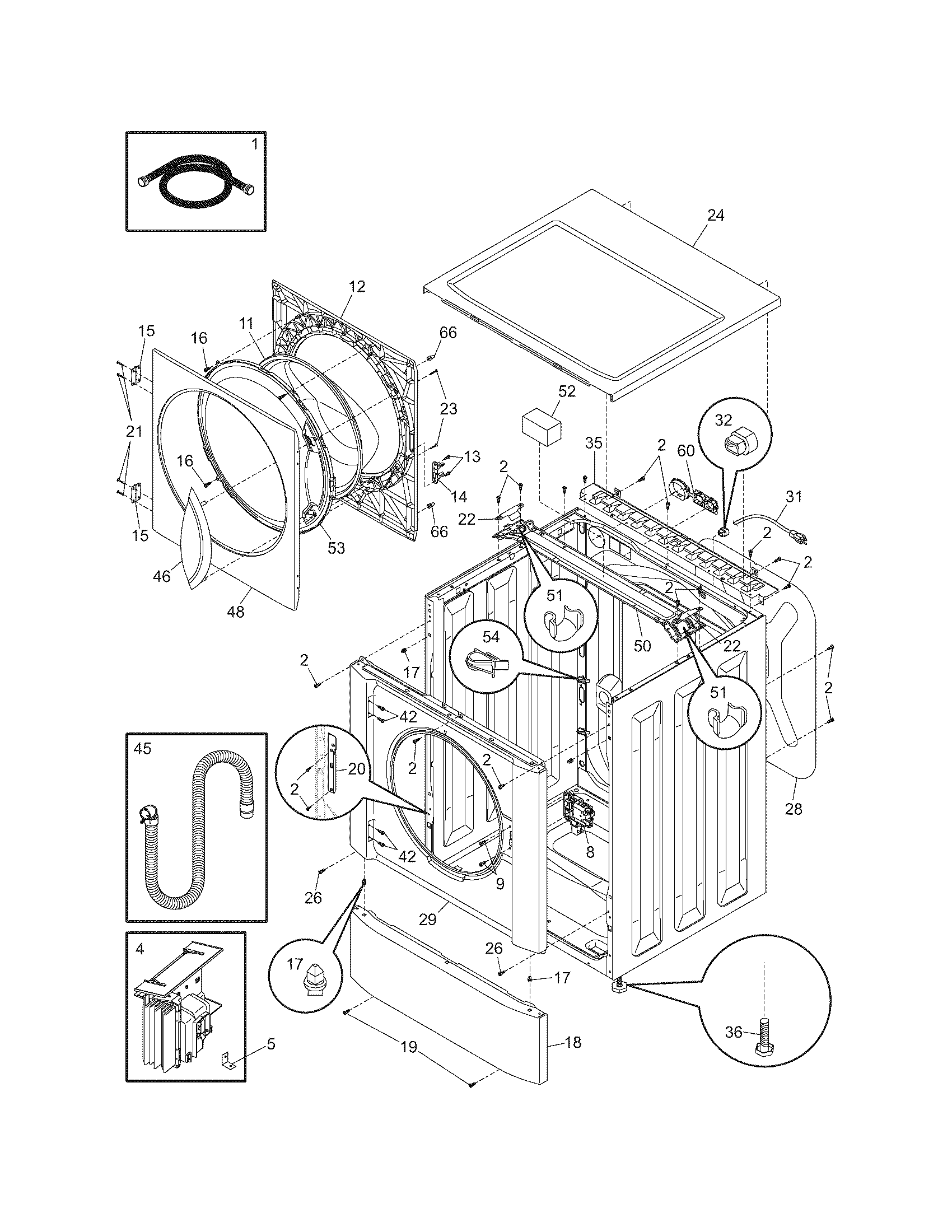

Cabinet/top diagram

Door lock switch

Part #131763245

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763245. Substitute parts can look different from the original.
BEST SELLER
$110.66
10% OFF Phone Price : $122.66
In Stock
Washer Drain Pump 134051200
#35

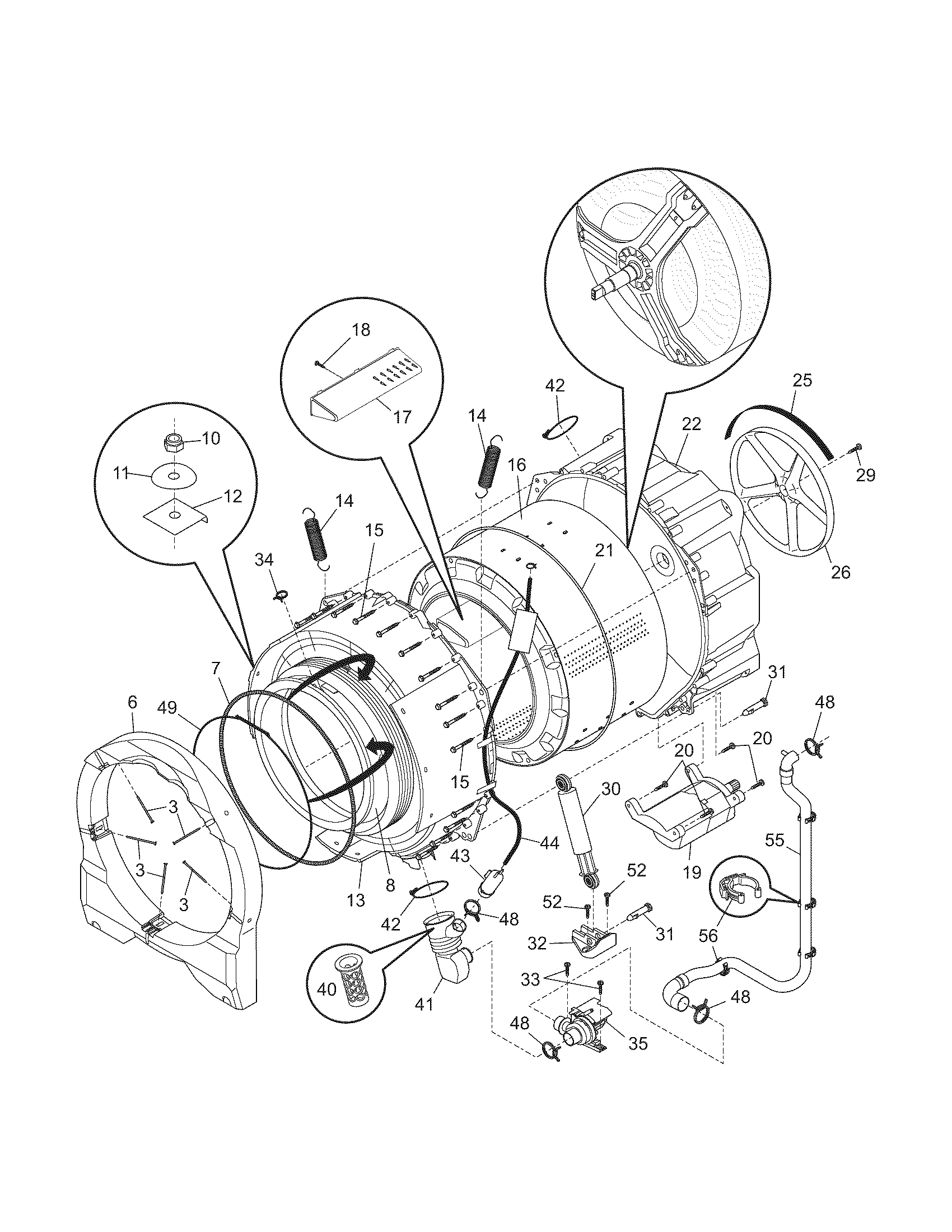

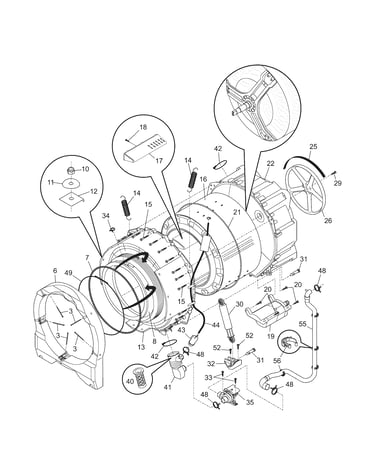

Motor/tub diagram

Washer drain pump

Part #134051200

Replaced by #137221600

?
Manufacturer substitution
This part replaces 134051200. Substitute parts can look different from the original.
BEST SELLER
$134.72
8% OFF Phone Price : $146.72
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87
16% OFF Phone Price : $12.87
In Stock
Scu Assembly 134409902
#4

Cabinet/top diagram

Scu assembly

Part #134409902

Replaced by #134743500

?
Manufacturer substitution
This part replaces 134409902. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$224.10
5% OFF Phone Price : $236.10
In Stock
Washer Dispenser Drawer 134370000
#45

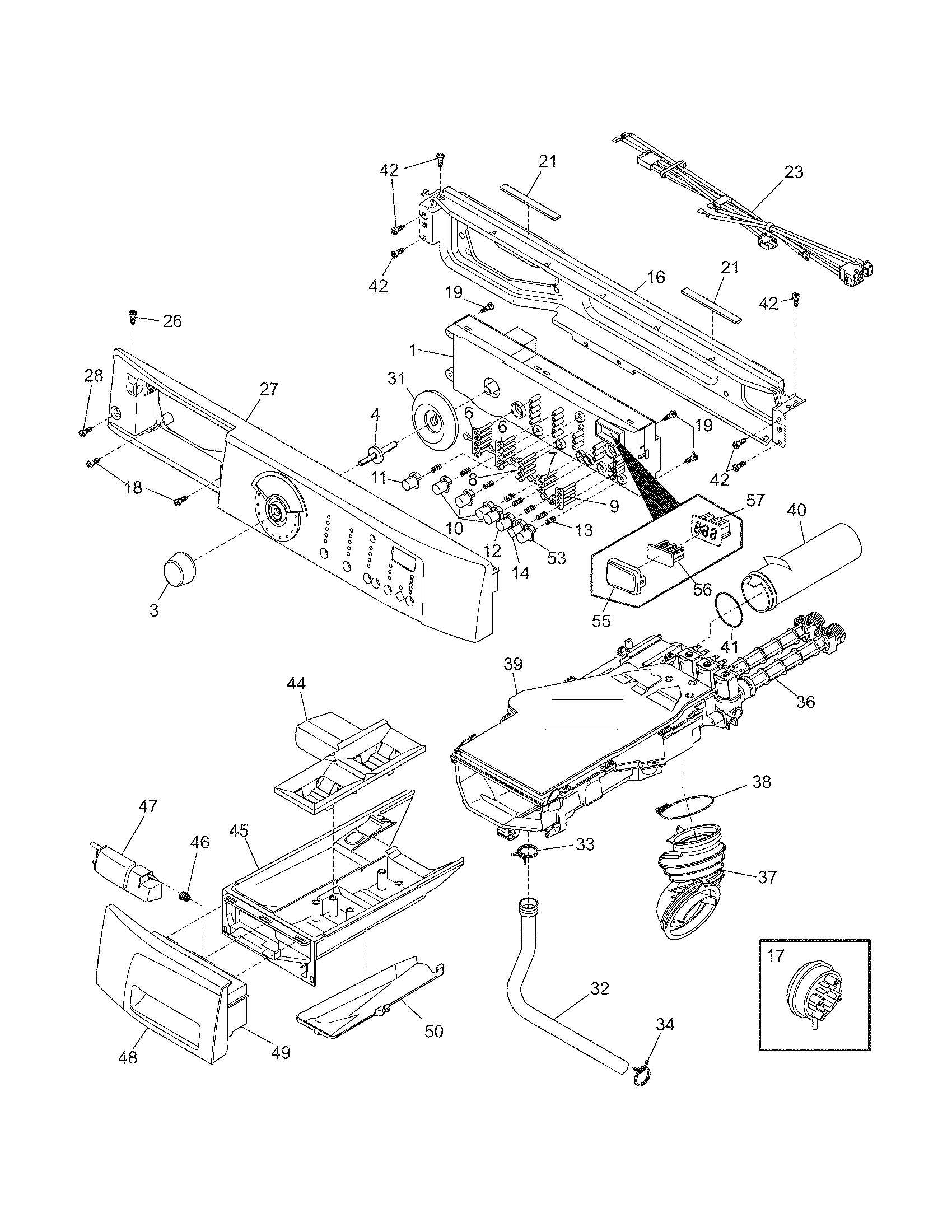

Control panel diagram

Washer dispenser drawer

Part #134370000

BEST SELLER
$46.59
11% OFF Phone Price : $52.59
In Stock
Striker 131763340
#14

Cabinet/top diagram

Striker

Part #131763340

Replaced by #131763302

?
Manufacturer substitution
This part replaces 131763340. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.22
11% OFF Phone Price : $18.22
In Stock
Washer Door Boot Kit (replaces 134365200, 134551400, 134740900, 134741400) 134515300
#8

Motor/tub diagram

Washer door boot kit (replaces 134365200, 134551400, 134740900, 134741400)

Part #134515300

BEST SELLER
$253.11
5% OFF Phone Price : $265.11
In Stock
Washer Water Inlet Valve 134371220
#36

Control panel diagram

Washer water inlet valve

Part #134371220

BEST SELLER
$89.54
6% OFF Phone Price : $95.54
In Stock
Washer Outer Tub Gasket 134361900
#21

Motor/tub diagram

Washer outer tub gasket

Part #134361900

Replaced by #5304520351

?
Manufacturer substitution
This part replaces 134361900. Substitute parts can look different from the original.
BEST SELLER
$80.82
7% OFF Phone Price : $86.82
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

BEST SELLER
$14.09
12% OFF Phone Price : $16.09
In Stock
