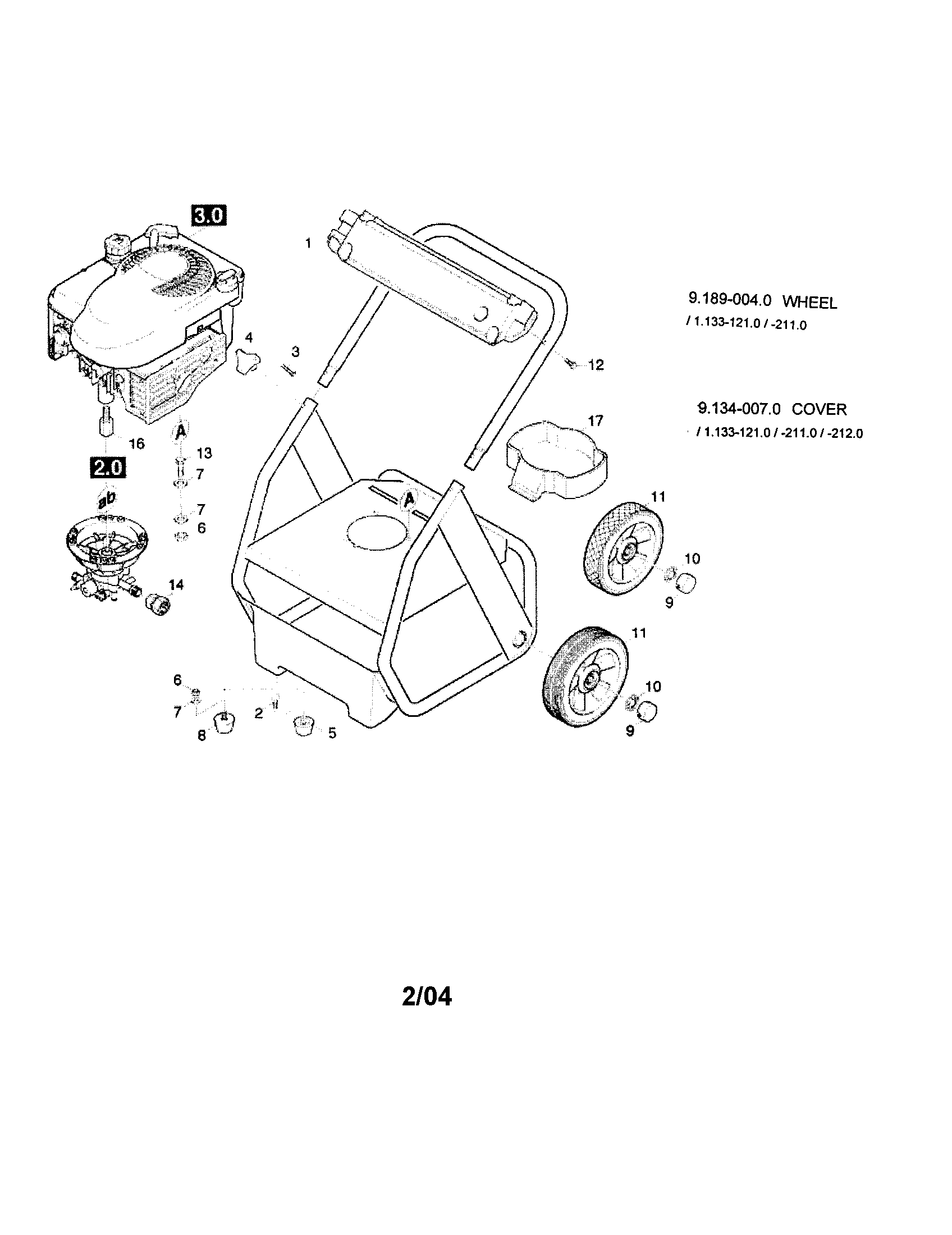

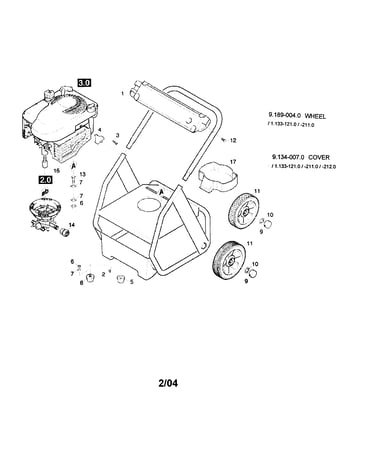

Model #K2200G Official Karcher power washer

Here are the diagrams and repair parts for Karcher K2200G power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 139 parts

PUMP SET / 1.133-114.0 / -121.0 / -122.0#0

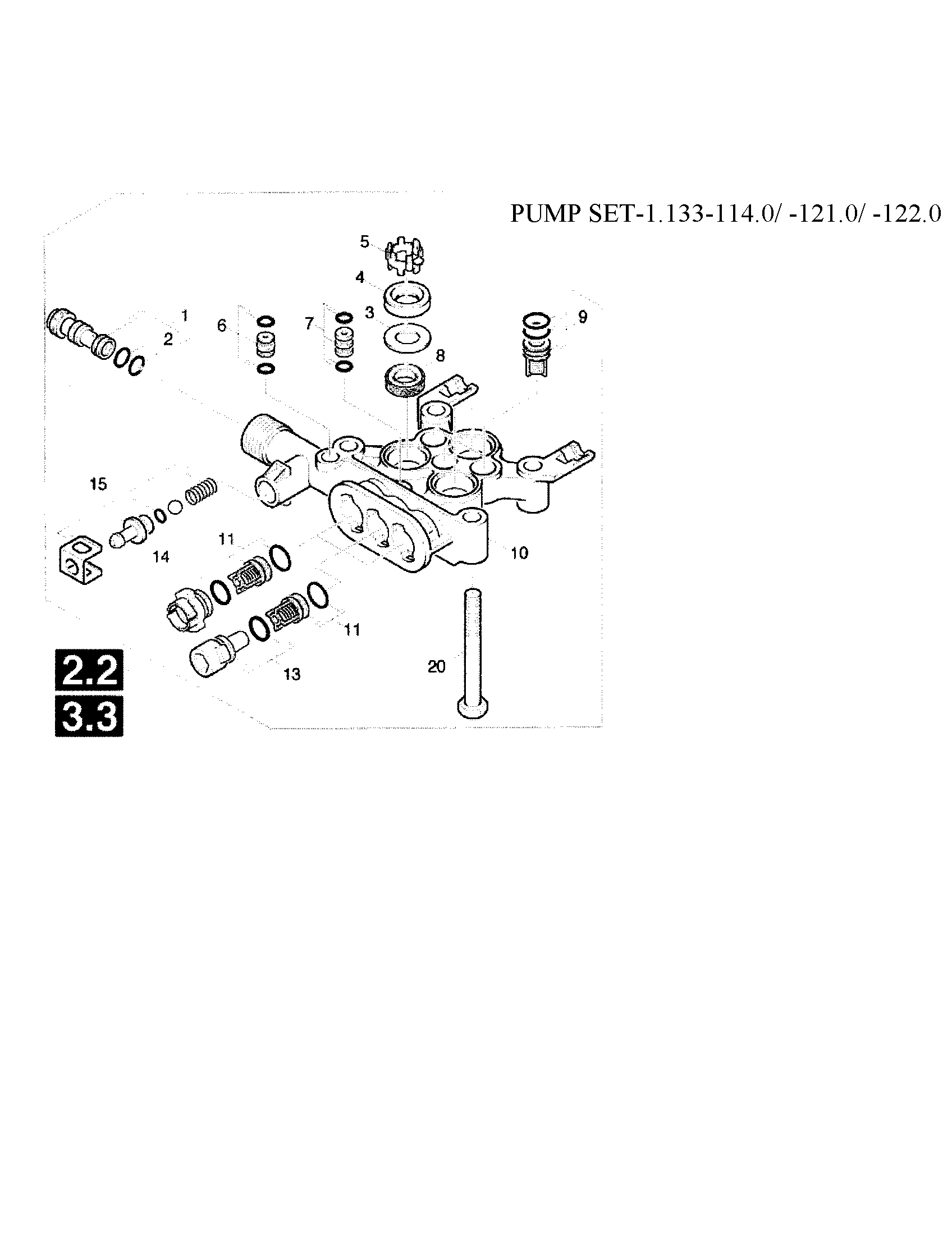

2.1 cylinder head/pump set Diagram

Pump set / 1.133-114.0 / -121.0 / -122.0

Part #3.532-777.0

The manufacturer no longer makes this part, and there's no substitute part

NOZZLE INSERT (2)#1A

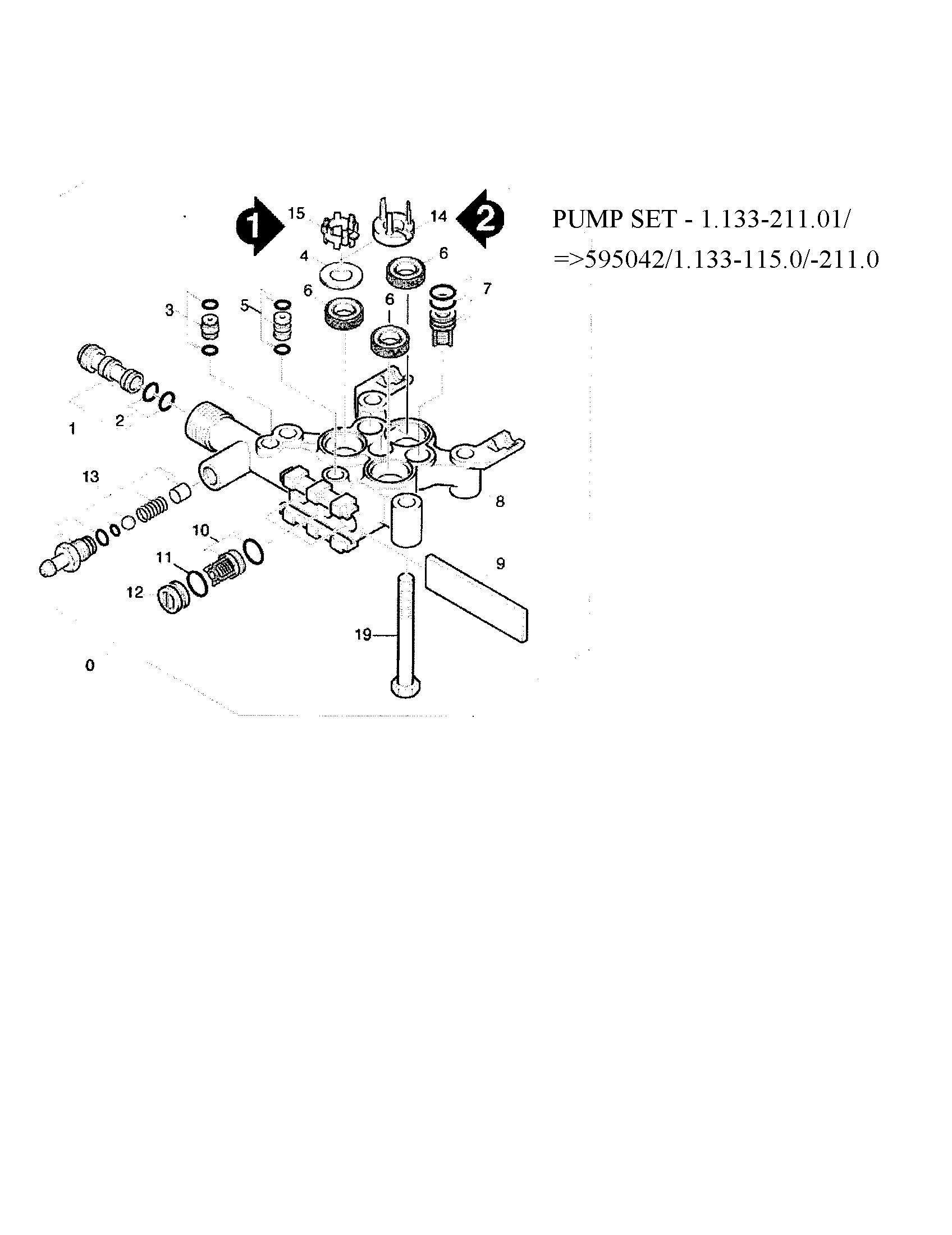

2.5 cylinder head/pump set Diagram

Nozzle insert (2)

Part #4.769-040.0

The manufacturer no longer makes this part, and there's no substitute part

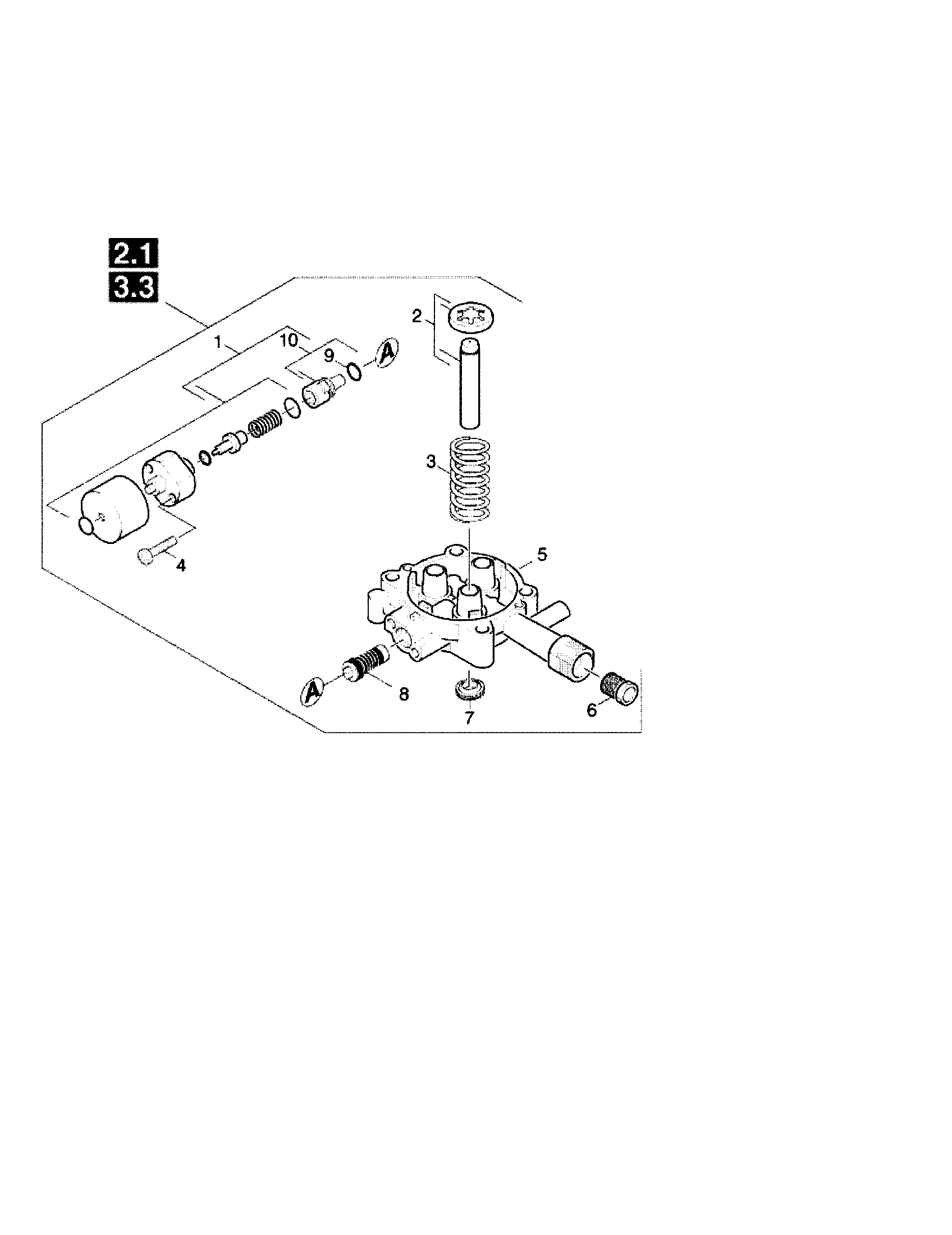

Pressure Washer Piston Seal

See All Related Diagrams

Pressure washer piston seal

Part #6.365-393.0

The manufacturer no longer makes this part, and there's no substitute part

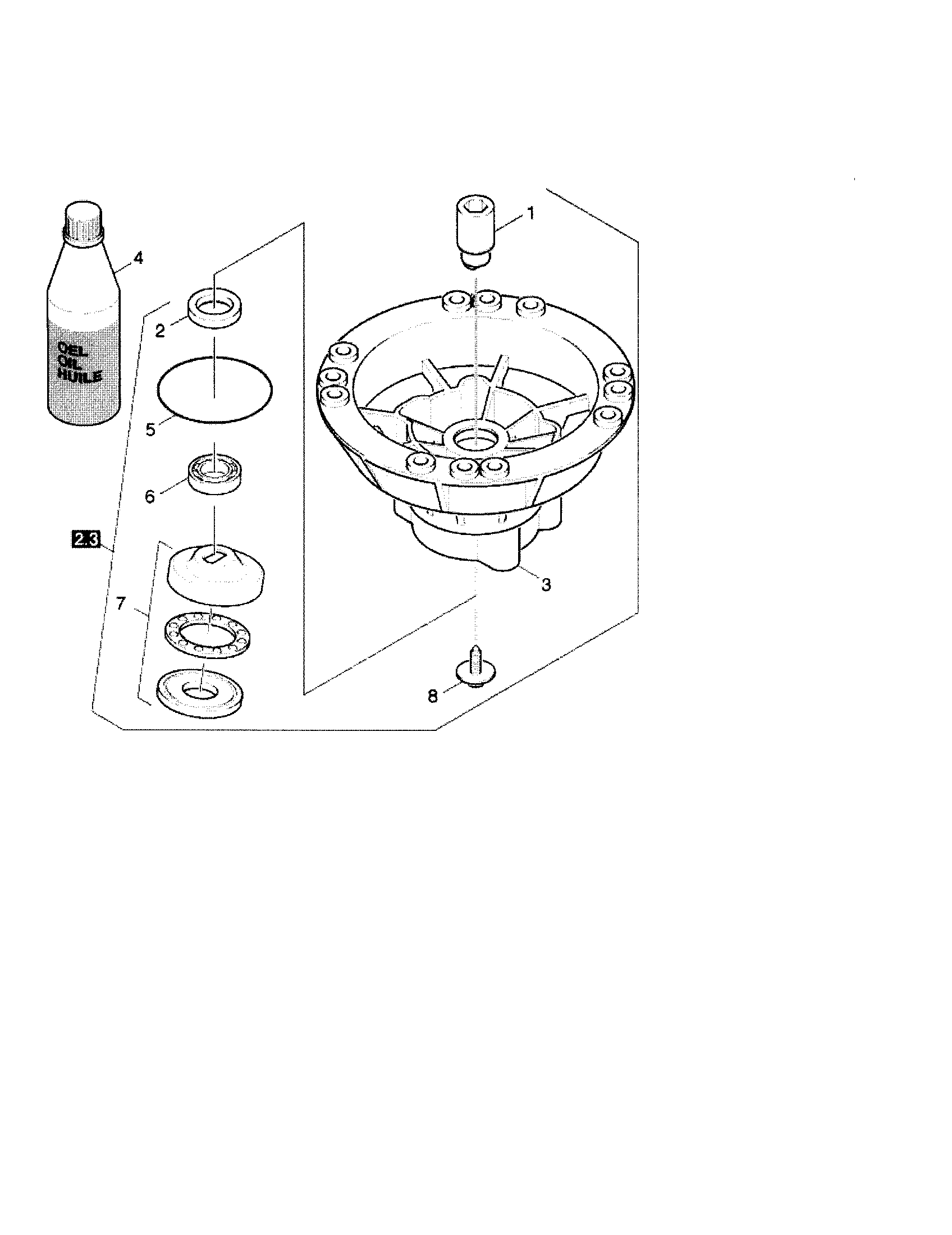

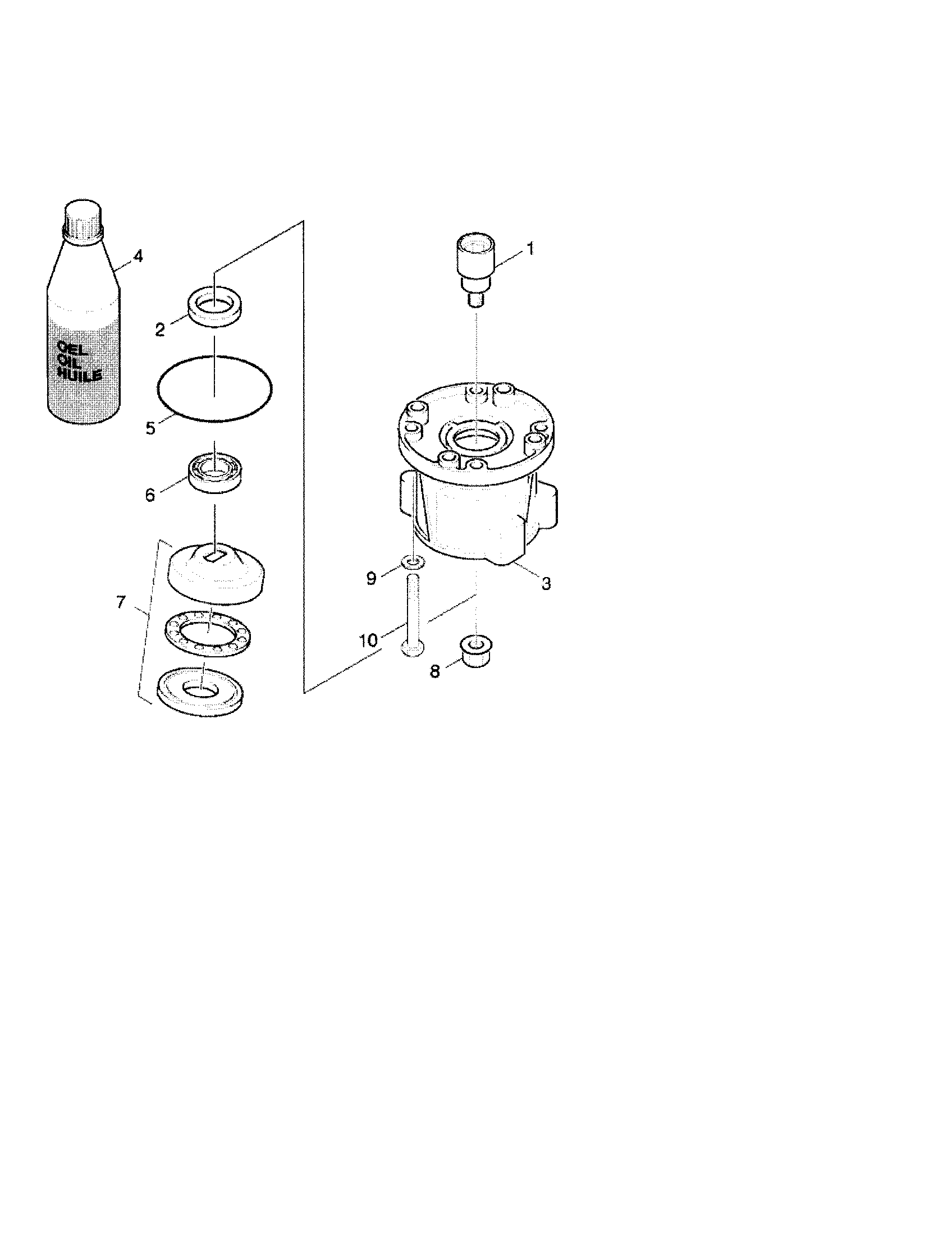

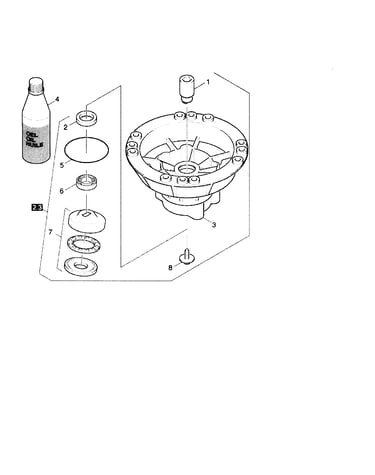

Motor#1

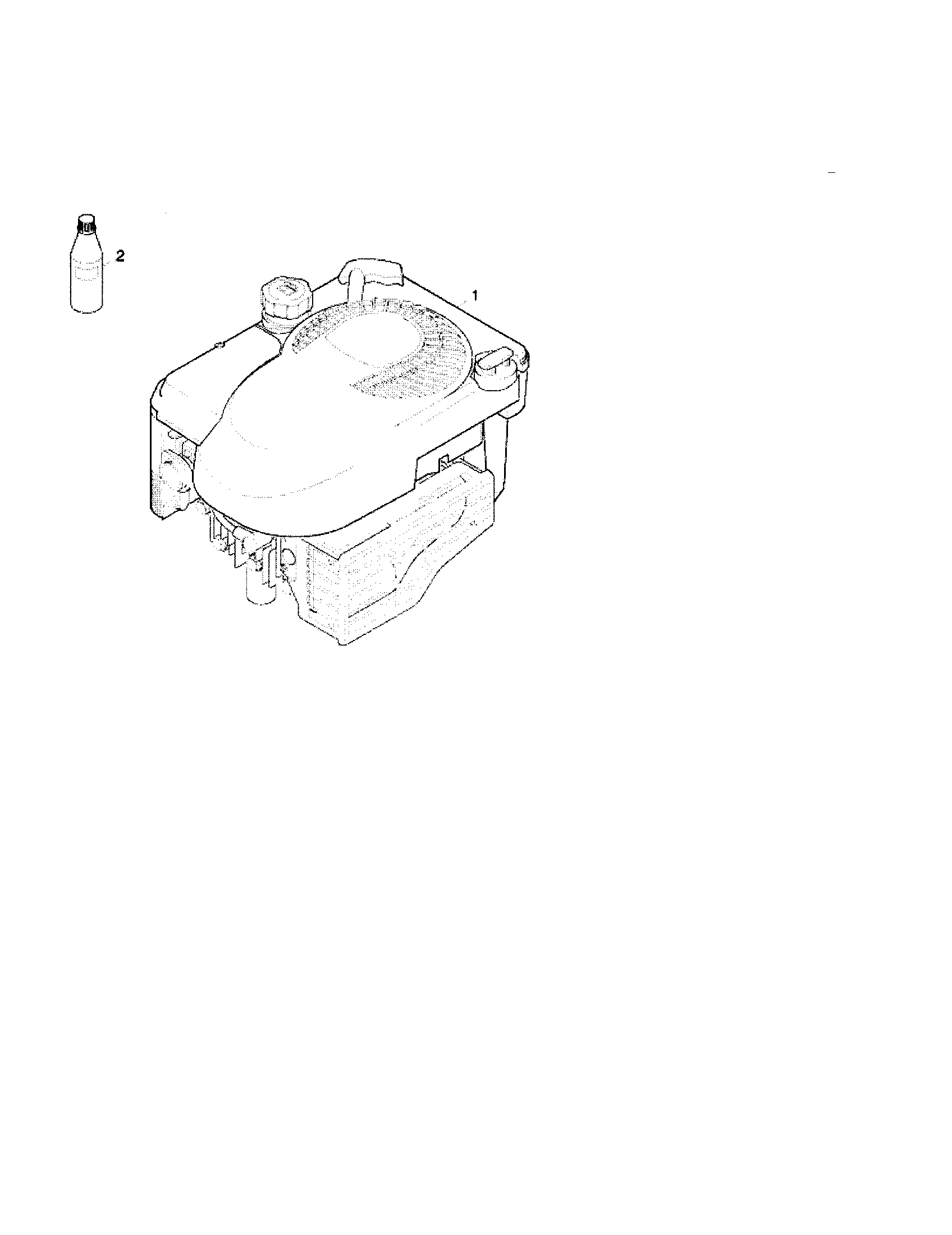

3.1 motor/engine oil Diagram

Motor

Part #9.194-030.0

The manufacturer no longer makes this part, and there's no substitute part

Throttle

See All Related Diagrams

Throttle

Part #4.030-109.0

The manufacturer no longer makes this part, and there's no substitute part

PROTECTIVE GRID#7

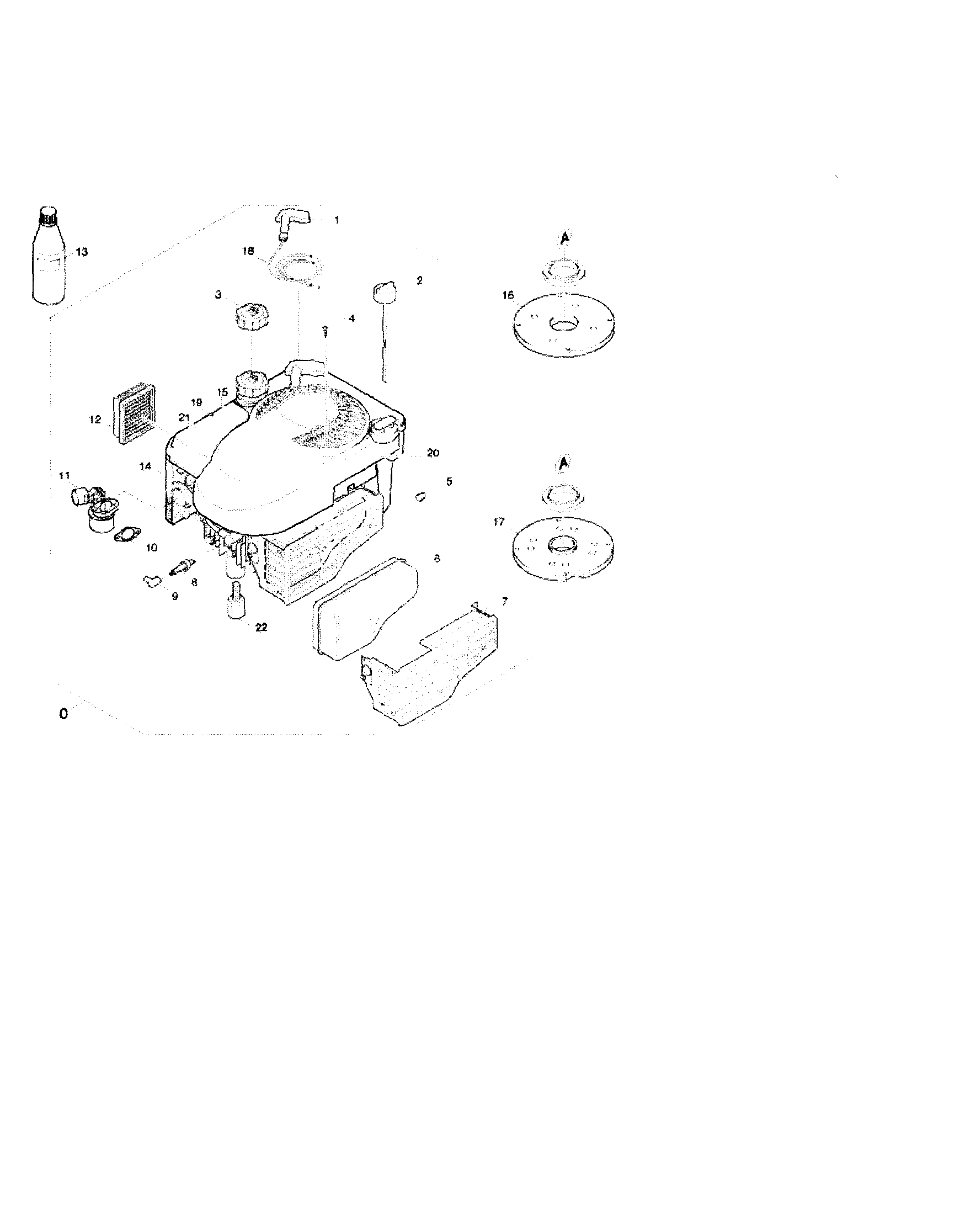

3.3 motor Diagram

Protective grid

Part #9.194-453.0

The manufacturer no longer makes this part, and there's no substitute part

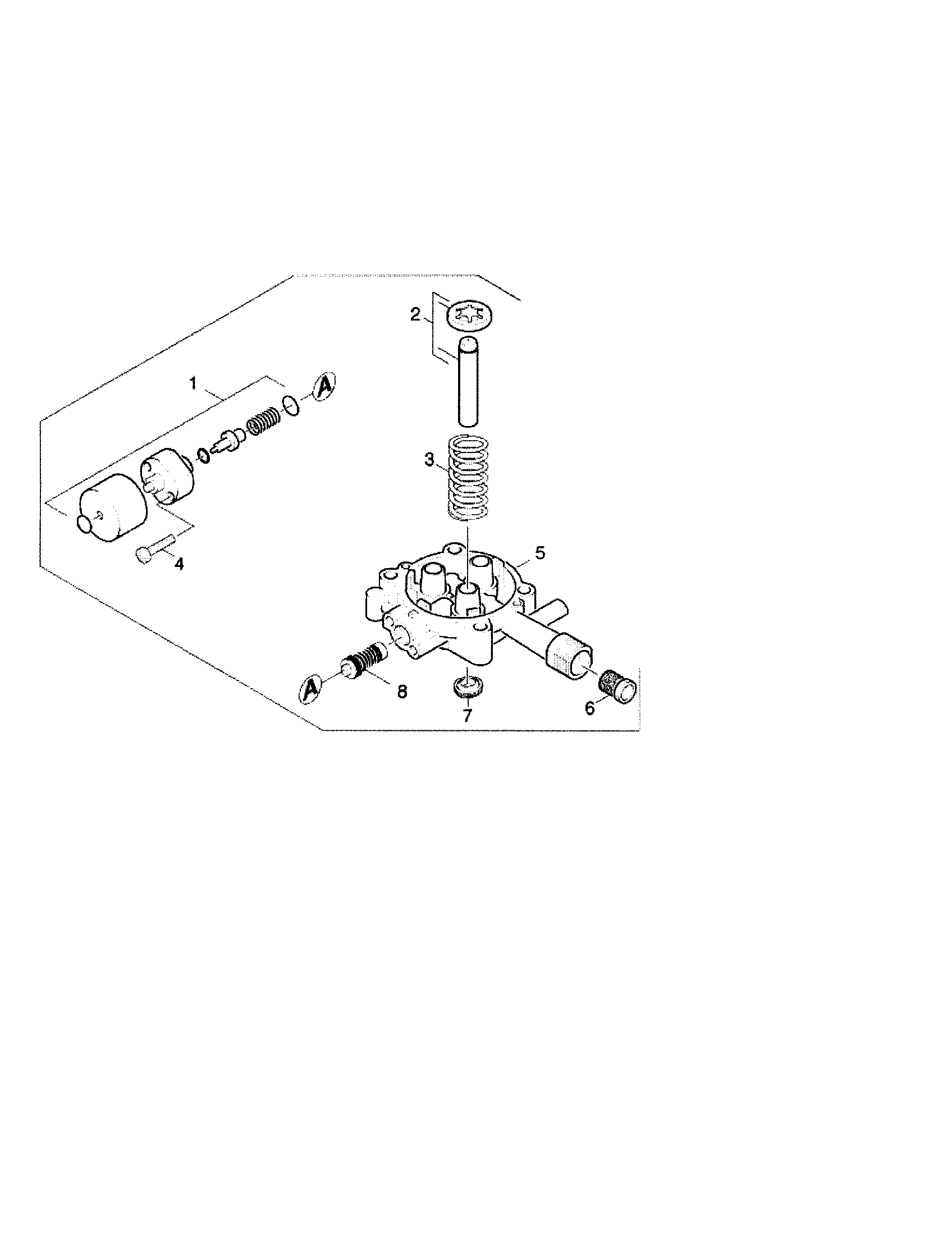

Pressure Washer Pump Valve Gasket

See All Related Diagrams

Pressure washer pump valve gasket

Part #6.362-458.0

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Head#8

2.5 cylinder head/pump set Diagram

Cylinder head

Part #5.550-249.0

The manufacturer no longer makes this part, and there's no substitute part

Exhaust#13

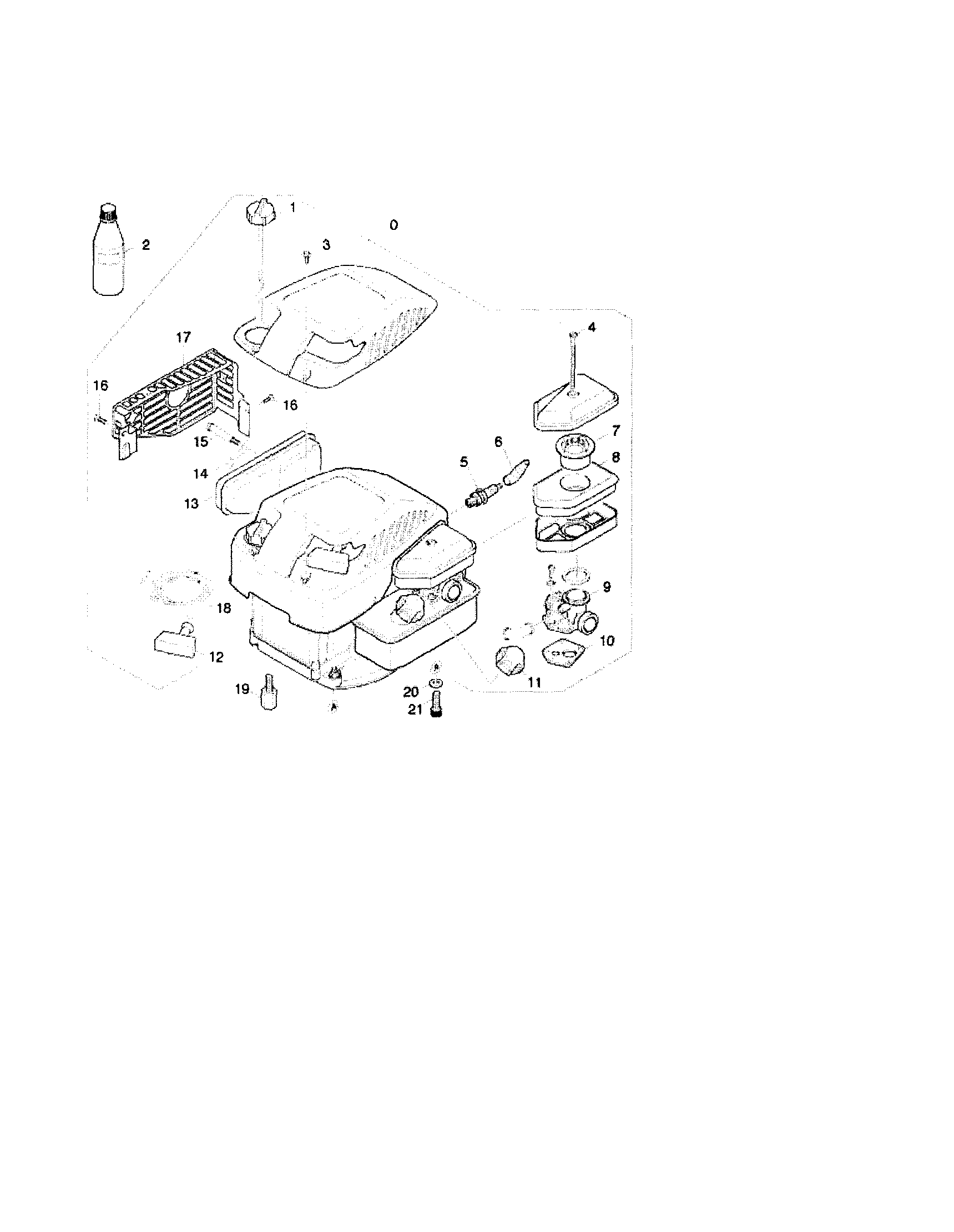

3.2 motor - 1.133-114.0 /-122.0 Diagram

Exhaust

Part #6.491-526.0

The manufacturer no longer makes this part, and there's no substitute part

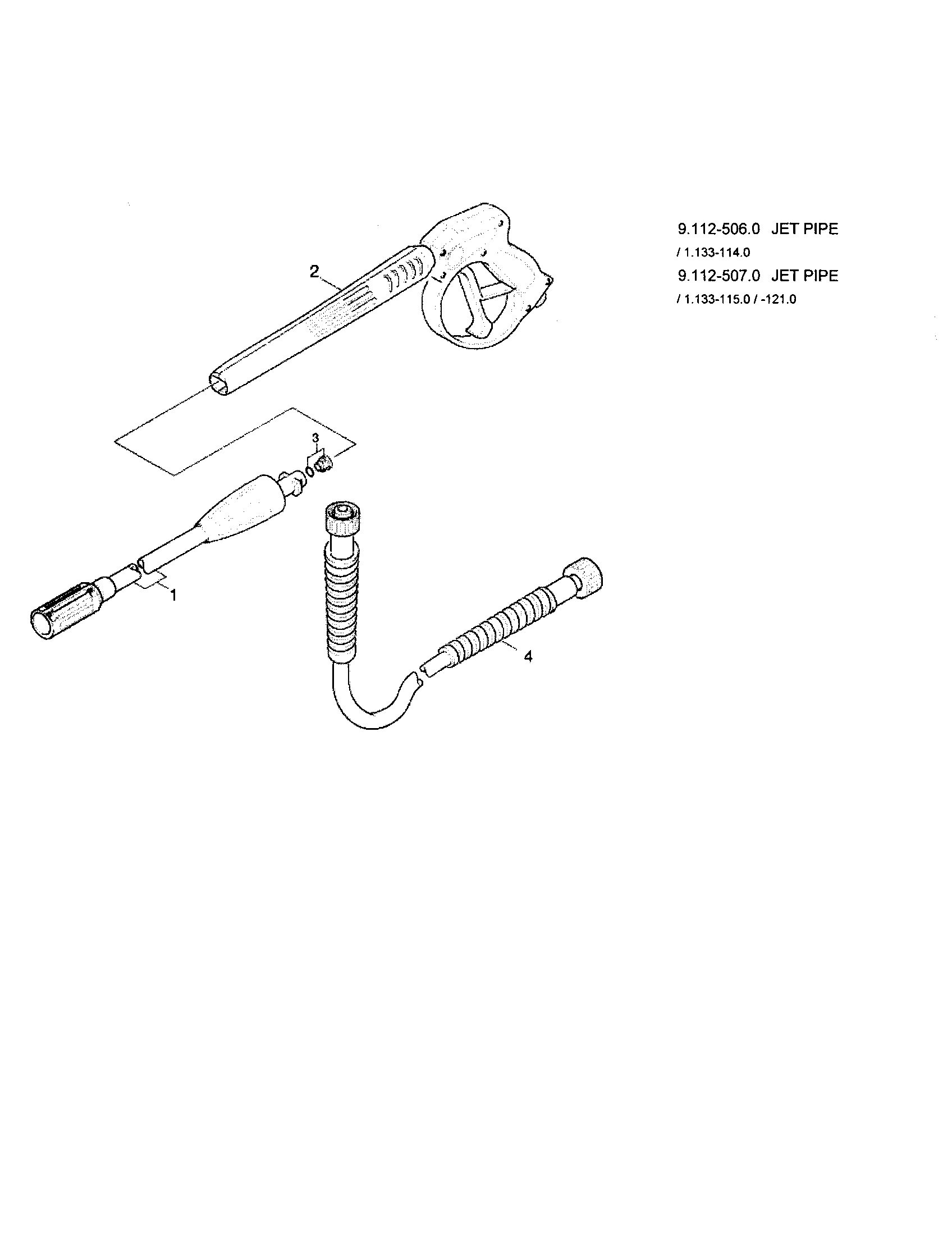

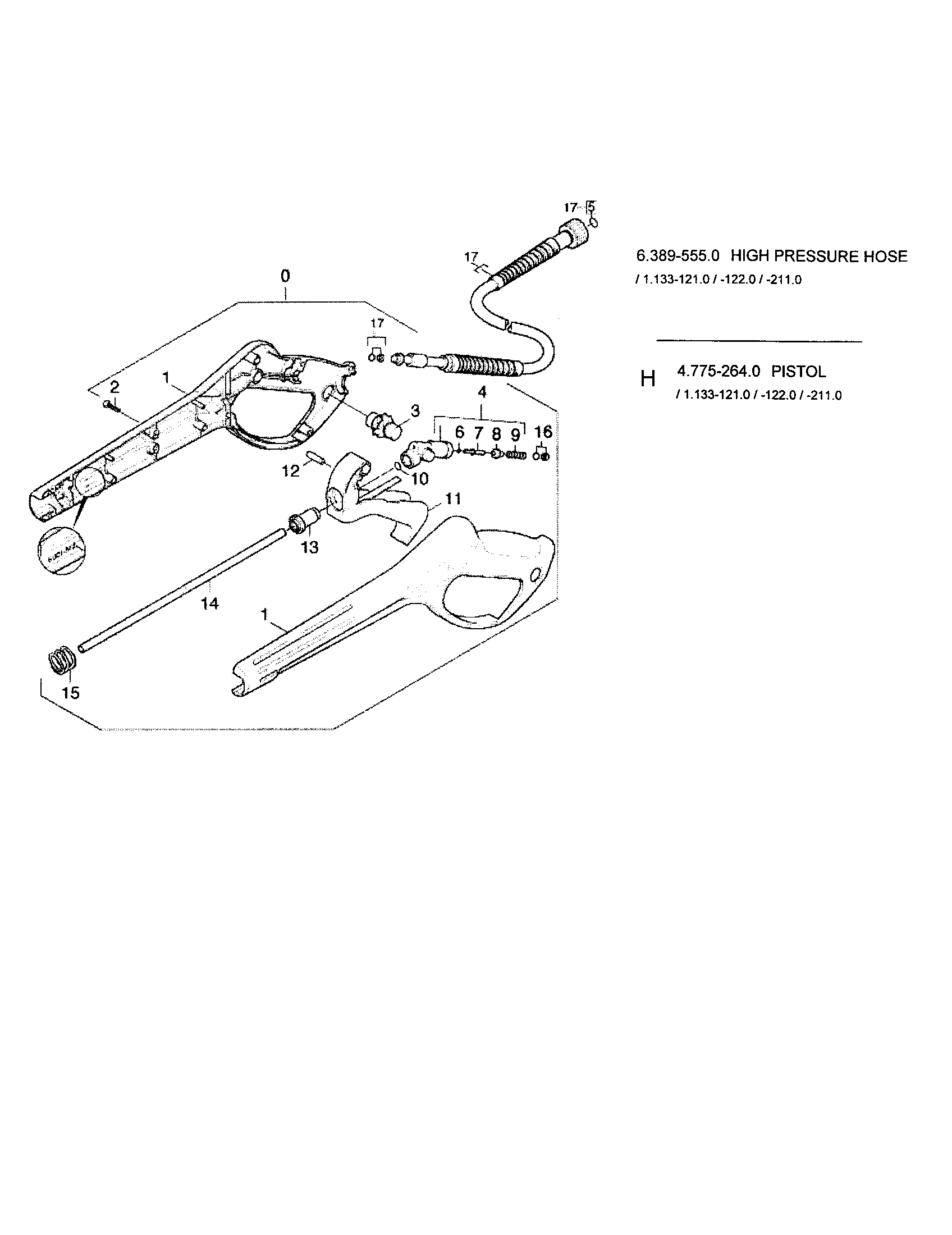

Jet Pipe#1A

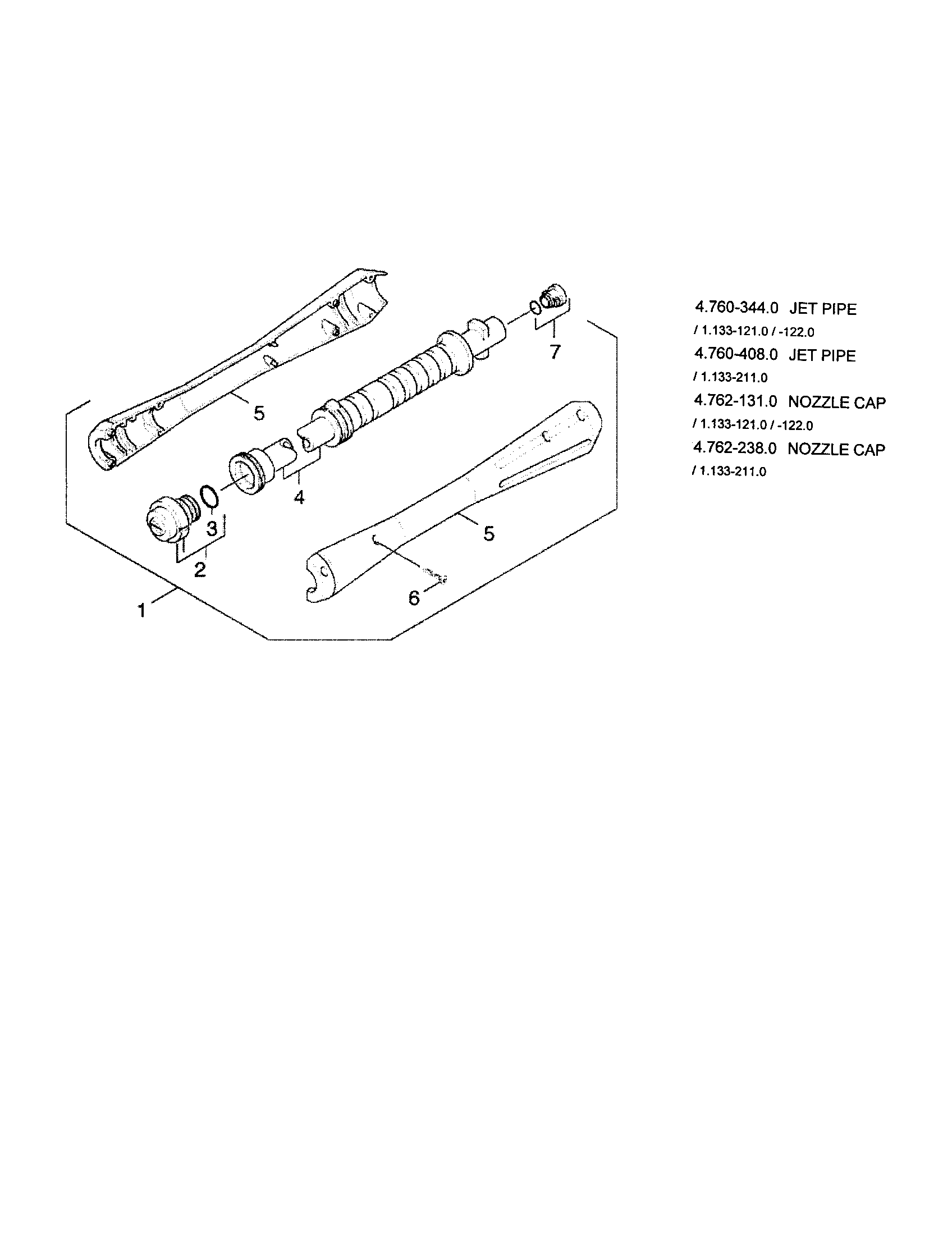

4.3 jet pipe Diagram

Jet pipe

Part #4.760-408.0

The manufacturer no longer makes this part, and there's no substitute part
