Craftsman
Jointer/Planer

Model # 113232240 Official Craftsman 6-1/8" jointer/planer

Here are the diagrams and repair parts for Official Craftsman 113232240 6-1/8" jointer/planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |

Rod Knife Gauge 824926
#28

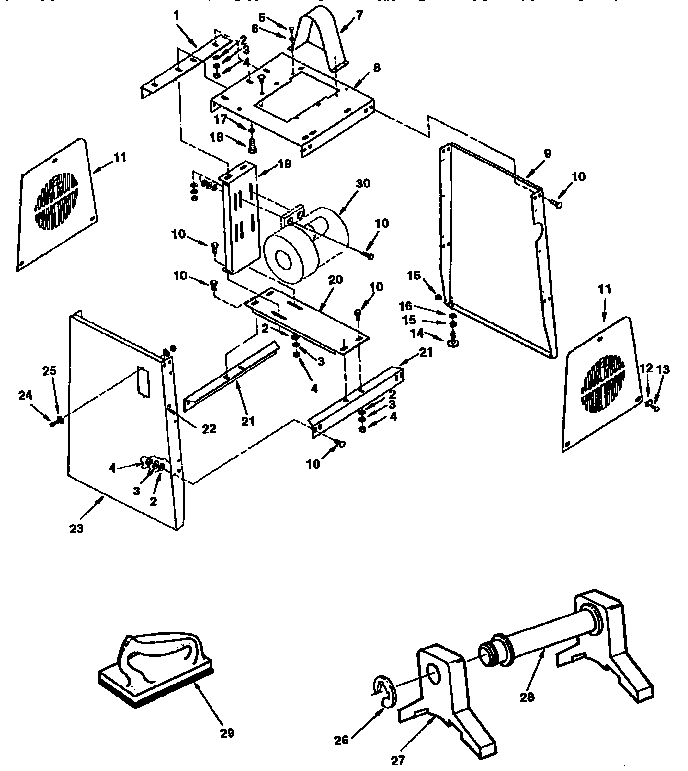

Panel assembly diagram

Rod knife gauge

Part #824926

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 820632-2
#26

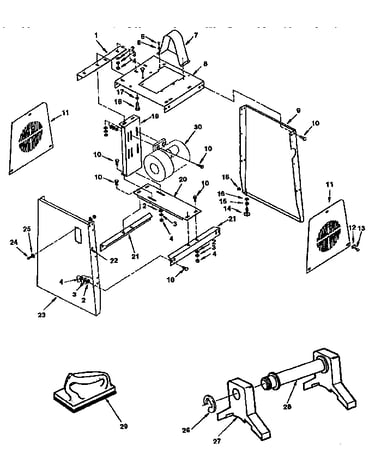

Panel assembly diagram

Retainer ring

Part #820632-2

The manufacturer no longer makes this part, and there's no substitute part

Pulley 824931
#15

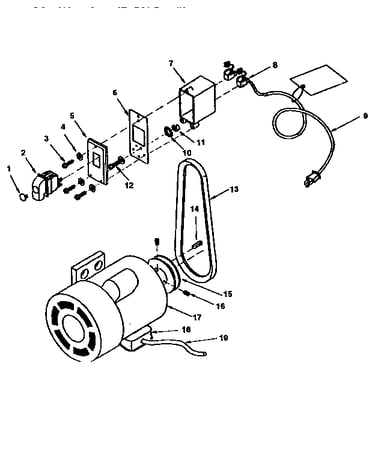

Switch and motor assembly diagram

Pulley

Part #824931

The manufacturer no longer makes this part, and there's no substitute part

Scr Sl Sh St 102817
#2

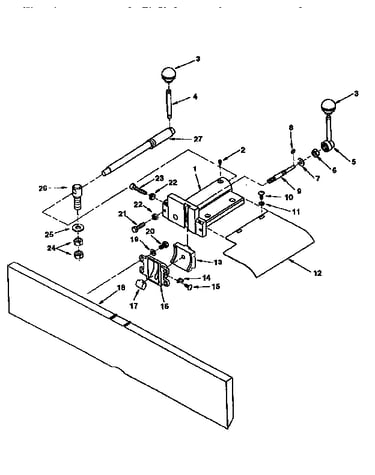

Fence assembly diagram

Scr sl sh st

Part #102817

The manufacturer no longer makes this part, and there's no substitute part

Spring (black) 824883
#4

Cutter head assembly diagram

Spring (black)

Part #824883

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551037
Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD533107
#10

Panel assembly diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Screw 816755-1
#8

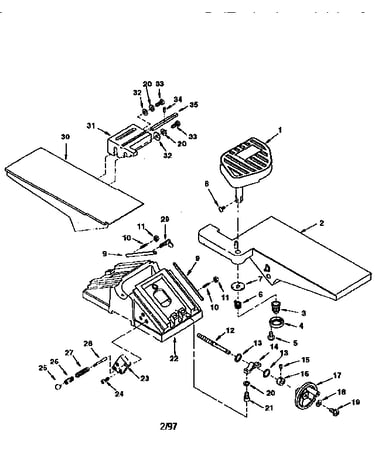

Table infeed assembly diagram

Screw

Part #816755-1

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551031
Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part
