How to replace a snowblower fuel filter

How to replace a snowblower fuel filter

This DIY repair guide shows how to replace the fuel filter on a snowblower. The fuel filter attaches to the fuel tank and screens out dirt and rust particles from gasoline.

If the fuel filter is clogged, gas can't flow to the carburetor, and the snowblower might not start. Replace the fuel filter with the manufacturer-approved replacement part if it's clogged or damaged.

Follow this general repair procedure for any brand and type of snow thrower that has a fuel filter at the bottom of its gas tank.

The fuel filter in many snow throwers should be changed at least once per season. Follow the directions in the owner's manual for replacing the fuel filter if the procedure differs from the process shown in this guide.

This DIY repair guide shows how to replace the fuel filter 951-10651 on common Craftsman, MTD and Murray snowblowers with these models of engines:

Quick links
Tools required
Work gloves
Phillips screwdriver
Slot screwdriver
Needle-nose pliers
Wrench set
Socket and ratchet set
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less
Replacing a fuel filter on a snowblower

This video explains how to replace the fuel filter on a snowblower.

Instructions

  1. 01.

    Drain the fuel tank and disconnect the spark plug wire

    Drain the fuel from the tank or run the snowblower until the tank is empty.

    Position the snowblower in a well-ventilated area.

    Pull the spark plug wire up and off the plug.

  2. 02.

    Remove the electric starter switch

    Remove the mounting screws and pull the starter switch off the bracket.

    Let the starter switch hang by the electrical cord.

    PHOTO: Remove the electric starter switch.

    PHOTO: Remove the electric starter switch.

  3. 03.

    Remove the engine shroud

    Remove the key.

    Pull off the choke and throttle knobs. Remove the acorn nuts that secure the carburetor to the engine.

    Remove the muffler shroud mounting screws.

    Work the engine shroud off the carburetor mounting studs, leaving the primer hose and breather hose connected.

    PHOTO: Remove the key.

    PHOTO: Remove the key.

    PHOTO: Pull off the throttle knob.

    PHOTO: Pull off the throttle knob.

    PHOTO: Remove the choke knob.

    PHOTO: Remove the choke knob.

    PHOTO: Remove the acorn nuts.

    PHOTO: Remove the acorn nuts.

    PHOTO: Remove the muffler shroud screws.

    PHOTO: Remove the muffler shroud screws.

    PHOTO: Pull out the engine shroud.

    PHOTO: Pull out the engine shroud.

  4. 04.

    Remove the fuel filter

    Release the fuel line clamp and pull the fuel line off the fuel filter.

    Unscrew the fuel filter from the tank and remove it.

    PHOTO: Pull the fuel line off the fuel filter.

    PHOTO: Pull the fuel line off the fuel filter.

    PHOTO: Unscrew the fuel filter.

    PHOTO: Unscrew the fuel filter.

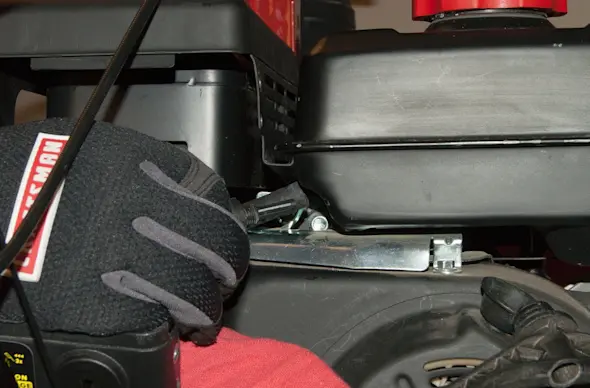

    PHOTO: Remove the fuel filter from the tank.

    PHOTO: Remove the fuel filter from the tank.

  5. 05.

    Install the new fuel filter

    Screw the new fuel filter into the tank and tighten it firmly.

    Reconnect the fuel line and secure it using the clamp.

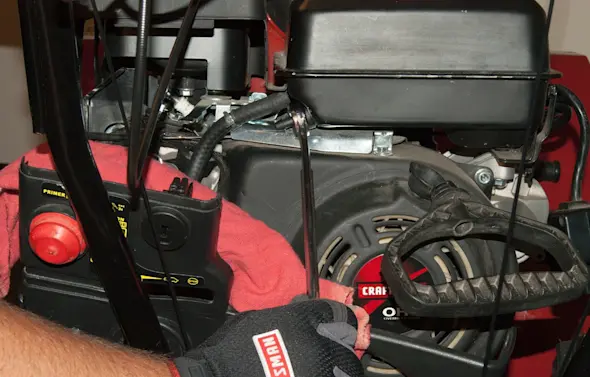

    PHOTO: Screw the new fuel filter into the tank and tighten it.

    PHOTO: Screw the new fuel filter into the tank and tighten it.

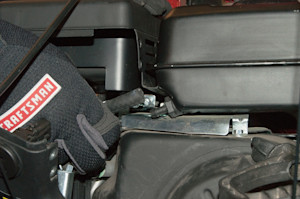

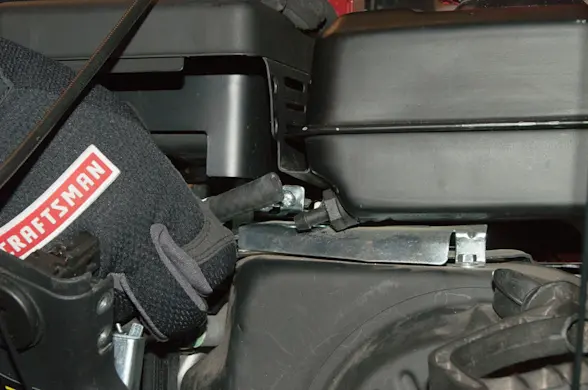

    PHOTO: Reconnect the fuel line to the fuel filter.

    PHOTO: Reconnect the fuel line to the fuel filter.

  6. 06.

    Reinstall the engine shroud

    Pull off the muffler shroud before reinstalling the engine shroud.

    Remove the belt cover mounting bolts and pull off the belt cover.

    Remove the bolts from the red chute support bracket and pull the support bracket forward, releasing the control rod from the 4-way control rod receiver.

    Remove the front muffler shroud mounting bolts.

    Release the wire control cables from the retainer clip and pull off the muffler shroud.

    Align the choke knob shaft and the 2 carburetor mounting posts with the openings on the engine shroud and work the engine shroud onto the engine. Make sure that the breather hose passes through the opening and lines up with the rocker cover breather hose fitting.

    Slide the breather hose over the rocker cover fitting and secure the hose with the clamp.

    Reinstall the 2 acorn nuts to secure the engine shroud to the engine.

    Slide the wire control cables into the retainer clip and position the muffler shroud on the engine.

    Reinstall the muffler shroud mounting bolts.

    Push the control rod back into the 4-way control rod receiver and line up the support bracket with the mounting holes.

    Reinstall the bolts in the red chute support bracket.

    Reinstall the belt cover using the mounting bolts.

    Reinstall the choke and throttle knobs.

    Tip: Removing the muffler shroud is necessary because the engine shroud fits under the bottom lip of the muffler shroud. You can remove the engine shroud without removing the muffler shroud but the muffler shroud must be removed for reassembly.
    PHOTO: Remove the belt cover bolts.

    PHOTO: Remove the belt cover bolts.

    PHOTO: Remove the belt cover.

    PHOTO: Remove the belt cover.

    PHOTO: Remove the chute support bolts.

    PHOTO: Remove the chute support bolts.

    PHOTO: Release the control rod.

    PHOTO: Release the control rod.

    PHOTO: Remove the muffler shroud bolts.

    PHOTO: Remove the muffler shroud bolts.

    PHOTO: Release the control cable.

    PHOTO: Release the control cable.

    PHOTO: Remove the muffler shroud.

    PHOTO: Remove the muffler shroud.

    PHOTO: Reconnect the stop switch wires.

    PHOTO: Reconnect the stop switch wires.

    PHOTO: Reinstall the muffler shroud.

    PHOTO: Reinstall the muffler shroud.

    PHOTO: Reinstall the control rod.

    PHOTO: Reinstall the control rod.

    PHOTO: Reinstall the chute support bracket.

    PHOTO: Reinstall the chute support bracket.

    PHOTO: Reinstall the belt cover.

    PHOTO: Reinstall the belt cover.

    PHOTO: Reinstall the choke knob.

    PHOTO: Reinstall the choke knob.

  7. 07.

    Reinstall the electric starter switch

    Position the electric starter switch on the switch bracket and reinstall the mounting screws.

    PHOTO: Reinstall the starter switch.

    PHOTO: Reinstall the starter switch.

  8. 08.

    Reconnect the spark plug

    Reconnect the spark plug wire.

  9. 09.

    Reinstall the key

    Push the key into the slot.

    PHOTO: Insert the key.

    PHOTO: Insert the key.

Warning: Undertaking repairs or maintenance to appliances or power equipment can be hazardous. Should you choose to undertake repairs or maintenance, you are assuming the risk of injury to your person or property. In an effort to reduce the risk, use the proper tools and safety equipment noted in the applicable guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs or maintenance, however, should only be performed by a qualified technician.
