Karcher
Gas Pressure Washer

Model # G2300IB Official Karcher pressure washer

Here are the diagrams and repair parts for Official Karcher G2300IB pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

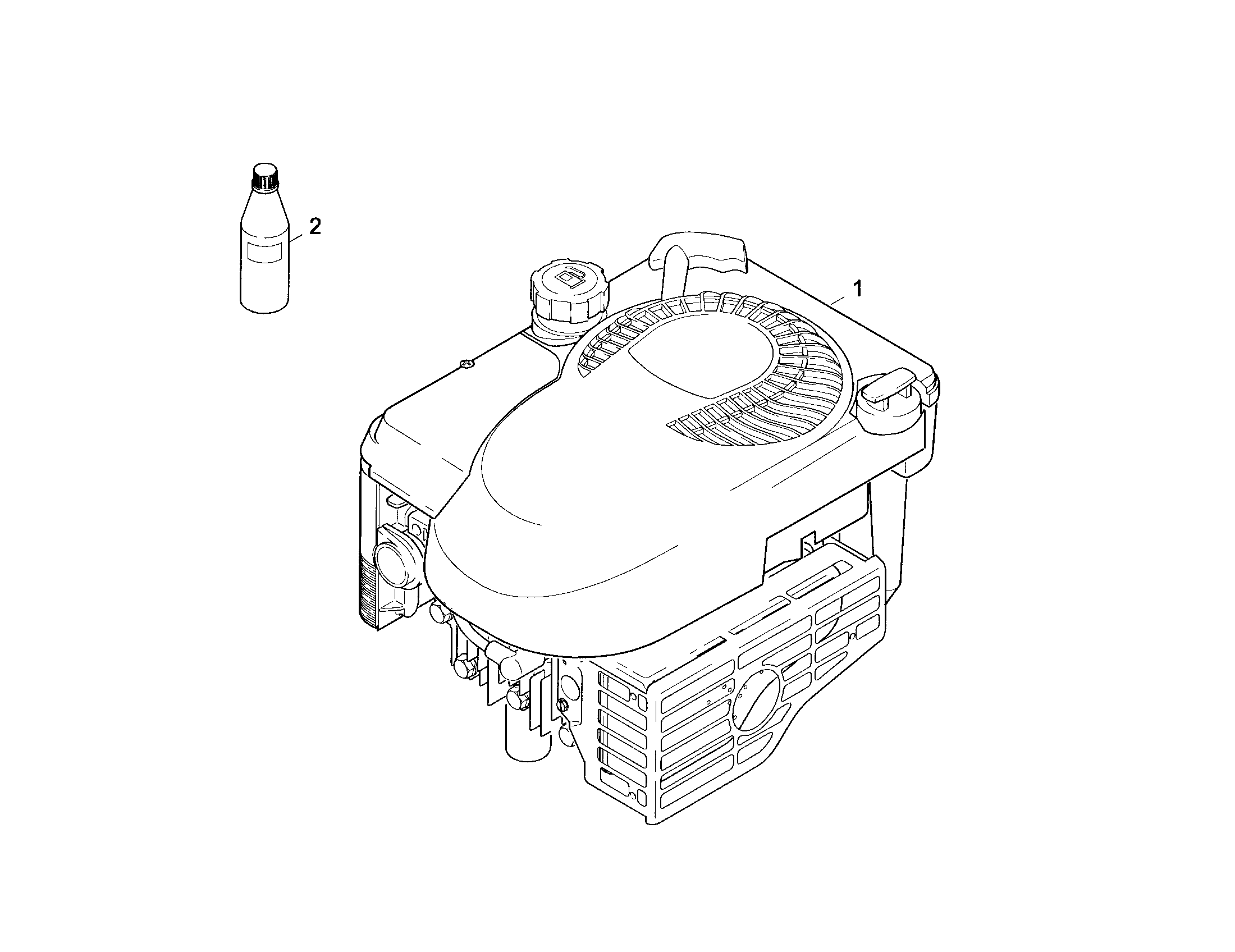

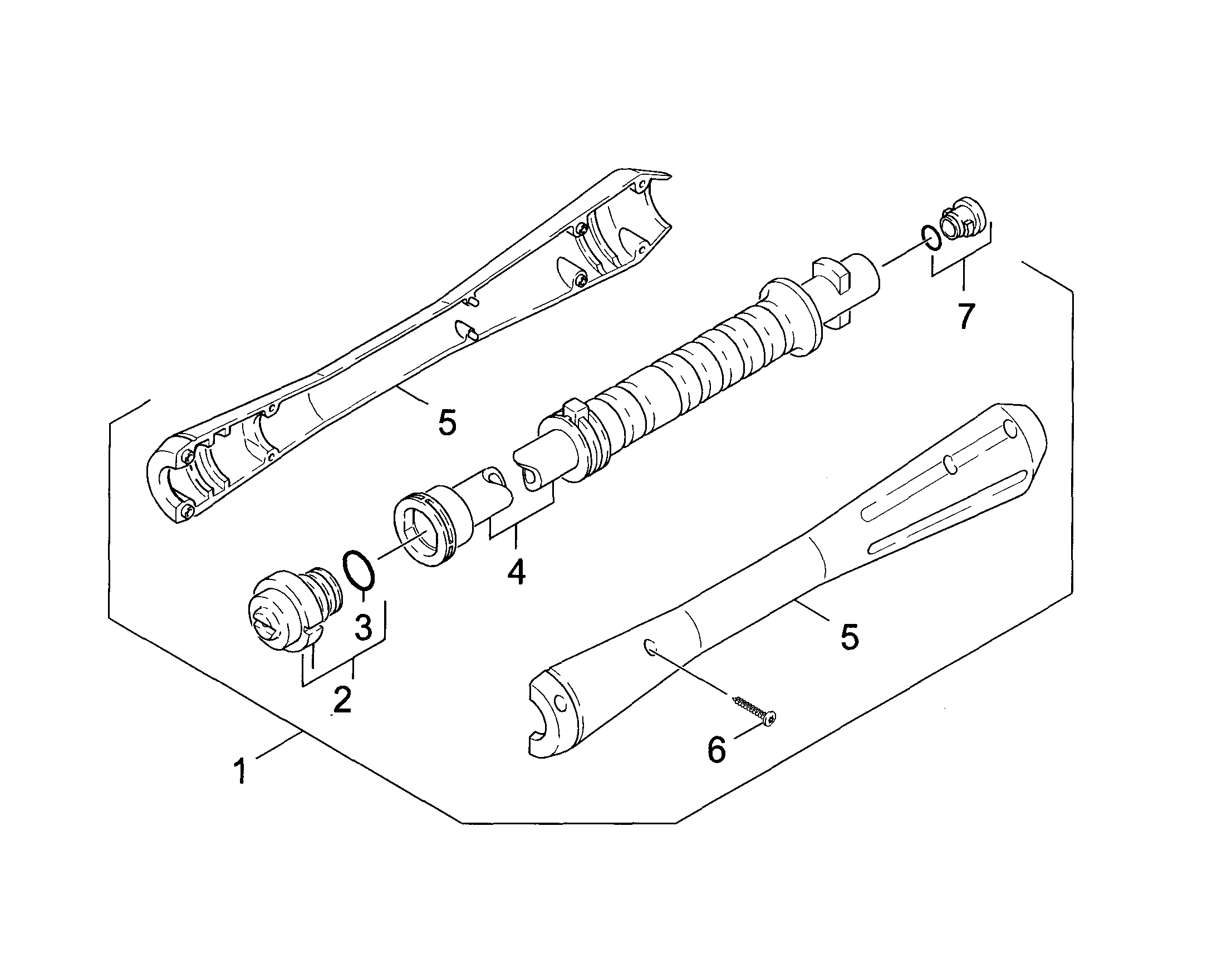

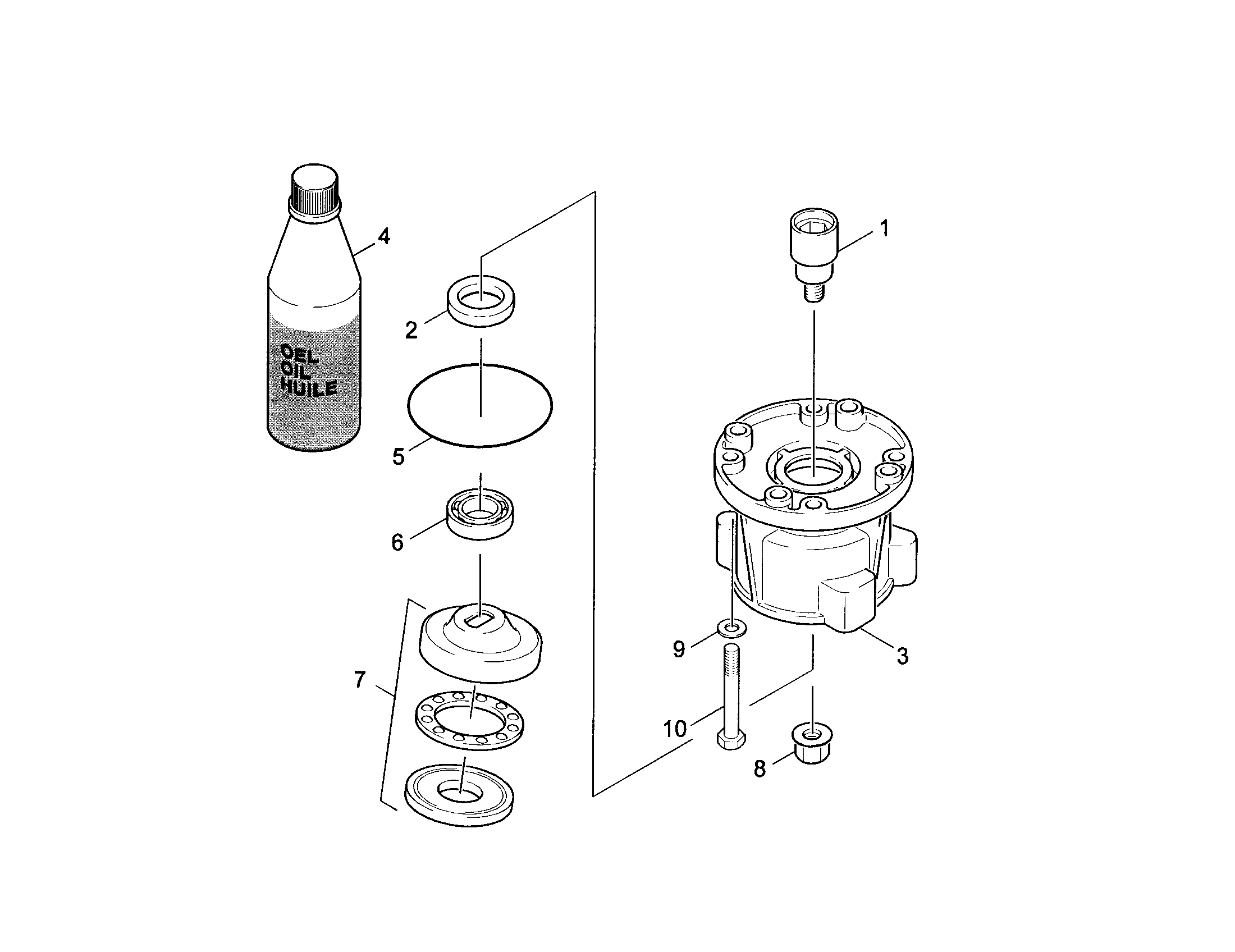

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Complete Piston 4.553-215.0
#2

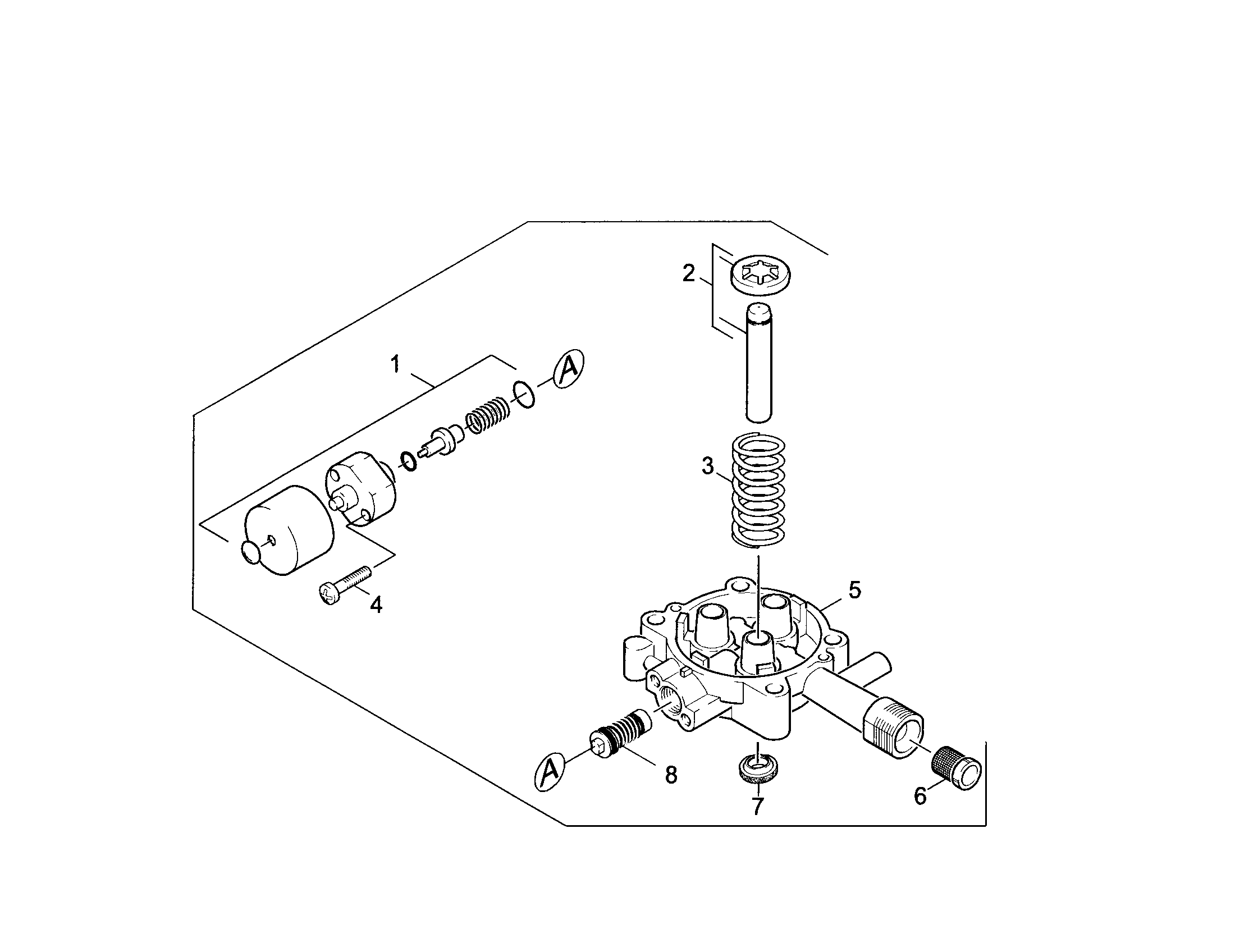

Piston diagram

Complete piston

Part #4.553-215.0

The manufacturer no longer makes this part, and there's no substitute part

Joining Pc 4.030-125.0
#5

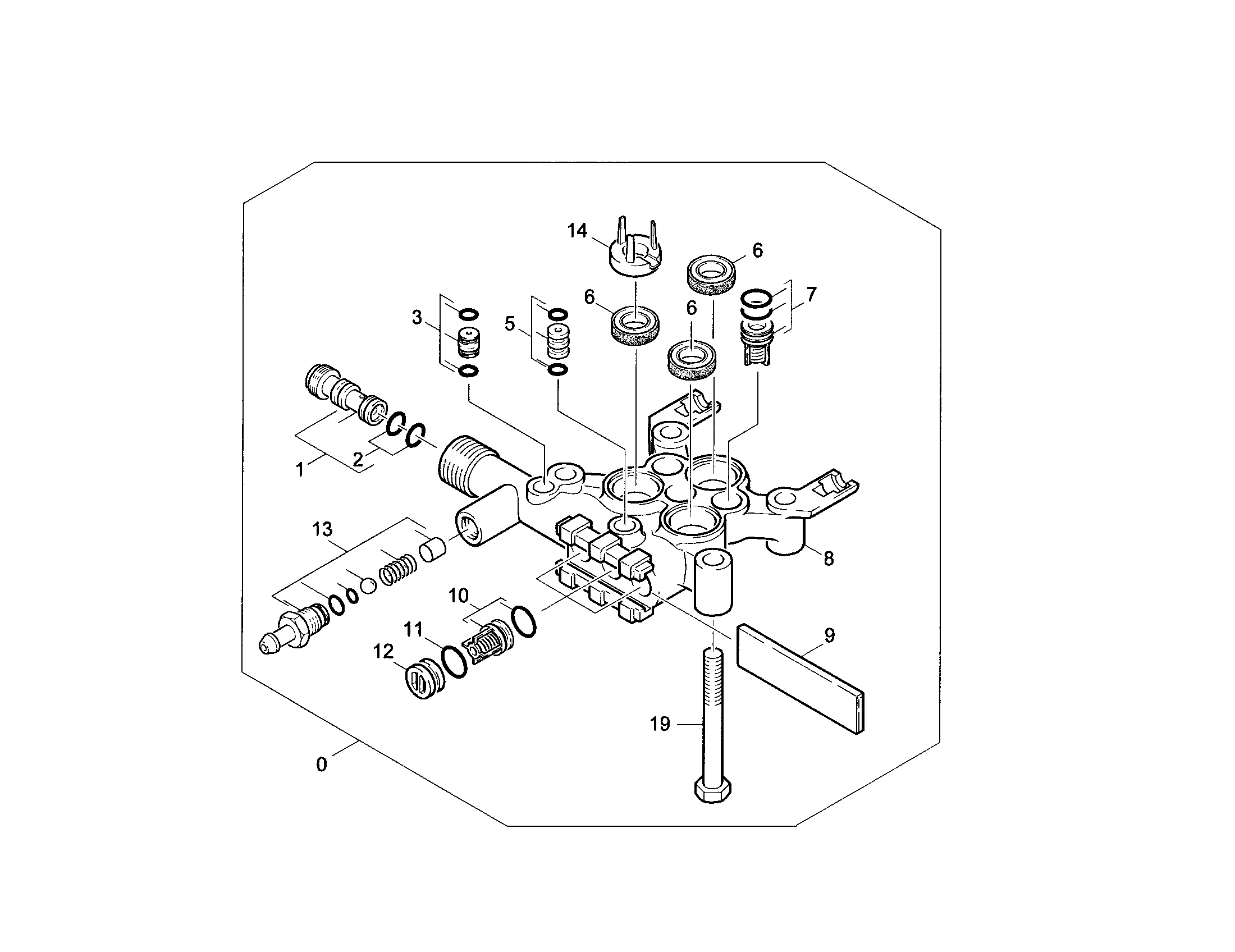

Cylinder head diagram

Joining pc

Part #4.030-125.0

The manufacturer no longer makes this part, and there's no substitute part

Lever 5.481-189.0
#3

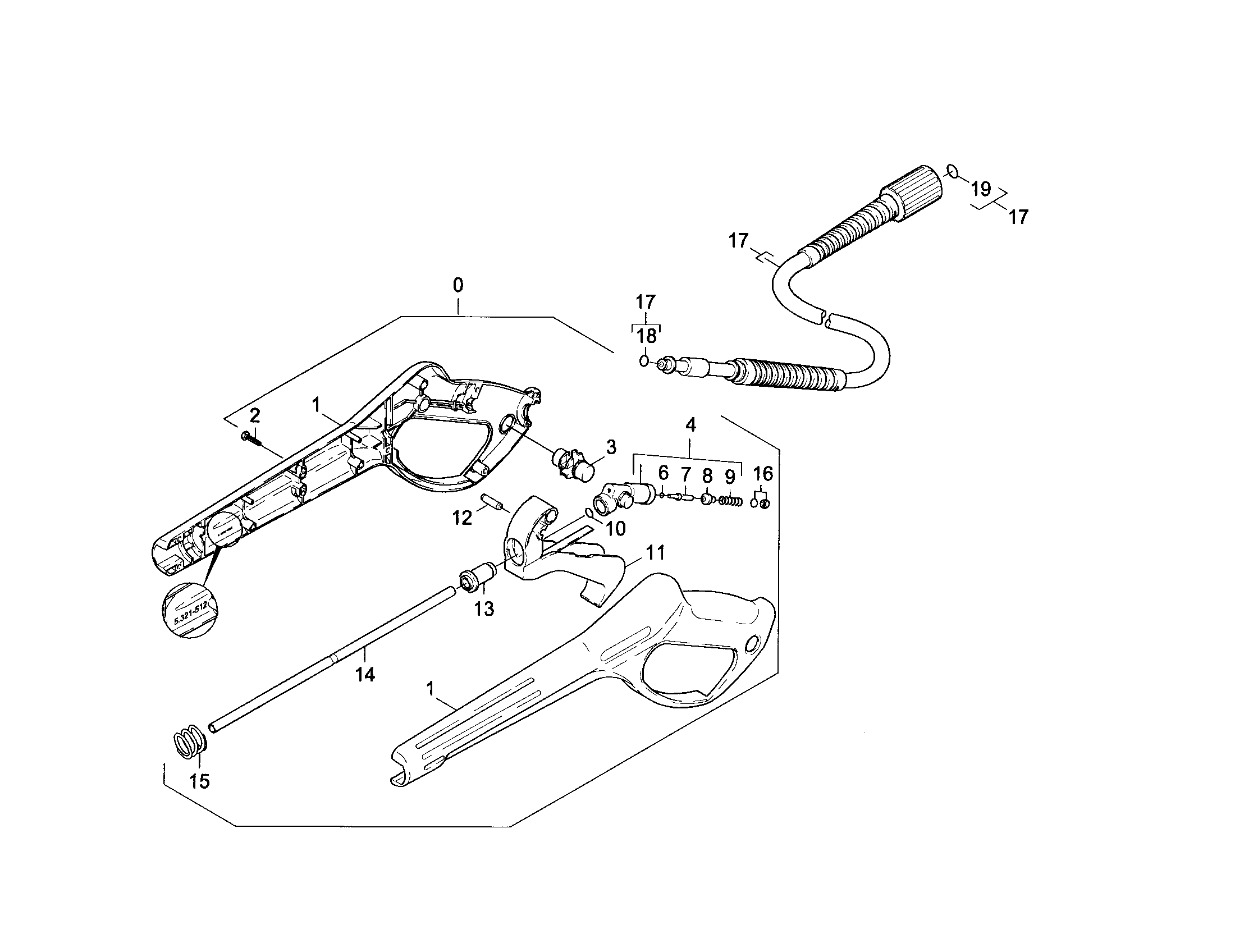

Trigger gun diagram

Lever

Part #5.481-189.0

The manufacturer no longer makes this part, and there's no substitute part

Wheel Cab (2) 6.435-221.0
#14

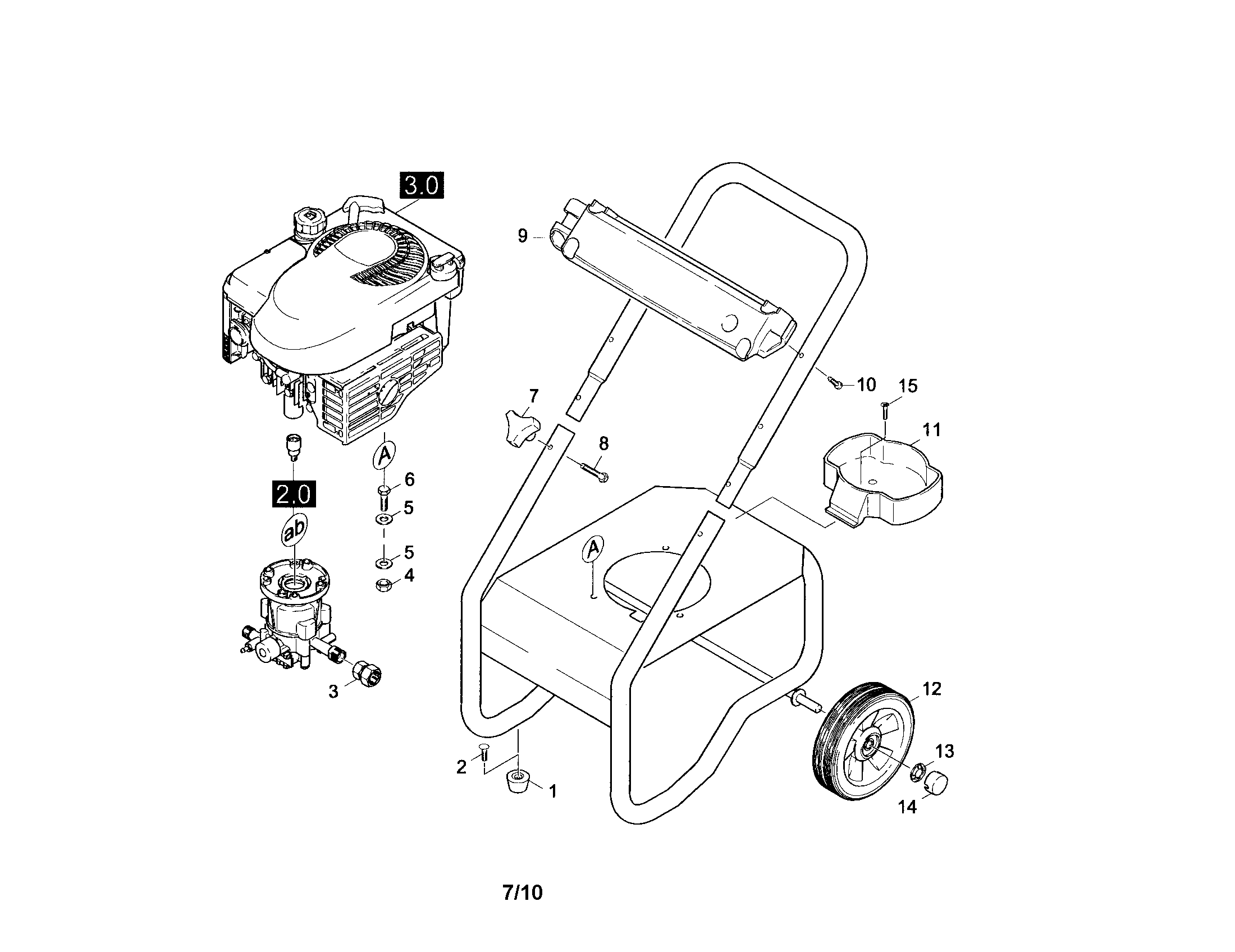

Piece parts diagram

Wheel cab (2)

Part #6.435-221.0

The manufacturer no longer makes this part, and there's no substitute part

Quick Fastener 6.343-181.0
#13

Piece parts diagram

Quick fastener

Part #6.343-181.0

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 7.303-066.0
#4

Piston diagram

Screw, 2-pack

Part #7.303-066.0

The manufacturer no longer makes this part, and there's no substitute part

Pressure Spring 5.332-349.0
#15

Trigger gun diagram

Pressure spring

Part #5.332-349.0

The manufacturer no longer makes this part, and there's no substitute part

Piston Guidance 5.060-838.0
#5

Piston diagram

Piston guidance

Part #5.060-838.0

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 2.880-154.0
#19

Trigger gun diagram

Gasket set

Part #2.880-154.0

The manufacturer no longer makes this part, and there's no substitute part

Washer (17) 9.198-002.0
#5

Piece parts diagram

Washer (17)

Part #9.198-002.0

The manufacturer no longer makes this part, and there's no substitute part
