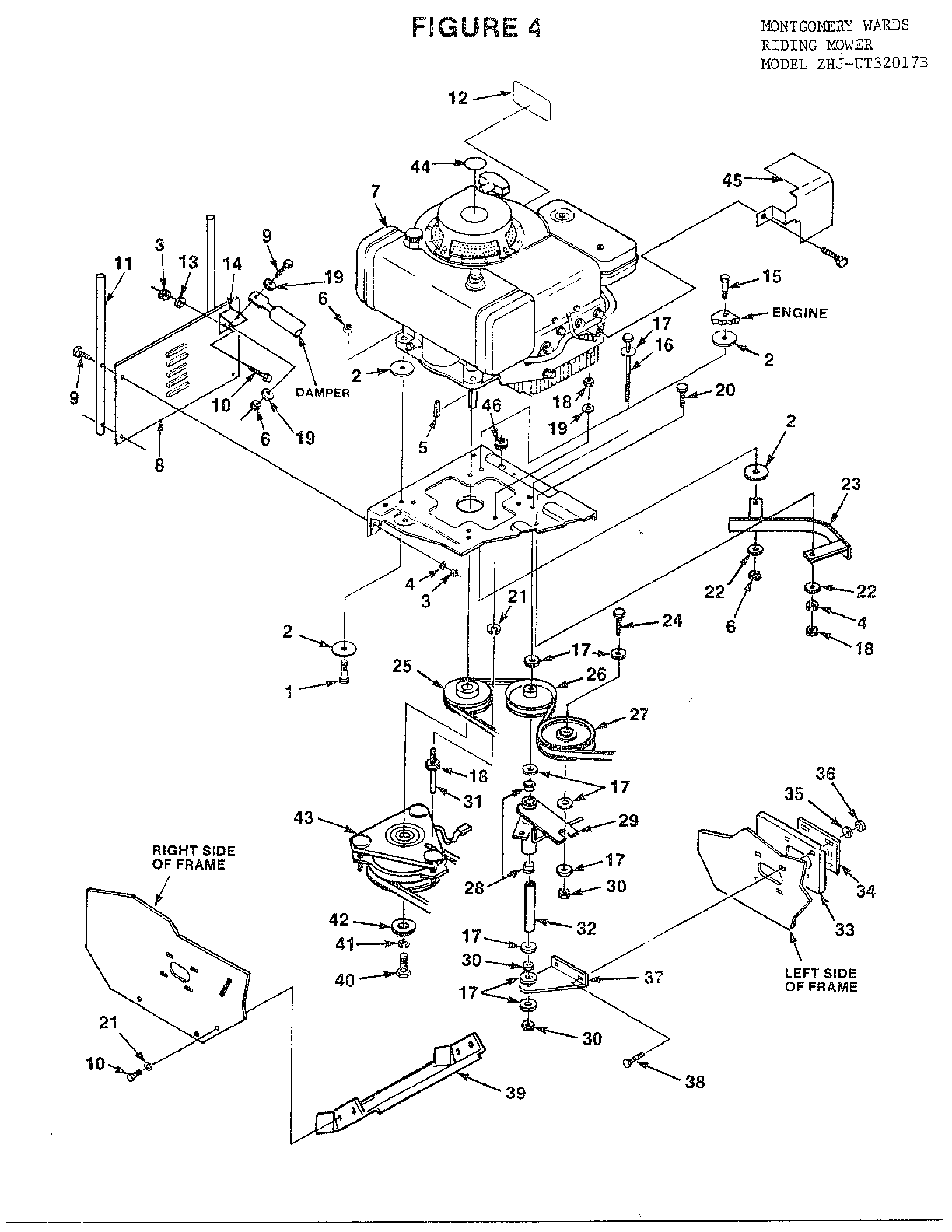

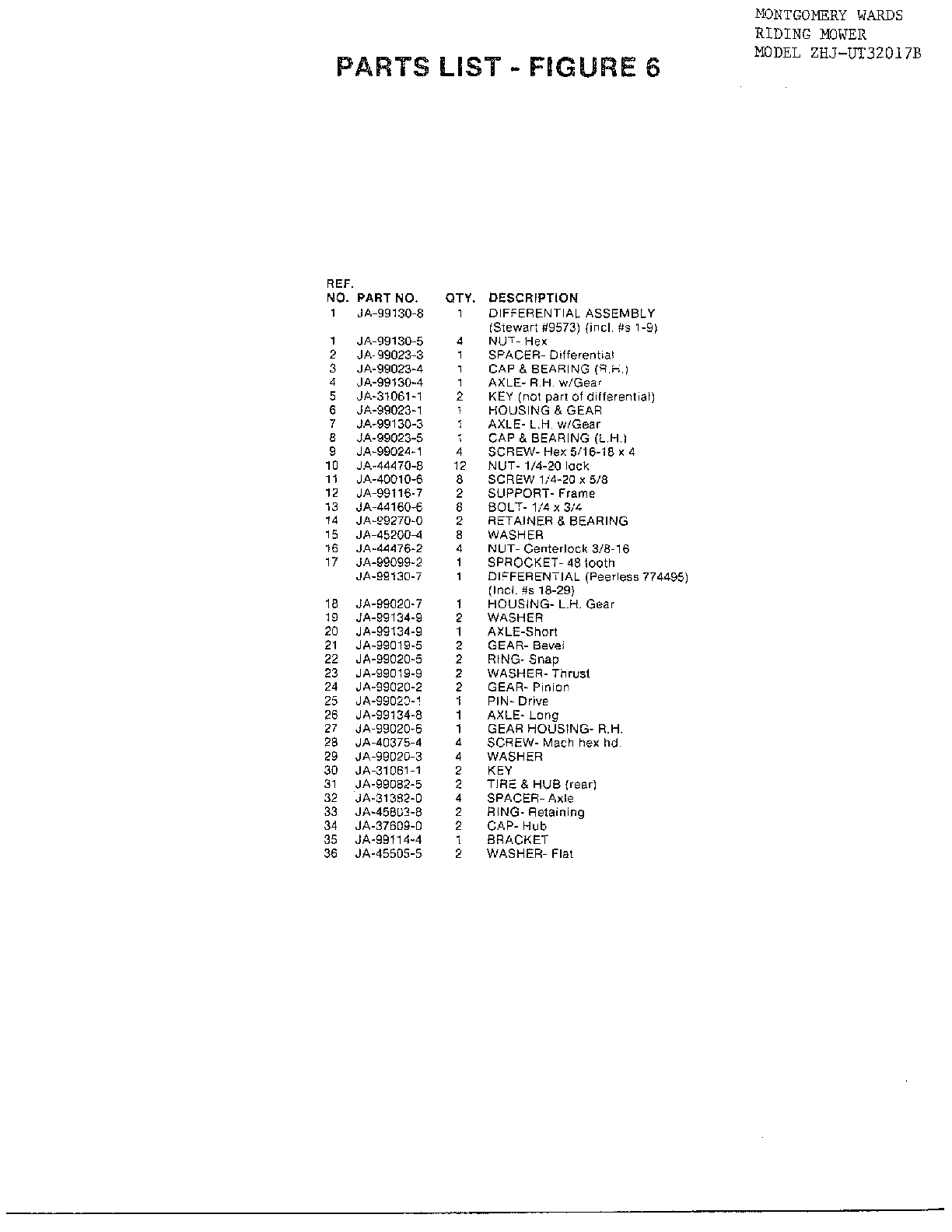

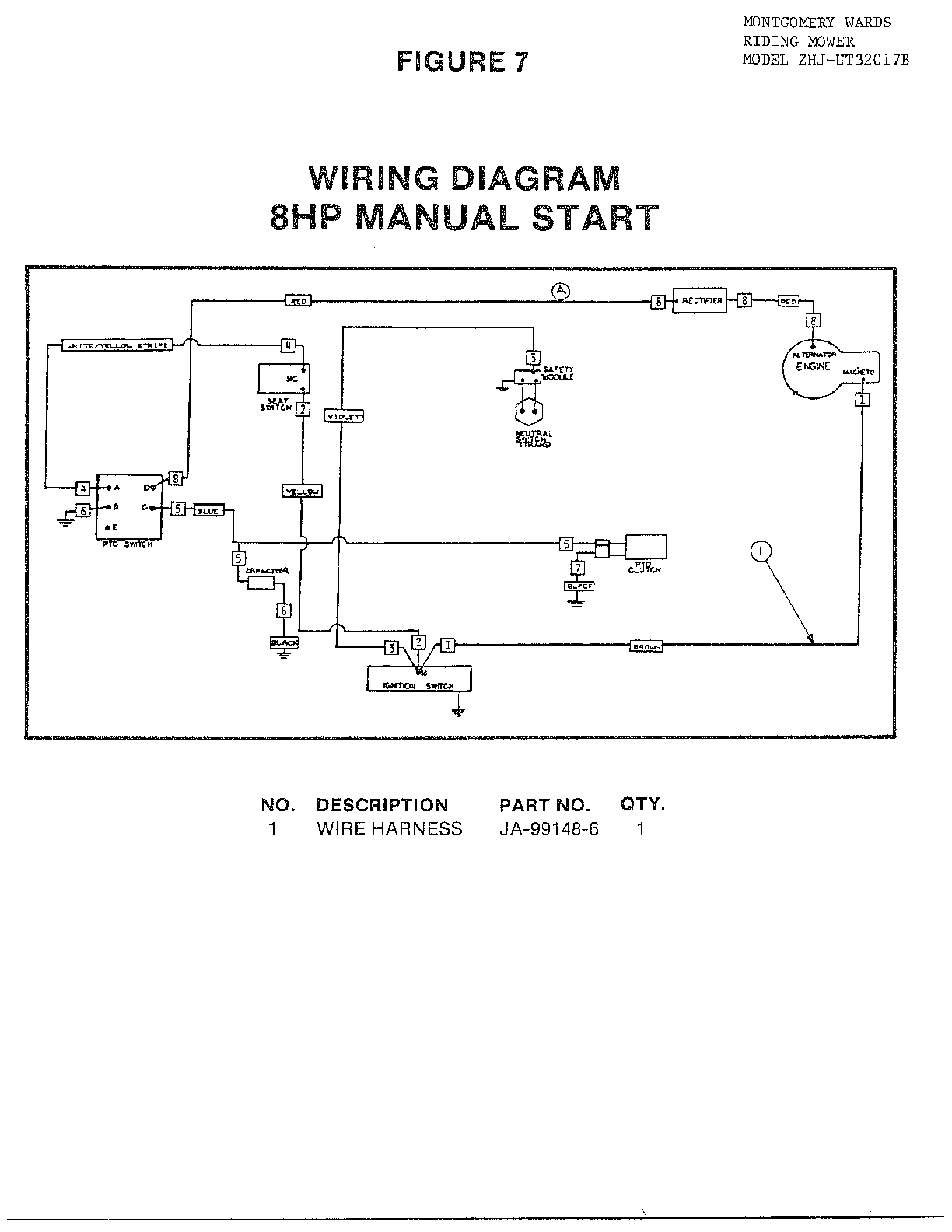

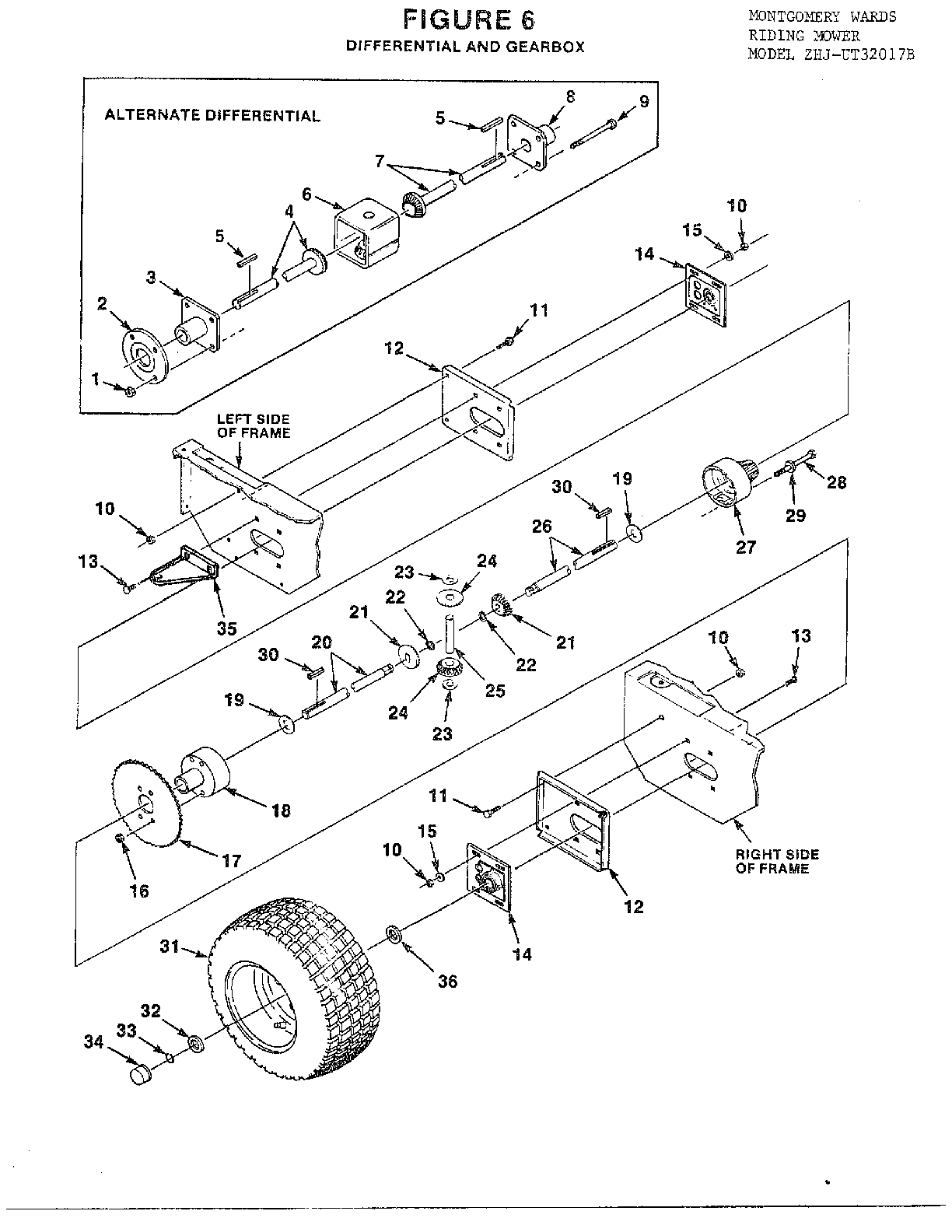

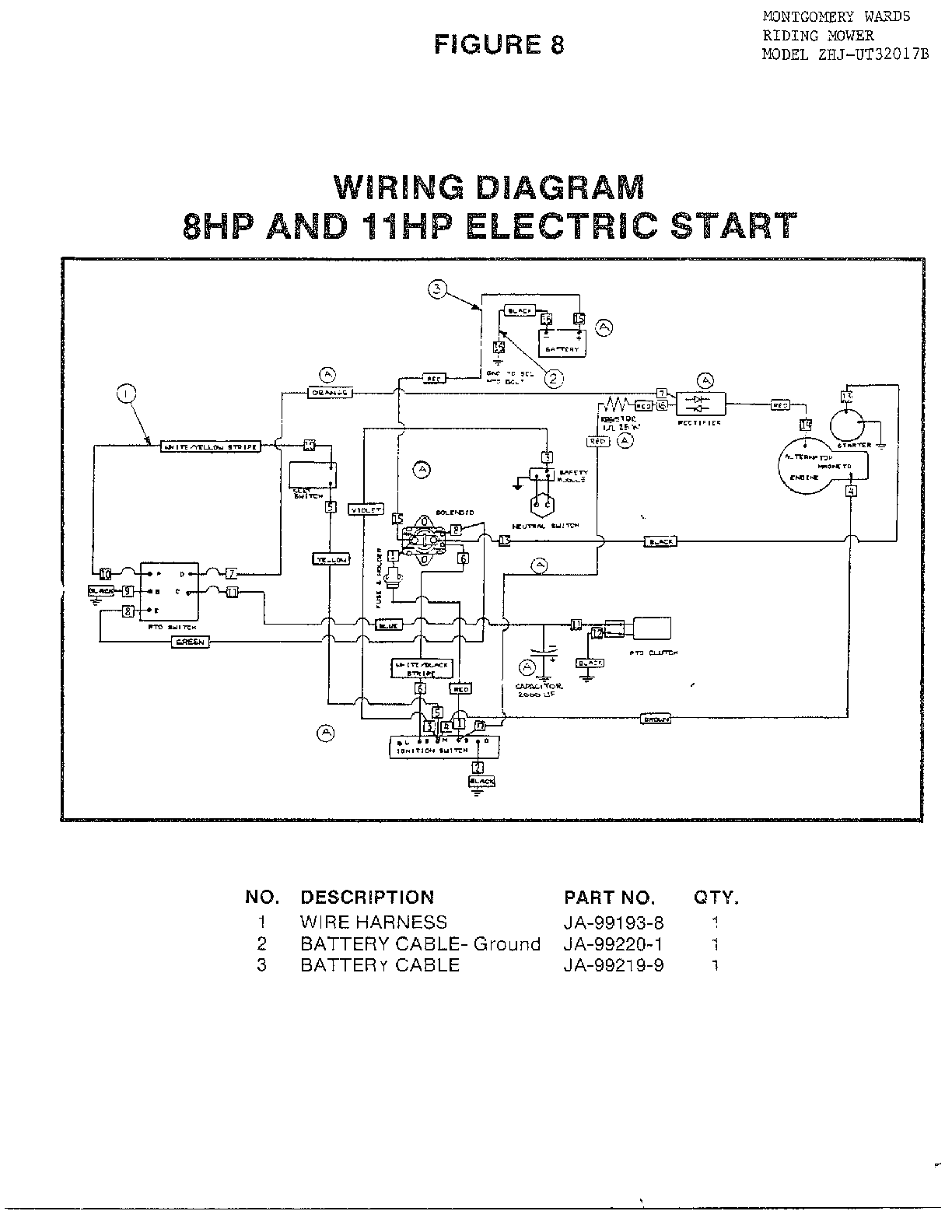

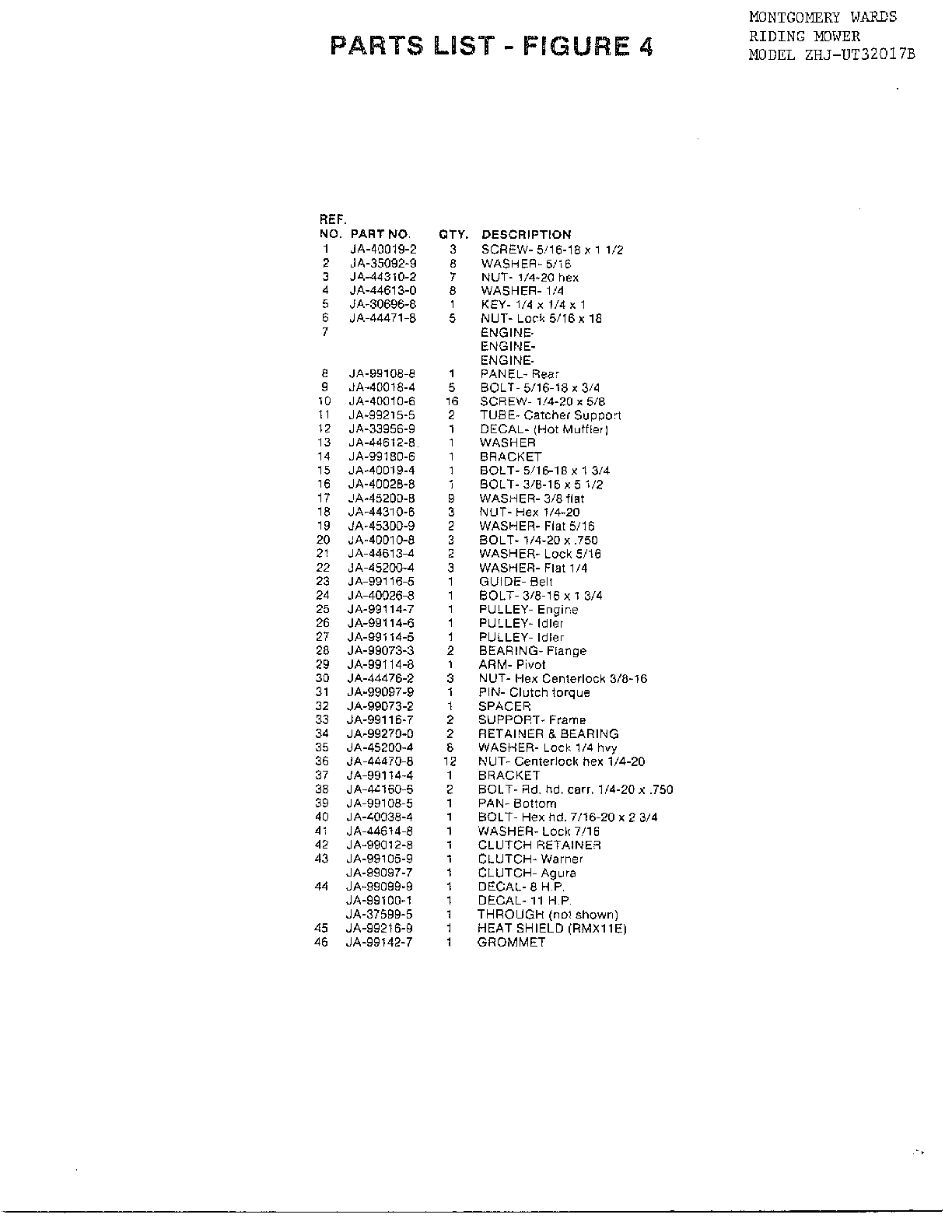

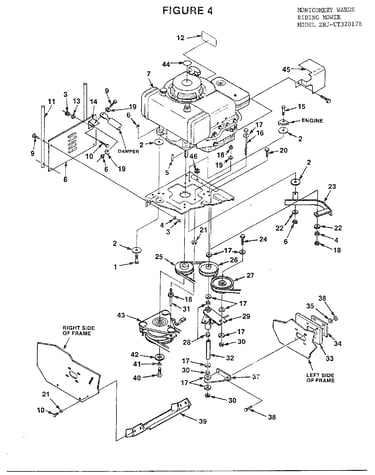

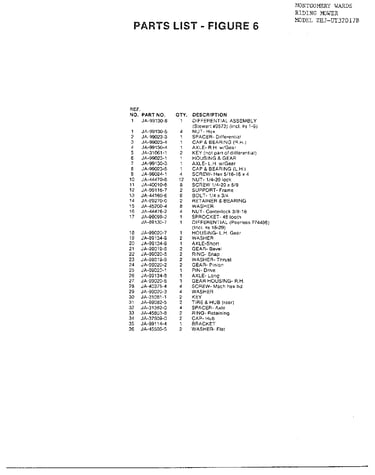

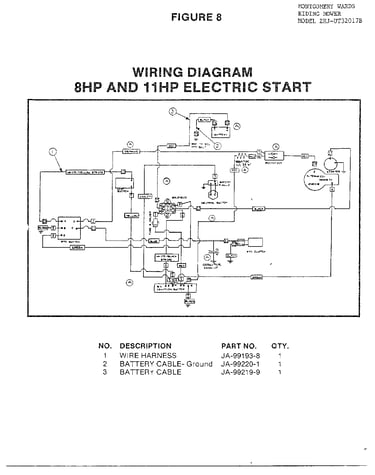

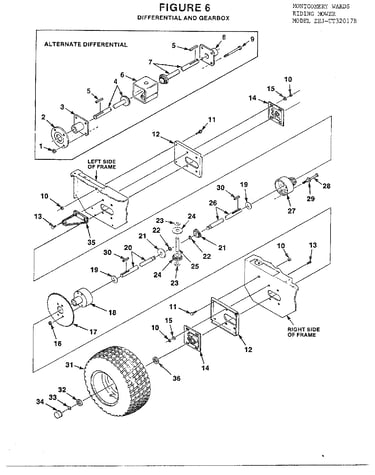

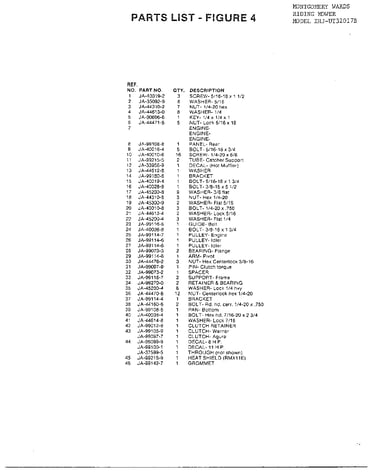

Model #UT32017B Homelite riding lawn mower

Here are the diagrams and repair parts for Homelite UT32017B riding lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 256 parts

    Nut

    #31

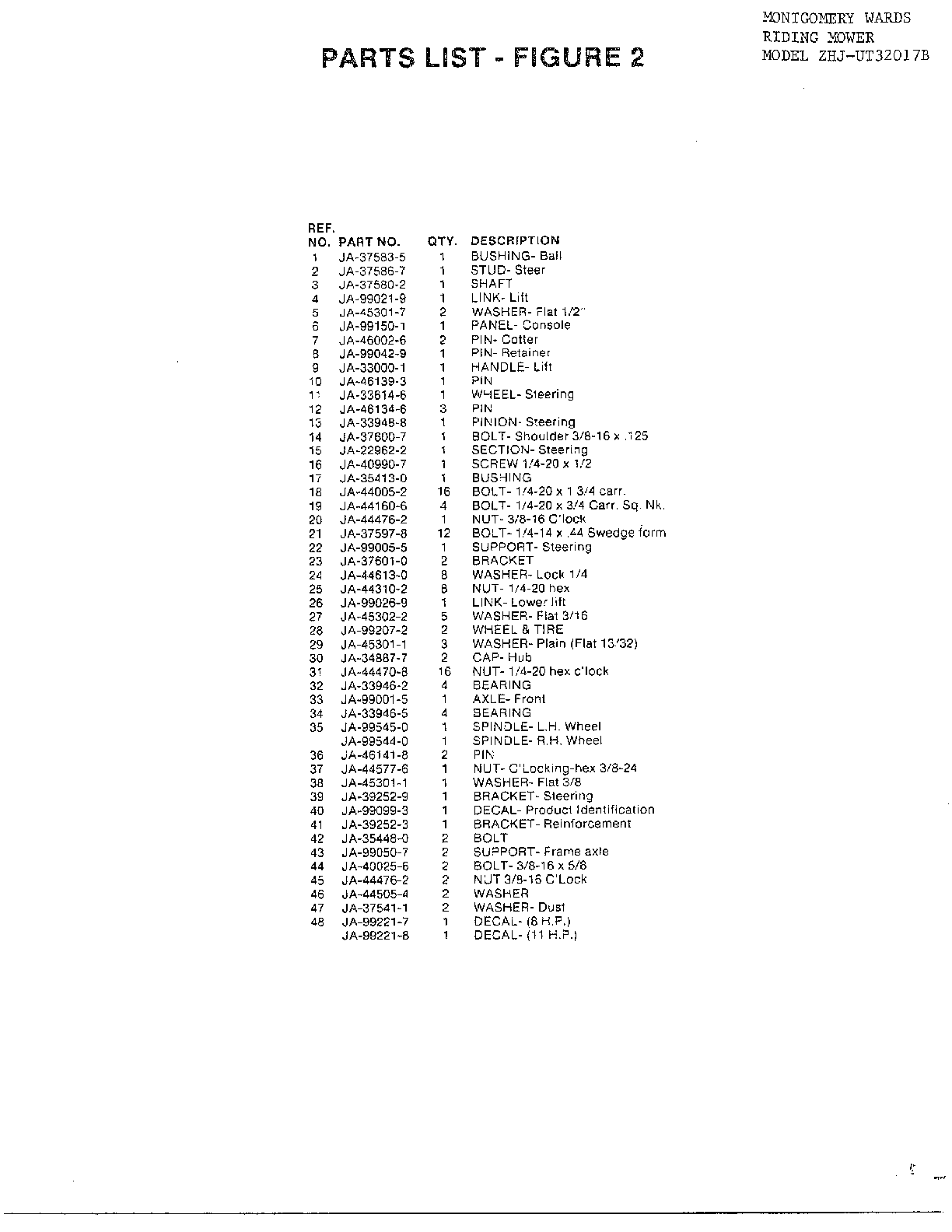

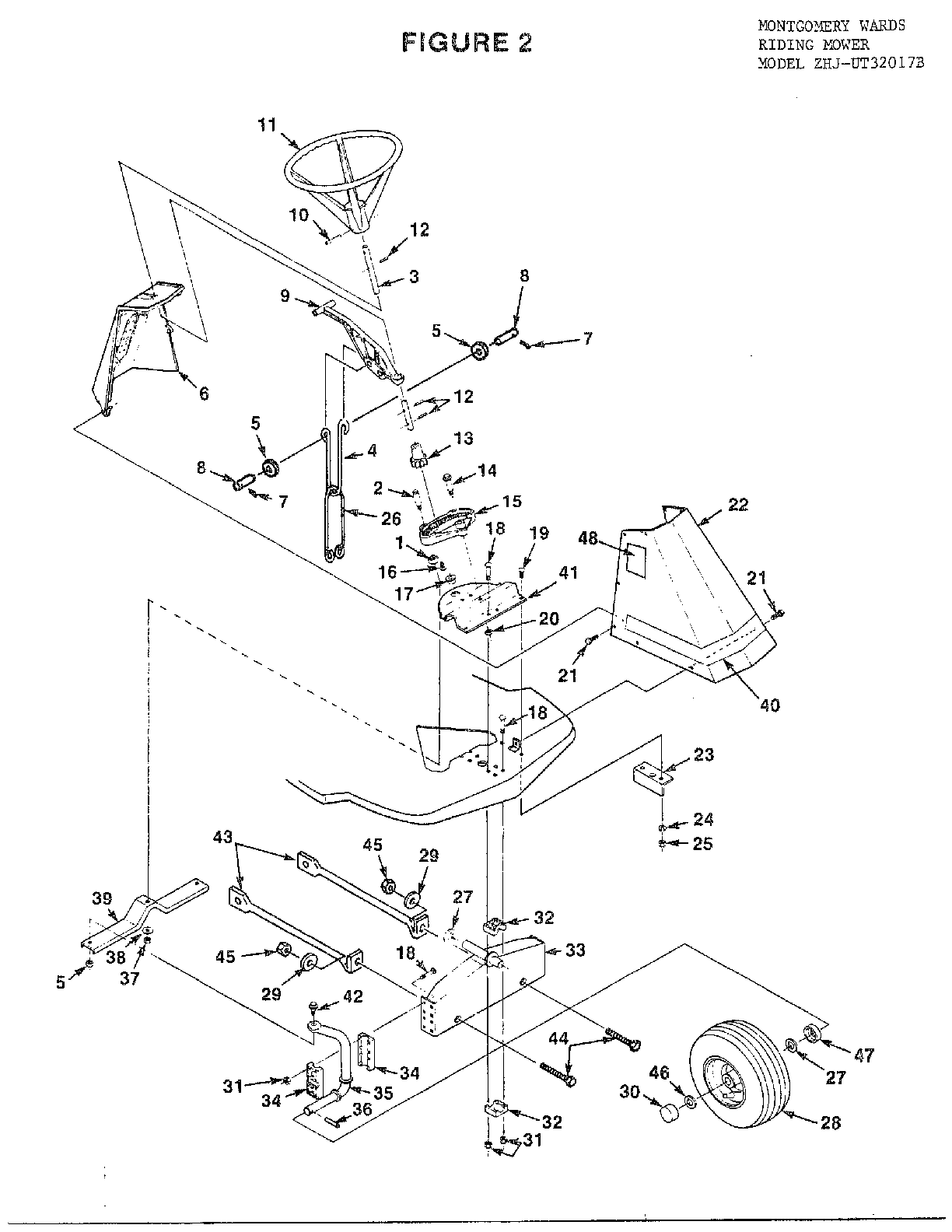

    Riding mower/fig. 2 Diagram

    Nut

    Part #JA-44470-8

    The manufacturer no longer makes this part, and there's no substitute part

    Pin

    #7

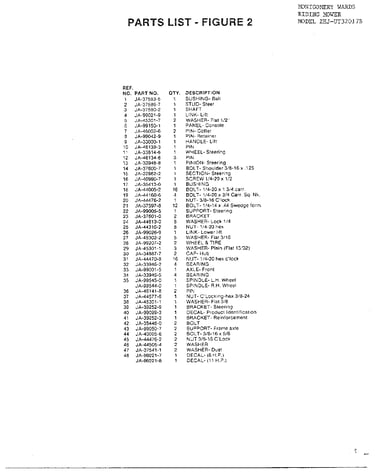

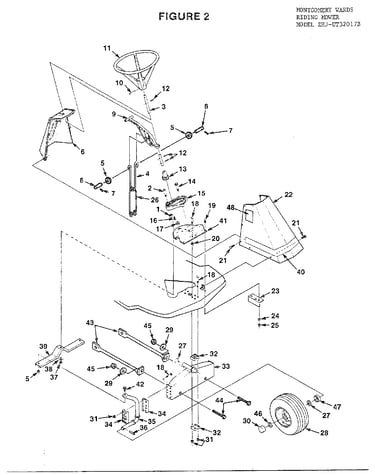

    Riding mower/fig. 2 page 2 Diagram

    Pin

    Part #JA460026
    ?
    Manufacturer substitution
    This part replaces JA-46002-6. Substitute parts can look different from the original.
    This part replaces JA-46002-6
    This item is not returnable
    $2.16

    In Stock

    Washer

    #50

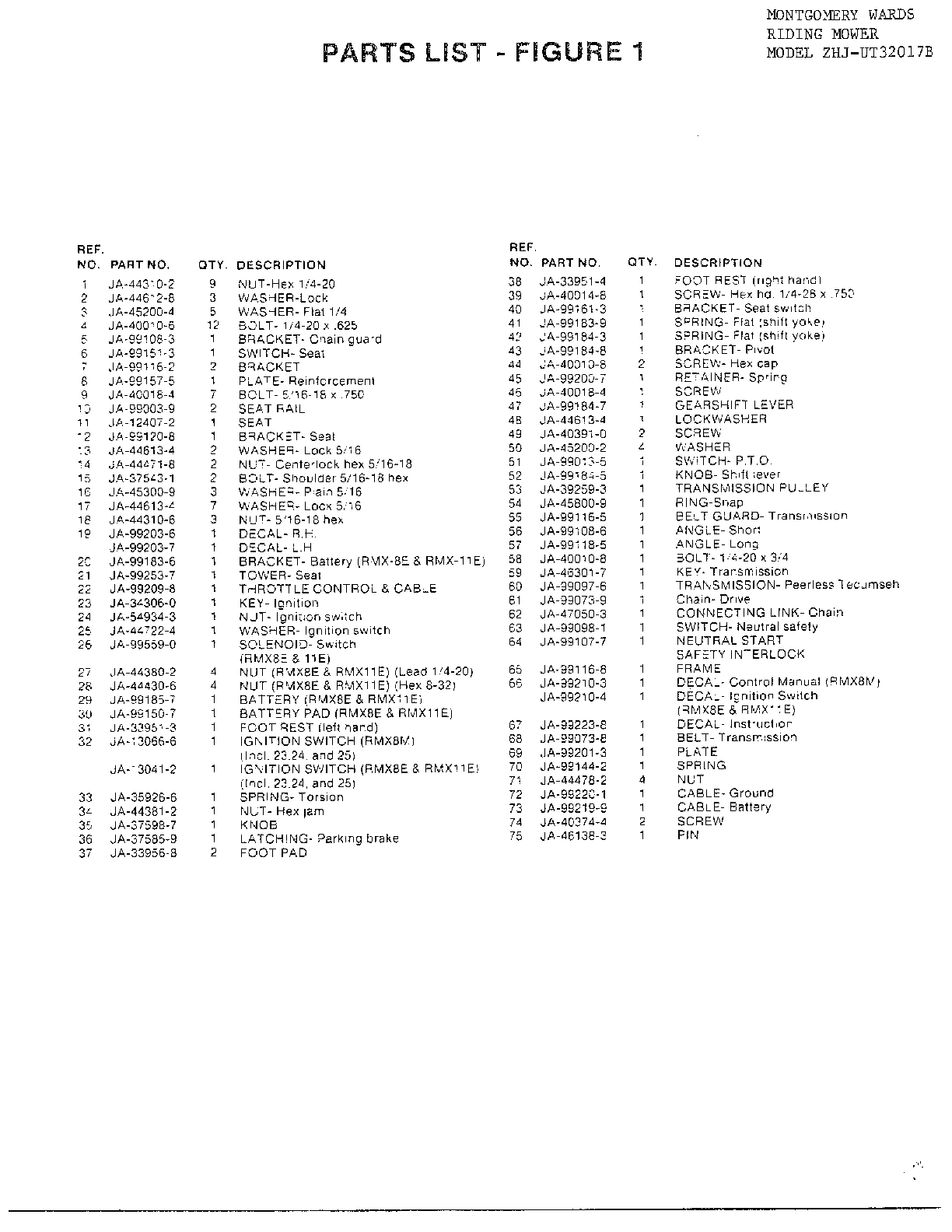

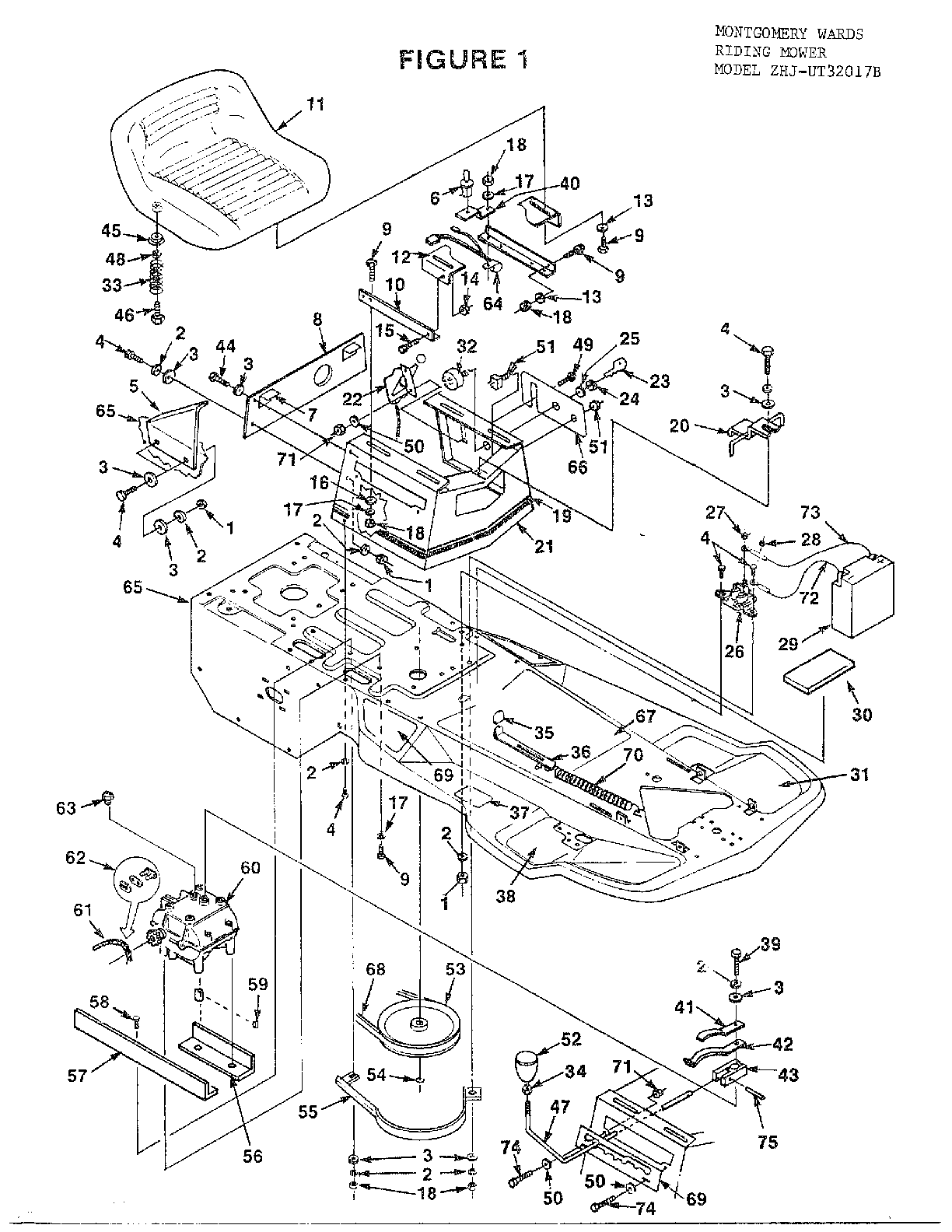

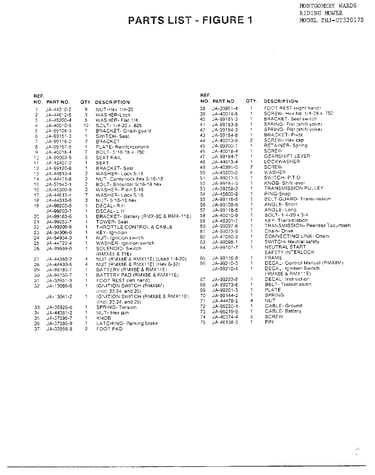

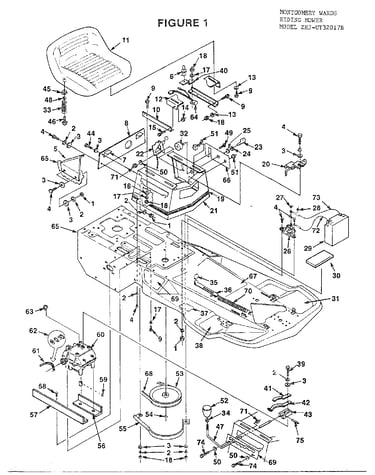

    Riding mower/fig. 1 Diagram

    Washer

    Part #JA-45200-2

    The manufacturer no longer makes this part, and there's no substitute part

    Flat Washer, 8-pack

    #61

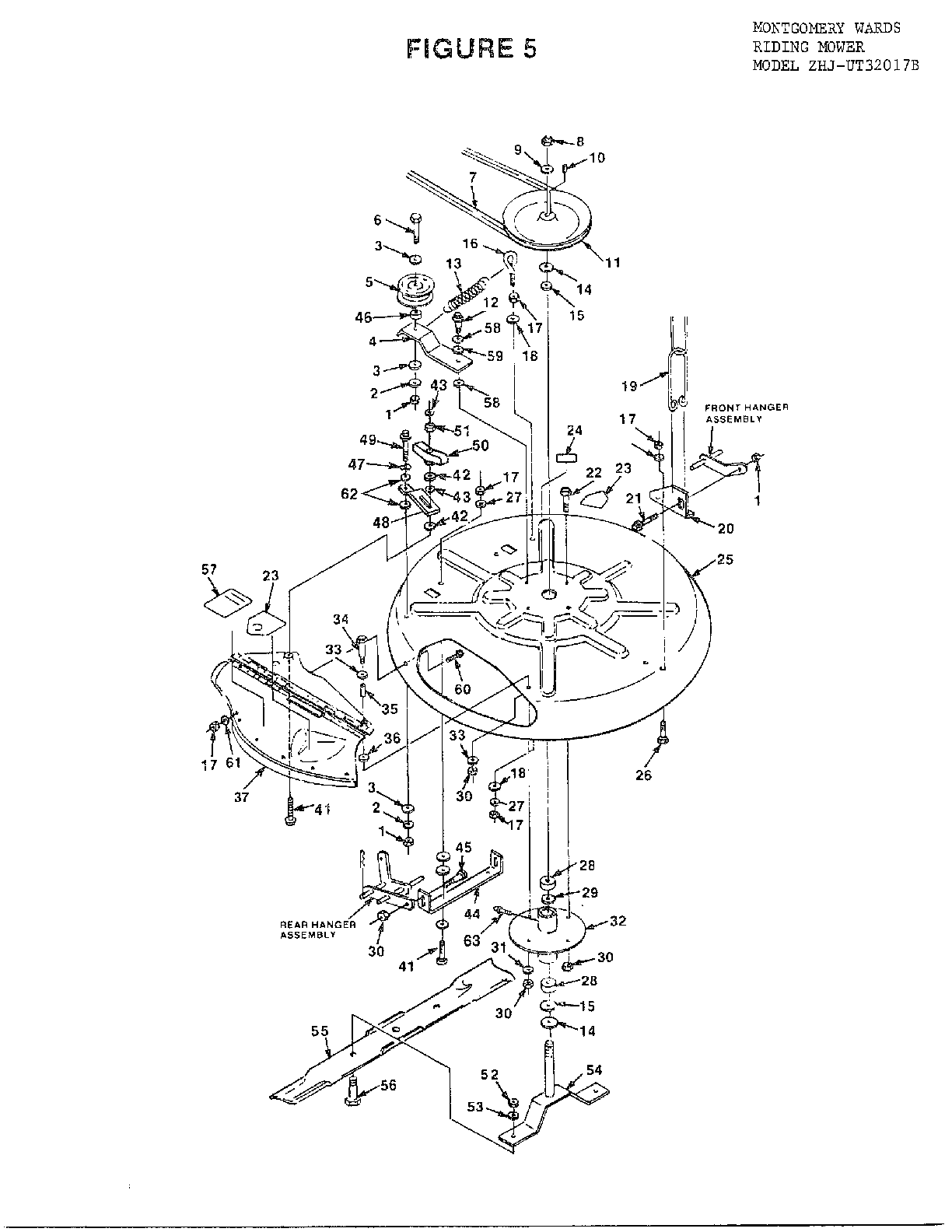

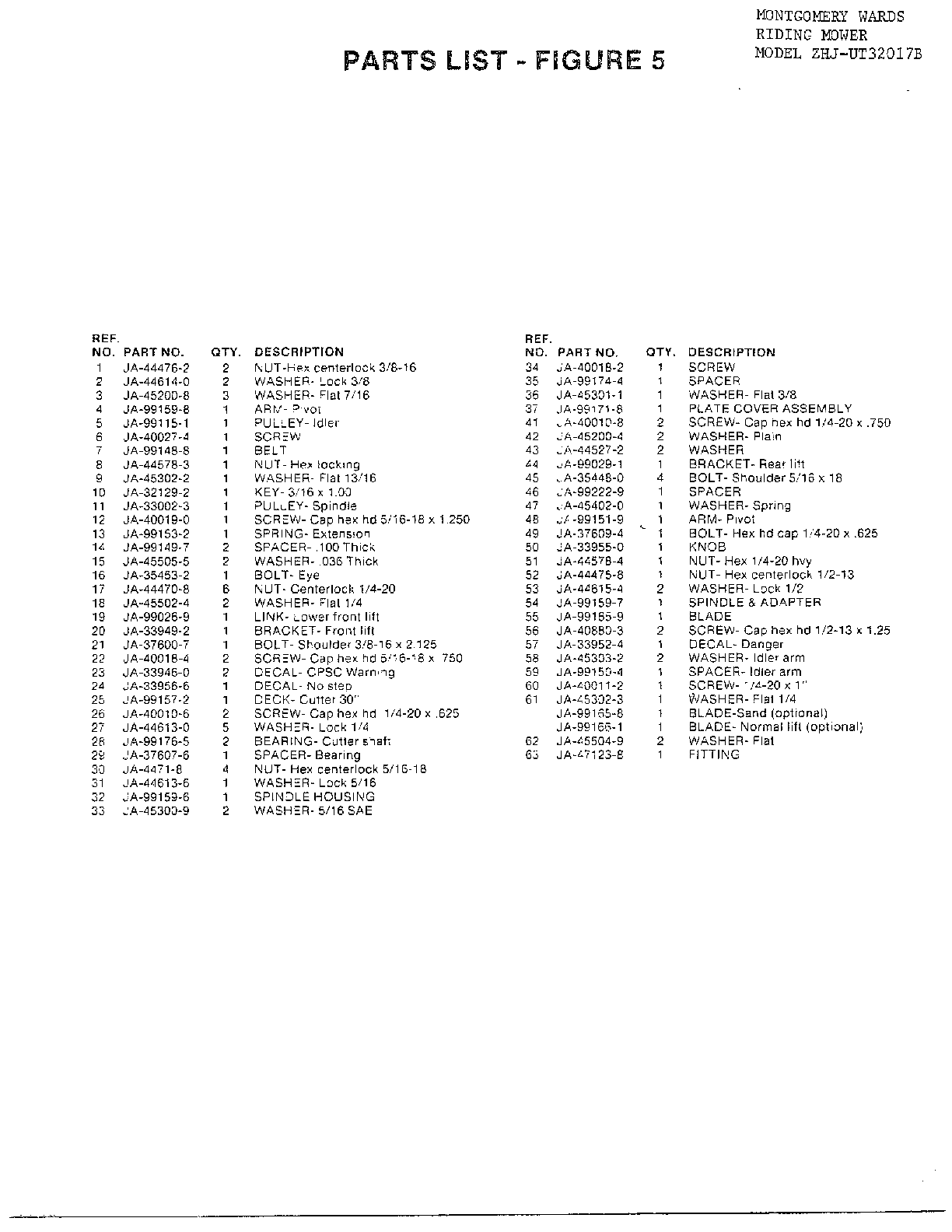

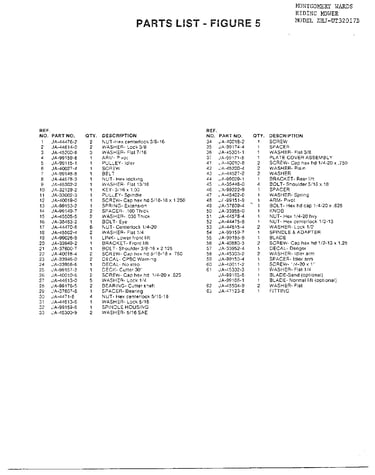

    Riding mower/fig. 5 page 2 Diagram

    Flat washer, 8-pack

    Part #STD551025
    ?
    Manufacturer substitution
    This part replaces JA-45302-3. Substitute parts can look different from the original.
    This part replaces JA-45302-3
    This item is not returnable
    $2.88

    In Stock

    Lawn Tractor Starter Solenoid

    #26

    Riding mower/fig. 1 Diagram

    Lawn tractor starter solenoid

    Part #532146154
    ?
    Manufacturer substitution
    This part replaces JA-99559-0. Substitute parts can look different from the original.
    This part replaces JA-99559-0
    $17.41

    In Stock

    Nut

    #37

    Riding mower/fig. 2 Diagram

    Nut

    Part #JA-44577-6

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #25

    Riding mower/fig. 2 Diagram

    Nut

    Part #JA-44310-2

    The manufacturer no longer makes this part, and there's no substitute part

    Ignition Key

    #23

    Riding mower/fig. 1 Diagram

    Ignition key

    Part #STD365410
    ?
    Manufacturer substitution
    This part replaces JA-34306-0. Substitute parts can look different from the original.
    This part replaces JA-34306-0
    This item is not returnable
    $3.98

    In Stock

    Flat Washer, 8-pack

    #12

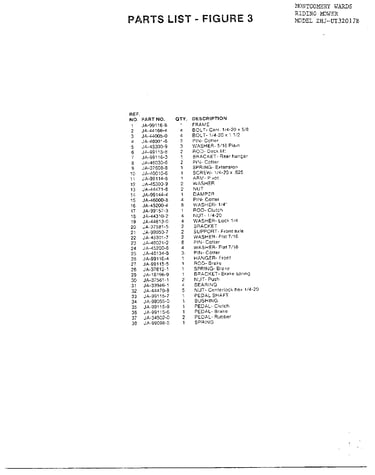

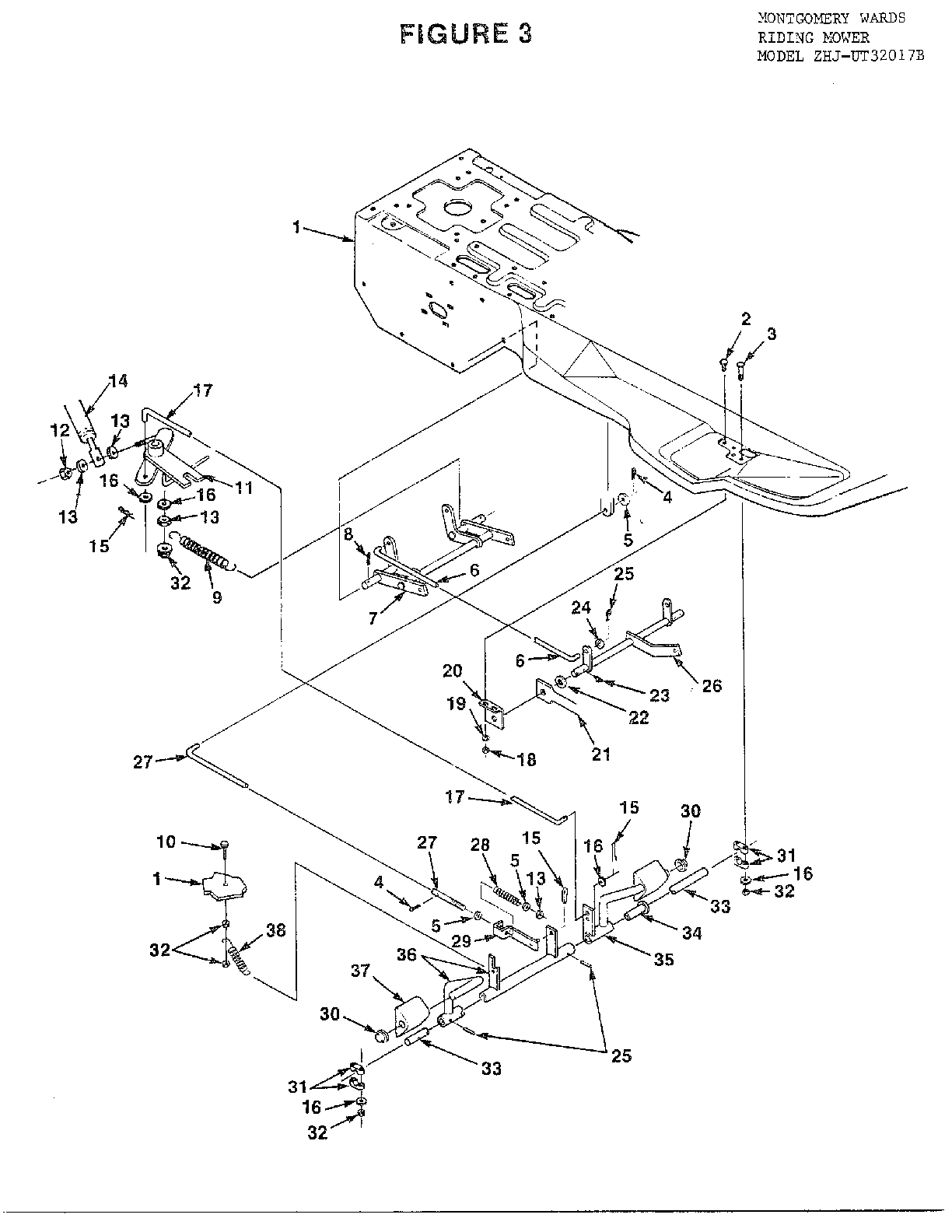

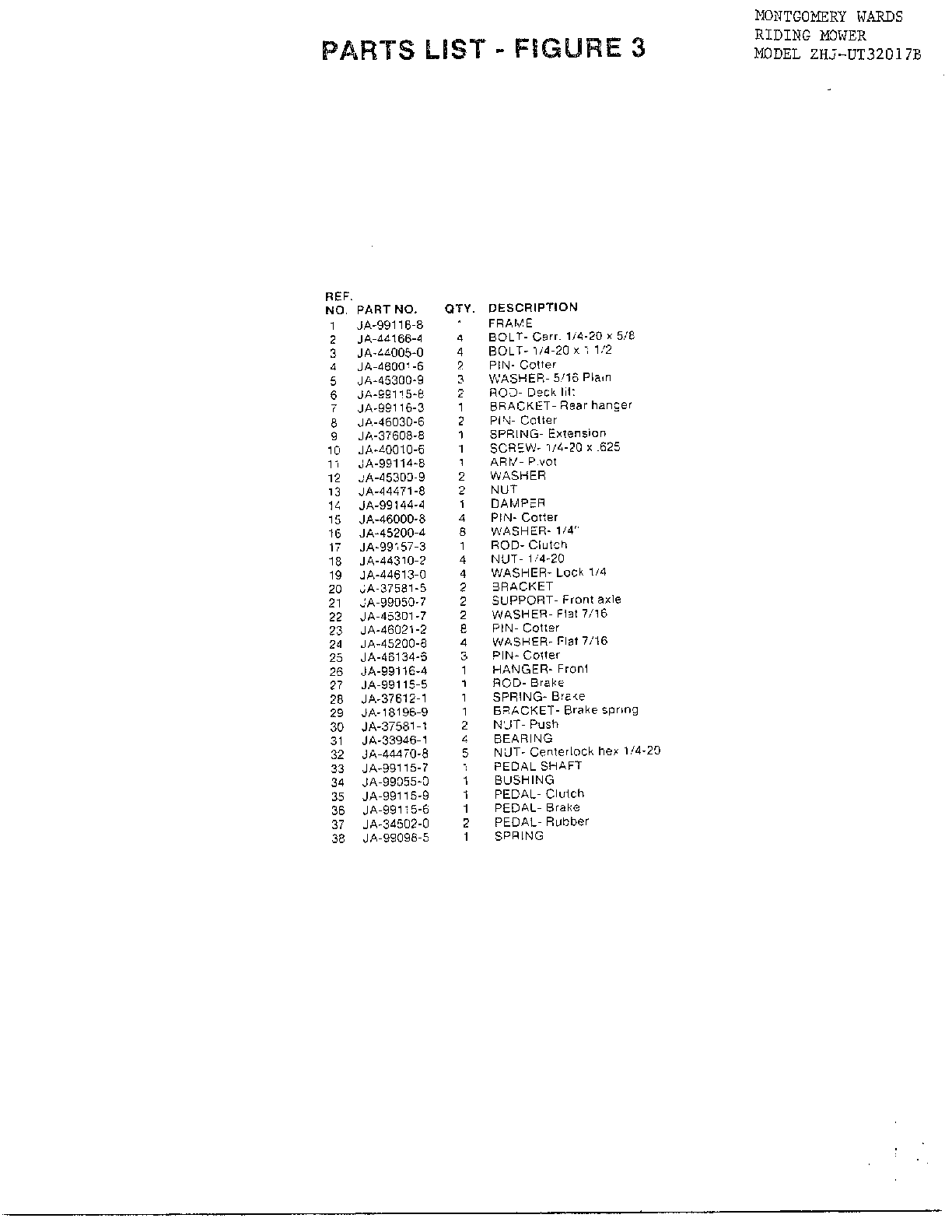

    Riding mower/fig. 3 page 2 Diagram

    Flat washer, 8-pack

    Part #STD551031
    ?
    Manufacturer substitution
    This part replaces JA-45300-9. Substitute parts can look different from the original.
    This part replaces JA-45300-9
    This item is not returnable
    $3.22

    In Stock

    Tower Seat

    #21

    Riding mower/fig. 1 Diagram

    Tower seat

    Part #JA-99253-7

    The manufacturer no longer makes this part, and there's no substitute part
