Model # WFMC220BUC/13 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC220BUC-13 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Washer Hot Water Inlet Valve 422245
#407

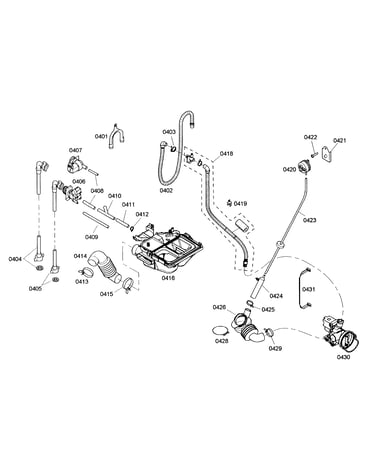

Dispenser assy/pump assy diagram

Washer hot water inlet valve

Part #422245

Replaced by #00422245

?
Manufacturer substitution
This part replaces 422245. Substitute parts can look different from the original.
BEST SELLER
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Washer Damper 642112
#329

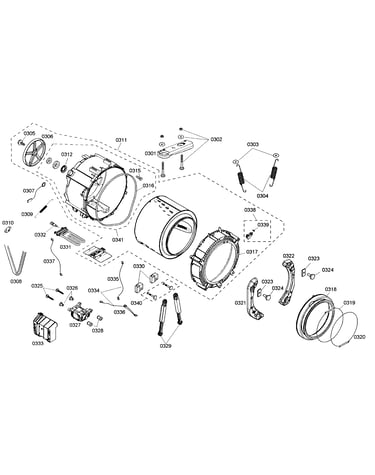

Drum assy diagram

Washer damper

Part #642112

Replaced by #00642112

?
Manufacturer substitution
This part replaces 642112. Substitute parts can look different from the original.
$68.79 |
8% OFF Phone Price : $74.79
In Stock
Magnet Valve 422244
#406

Dispenser assy/pump assy diagram

Magnet valve

Part #422244

Replaced by #00422244

?
Manufacturer substitution
This part replaces 422244. Substitute parts can look different from the original.
$59.49 |
9% OFF Phone Price : $65.49
In Stock
Clamp 664646
#320

Drum assy diagram

Clamp

Part #664646

Replaced by #00644646

?
Manufacturer substitution
This part replaces 664646. Substitute parts can look different from the original.
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Washer Drive Motor 660487
#327

Drum assy diagram

Washer drive motor

Part #660487

Replaced by #00660487

?
Manufacturer substitution
This part replaces 660487. Substitute parts can look different from the original.
$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
Washer Drum 245703
#311

Drum assy diagram

Washer drum

Part #245703

The manufacturer no longer makes this part, and there's no substitute part

Switch 491681
#420

Dispenser assy/pump assy diagram

Switch

Part #491681

Replaced by #00491681

?
Manufacturer substitution
This part replaces 491681. Substitute parts can look different from the original.
$67.79 |
8% OFF Phone Price : $73.79
In Stock
Bracket 491695
#330

Drum assy diagram

Bracket

Part #491695

Replaced by #00491695

?
Manufacturer substitution
This part replaces 491695. Substitute parts can look different from the original.
$45.07
In Stock
Washer Flat Washer, 10 X 20.5-mm 605059
#236

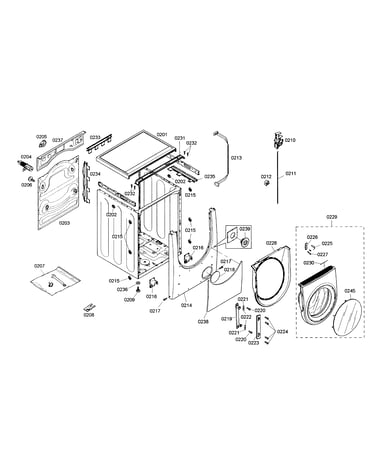

Cabinet parts diagram

Washer flat washer, 10 x 20.5-mm

Part #605059

Replaced by #00605059

?
Manufacturer substitution
This part replaces 605059. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Foot 610643
#209

Cabinet parts diagram

Foot

Part #610643

Replaced by #00610643

?
Manufacturer substitution
This part replaces 610643. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
