Thermador
Range

Model # PRD304EHU/06 Official Thermador gas range

Here are the diagrams and repair parts for Official Thermador PRD304EHU-06 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

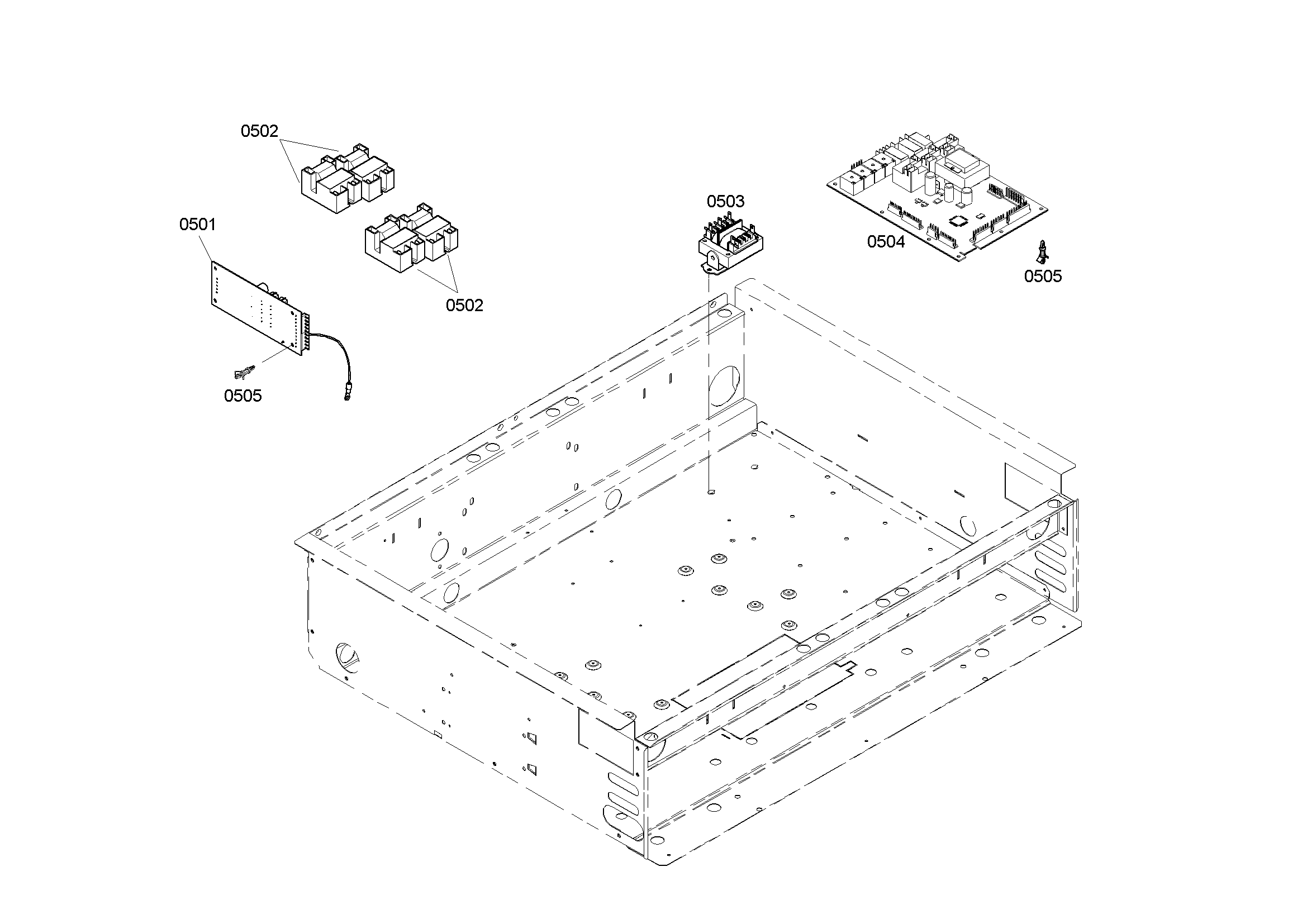

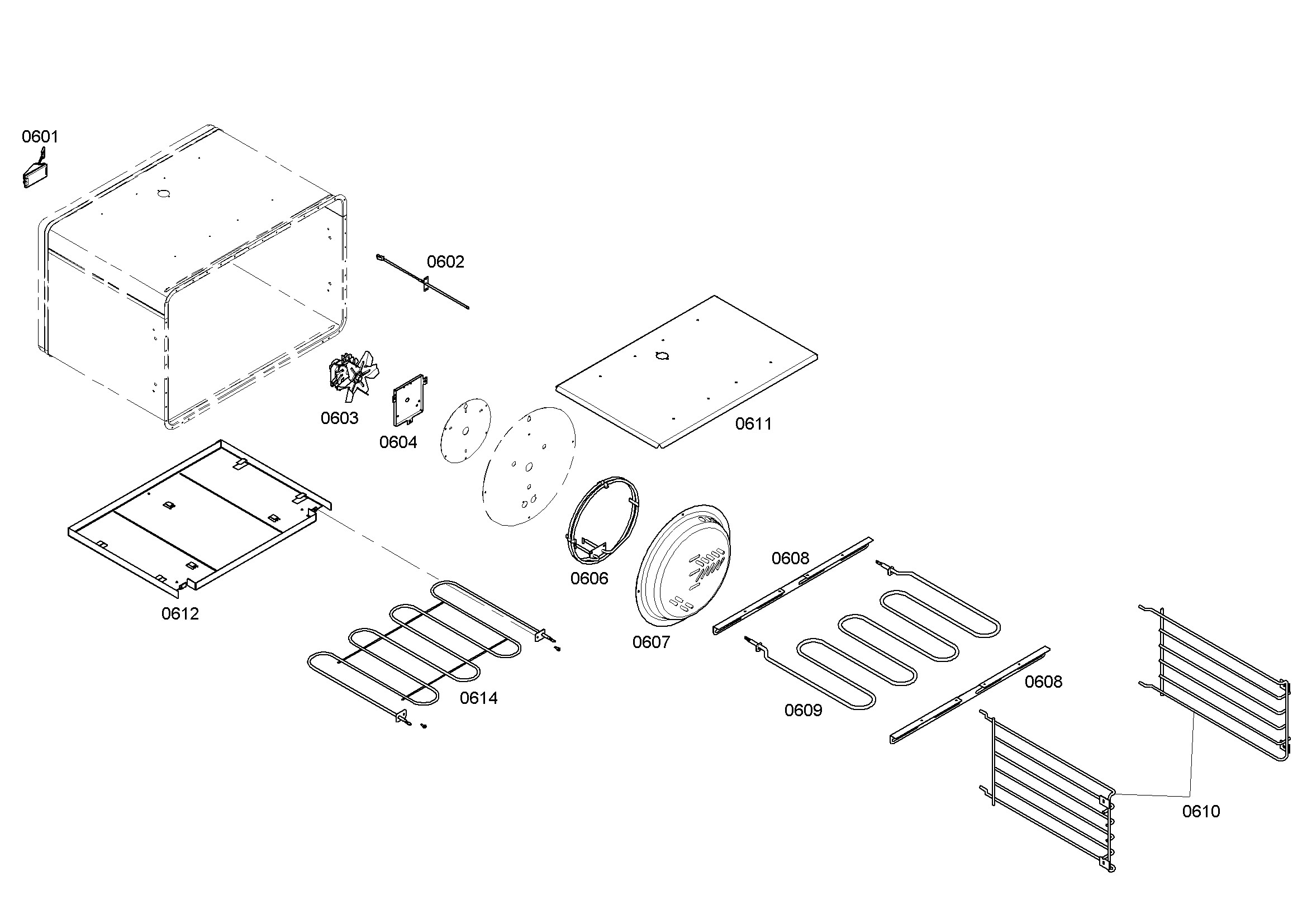

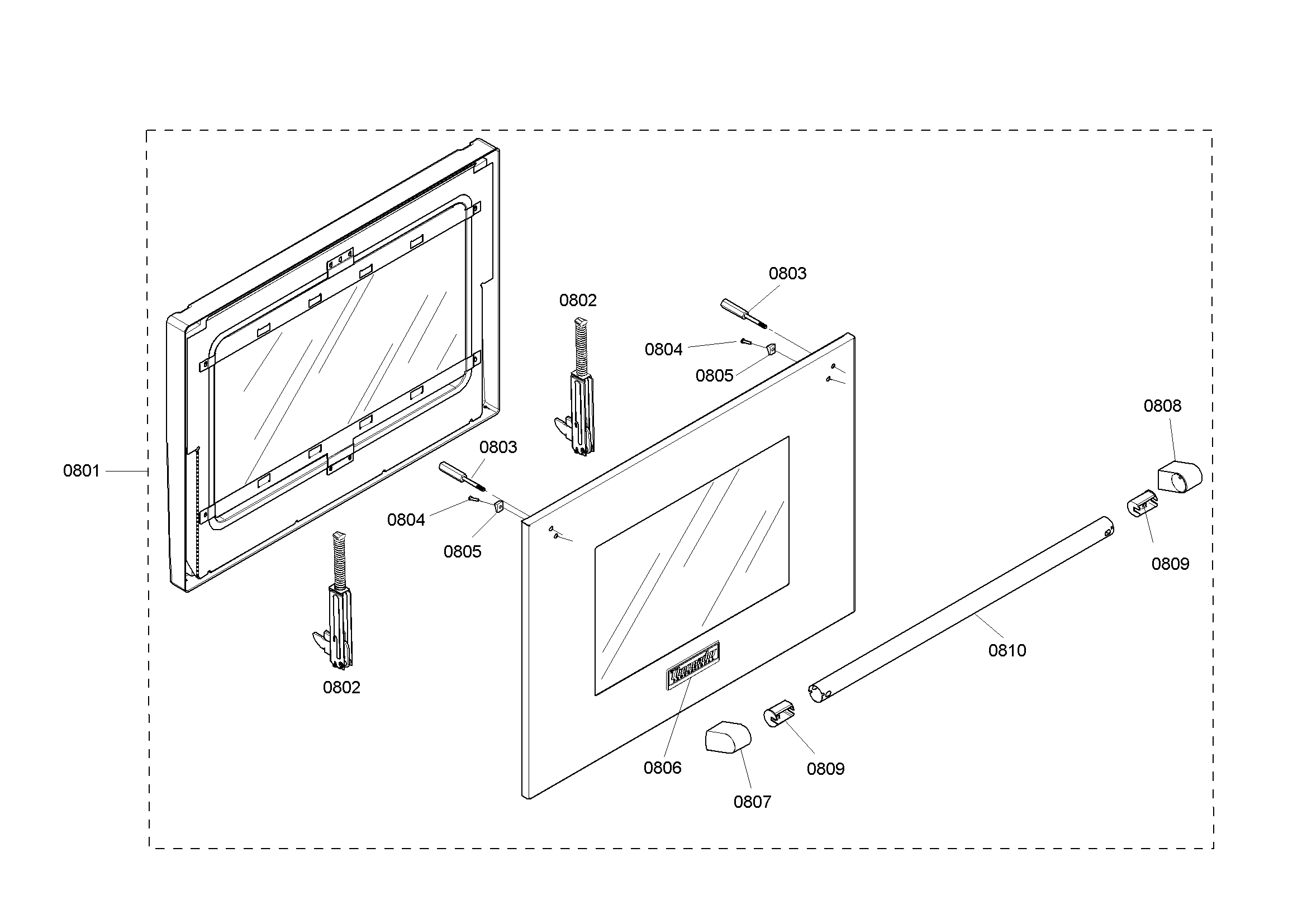

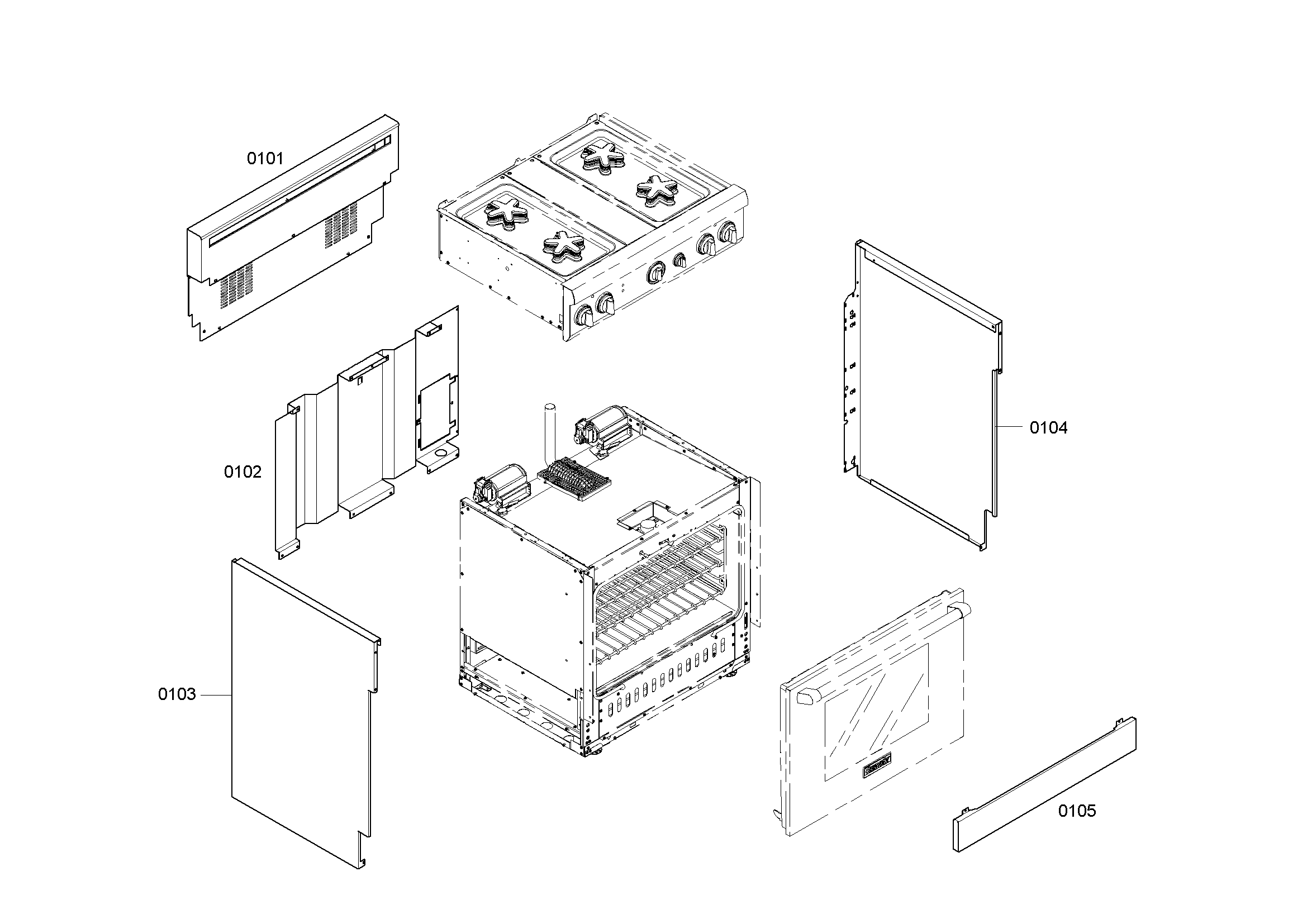

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Holder 600607
#311

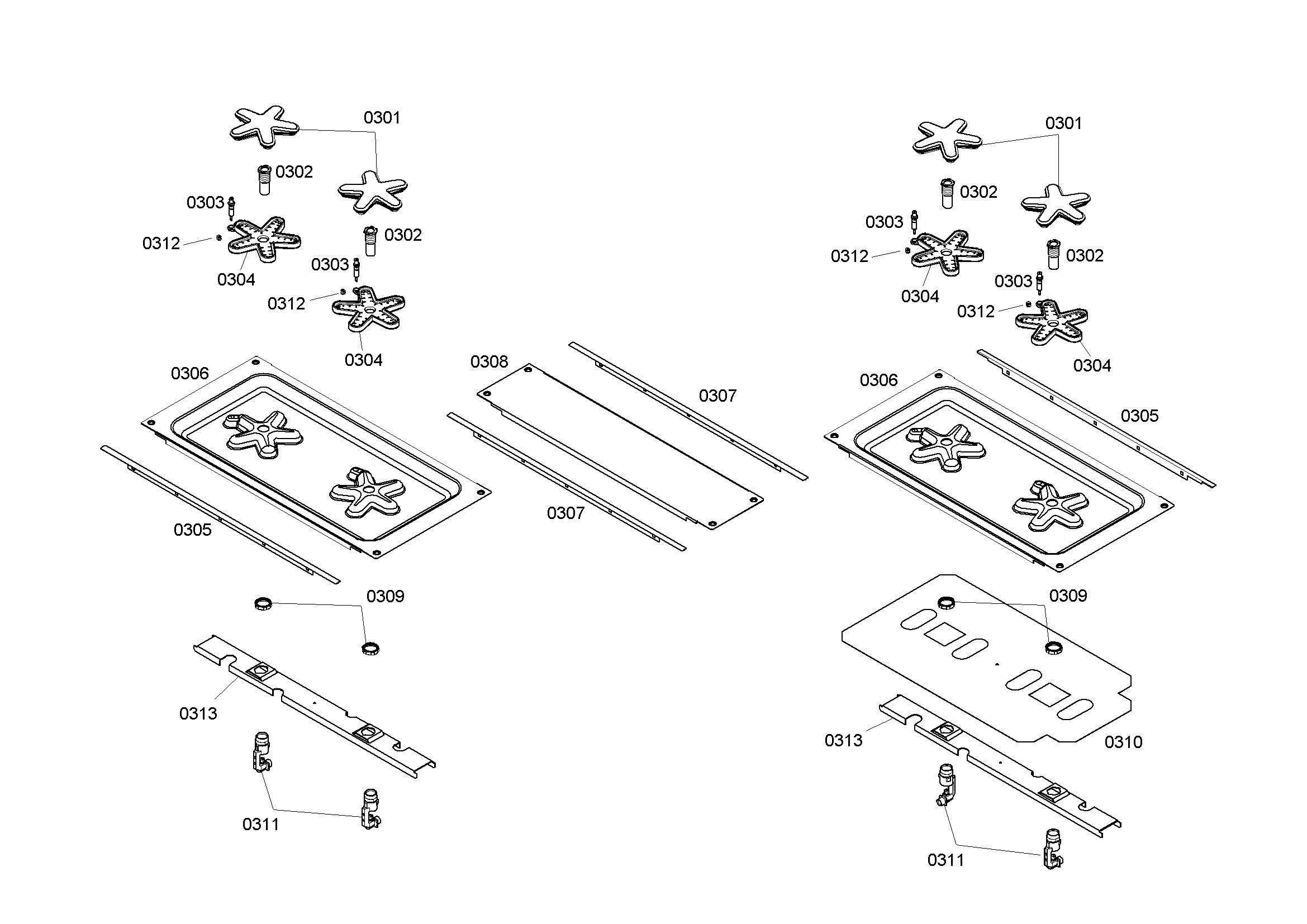

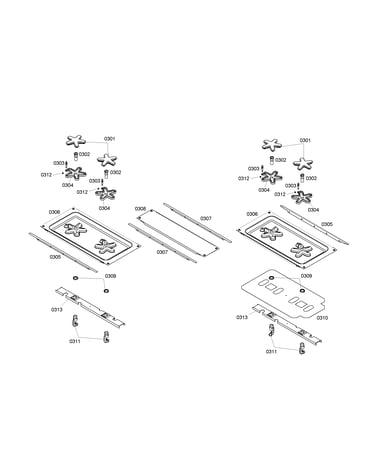

Burners diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
$25.49 |
19% OFF Phone Price : $31.49
Back Order
Range Surface Burner Grate Pad Set 413552
#951

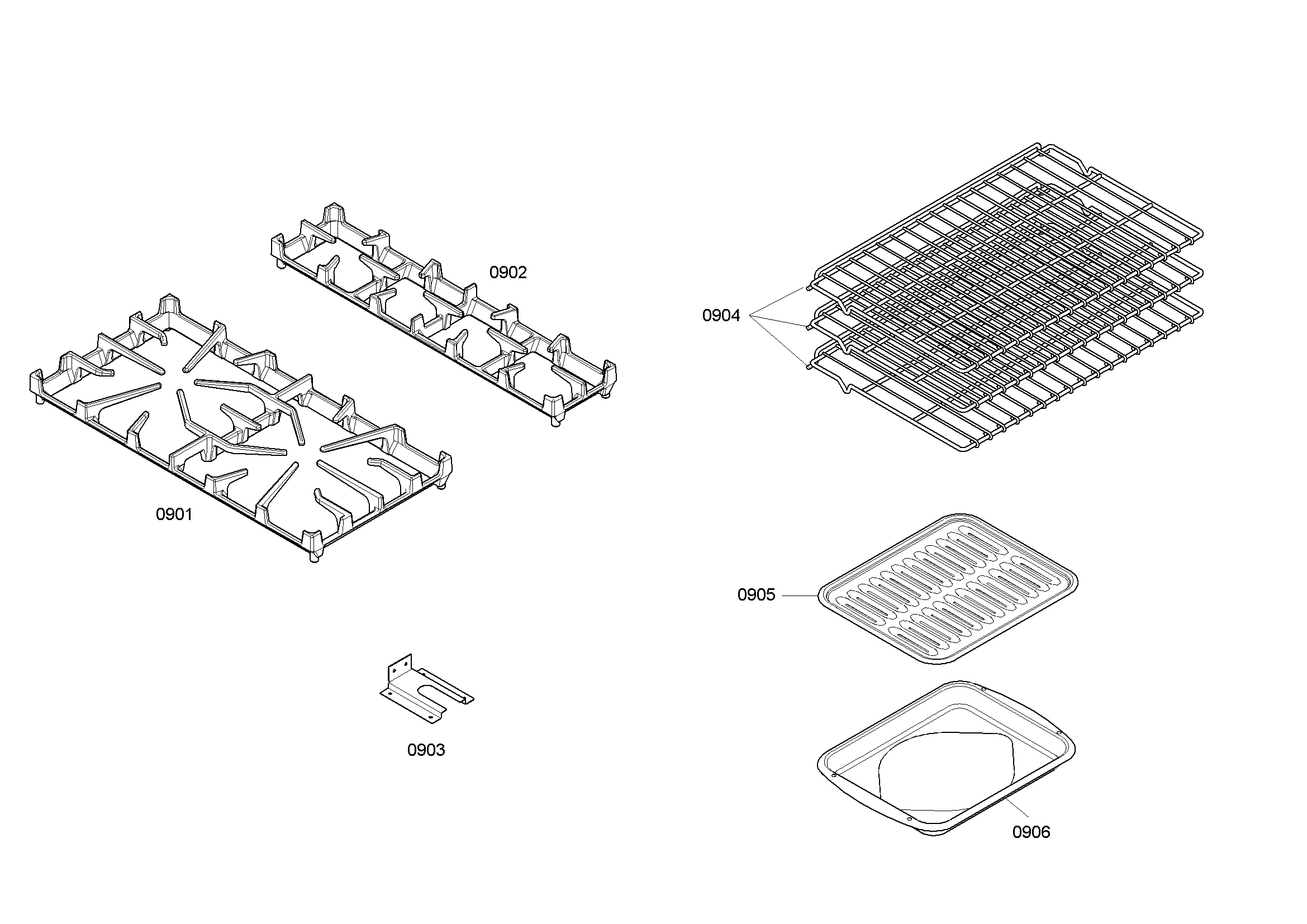

Grids/shelfs diagram

Range surface burner grate pad set

Part #413552

Replaced by #00413552

?
Manufacturer substitution
This part replaces 413552. Substitute parts can look different from the original.
This item is not returnable
$22.79 |
21% OFF Phone Price : $28.79
In Stock
Igniter Plug 603777
#303

Burners diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Drive Switch 489370
#705

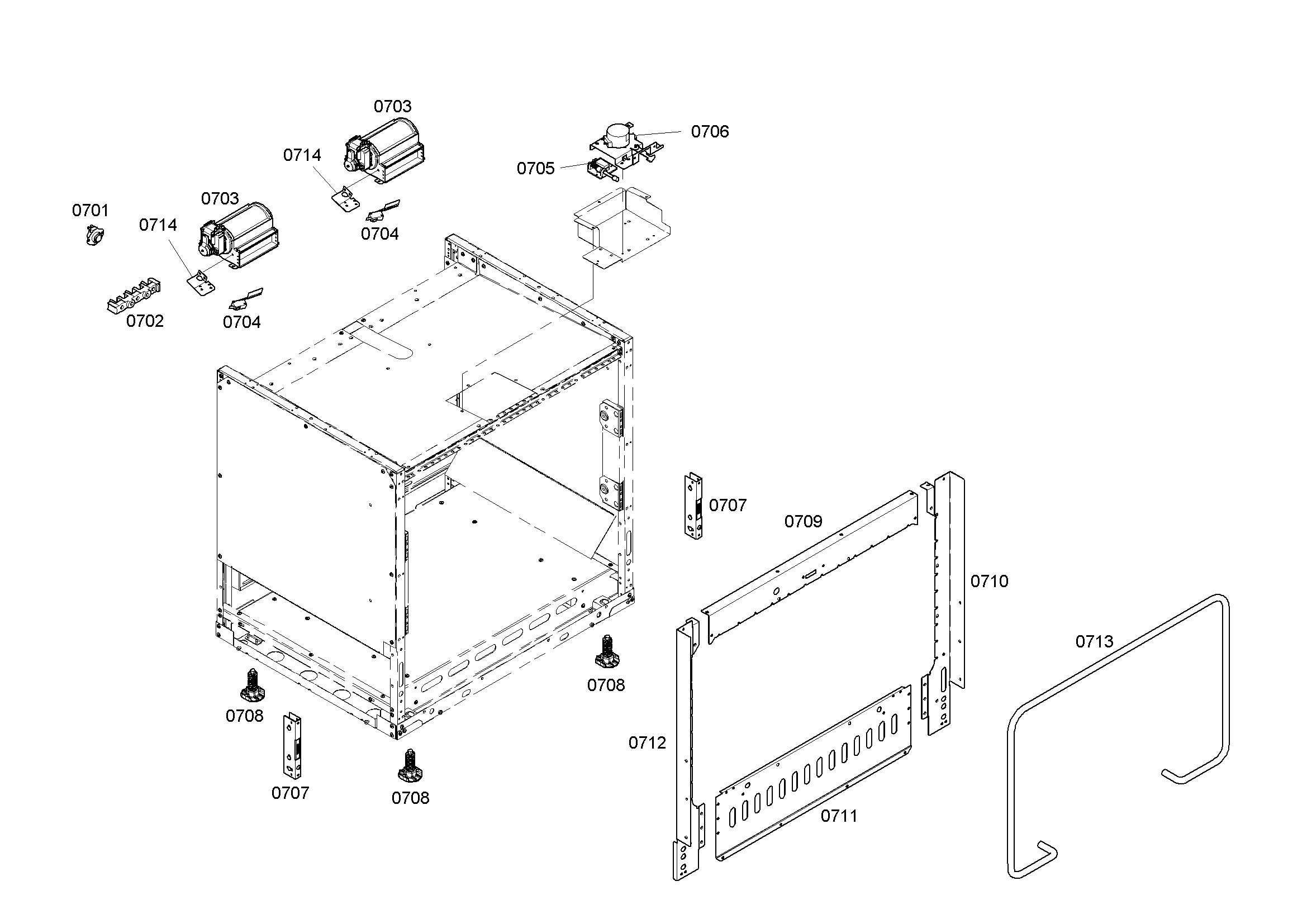

Cabinet diagram

Drive switch

Part #489370

$49.89
In Stock
Range Surface Burner Cap 494133
#301

Burners diagram

Range surface burner cap

Part #494133

$68.24
In Stock
Terminal Box 436364
#702

Cabinet diagram

Terminal box

Part #436364

Replaced by #00436364

?
Manufacturer substitution
This part replaces 436364. Substitute parts can look different from the original.
$32.67
In Stock
Temperature Selector 418329
#204

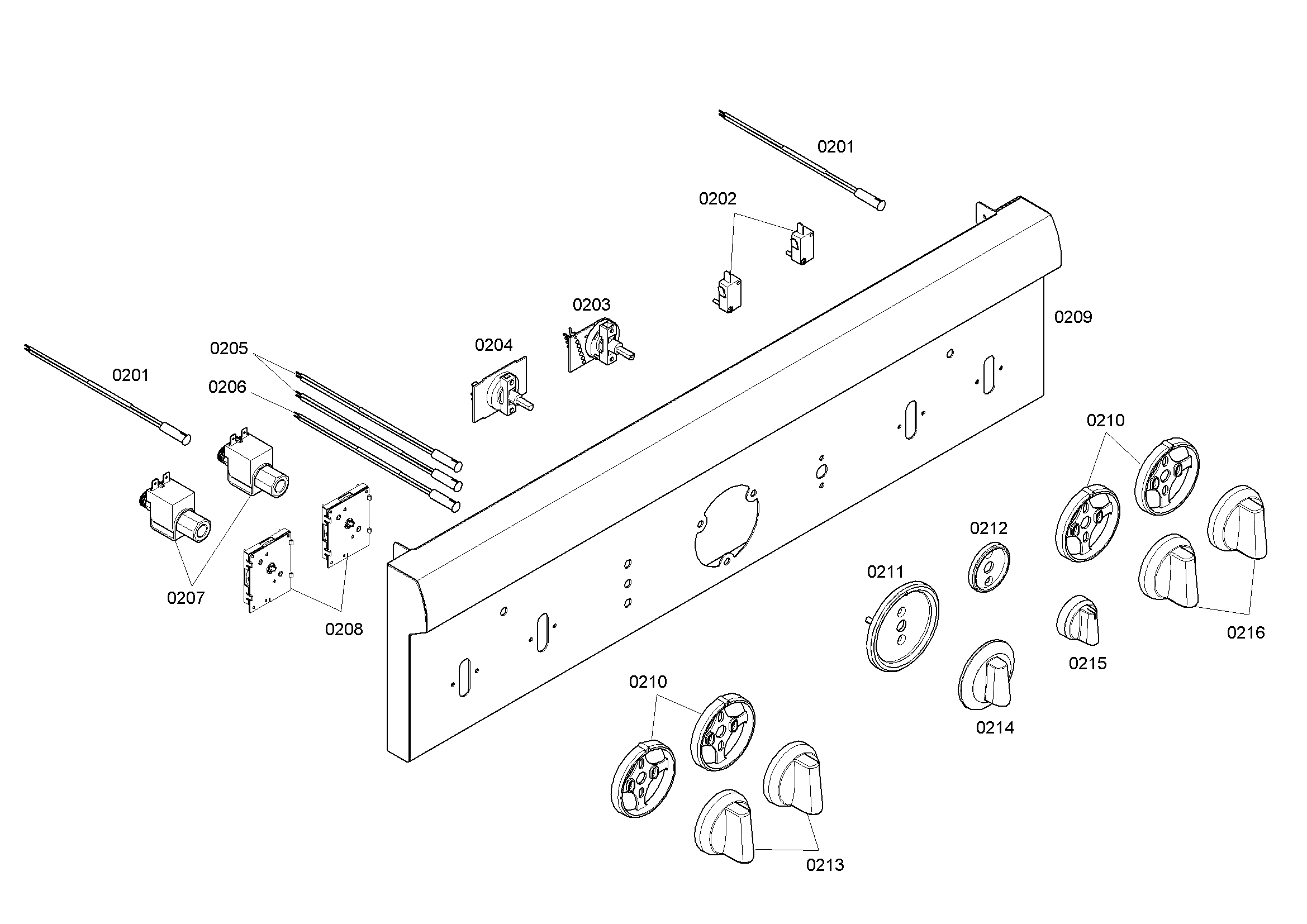

Control panel diagram

Temperature selector

Part #418329

Replaced by #00624610

?
Manufacturer substitution
This part replaces 418329. Substitute parts can look different from the original.
$104.68
In Stock
Screw 420807
#450

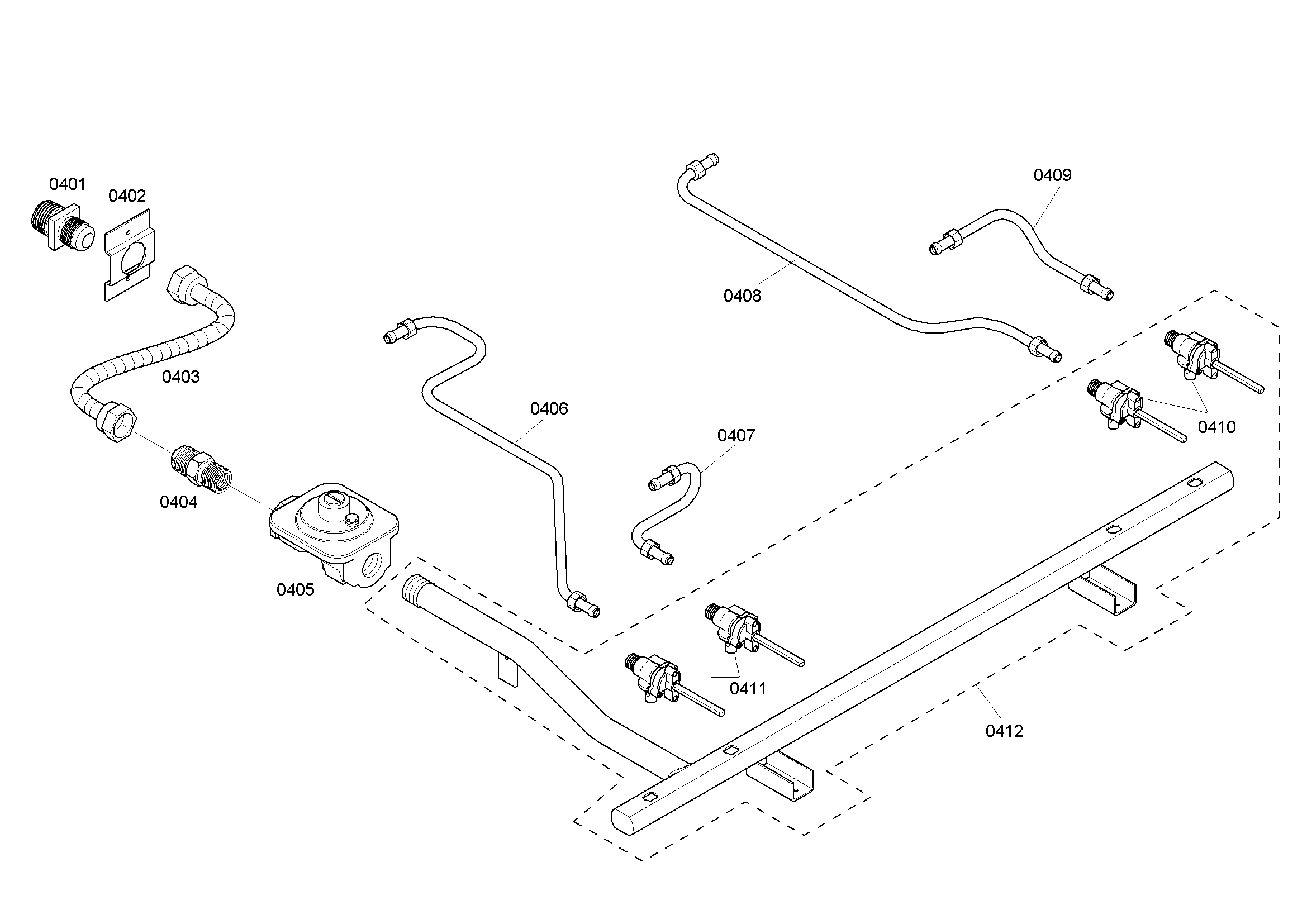

Manifold diagram

Screw

Part #420807

Replaced by #00420807

?
Manufacturer substitution
This part replaces 420807. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
Valve 492271
#411

Manifold diagram

Valve

Part #492271

Replaced by #00628629

?
Manufacturer substitution
This part replaces 492271. Substitute parts can look different from the original.
$105.73
In Stock
Cooktop Burner Orifice Nut 188978
#309

Burners diagram

Cooktop burner orifice nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
Back Order
