How to replace a riding lawn mower front tire

By Lyle Weischwill
How to replace a riding lawn mower front tire

This step-by-step repair guide explains how to change a front tire on a riding lawn mower if the old tire is damaged beyond repair. Replacing the front tire is fairly easy; you just need a few tools and a manufacturer-approved replacement part.

Follow the steps in this repair guide and video to replace the front tire on Craftsman, Husqvarna, Toro, Troybilt, Ariens, Poulan, MTD, Murray, Snapper, Yard-Man, John Deere and Weed Eater riding mowers and lawn tractors.

If you'd rather use tire sealant to repair the tire, the video How to Repair a Riding Lawn Mower Tire shows how.

Quick links
Tools required
Floor jack or bottle jack
Jack stand
Slot screwdrivers
Pry bars
Pliers
Valve stem core removal tool
Liquid detergent
Water
Wood blocks
Work gloves
Safety goggles
Compressor air supply
Repair difficulty
Time required
60 minutes or less
Repair difficulty
Time required
60 minutes or less
Replacing a front tire on a riding lawn mower

This video explains how to replace the front tire on a riding lawn mower.

Instructions

  1. 01.

    Disconnect the spark plug

    Park the riding mower on a level surface and set the parking brake.

    Turn the ignition switch off and remove the key.

    Wear work gloves to protect your hands and safety goggles to protect your eyes.

    Lift the riding lawn mower hood and disconnect the spark plug wire.

    Lower the tractor hood.

    Tip: Disconnect both spark plug wires if your engine has 2 cylinders.
    Disconnect the spark plug.

    Disconnect the spark plug.

  2. 02.

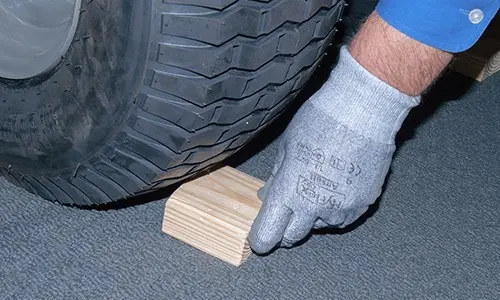

    Jack up the riding mower

    Block the rear tires to keep the riding mower from rolling.

    Position the jack under the frame and jack up the riding mower to raise the front wheel.

    Place a jack stand under the frame to support the riding mower.

    Remove the jack.

    Block the rear wheel.

    Block the rear wheel.

  3. 03.

    Remove the front wheel

    Pull off the axle cover.

    Remove the retaining ring and then pull off the washers.

    Pull the tire off the axle.

    Remove the front wheel.

    Remove the front wheel.

  4. 04.

    Remove the tire

    Remove the valve stem cap.

    Remove the valve stem core, which lets any remaining air out of the tire.

    Break the tire bead and pry the tire off the wheel rim on one side.

    Pry the tire off the rim on the other side.

    Pry the tire off the rim.

    Pry the tire off the rim.

  5. 05.

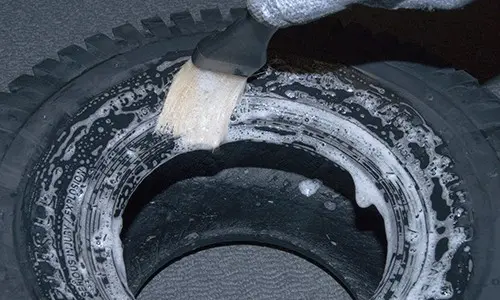

    Install the new tire

    Clean the wheel rim.

    Set the new tire flat on a work surface.

    Lubricate the top tire bead with liquid detergent.

    Pry the rim into the top side of the tire.

    Flip the rim and tire over.

    Lubricate the tire bead with liquid detergent.

    Pry the remaining side of the tire onto the rim.

    Warning: Use blunt tools to pry the tire to avoid damaging the new tire bead.
    Lubricate the bead.

    Lubricate the bead.

  6. 06.

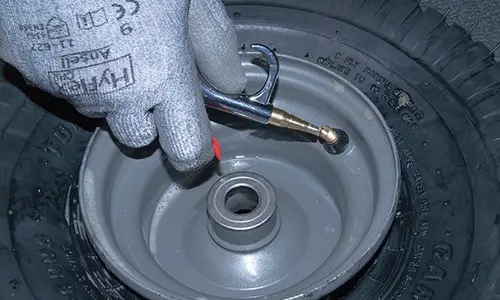

    Seal the bead

    Fill the tire with air to seat the tire bead.

    Reinstall the valve stem core.

    Fill the tire fully with air.

    Tip: If the tire didn't fill with air, install a ratcheting tension strap around the center of the tire tread, tighten the strap to force the beads outward, and fill the tire with air to seat the tire bead. Carefully release and then remove the strap.
    Tip: If the bead doesn’t seal, check the rim and replace it if you find damage.
    Shoot air into the tire.

    Shoot air into the tire.

  7. 07.

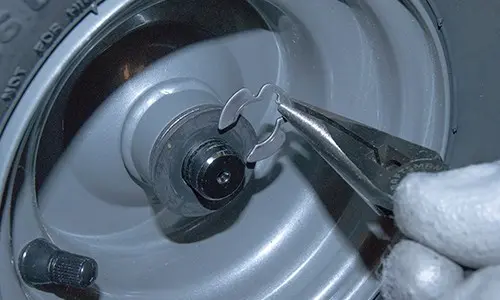

    Reinstall the wheel

    Slide the wheel on the axle.

    Reinstall the washers and snap the retaining ring onto the axle.

    Push the axle cover onto the wheel.

    Reinstall the wheel.

    Reinstall the wheel.

  8. 08.

    Lower the riding mower

    Push the jack under the frame and raise the riding mower, and then pull out the jack stand.

    Lower the riding mower to the ground.

    Remove the wood blocks from the rear tires.

  9. 09.

    Reconnect the spark plug

    Raise the tractor hood.

    Reconnect the spark plug wire and lower the hood.

    Tip: Reconnect both spark plug wires if your engine has 2 cylinders.
Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
