Frigidaire
Freestanding Freezer

Model # FFFU13M1QWC Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFFU13M1QWC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Dryer Filter 297396820
#4

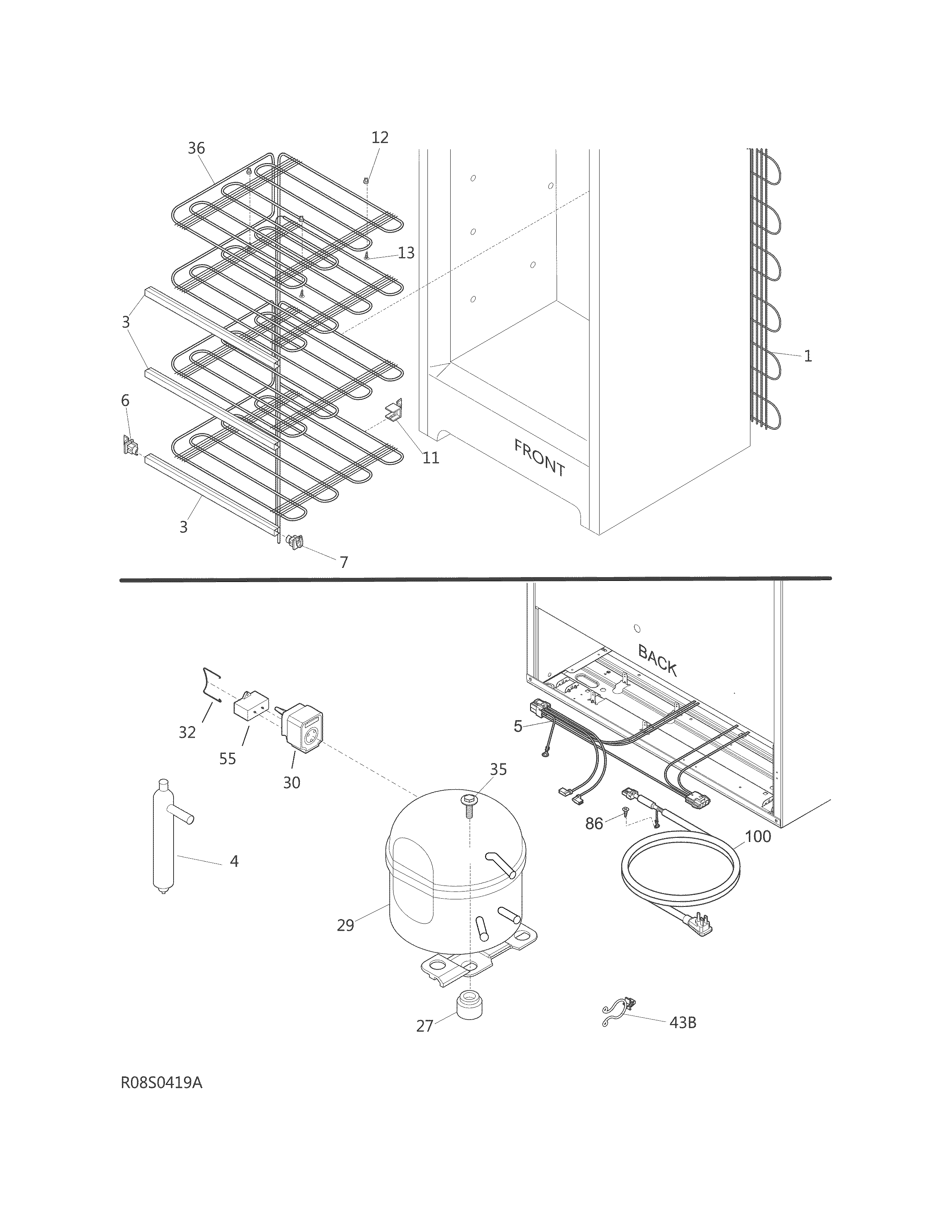

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
22% OFF MSRP : $16.34
In Stock
Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$37.29 |
12% OFF Phone Price : $42.29
In Stock
Freezer Door Gasket 216522374
#1

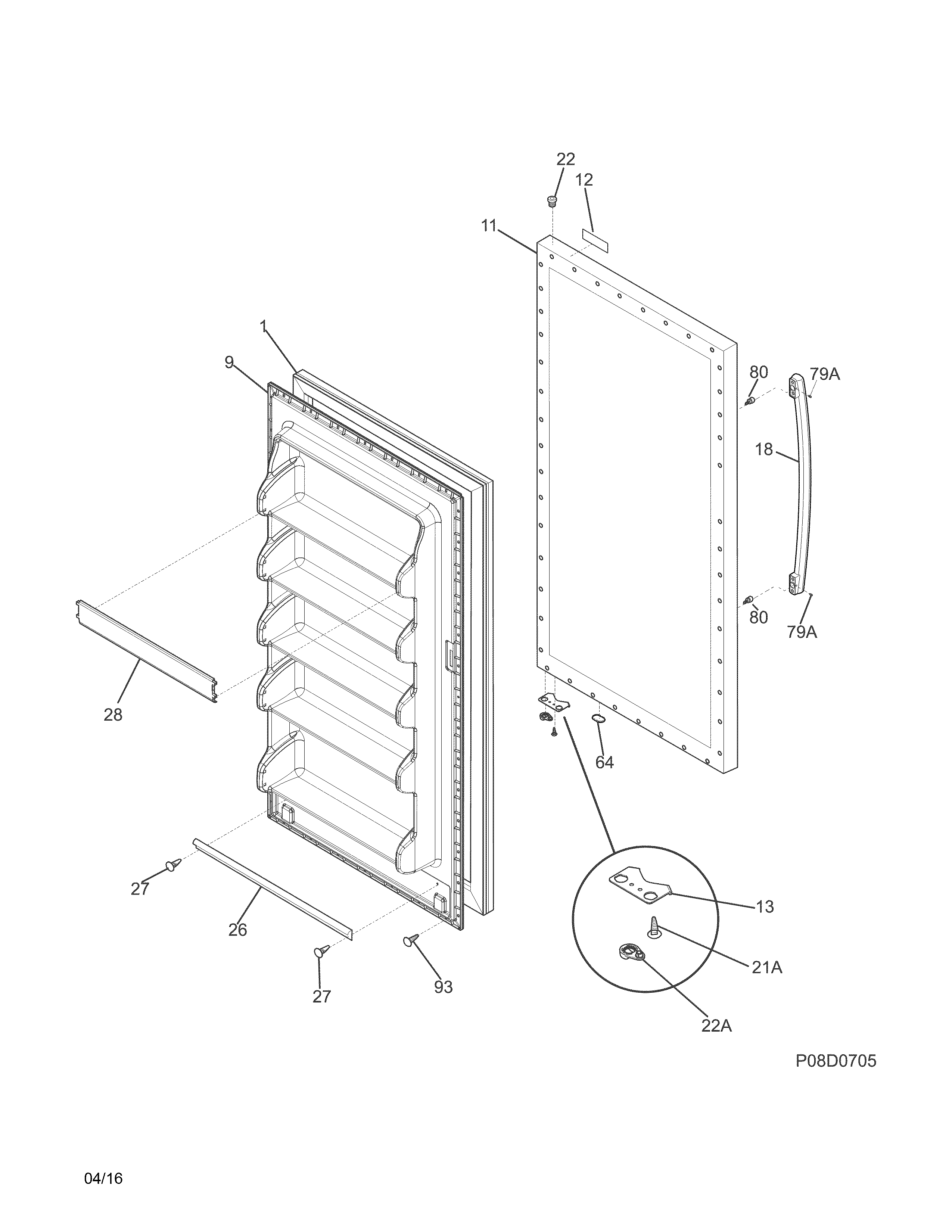

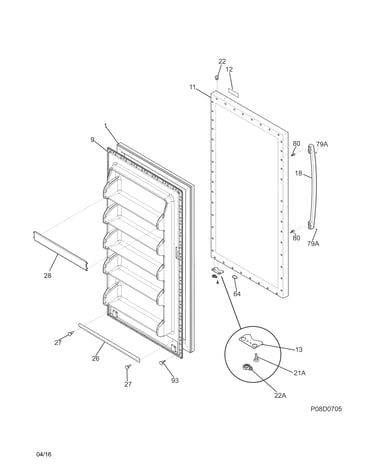

Door diagram

Freezer door gasket

Part #216522374

Replaced by #5304506126

?
Manufacturer substitution
This part replaces 216522374. Substitute parts can look different from the original.
BEST SELLER
$181.39 |
5% OFF Phone Price : $191.39
In Stock
Refrigerator Door Closer Cam 297415900
#26

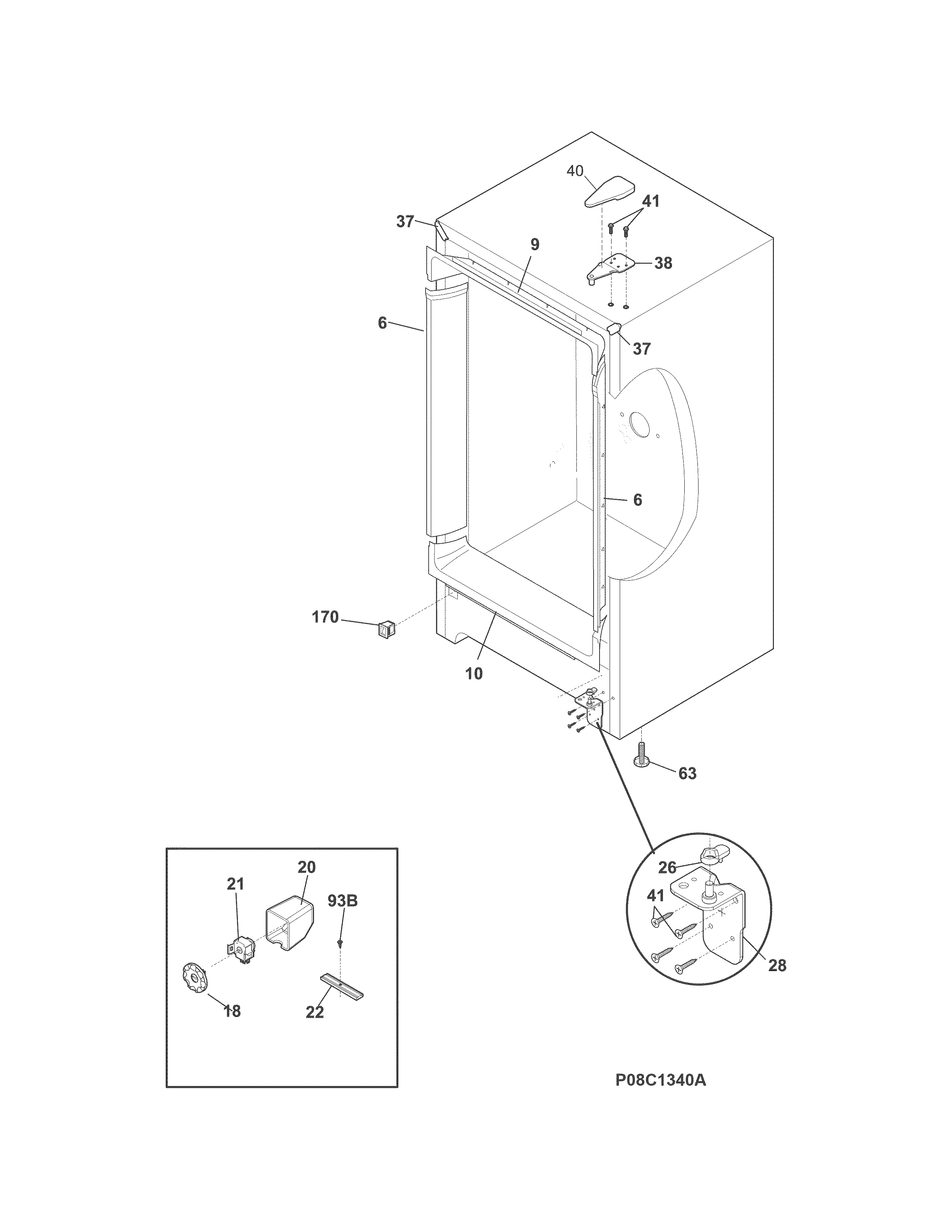

Cabinet diagram

Refrigerator door closer cam

Part #297415900

The manufacturer no longer makes this part, and there's no substitute part

Freezer Door Handle Set Screw 297295900
#79A

Door diagram

Freezer door handle set screw

Part #297295900

This item is not returnable
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Refrigeration Appliance Screw, #8-32 X 1/2-in 216036601
Refrigeration appliance screw, #8-32 x 1/2-in

Part #216036601

$12.57
In Stock
Breaker 297381501
#9

Cabinet diagram

Breaker

Part #297381501

$37.86
In Stock
Breaker 297381502
#10

Cabinet diagram

Breaker

Part #297381502

$38.64
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
12% OFF Phone Price : $42.39
In Stock
Freezer Door Hinge Pin 297438300
#28A

Cabinet diagram

Freezer door hinge pin

Part #297438300

This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
