Kenmore
Gas Grill

Model # 25916238 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 25916238 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Kenmore Gas Grill Igniter Screw SP15-21
#62

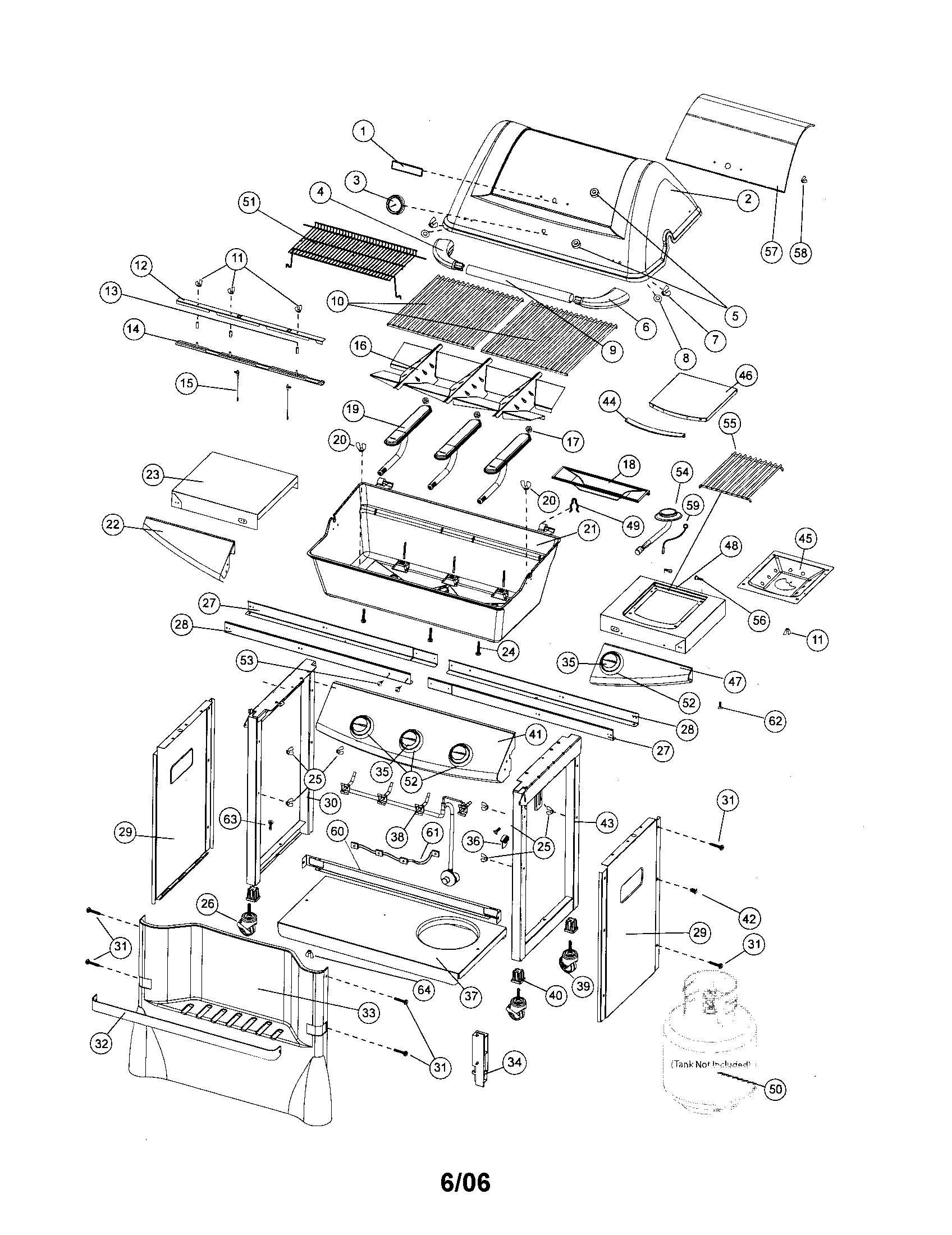

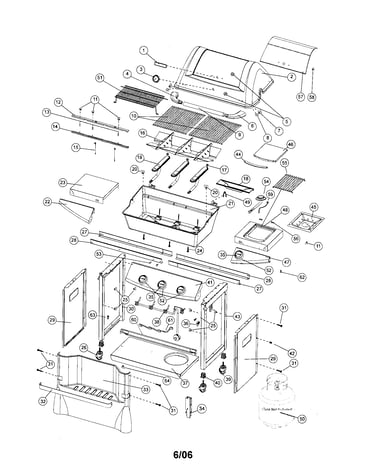

Gas grill diagram

Kenmore gas grill igniter screw

Part #SP15-21

The manufacturer no longer makes this part, and there's no substitute part

Logo SP5051-26
#1

Gas grill diagram

Logo

Part #SP5051-26

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer SP5034-9
#16

Gas grill diagram

Gas grill flame tamer

Part #SP5034-9

The manufacturer no longer makes this part, and there's no substitute part

Tank GG20-27
#50

Gas grill diagram

Tank

Part #GG20-27

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Panel SM5064-9E
#29

Gas grill diagram

Kenmore panel

Part #SM5064-9E

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Switch Harness SP5032-20
#61

Gas grill diagram

Kenmore switch harness

Part #SP5032-20

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Support SM5038-6E
#60

Gas grill diagram

Kenmore support

Part #SM5038-6E

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Temperature Gauge SP5002-30
#3

Gas grill diagram

Gas grill temperature gauge

Part #SP5002-30

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Gas Grill Manifold And Valve Assembly SP5030-4
#38

Gas grill diagram

Kenmore gas grill manifold and valve assembly

Part #SP5030-4

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Tray SP5055-9
#45

Gas grill diagram

Kenmore tray

Part #SP5055-9

The manufacturer no longer makes this part, and there's no substitute part
