Model # DAV-LF1 Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony DAV-LF1 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

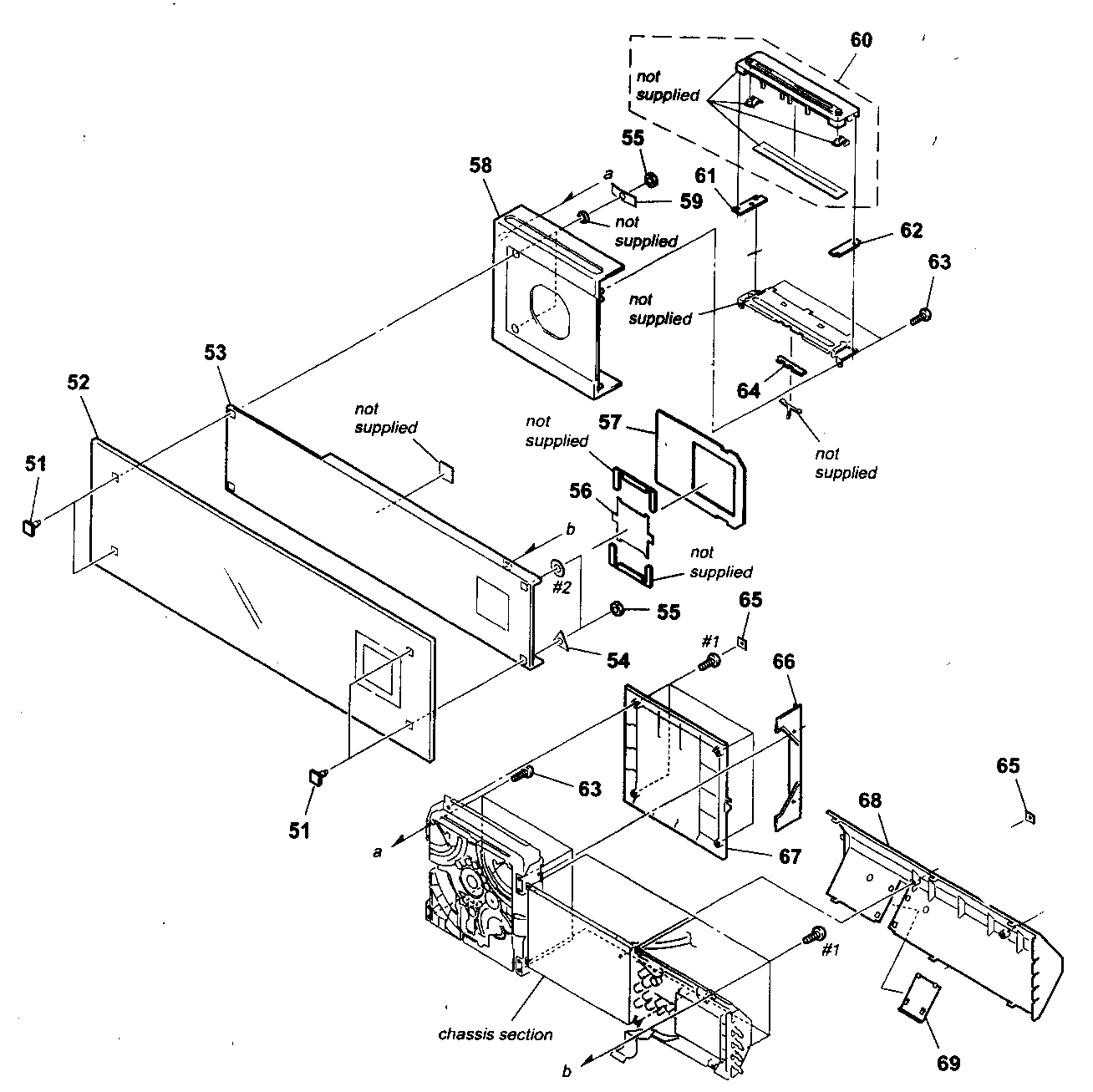

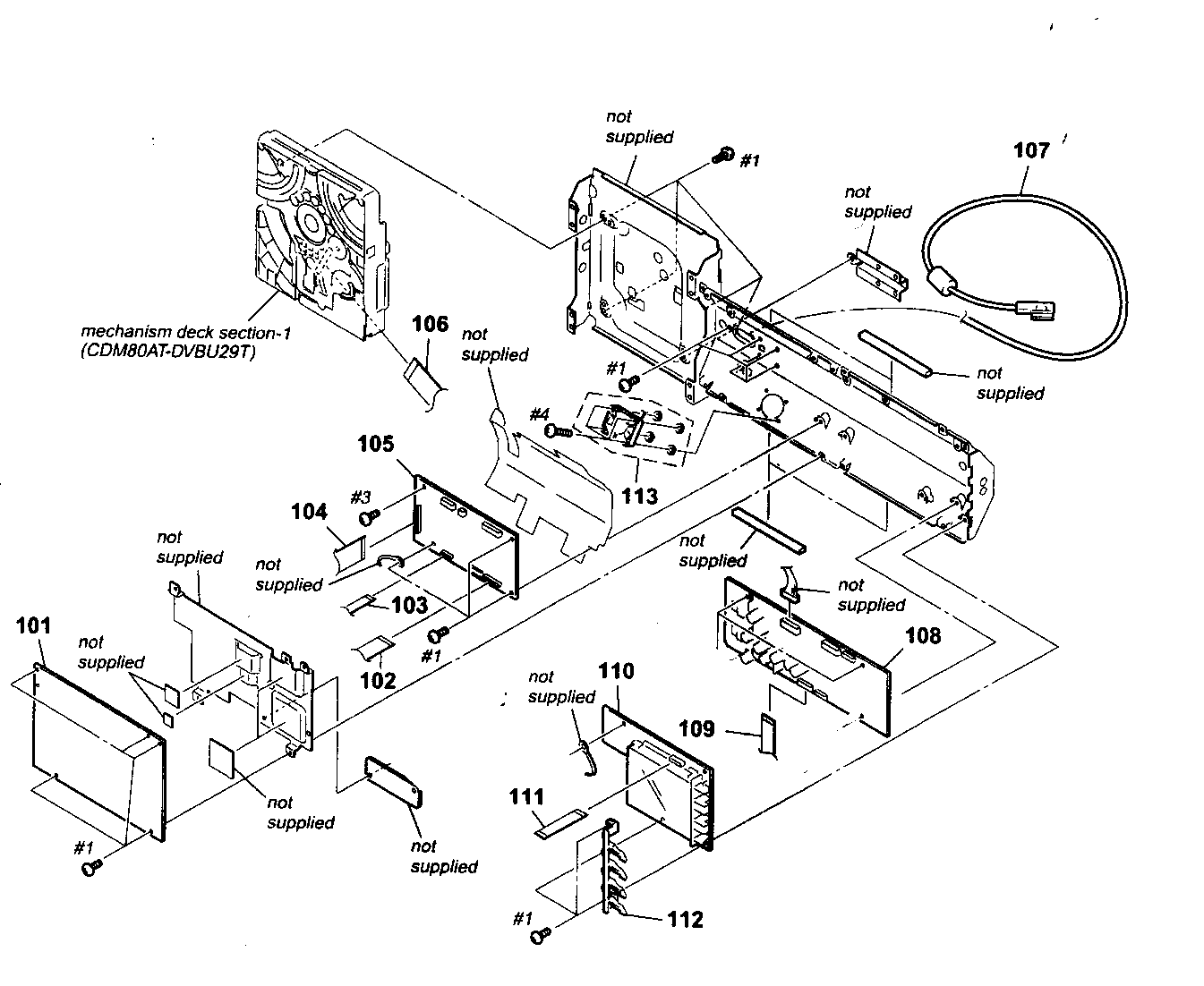

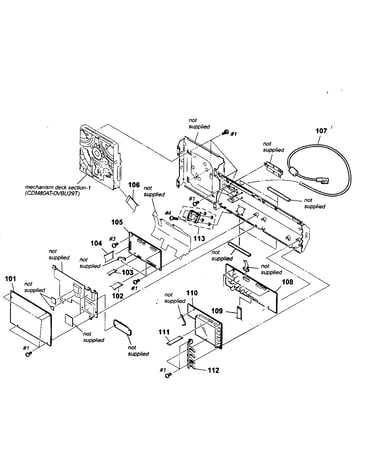

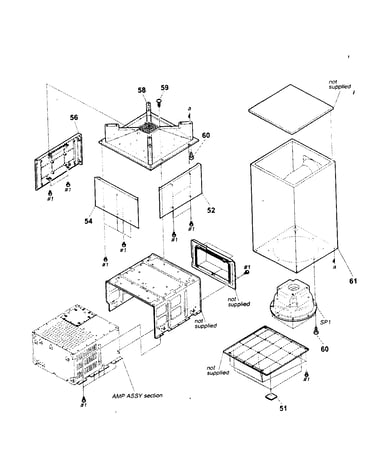

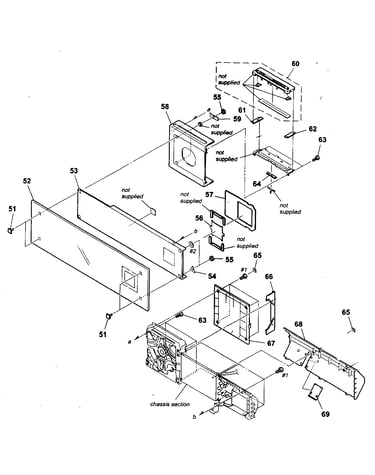

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |
Ic Pcm1802 670183401
#NI

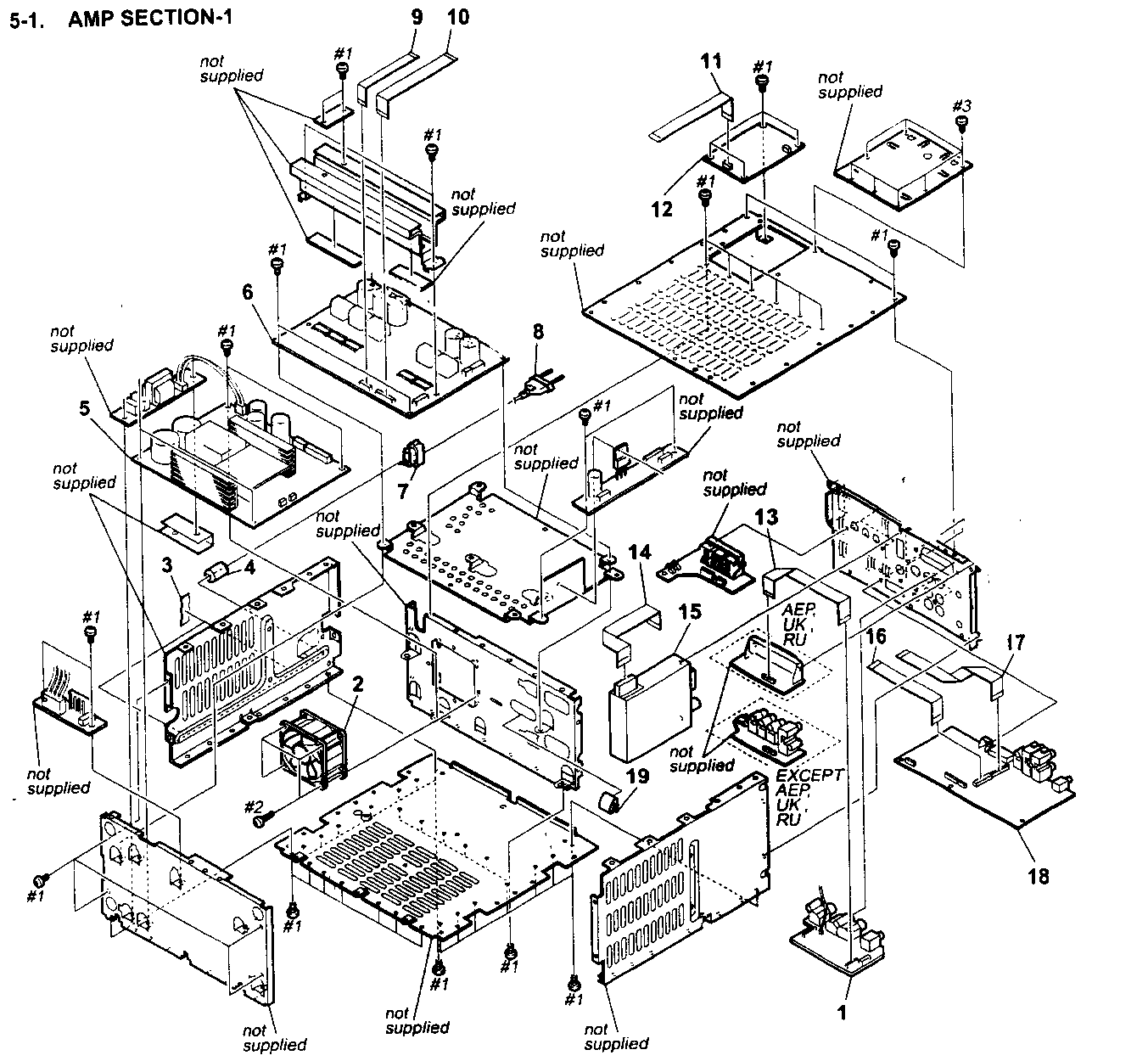

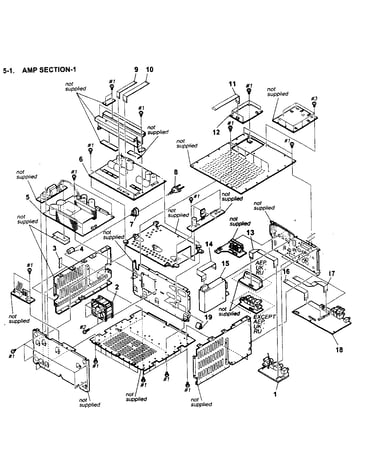

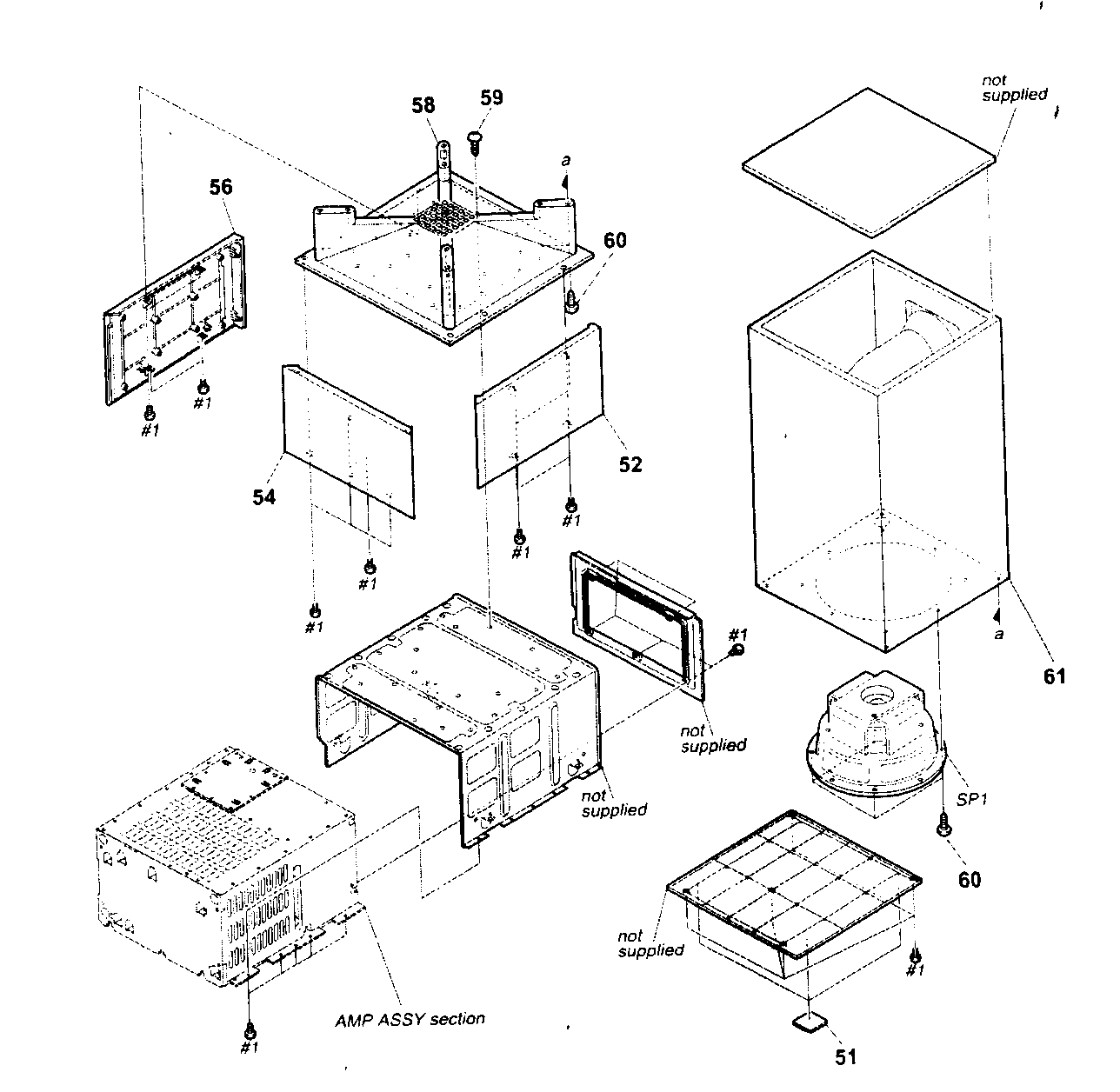

Amp assy diagram

Ic pcm1802

Part #670183401

The manufacturer no longer makes this part, and there's no substitute part

Ic Tk11225 670426101
Ic tk11225

Part #670426101

The manufacturer no longer makes this part, and there's no substitute part

Diode 871906960
#NI

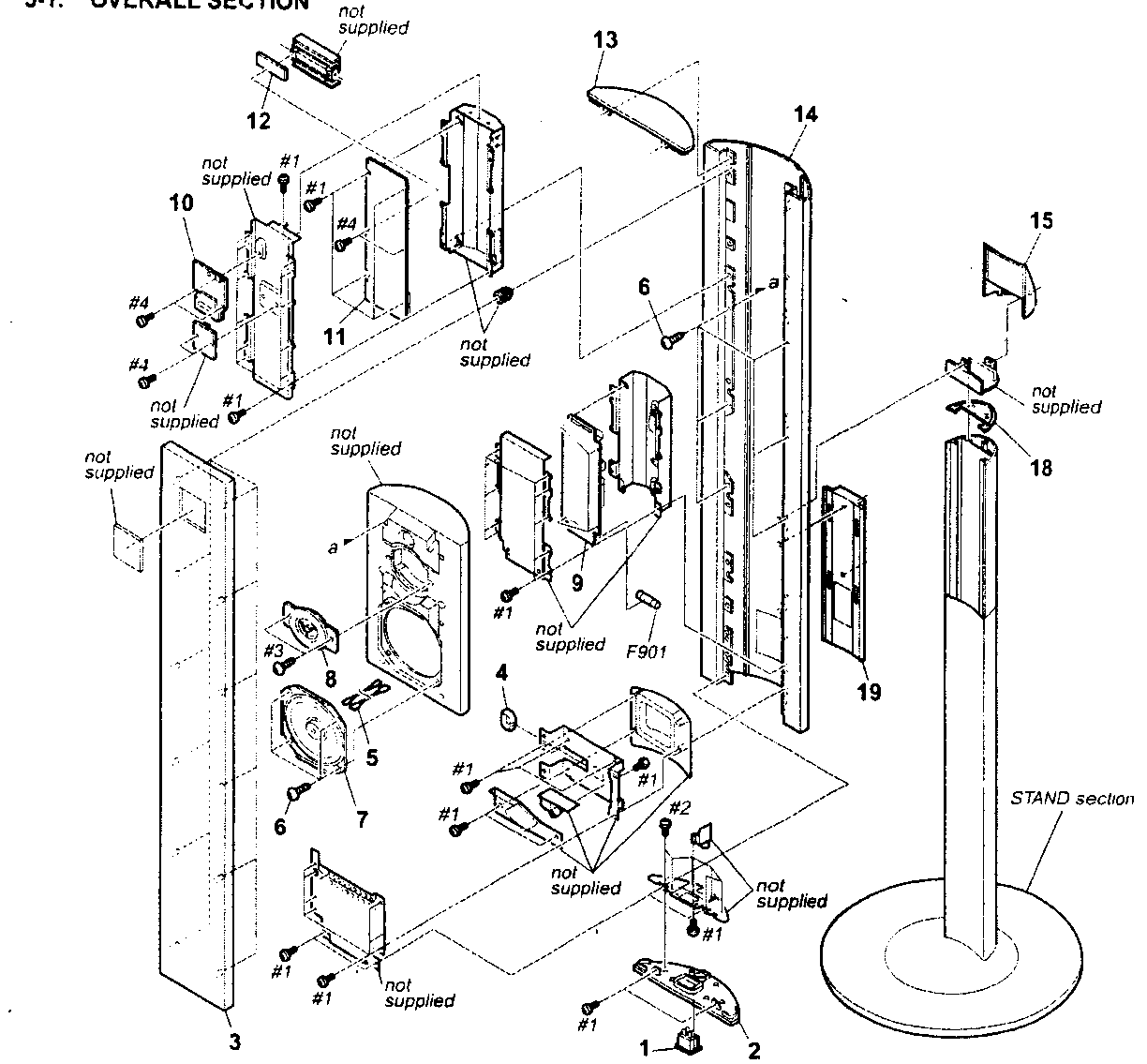

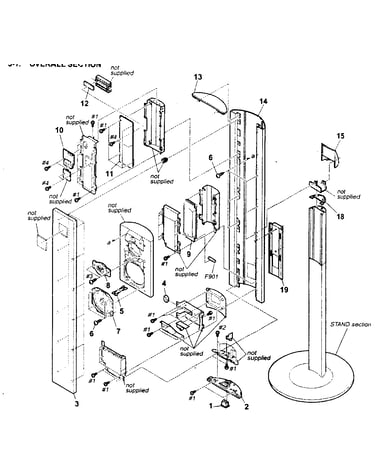

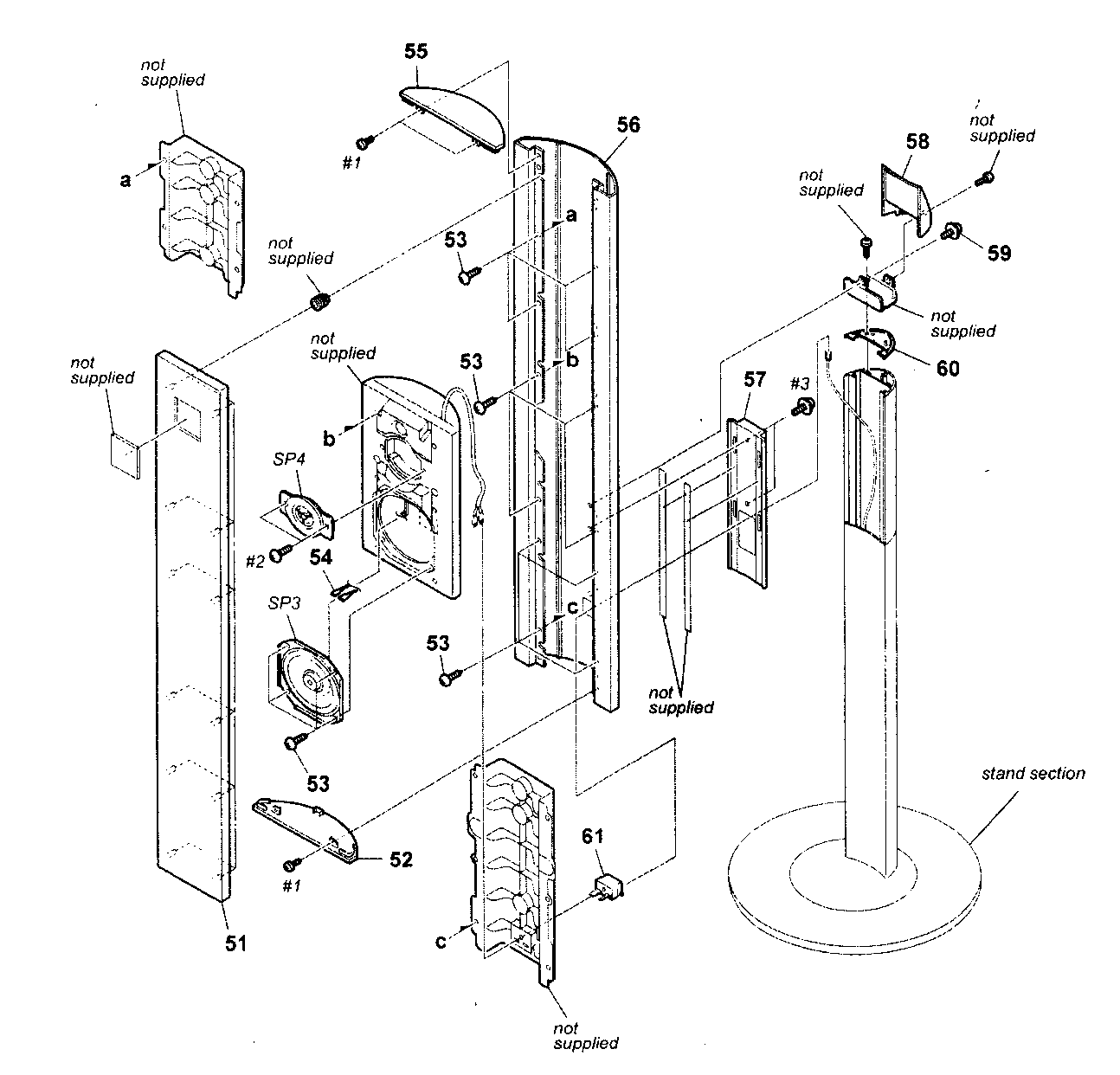

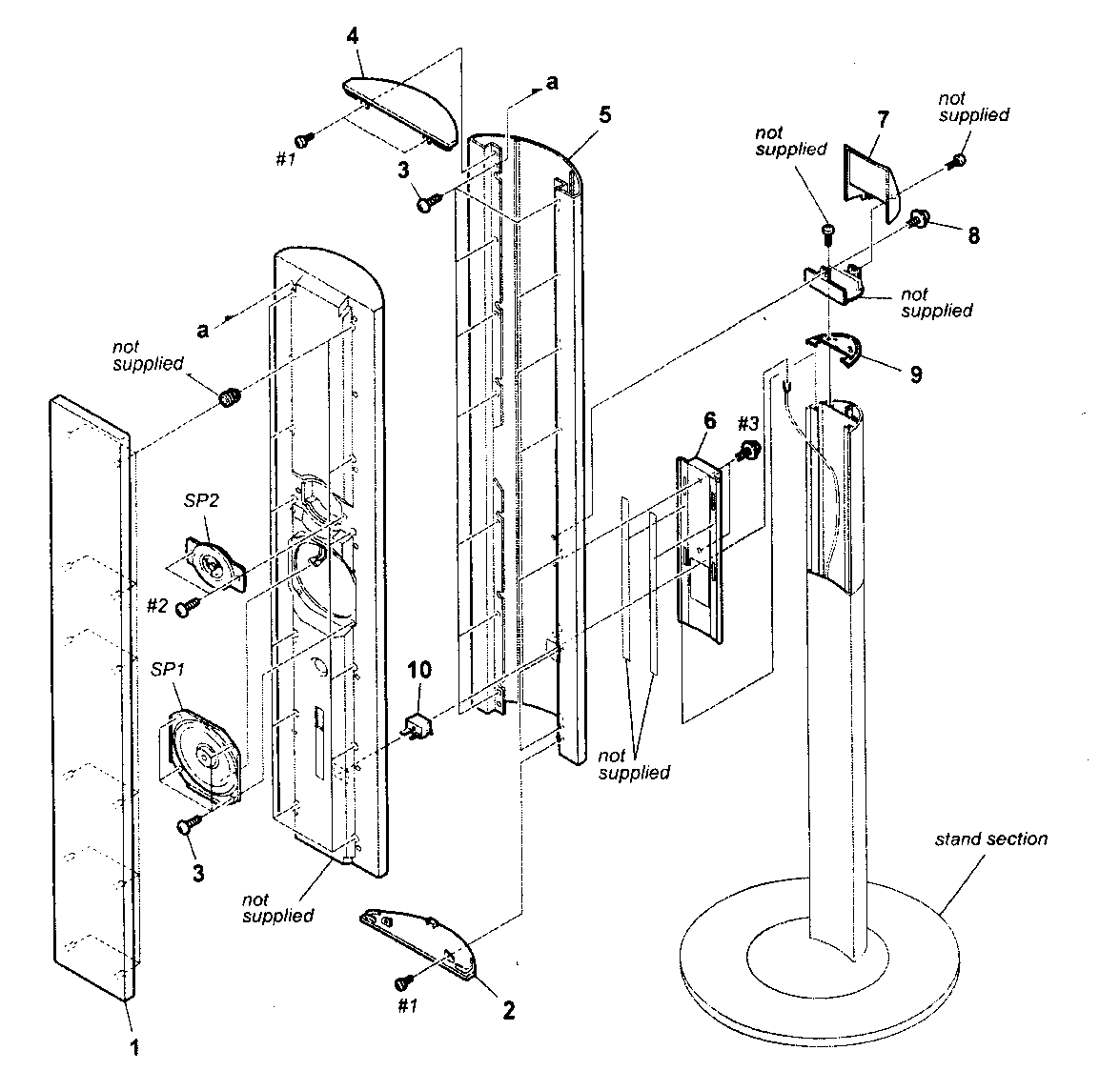

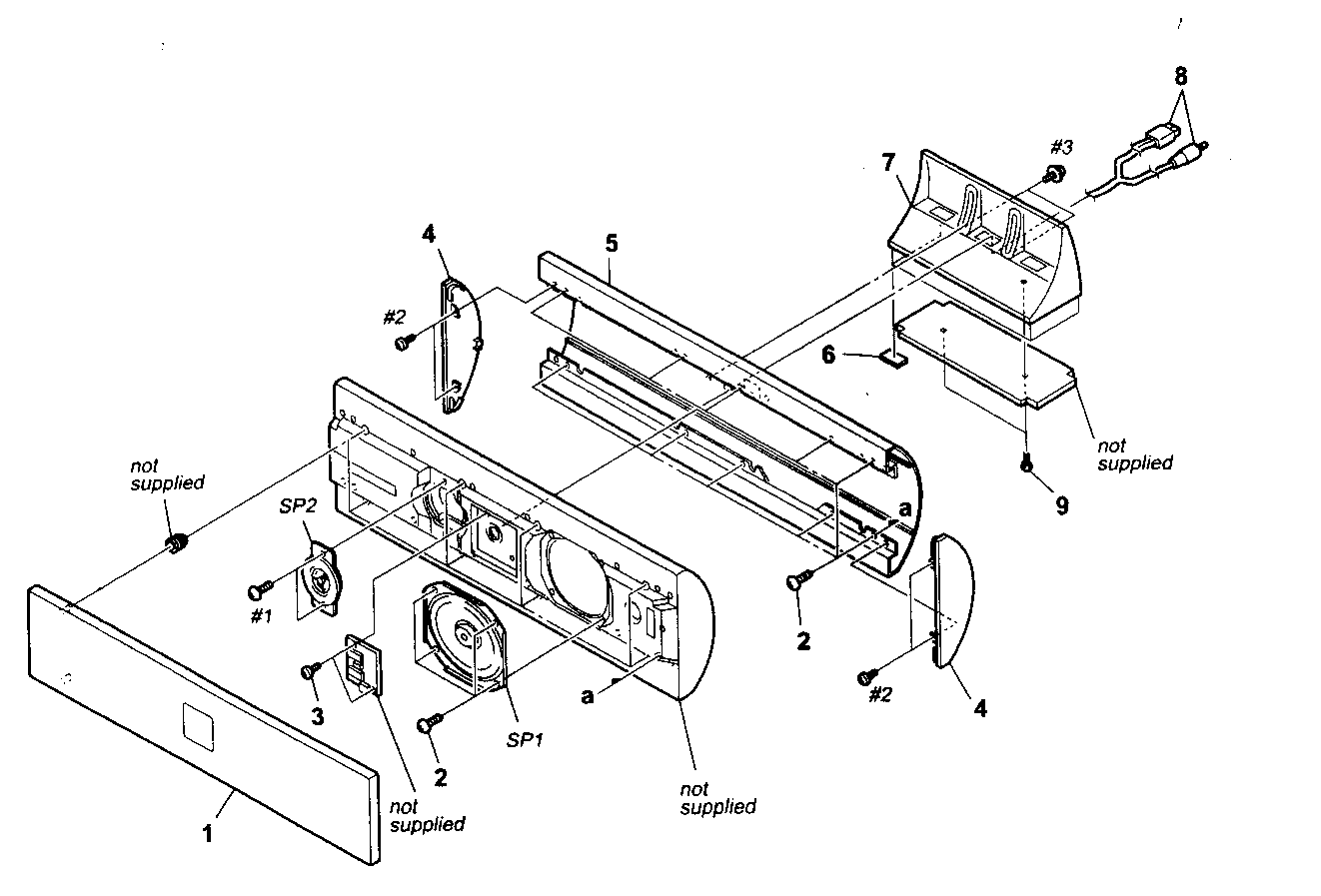

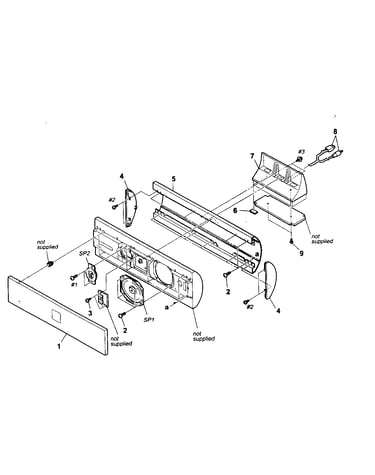

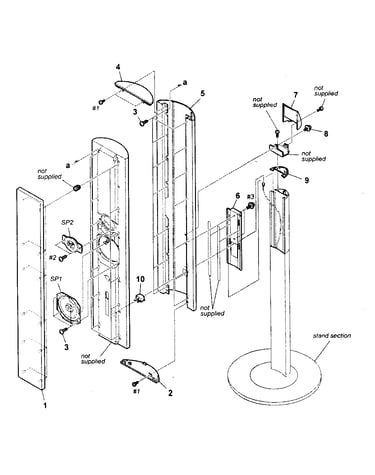

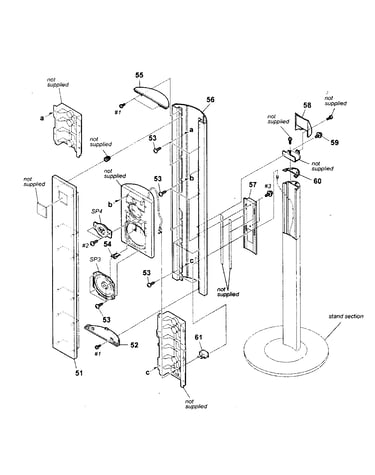

Speaker diagram

Diode

Part #871906960

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670392101
#NI

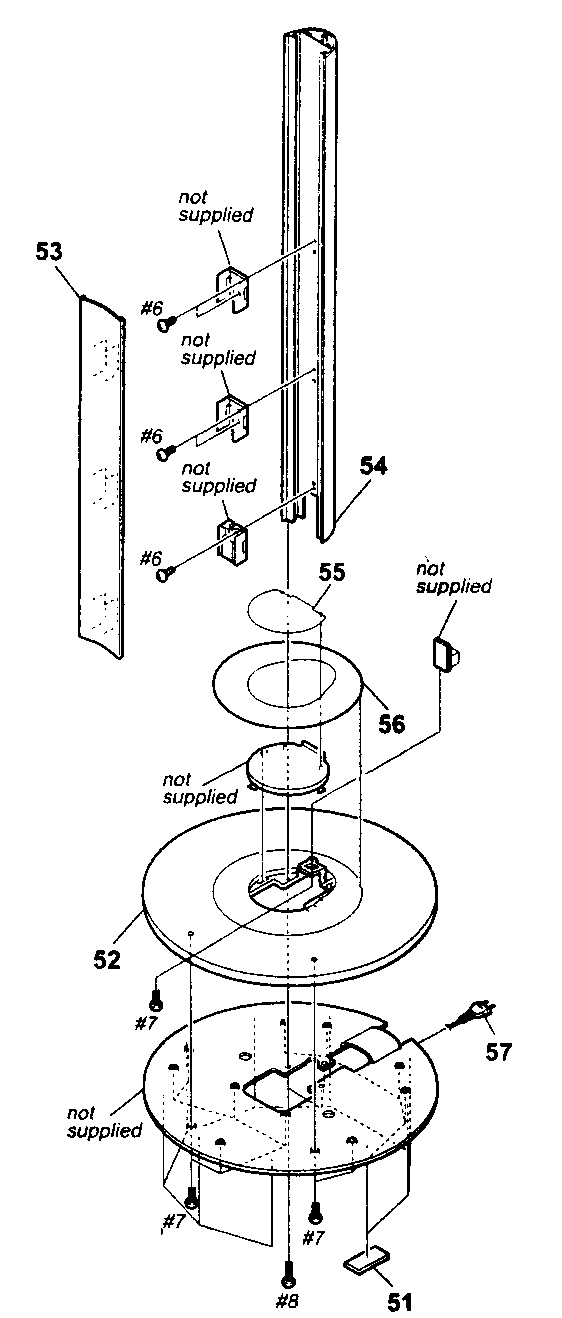

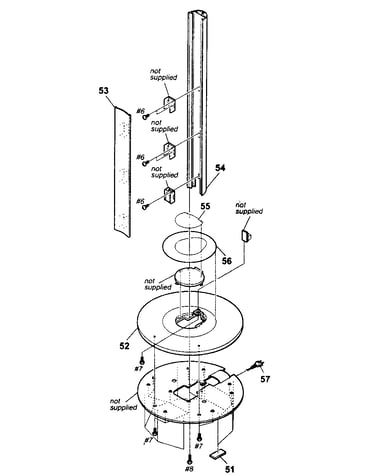

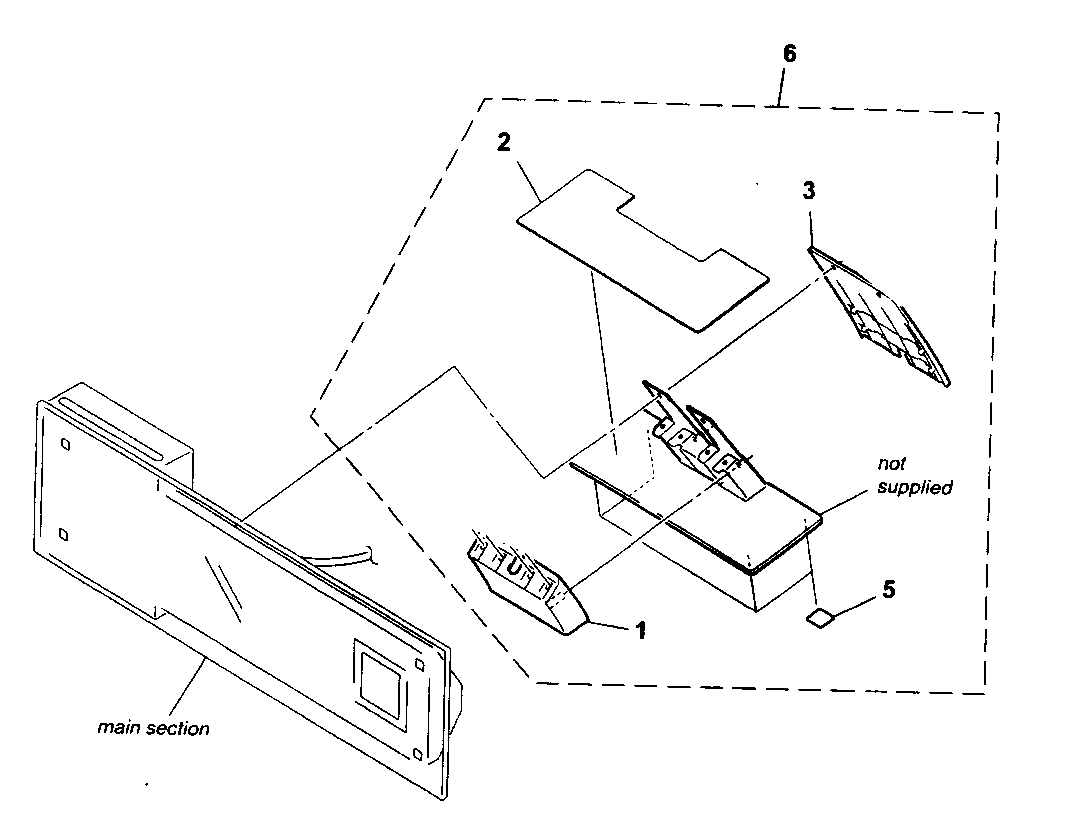

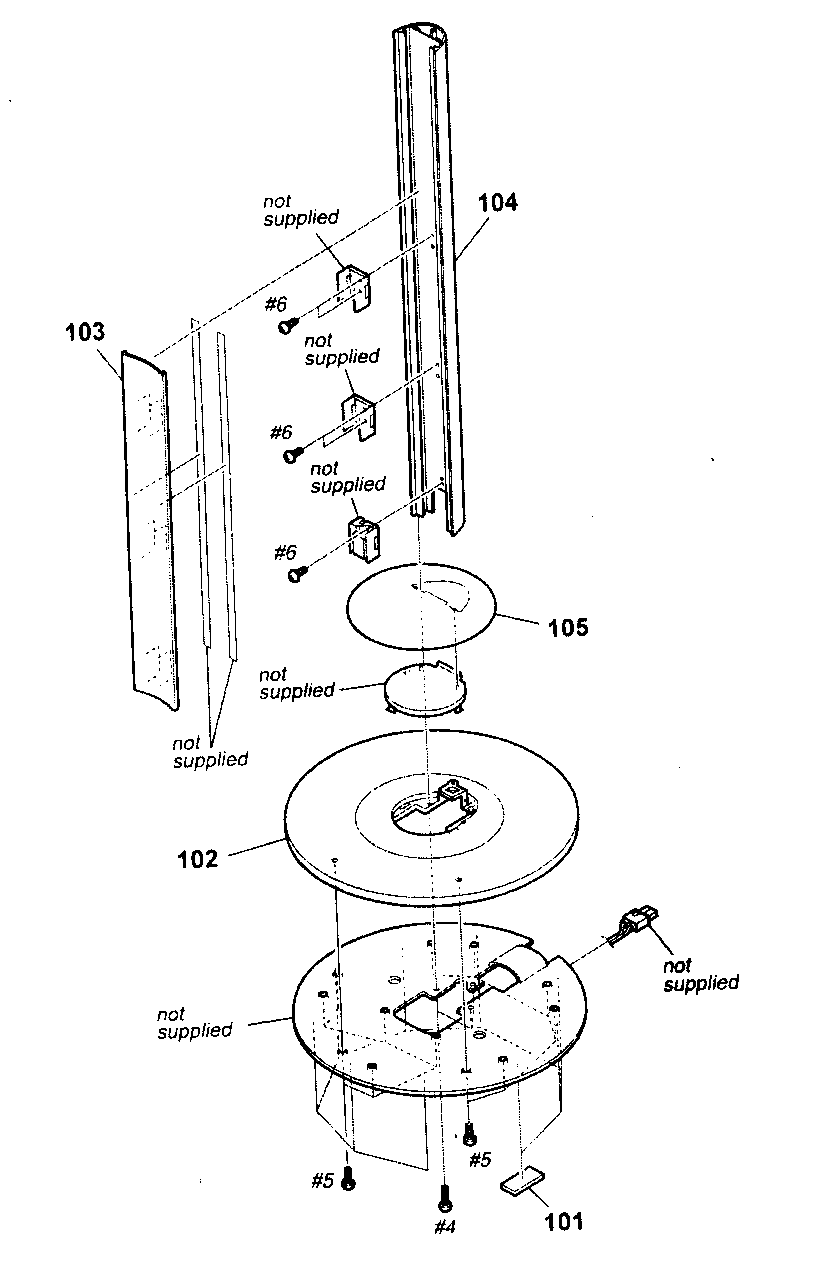

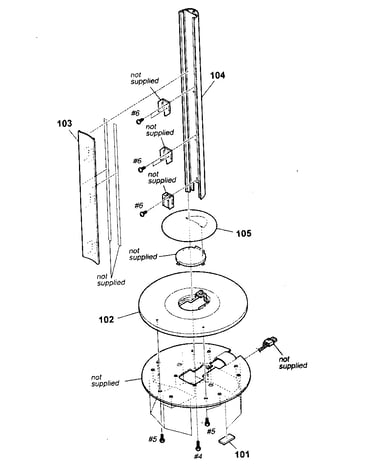

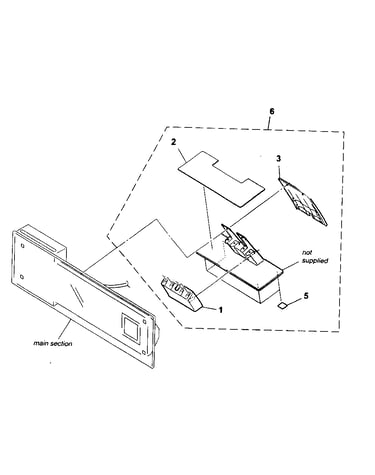

Stand assy diagram

Integrated circuit

Part #670392101

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875954920
#NI

Amp assy diagram

Integrated circuit

Part #875954920

The manufacturer no longer makes this part, and there's no substitute part

Ic Mc14052 875938576
#NI

Amp assy diagram

Ic mc14052

Part #875938576

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 680431001
#NI

Speaker diagram

Integrated circuit

Part #680431001

The manufacturer no longer makes this part, and there's no substitute part

Dc Fan 178719911
#2

Amp assy diagram

Dc fan

Part #178719911

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875947409
#NI

Stand assy diagram

Integrated circuit

Part #875947409

The manufacturer no longer makes this part, and there's no substitute part

Ic Sp3723c 670392201
#NI

Stand assy diagram

Ic sp3723c

Part #670392201

The manufacturer no longer makes this part, and there's no substitute part
