Model # 720-0894 Official BBQ-Pro gas grill

Here are the diagrams and repair parts for Official BBQ-Pro 720-0894 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Panel 20003316A0
#46

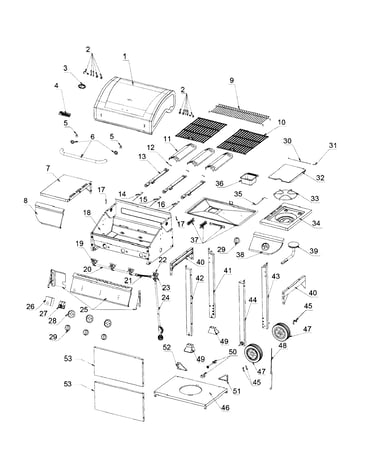

Grill assy diagram

Panel

Part #20003316A0

The manufacturer no longer makes this part, and there's no substitute part

Pipe 20003311A0
#39

Grill assy diagram

Pipe

Part #20003311A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Cooking Grate 13000409A0
#10

Grill assy diagram

Gas grill cooking grate

Part #13000409A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer 04007620A0
#11

Grill assy diagram

Gas grill flame tamer

Part #04007620A0

The manufacturer no longer makes this part, and there's no substitute part

Regulator 09000577A0
#24

Grill assy diagram

Regulator

Part #09000577A0

The manufacturer no longer makes this part, and there's no substitute part

Hinge Rod 20002471A0
#30

Grill assy diagram

Hinge rod

Part #20002471A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 09000578A0
#19

Grill assy diagram

Gas valve

Part #09000578A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Owner's Manual 19000478A0
#NI

Grill assy diagram

Gas grill owner's manual

Part #19000478A0

The manufacturer no longer makes this part, and there's no substitute part

Cart Frame 20003318A0
#40

Grill assy diagram

Cart frame

Part #20003318A0

The manufacturer no longer makes this part, and there's no substitute part

Ignition Wire 10001743A0
#14

Grill assy diagram

Ignition wire

Part #10001743A0

The manufacturer no longer makes this part, and there's no substitute part
