April 1, 2014

How to replace a dishwasher lower spray arm

By Lyle Weischwill
How to replace a dishwasher lower spray arm

This DIY repair guide gives instructions on how to replace a lower spray arm in a dishwasher. The lower spray arm attaches to the pump outlet and sprays water throughout the dishwasher to improve cleaning. If the lower spray arm cracks or splits, you may notice your dishes are not getting clean, or you might find water leaking at the bottom of the dishwasher door. Replace a broken lower spray arm using the manufacturer-approved dishwasher part.

Use this procedure to replace the lower spray arm in some Kenmore, Whirlpool, KitchenAid, Amana, Maytag and JennAir dishwashers. You also can use the same basic steps to replace the lower spray arm in some GE, Frigidaire, Electrolux, Samsung and LG dishwashers.

Quick links
Tools required
None
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less

Instructions

  1. 01.

    Remove the bottom dishrack

    Open the dishwasher door and pull out the bottom dishrack.

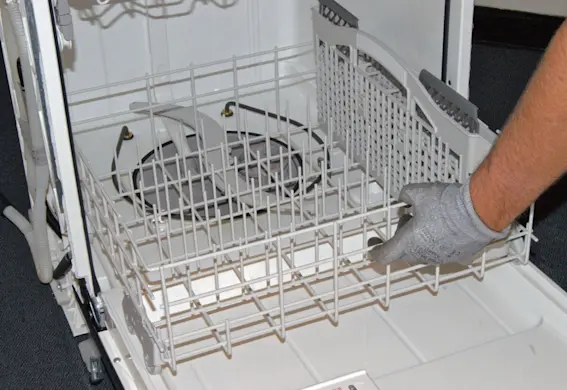

    PHOTO: Pull out the bottom dishrack.

    PHOTO: Pull out the bottom dishrack.

  2. 02.

    Remove the lower spray arm

    Rotate the mounting bracket on the bottom of the lower spray wash arm a 1/4-turn counter-clockwise to release it from the pump outlet. Pull the spray wash arm up and off of the pump outlet.

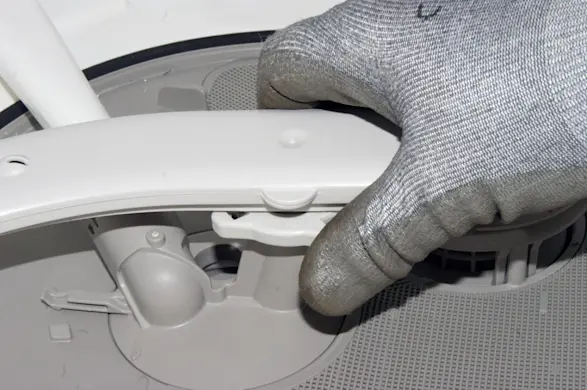

    PHOTO: Rotate the mounting bracket.

    PHOTO: Rotate the mounting bracket.

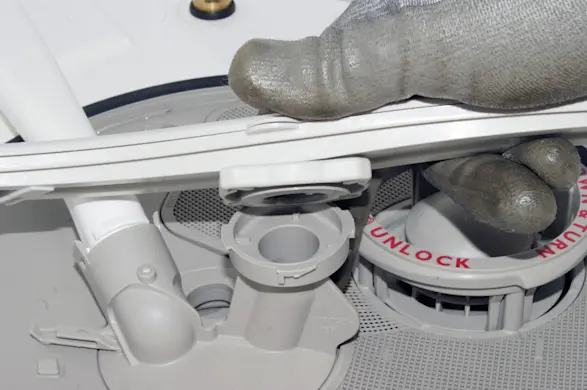

    PHOTO: Remove the spray arm.

    PHOTO: Remove the spray arm.

  3. 03.

    Install the new dishwasher spray arm

    Position the new lower wash spray arm on the top of the pump outlet. Press it down so it seats completely on the pump outlet.

    Rotate the locking bracket a 1/4-turn clockwise to lock the arm in place. Tug up on the lower wash spray arm to make sure it's seated and locked in place.

  4. 04.

    Reinstall the lower dishrack

    Slide the lower dishrack back into the dishwasher.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
