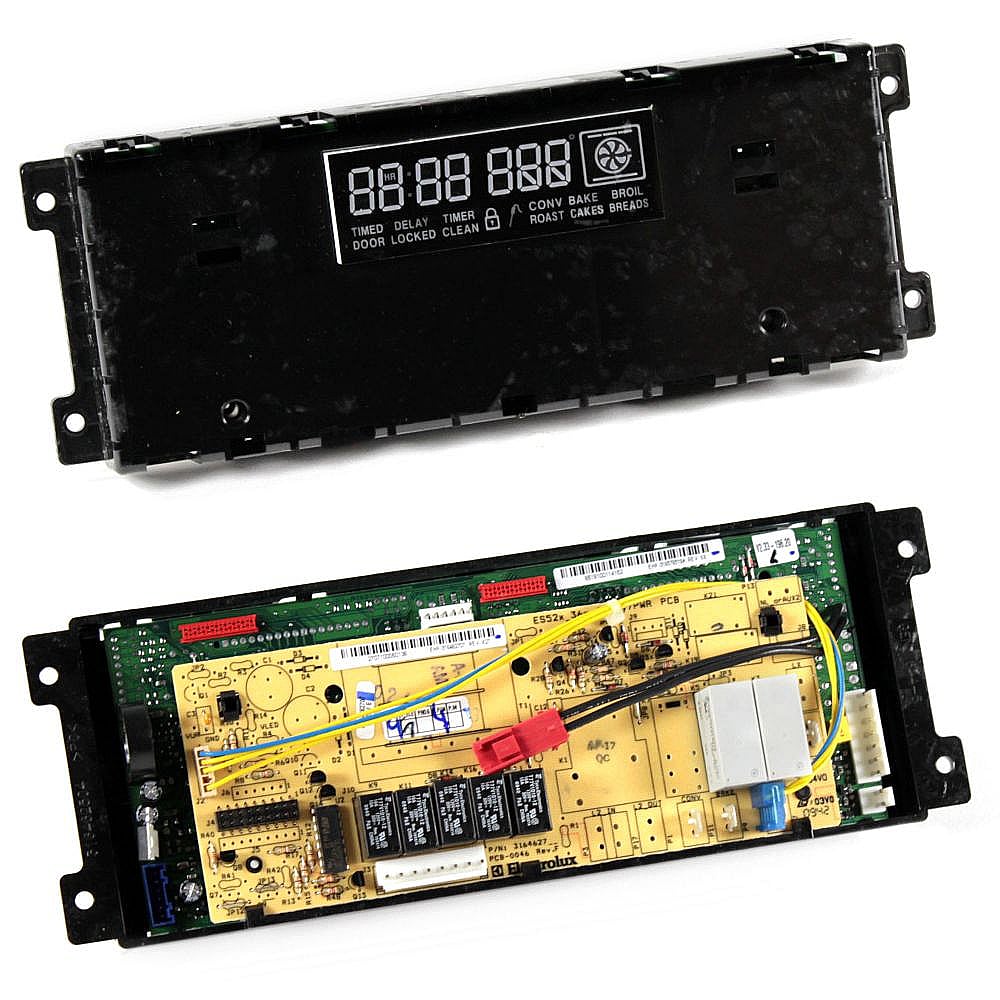

Range Oven Control Board and Clock 316577077
Part #316577077
GenuineOEM
This part is no longer available.We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com
Confirm this part fits
This Part Also Fits
Part Information
This oven control board and clock (part number 316577077) is for ranges.
Oven control board and clock 316577077 monitors the oven temperature and controls the oven heating functions in the range, and includes the digital display for the time and temperature settings.
Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.
Frequently Bought Together
Frigidaire Range Oven Temperature Sensor
Part #316490000
In Stock
$46.53
11% OFF Phone Price : $52.53
Qty
Range Oven Door Lock Motor And Switch Assembly
Part #316464300
Replaced by #5304528973
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
In Stock
$29.83
17% OFF Phone Price : $35.83
Qty
Frigidaire Range Broil Igniter
Part #5304506545
In Stock
$78.66
7% OFF Phone Price : $84.66
Qty
Universal/multiflex (frigidaire) Range Oven Door Latch
Part #316405800
In Stock
$39.69
28% OFF Was : $54.77
Qty
ReviewsJanuary 08, 2021|GregO, Minnetrista, MNSeptember 23, 2020|Yondanron, Petaluma, CADecember 04, 2019|Gogo K, DFWApril 23, 2018|retiredmike, arlington hts, ILDecember 04, 2019|CMCguy, UndisclosedMarch 08, 2021|Soldier357, Pennsylvania, PAApril 10, 2018|SophiaLoren, Philadelphia, PA
0 Reviews
IT WORKS!
Old controller worked fine but the portions of the led readout (time/timer) had burned or shorted out. New controller is nice and bright. If you are a bit of a do-it-your-selfer this project will be okay to take on. A few screws to remove backside panel. The actual removal install of the controller had 4 screws and a few wire harnesses to plug in. Just remember where each wire attaches. Minor challenge to get at the 4 screws but you will figure it out. They are almost finger tight so getting a small socket or screwdriver onto each screw can be done without removing the top cover of the range control panel. If you are not a DIY, hire someone to do it. The replacement took 15 to 20 minutes. The whole job took 45 minutes because I ended up cleaning the back, sides, floor, cabinets and the entire oven really good. With the new controller I can read the time and timer easily. It's like a new oven!
Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
2 people thought this review was helpful.
Pretty straightforward
Carefully remember the relative positioning of the metal pieces behind the control panel for re-installing. I had to remove the stove top to get at some screws important to accessing the Oven Control Board.
Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
1 person thought this review was helpful.
I had F90 Code. Fixed Oven
Do the Trouble Shooting To Ensure This is The Part You need.
Ease of InstallationModerate
Duration of Installation1 - 2 hours
verified customer
Yes, I would recommend this to a friend
Was this review helpful?
OEM. Board
Changing the board was straight forward. Just four 1/4" hex head screws and 4 connector plugs also the back cover with 3 screws.
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
4 people thought this review was helpful.
Perfect fit, new features
The two other posts re. this product seem to be the extremes of the installation process. It took me about an hour, most of it was messing around trying to pull the rear panels off the stove to get access to the board. Once I did, there 6 or so connections to make. It's pretty hard to screw up, but I did it one at a time to make sure everything lined up. If you can't change your own oil, or you call AAA to fix a flat tire, then you'd better call a pro. If that type of work doesn't scare you, its a pretty straight forward process to swap out the part. It's great to have all the LED segments lit up again and the board works perfectly. One note, my old one didn't report the temp of the oven during warm up. This one does - when you set the temp, it drops to 101F, and stayed there for several seconds. I thought it was a problem, but once the oven fires up, it reports the increasing temp and then works great. Neat feature for impatient chefs wondering about oven temp.
Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour
verified customer
7 people thought this review was helpful.
simple to install
Part was a simple replacement, Note: the packaging was horrible - I was afraid the part would be damaged, no protective wrapping at all. Box looked as if it was thrown around. Be careful removing screws (especially around burners) they rust from the heat and are fragile. you have to get to the screws under the backing to remove the casing and that required lifting the range top (which the burners are attached to) and sliding it forward just enough to get to those screws in the rear corners. the backing will not come off without removing them. you need to lift the backing to access the module connections properly
Ease of InstallationModerate
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
1 person thought this review was helpful.
NO HELP FROM SEARS PARTS DIRECT
Since I could not find any instructions in the part packaging, nor online ANYWHERE, on removing an existing surrounding part I needed to remove to install the new "Control Board", I had to improvise. I tried to call for help, but your customer service number was no help and told me to go to a Sears store. I had the correct model, and the correct part number, but your videos showed a view of a range that wasn't the same as mine. TERRIBLE experience....won't buy Sears again!
Ease of InstallationVery Difficult
Duration of InstallationMore than 2 hours
verified customer
Was this review helpful?
