Model # LMV1645ST Official LG microwave

Here are the diagrams and repair parts for Official LG LMV1645ST microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

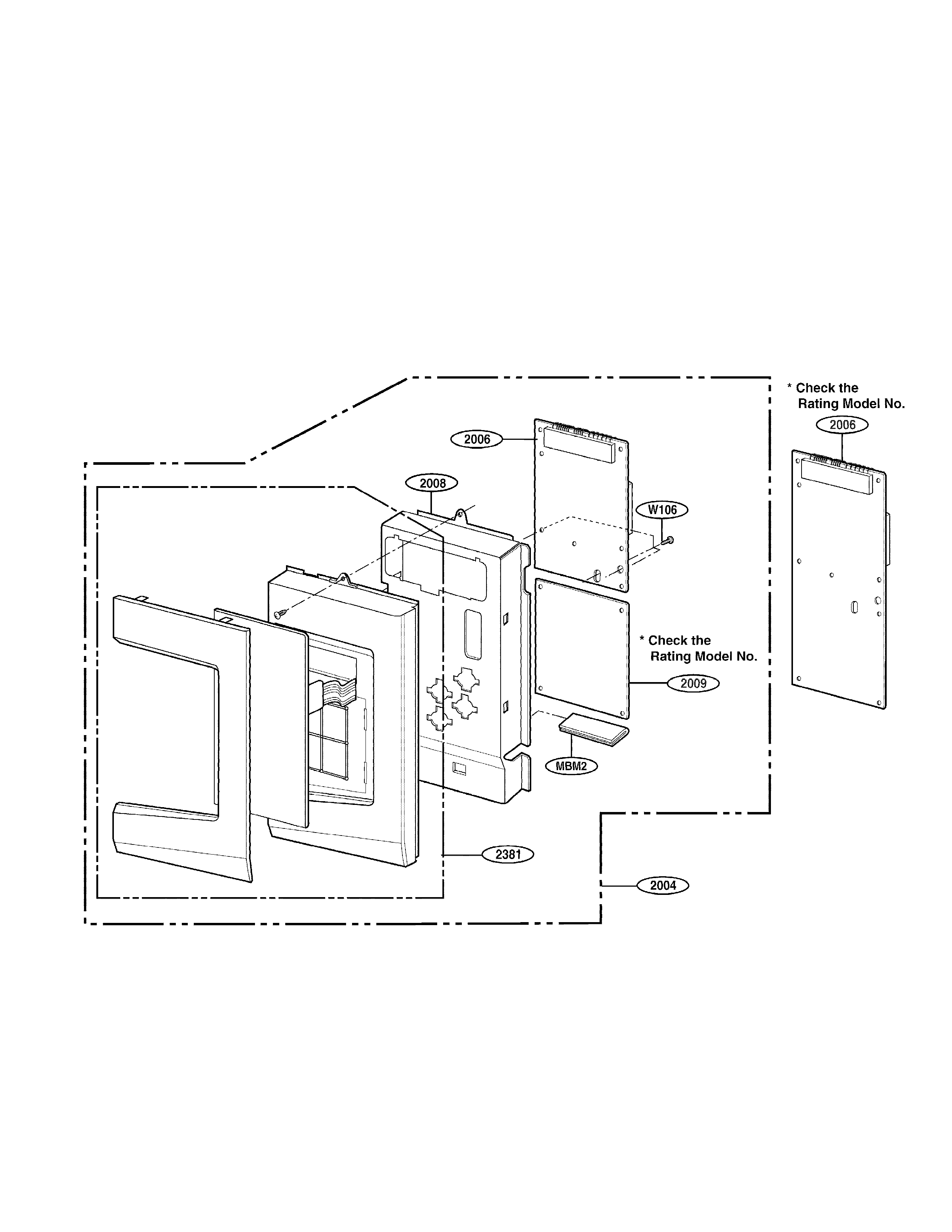

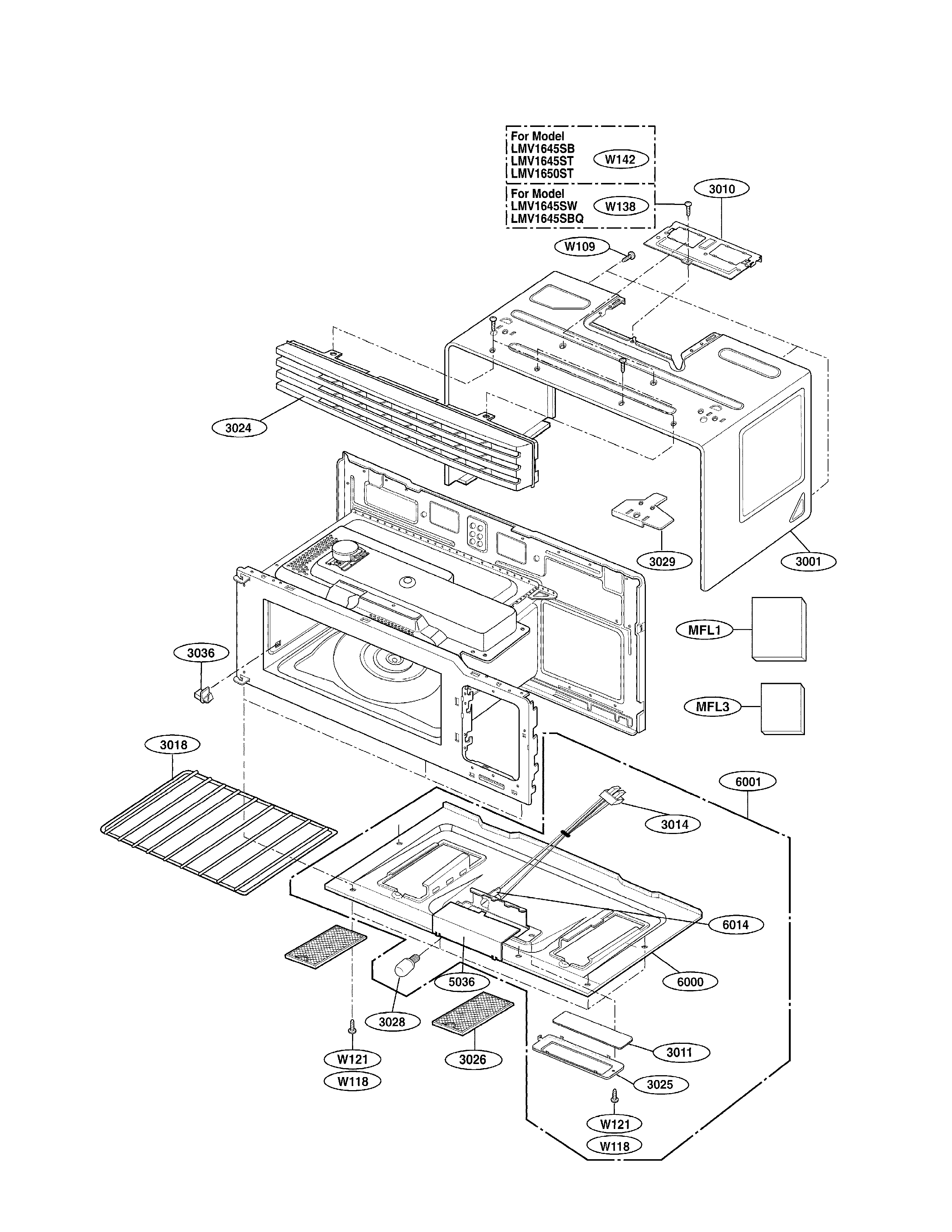

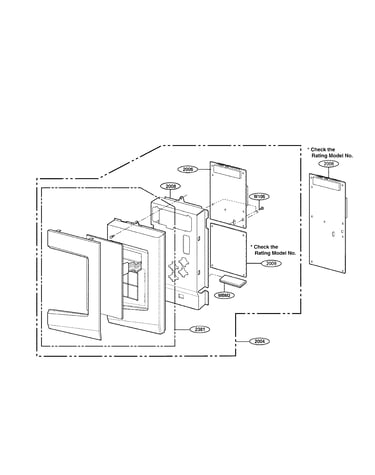

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

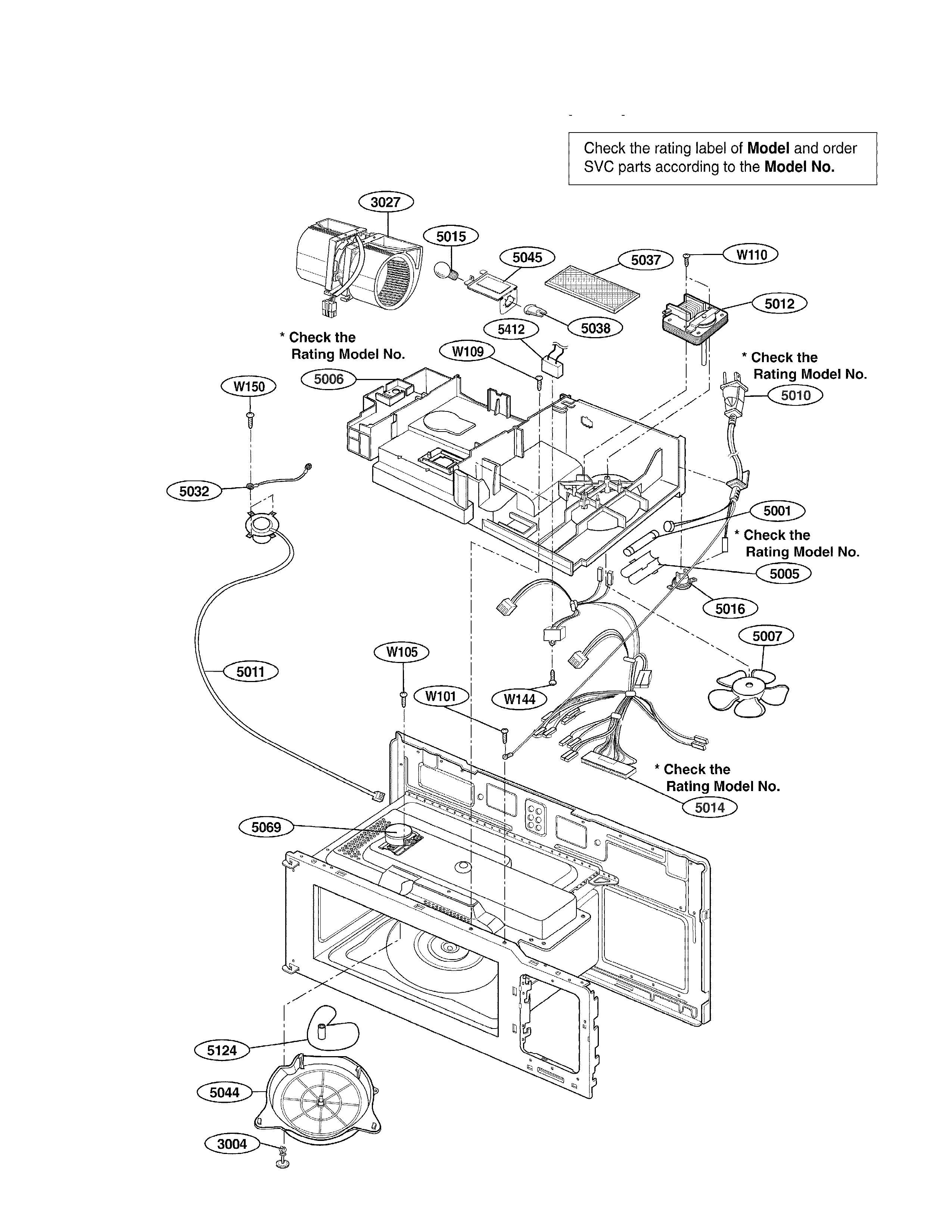

Interior parts (ii-i) diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
Microwave High-voltage Diode 6021W3B001M
#5018

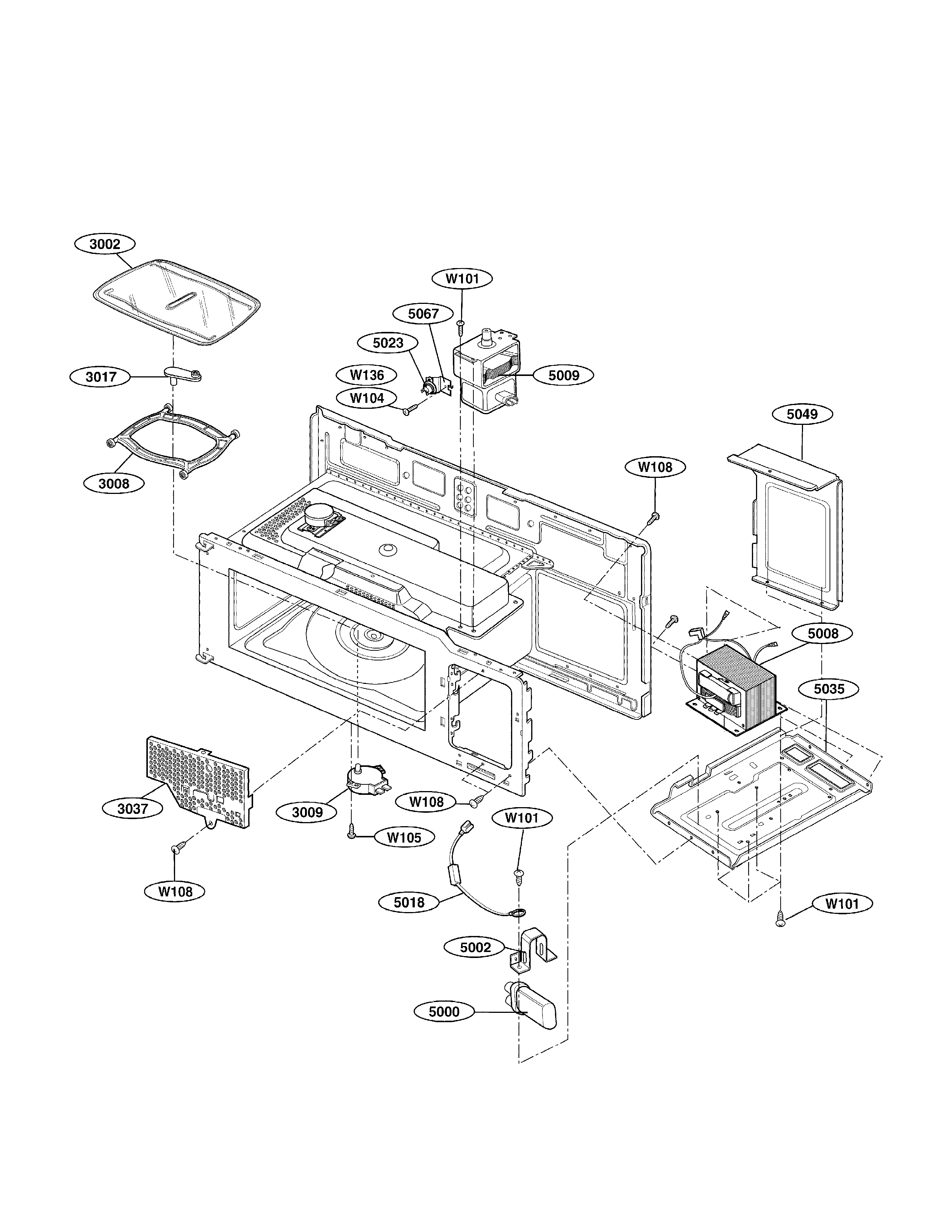

Interior parts (i) diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Capacitor 0CZZW1H003H
#5000A

Interior parts (i) diagram

Capacitor

Part #0CZZW1H003H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H003H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#5000

Interior parts (i) diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000B

Interior parts (i) diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Door Interlock Switch 3B73362E
#4002

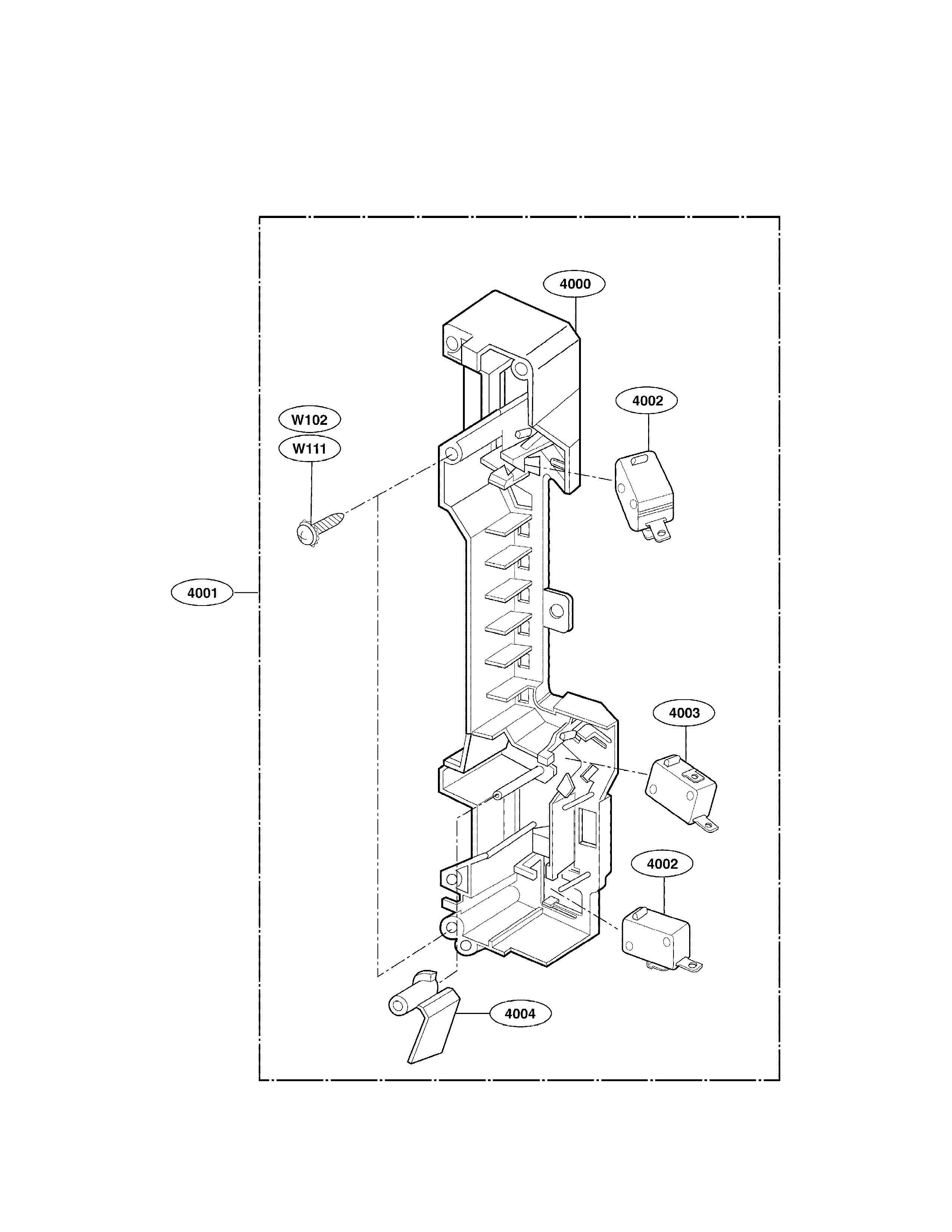

Latch board parts diagram

Microwave door interlock switch

Part #3B73362E

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 3B73362E. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

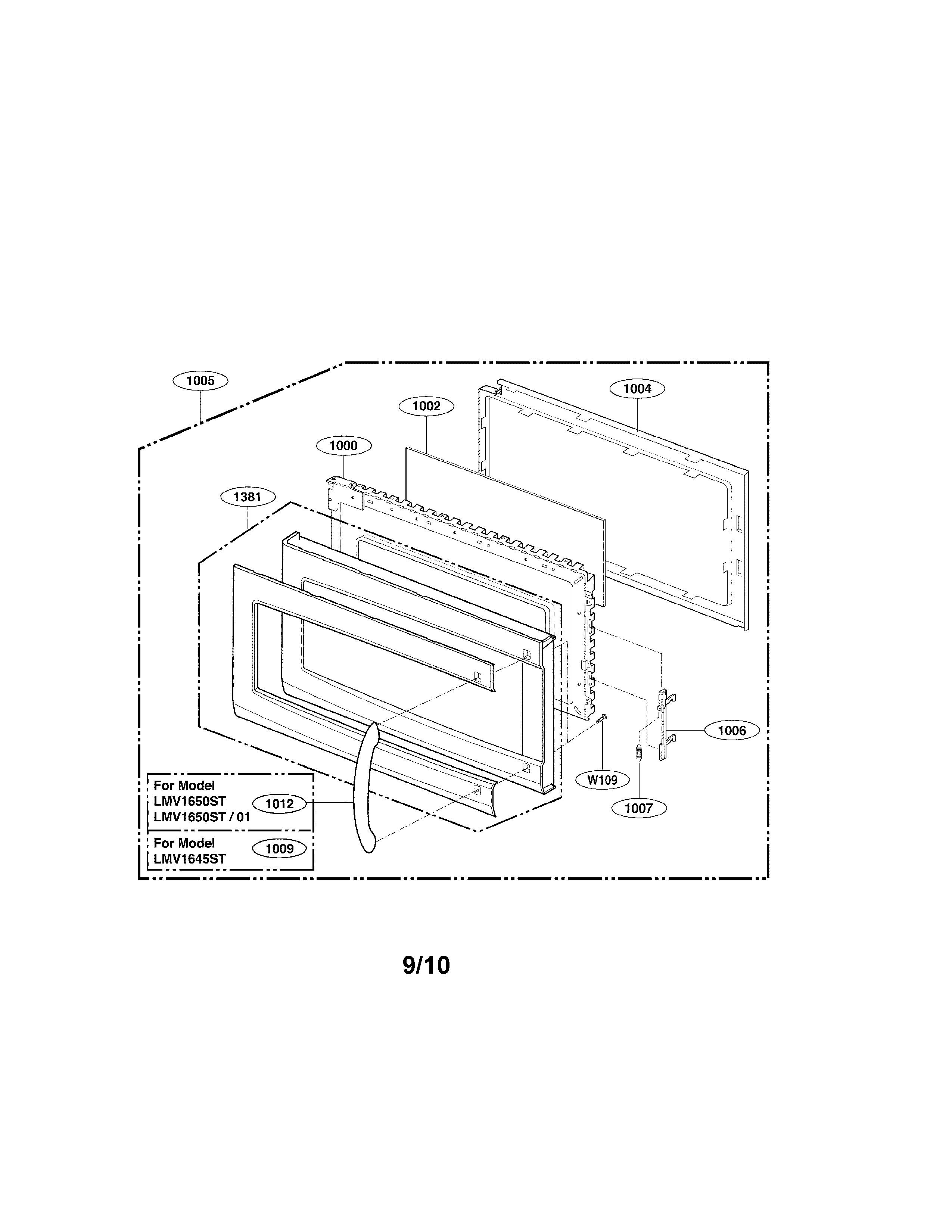

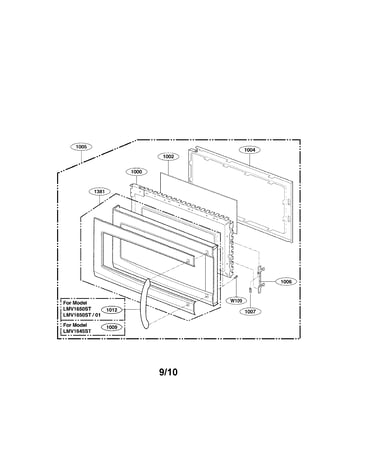

Door parts (ii) diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Installation Kit 2B72771G
#6009

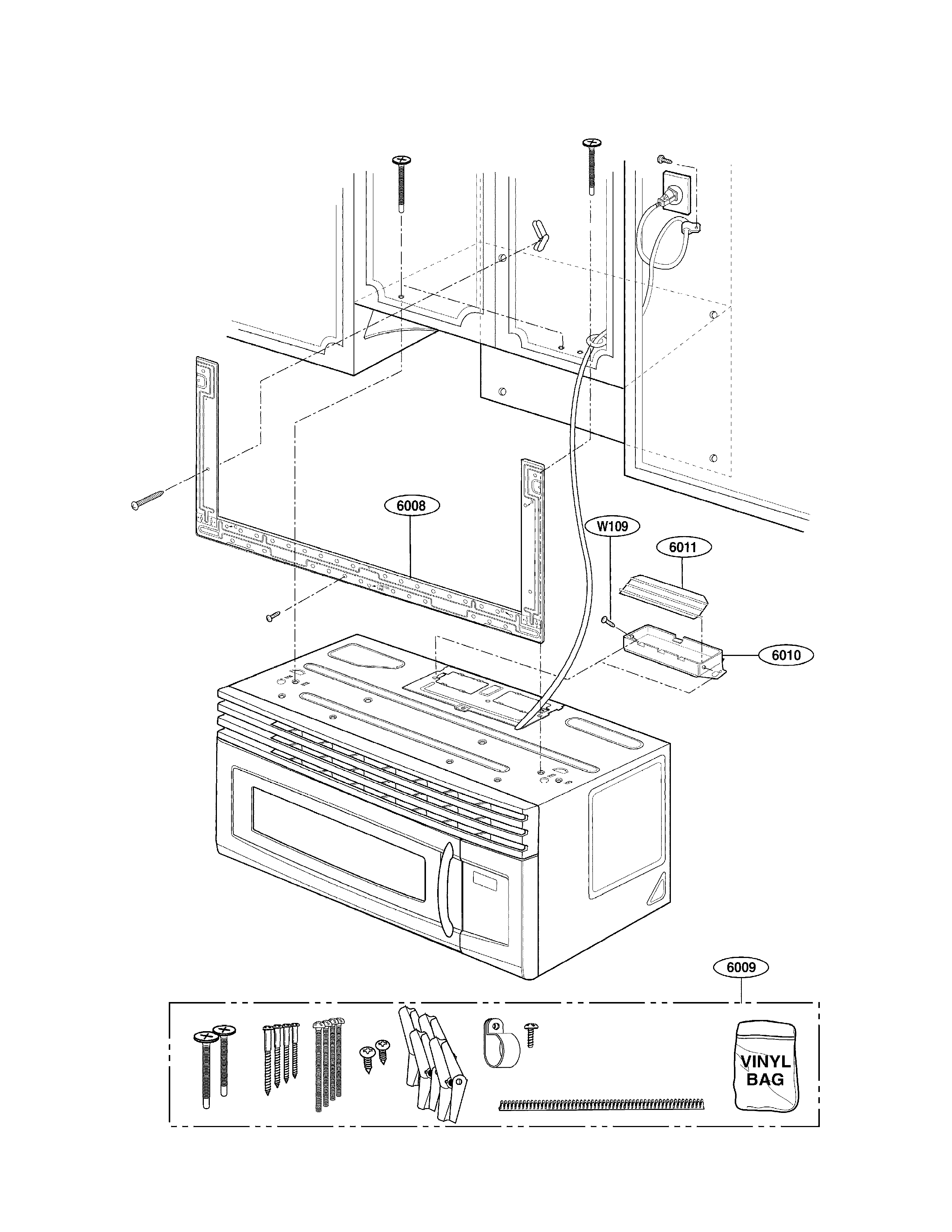

Installation parts diagram

Installation kit

Part #2B72771G

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 2B72771G. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
Microwave Turntable Motor 6549W1S013D
#3009

Interior parts (i) diagram

Microwave turntable motor

Part #6549W1S013D

This item is not returnable
$30.76 |
14% OFF Phone Price : $35.76
In Stock
Lamp Holder 6804W2A001A
#5038

Interior parts (ii-i) diagram

Lamp holder

Part #6804W2A001A

Replaced by #6620G00007B

?
Manufacturer substitution
This part replaces 6804W2A001A. Substitute parts can look different from the original.
This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
