How to replace a lawn mower flywheel key on an OHV engine

By Lyle Weischwill
How to replace a lawn mower flywheel key on an OHV engine

This step-by-step lawn mower repair guide explains how to replace the flywheel key on a lawn mower with an overhead valve (OHV) engine. The flywheel key is a rectangular metal peg that keeps the crankshaft and flywheel aligned when you tighten the flywheel nut. If the mower blade hits an object with enough force to knock the flywheel out of alignment, the flywheel key breaks, protecting expensive parts such as the crankshaft from damage.

If the flywheel key shears slightly, the engine runs rough or misfires. If the key breaks, the lawn mower stops running and won't start. When you try to start the engine, the starter rope might jerk back. Replace the flywheel key with the manufacturer-approved replacement part.

This repair guide and video shows how to replace a sheared flywheel key in common Briggs & Stratton OHV engines that power Craftsman, MTD, Troybilt, Toro, Husqvarna, Poulan, Murray, Weed Eater and Snapper walk-behind lawn mowers.

If your lawn mower is an older model with a flathead engine, see our repair guide How to Replace a Lawn Mower Flywheel Key on a Flathead Engine.

Quick links
Tools required
Nut driver set
Socket wrench set
Wood block
Torque wrench
Flywheel puller
Hammer
Bungee cord
Work gloves
Repair difficulty
Time required
60 minutes or less
Repair difficulty
Time required
60 minutes or less
Replacing a flywheel key on a lawn mower OHV engine

This video explains how to replace the flywheel key on a walk-beind lawn mower with an OHV engine.

Instructions

01.

Disconnect the spark plug wire

Disconnect the spark plug wire from the spark plug.

Disconnect the spark plug.

Disconnect the spark plug.

02.

Remove the blower housing

Release the starter rope from the mower handle.

Remove the screws from the blower housing.

Pull the blower housing off the engine.

Remove the blower housing.

Remove the blower housing.

03.

Remove the flywheel mounting nut and recoil starter cup

Push down the bail control bar and clamp it to the mower handle to keep the flywheel brake disengaged.

Tip the mower on its side with the air filter up. Wedge a block of wood between the mower blade and the housing to keep the crankshaft from turning when you loosen the flywheel nut.

Connect a socket wrench to the flywheel nut and tap the socket wrench handle with a hammer to loosen the flywheel nut.

Remove the flywheel nut and washer and pull off the recoil starter cup.

To protect the crankshaft thread, rethread the flywheel nut on the crankshaft so it's flush with the end of the crankshaft.

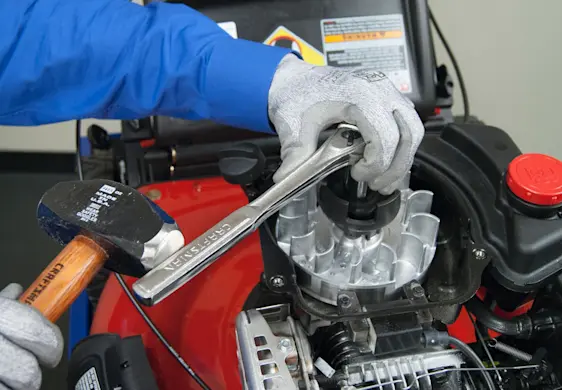

Remove the flywheel nut.

Remove the flywheel nut.

04.

Remove the flywheel key

Position the flywheel puller tool above the crankshaft on the flywheel and thread the puller bolts into the pre-drilled holes on the flywheel.

Hand tighten the top nuts on the flywheel puller shafts.

Loosen the lower nuts on the flywheel puller shafts to allow enough clearance to pull the flywheel up.

Alternately, rotate the top flywheel puller nuts clockwise with a wrench to raise the flywheel evenly until the flywheel breaks free from the crankshaft.

If the flywheel doesn't break loose on its own, tap the top of the flywheel with a mallet to break it free.

After freeing the flywheel, loosen the top nuts on the flywheel puller shafts. Unthread the flywheel puller shafts from the top of the flywheel and remove the flywheel puller tool.

Remove the flywheel nut and pull the flywheel off the crankshaft.

Remove the remnants of the flywheel key from the crankshaft.

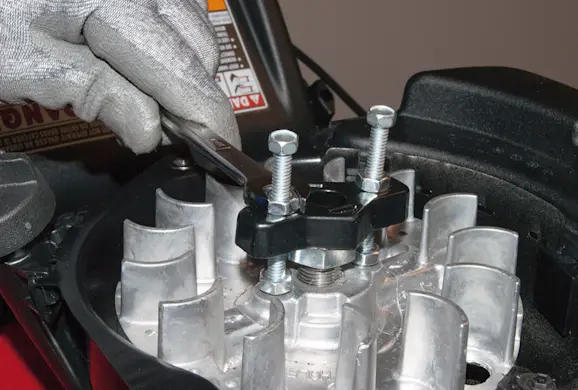

Remove the flywheel from the crankshaft.

Remove the flywheel from the crankshaft.

05.

Install the new flywheel key

Push the flywheel onto the crankshaft and line up the notch in the flywheel with the slot in the crankshaft.

Push the new flywheel key into the crankshaft slot and tap it down flush with the top of the flywheel.

Reinstall the recoil starter cup and flywheel washer on the crankshaft.

Thread the flywheel nut onto the crankshaft and hand tighten the flywheel nut.

Reposition the block of wood against the cutting blade under the mower deck so the crankshaft doesn’t turn when you tighten the flywheel nut.

Use a torque wrench to tighten the flywheel nut to 55 ft-lbs.

Remove the wood block from the cutting blade.

Remove the clamp from the bail control bar.

Install the new flywheel key into the crankshaft slot.

Install the new flywheel key into the crankshaft slot.

06.

Reinstall the blower housing

Position the blower housing on the top of the engine and line up the mounting holes.

Reinstall the blower housing mounting screws.

Reconnect the starter rope to the mower handle.

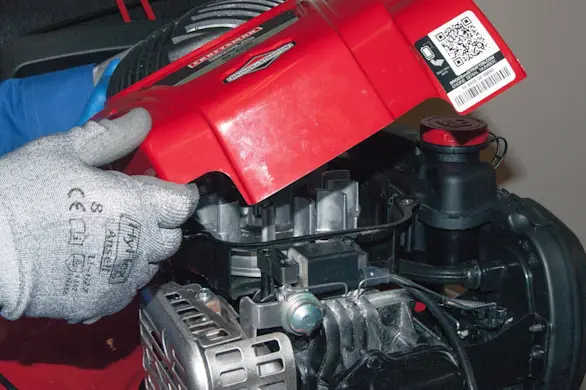

Reinstall the blower housing.

Reinstall the blower housing.

07.

Reconnect the spark plug wire

Connect the spark plug wire to the spark plug.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Don’t proceed until you’re confident that you understand all the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
