Room Air Conditioner

Model # ACPE102PS2 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACPE102PS2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Window 8215156
#32

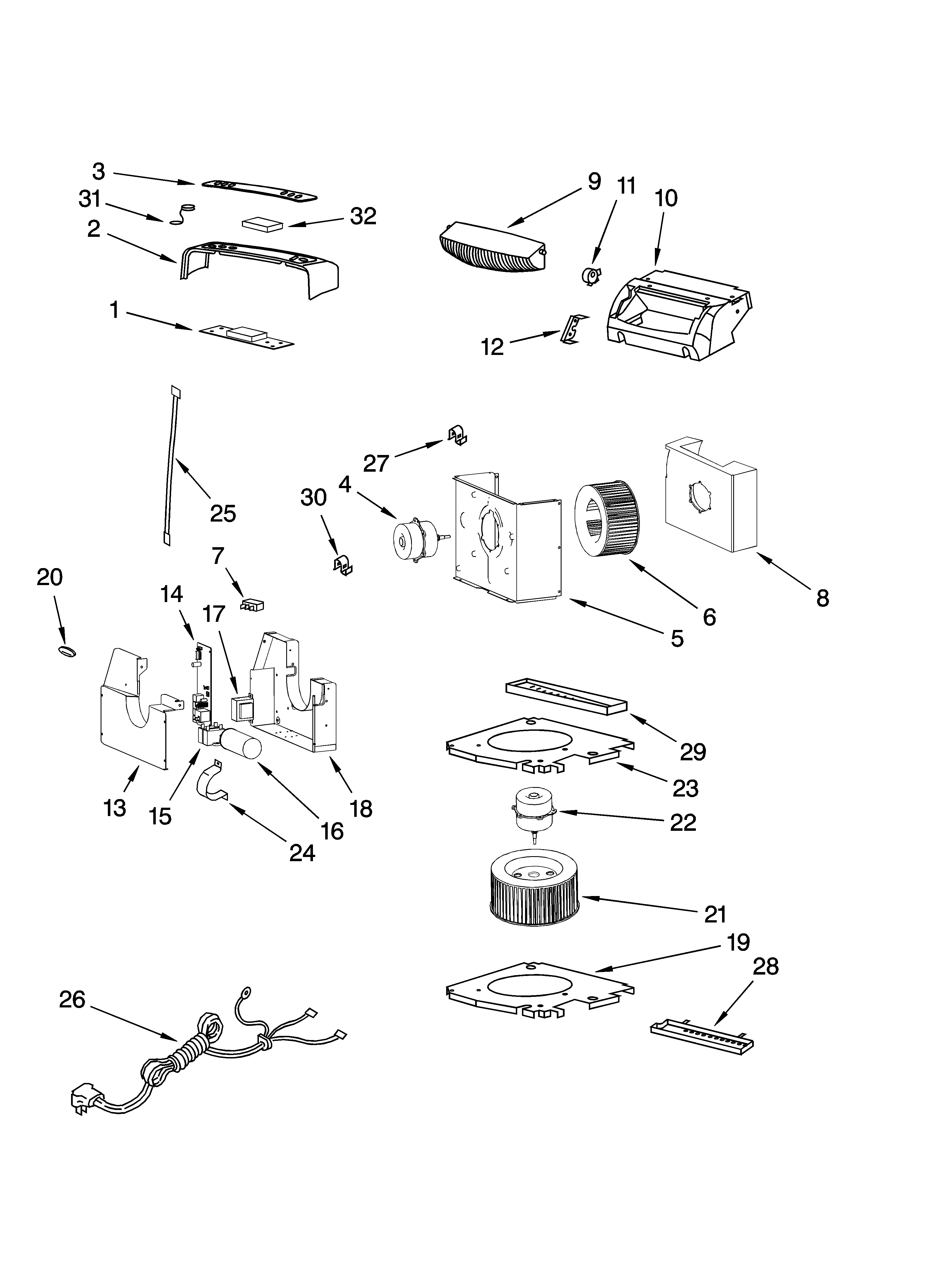

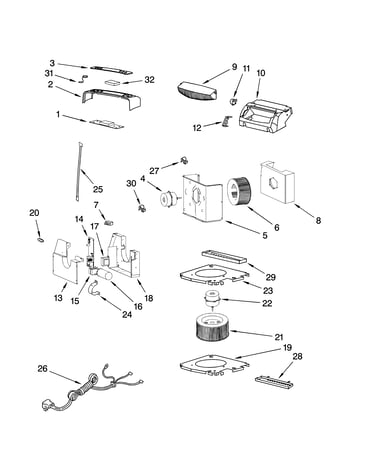

Air flow and control parts diagram

Window

Part #8215156

$61.36
In Stock
Rear Panel 8215212
#4

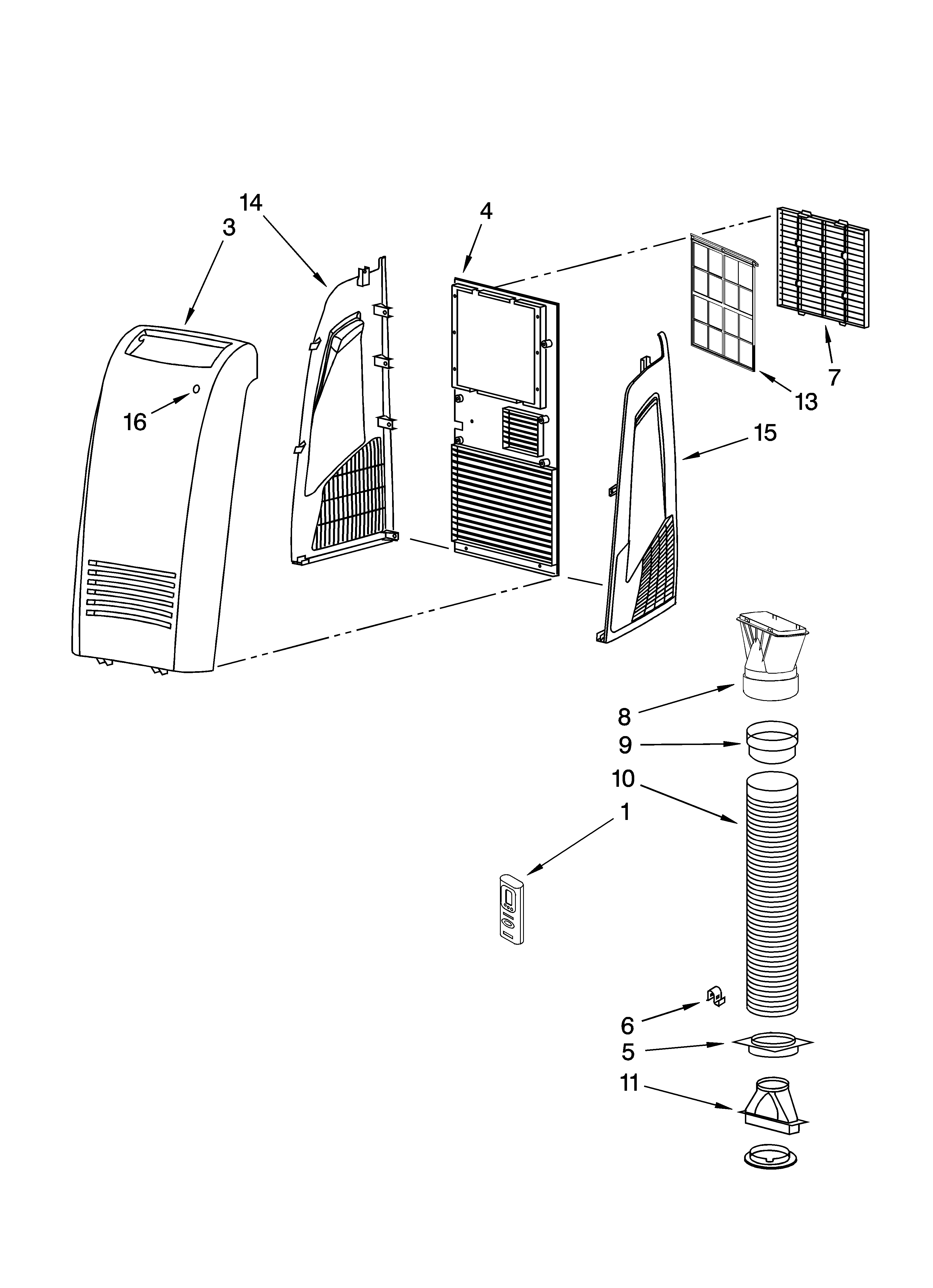

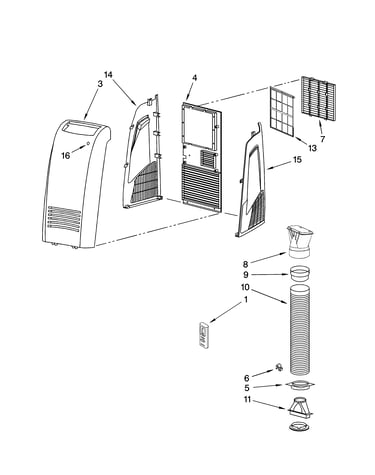

Cabinet parts diagram

Rear panel

Part #8215212

$94.47
In Stock
Base 8215203
#25

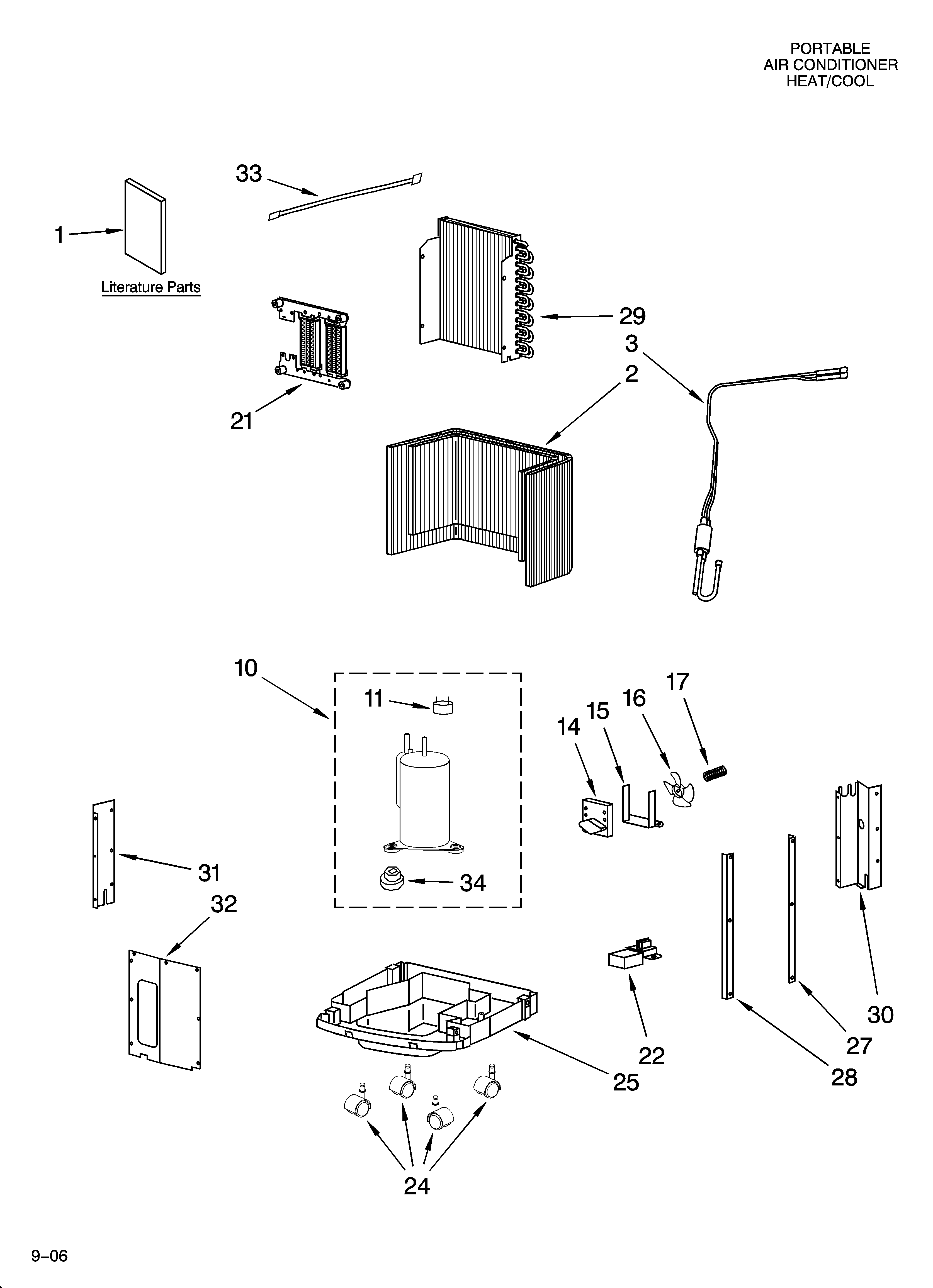

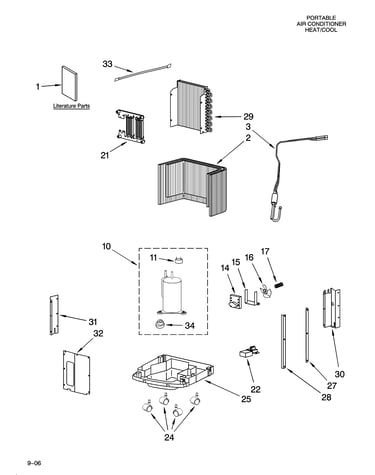

Unit parts diagram

Base

Part #8215203

$161.67
In Stock
Grille 8215224
#7

Cabinet parts diagram

Grille

Part #8215224

$101.60
In Stock
Grille 8215179
#9

Air flow and control parts diagram

Grille

Part #8215179

$80.04
In Stock
Base 8215170
#10

Air flow and control parts diagram

Base

Part #8215170

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 8215173
#6

Air flow and control parts diagram

Air conditioner blower wheel

Part #8215173

The manufacturer no longer makes this part, and there's no substitute part

Compressor 8215197
#10

Unit parts diagram

Compressor

Part #8215197

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 8215214
#22

Air flow and control parts diagram

Fan motor

Part #8215214

The manufacturer no longer makes this part, and there's no substitute part

Panel 8215190
#3

Cabinet parts diagram

Panel

Part #8215190

The manufacturer no longer makes this part, and there's no substitute part
