Kenmore
Countertop Microwave

Model #5658972180 Kenmore microwave

Here are the diagrams and repair parts for Kenmore 5658972180 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 198 parts

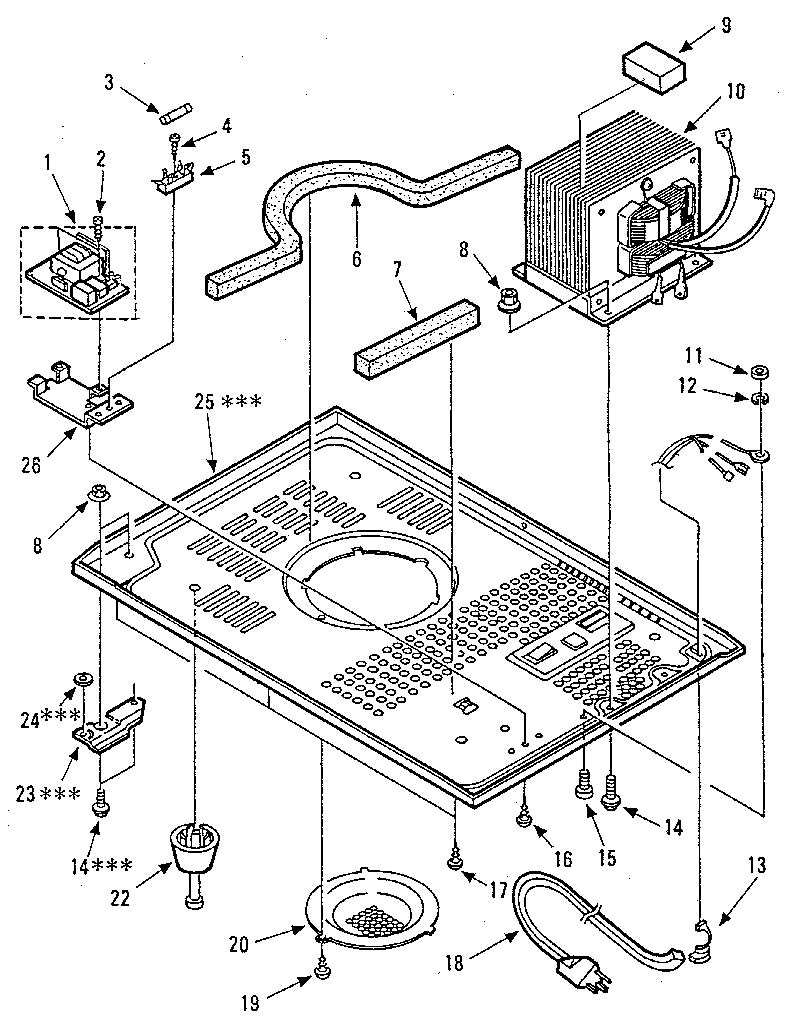

Microwave Fuse, 15-amp

#3

Microwave Diagram

Microwave fuse, 15-amp

Part #11255
This item is not returnable
$4.33

In Stock

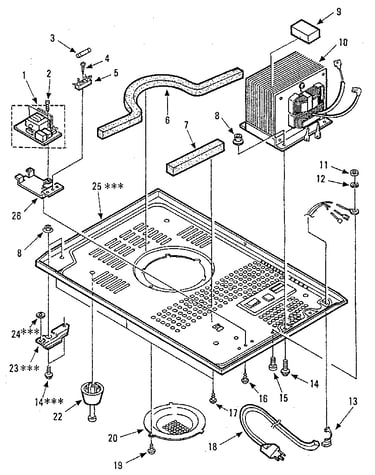

Microwave Fuse Holder

#5

Microwave Diagram

$8.49

In Stock

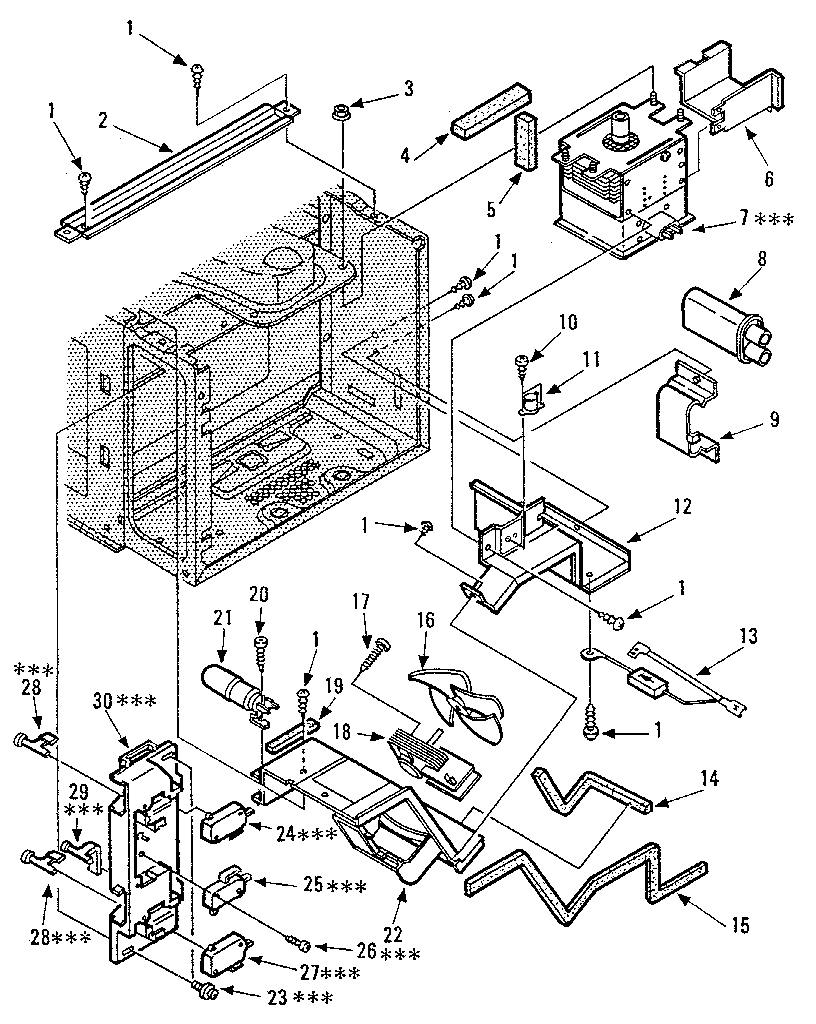

Microwave Magnetron Thermostat

#11

Switches and microwave Diagram

Microwave magnetron thermostat

Part #14531

The manufacturer no longer makes this part, and there's no substitute part

Micro-Switch

#27

Switches and microwave Diagram

Micro-switch

Part #15336

The manufacturer no longer makes this part, and there's no substitute part

Micro-Switch

#24

Switches and microwave Diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Diode

#4I

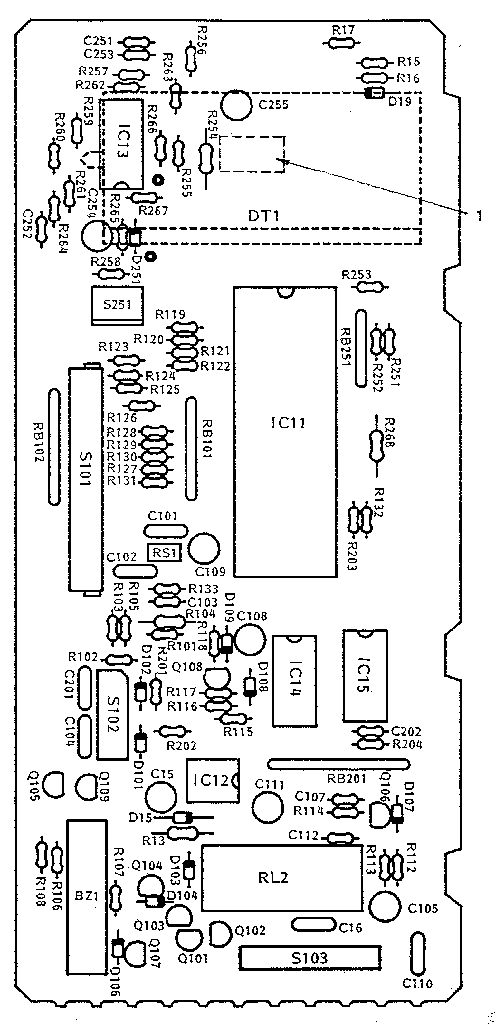

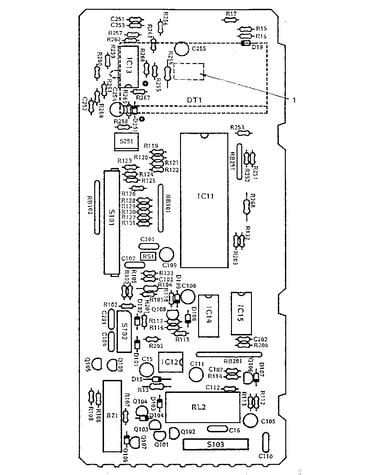

Control circuit board Diagram

Diode

Part #13512

The manufacturer no longer makes this part, and there's no substitute part

Resistor

#6AB

Control circuit board Diagram

Resistor

Part #12135

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw

#2

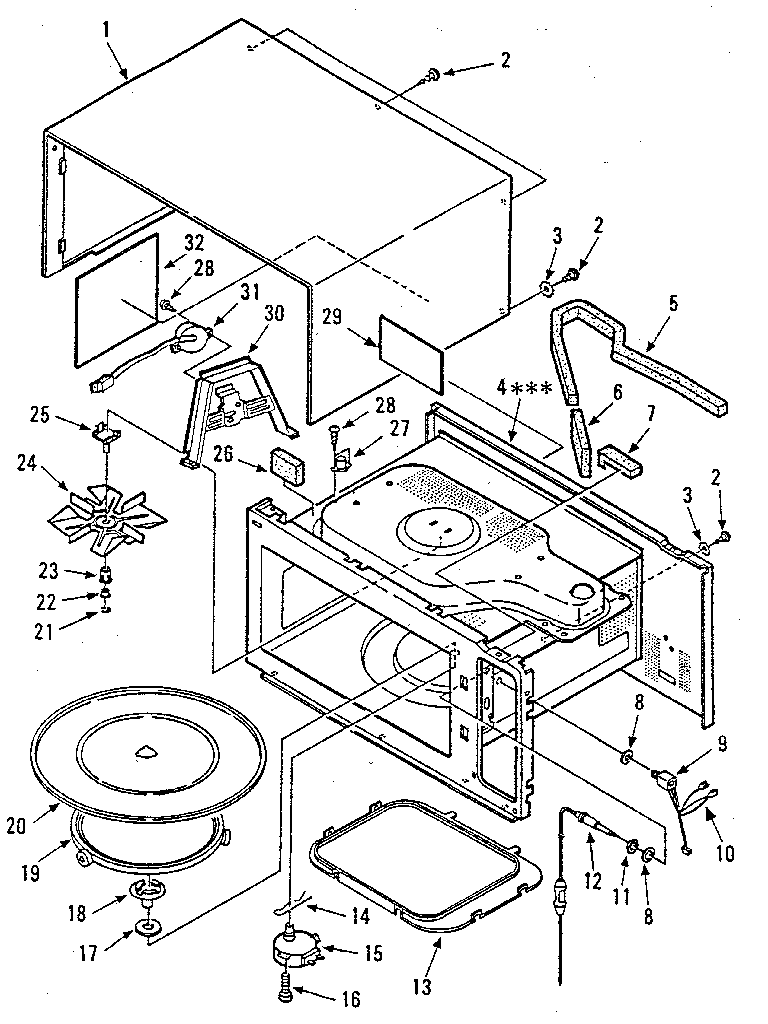

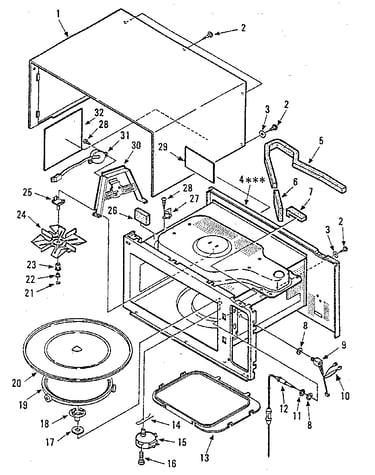

Cabinet Diagram

Hex head screw

Part #10434

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#5D

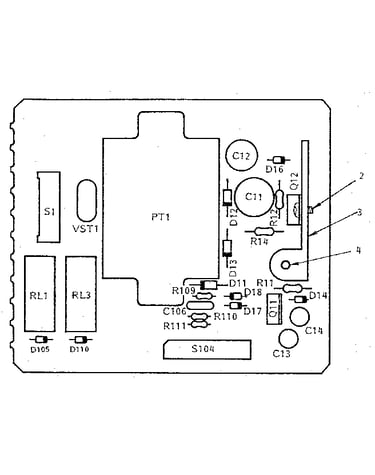

Power circuit board Diagram

Capacitor

Part #15114

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#5I

Control circuit board Diagram

Capacitor

Part #15117

The manufacturer no longer makes this part, and there's no substitute part
