Model # PFSS0MFZESS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE PFSS0MFZESS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

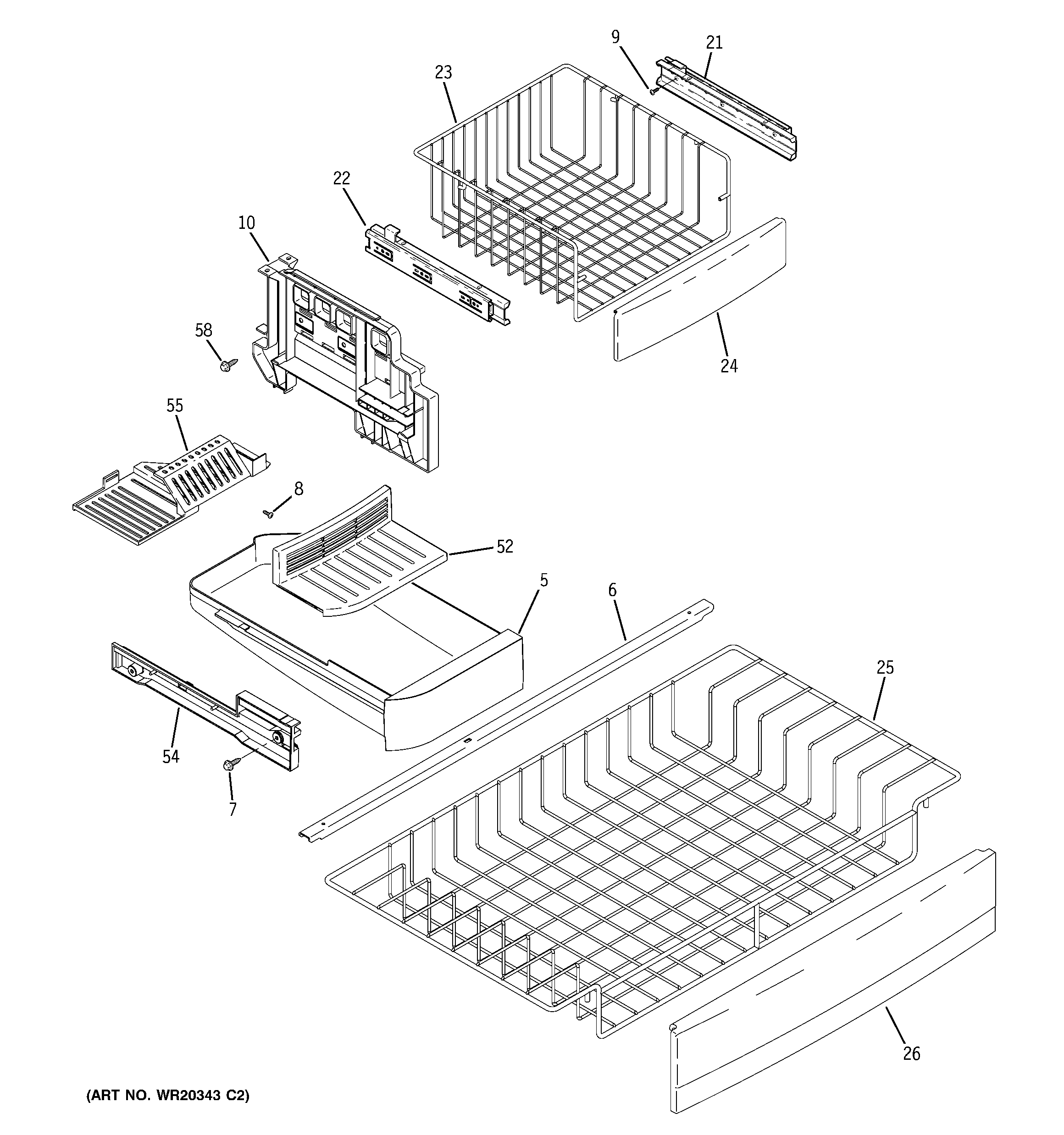

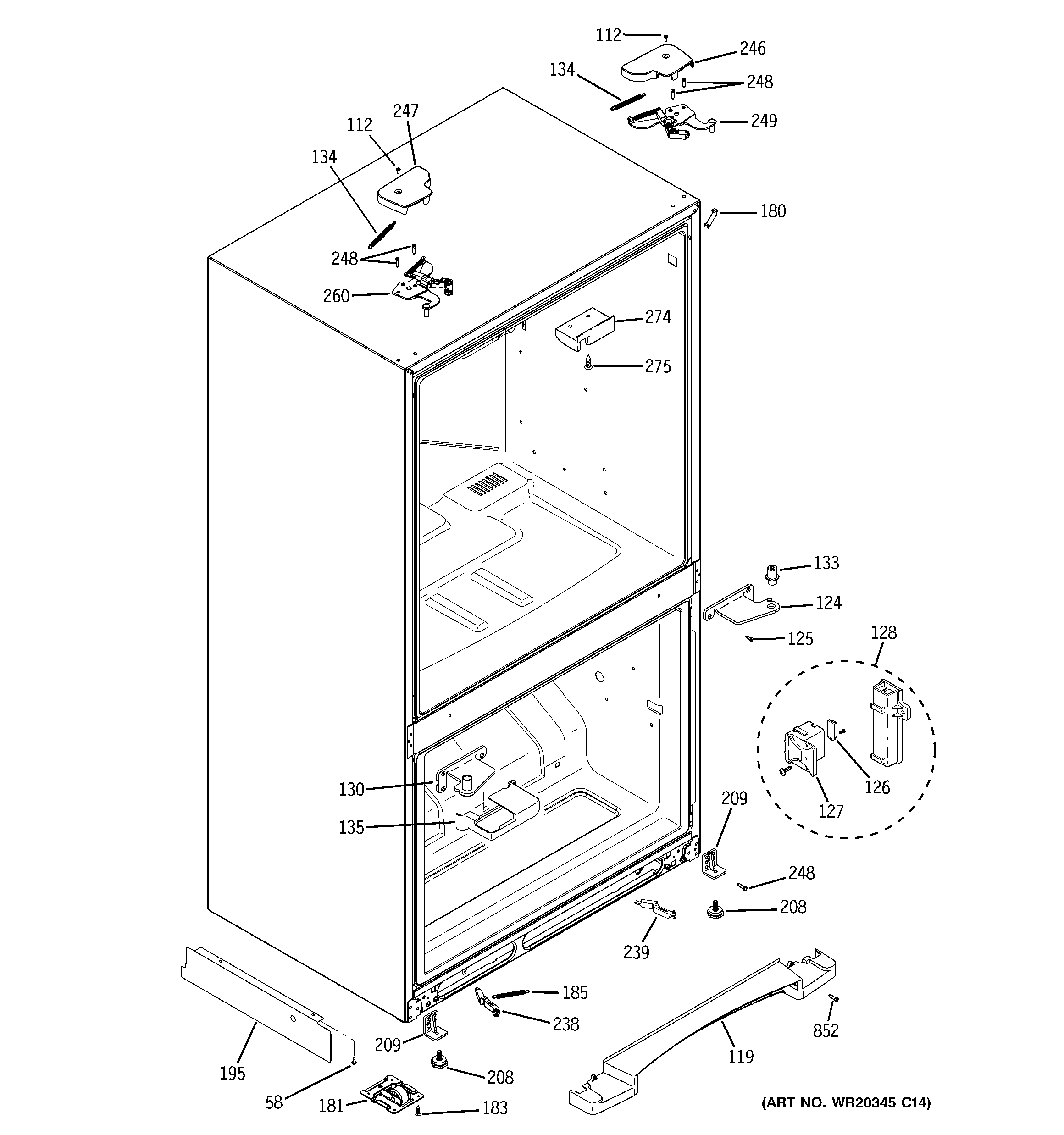

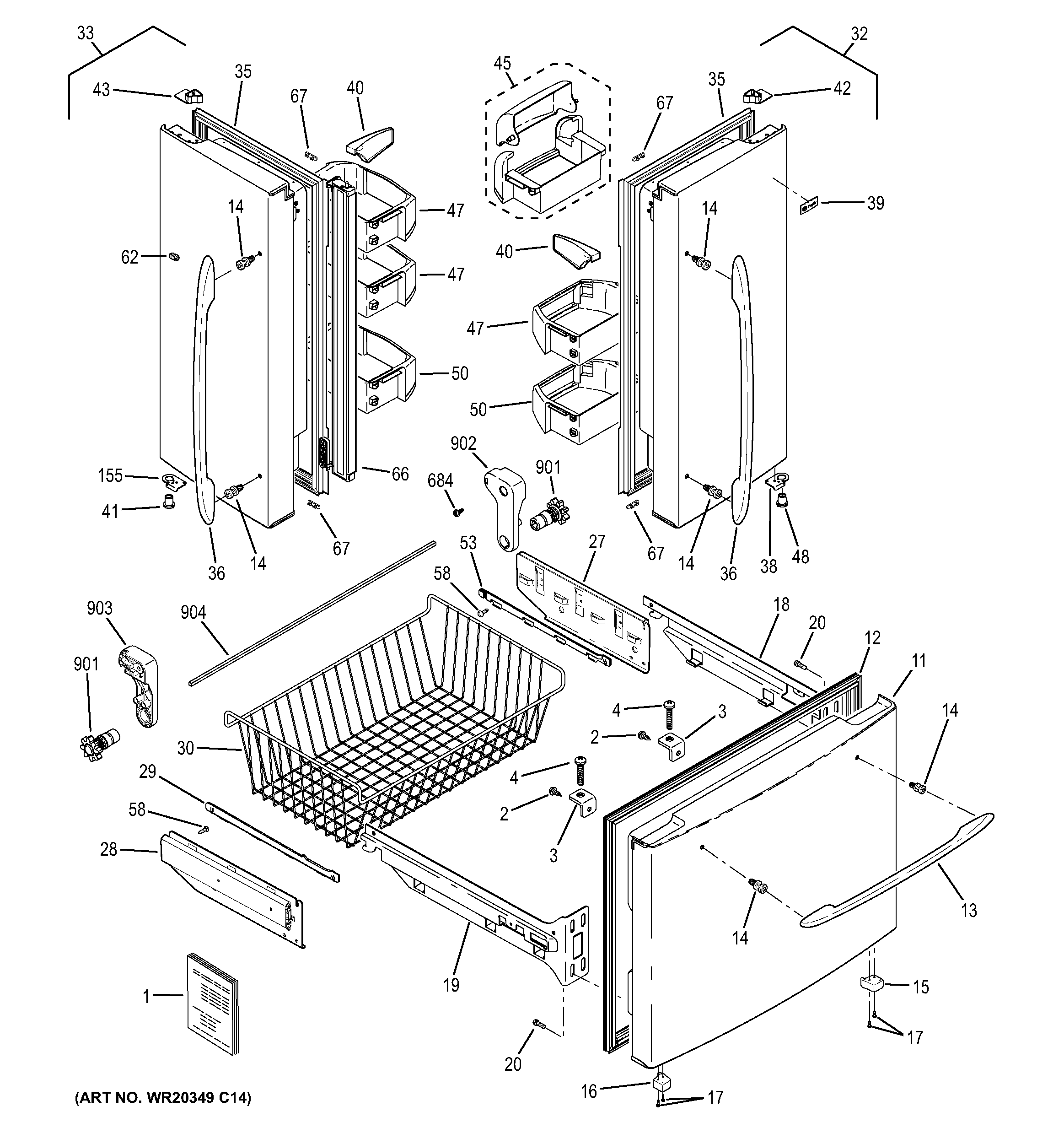

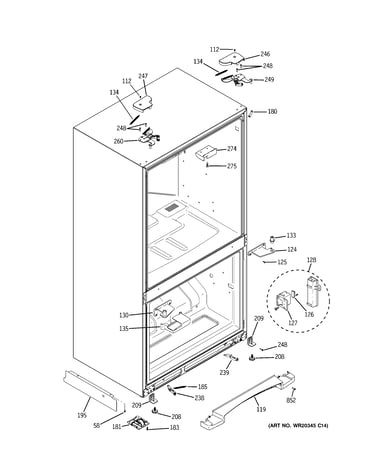

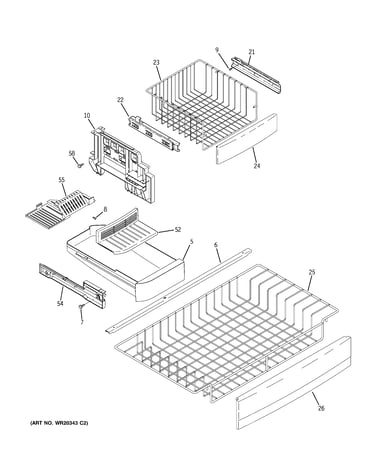

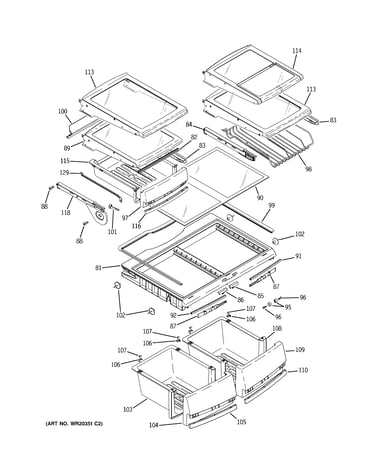

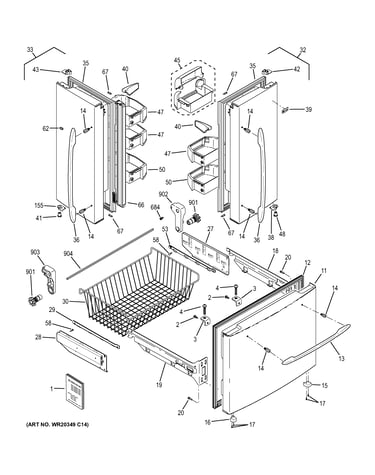

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Refrigerator Temperature Sensor WR55X10026
#268

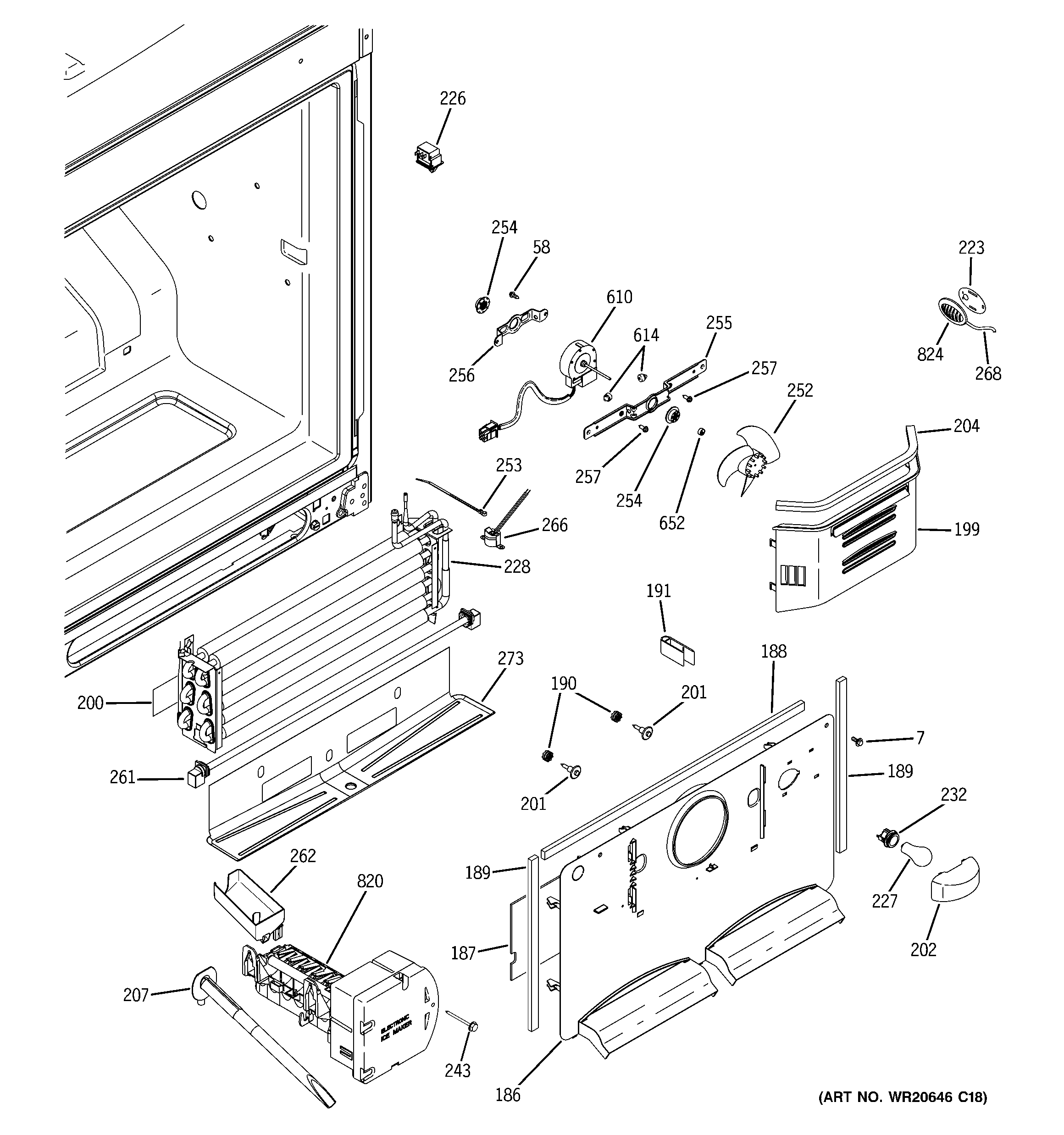

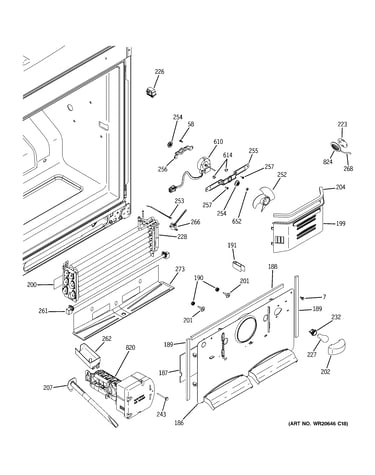

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10026

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10026. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10028
#267

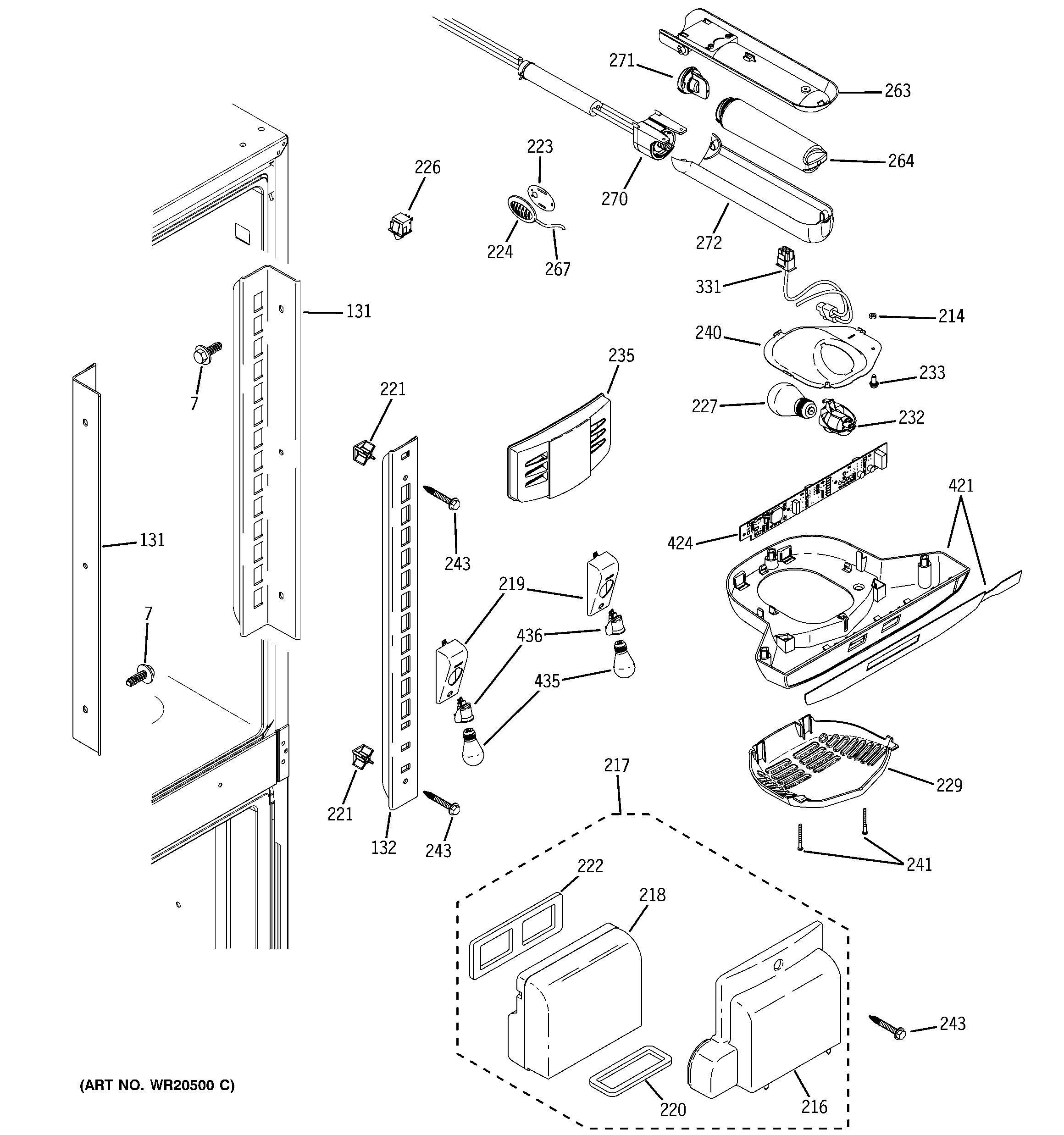

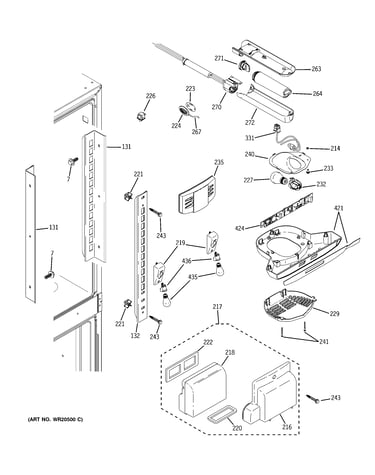

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Mech Ice Mak WR30X10139
#820

Freezer section diagram

Mech ice mak

Part #WR30X10139

The manufacturer no longer makes this part, and there's no substitute part

Dryer Filter WR86X0096
#740

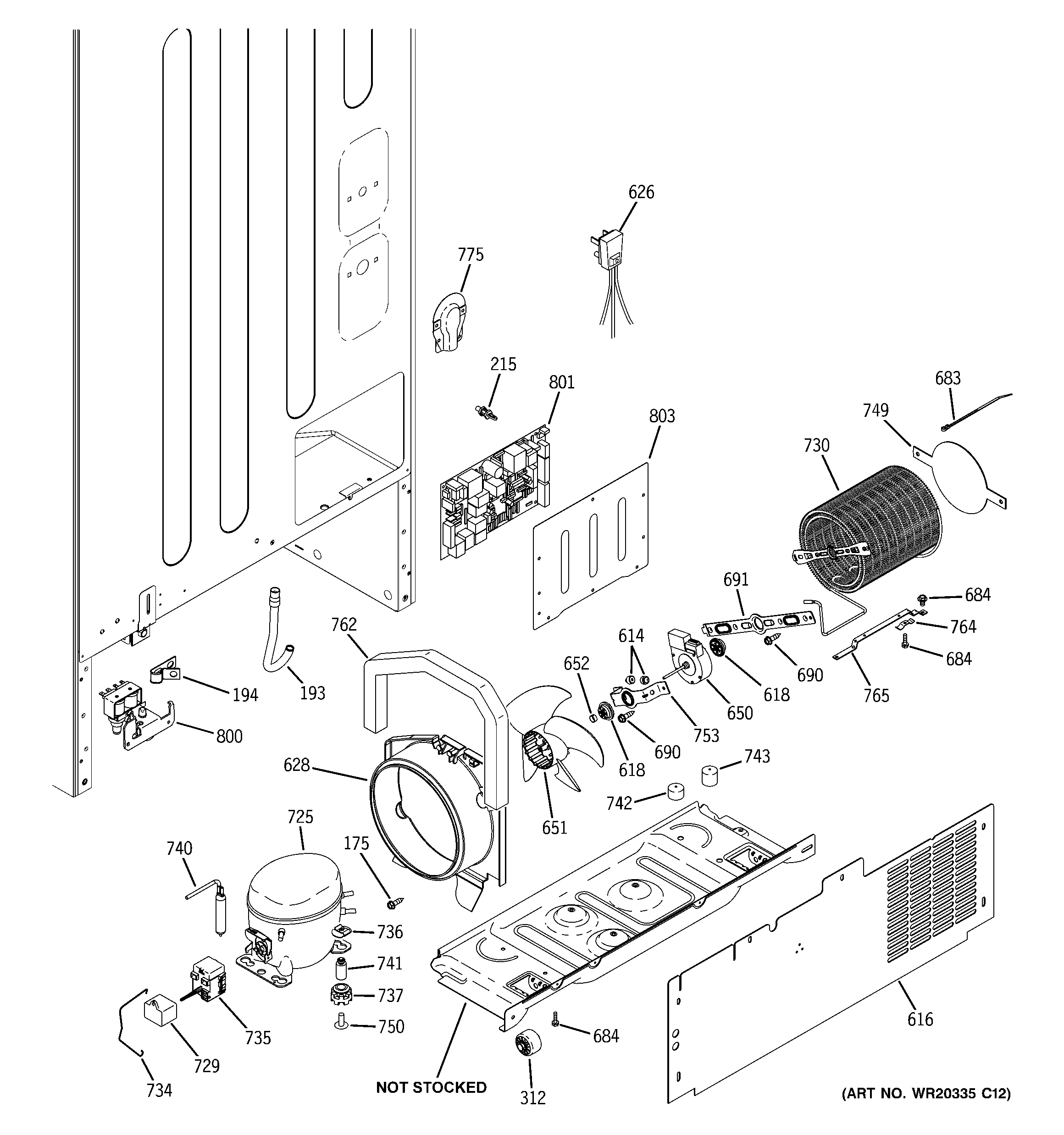

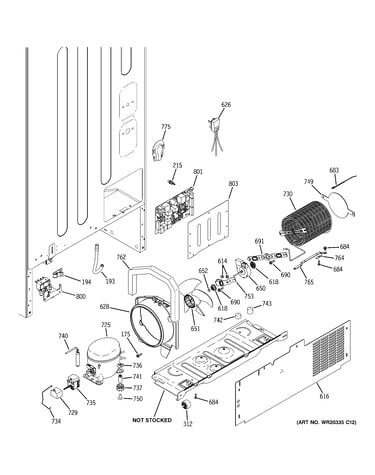

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Lamp WR02X12327
#435

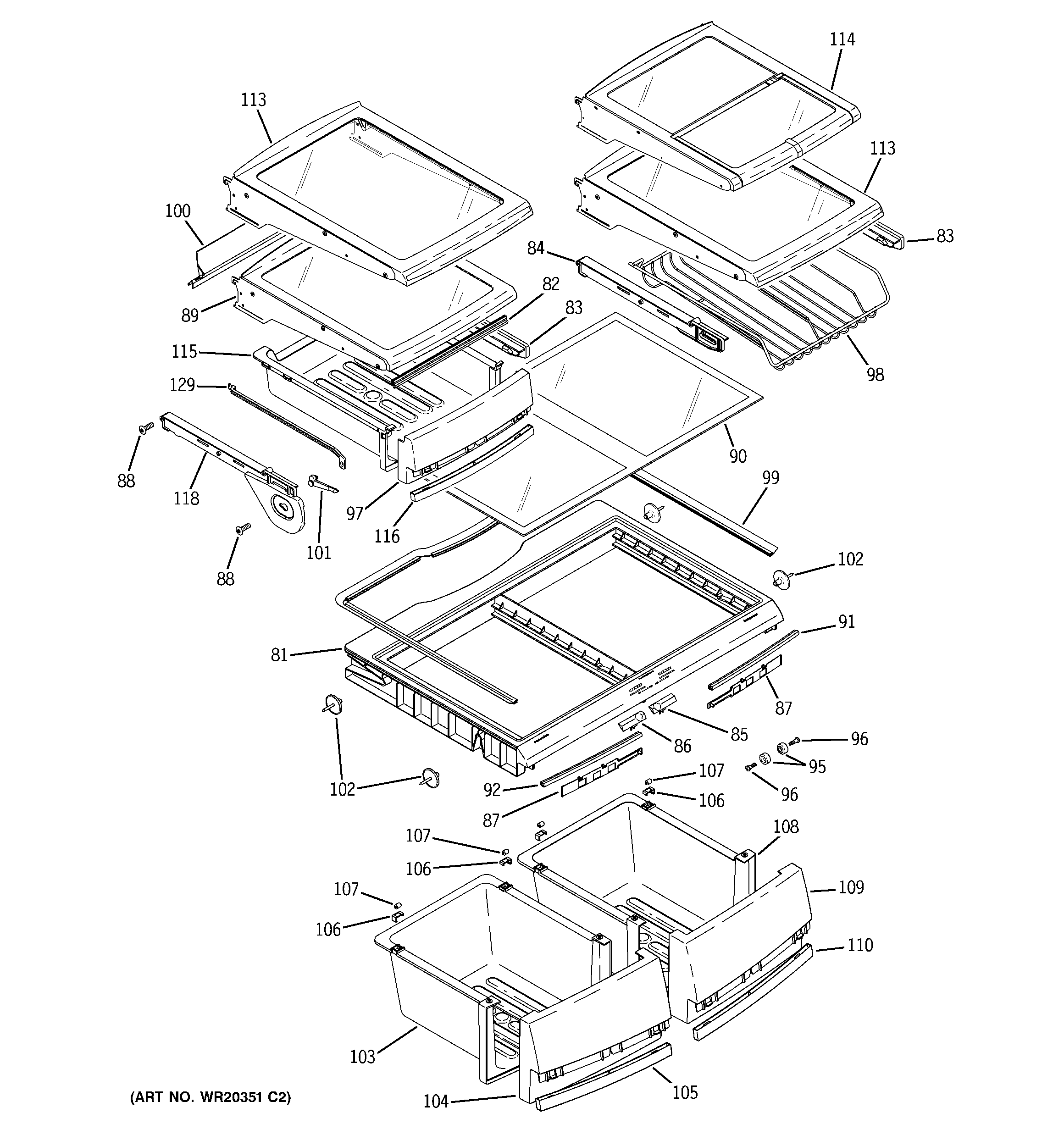

Fresh food section diagram

Refrigerator lamp

Part #WR02X12327

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12327. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Lamp WR02X12328
Refrigerator lamp

Part #WR02X12328

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12328. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#252

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Ge Smartwater Refrigerator Water Filter (replaces Wr17x11608) GSWF
#264

Fresh food section diagram

Ge smartwater refrigerator water filter (replaces wr17x11608)

Part #GSWF

BEST SELLER

Get free shipping with Automatic Reorder

$49.98
In Stock
Refrigerator Defrost Heater WR51X10038
#261

Freezer section diagram

Refrigerator defrost heater

Part #WR51X10038

BEST SELLER
$59.94 |
9% OFF Phone Price : $65.94
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Wr57x10048) WR57X10086
#800

Machine compartment diagram

Refrigerator water inlet valve assembly (replaces wr57x10048)

Part #WR57X10086

$59.67 |
9% OFF Phone Price : $65.67
In Stock
