Kenmore
Countertop Microwave

Model # 72162212200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162212200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

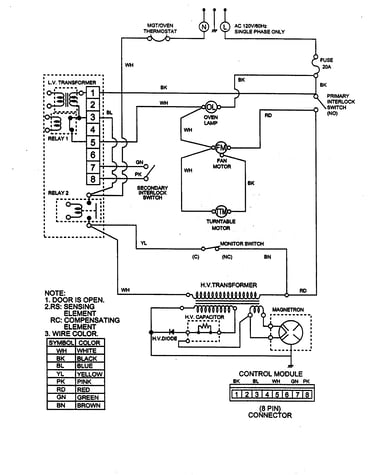

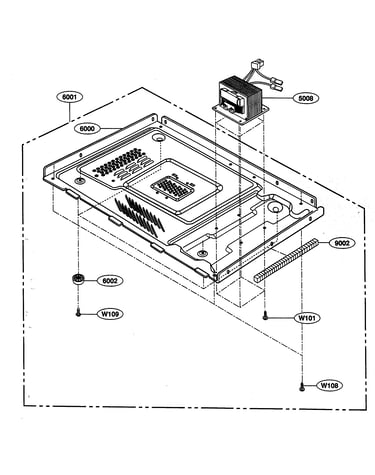

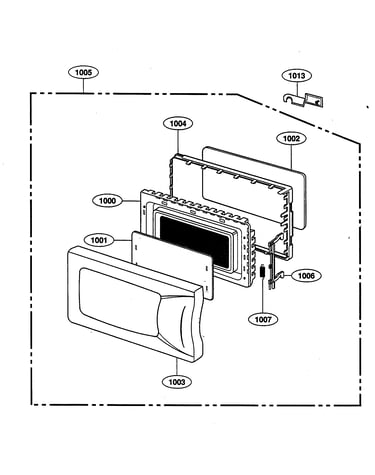

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Magnetron 6324W1A001B
#5009

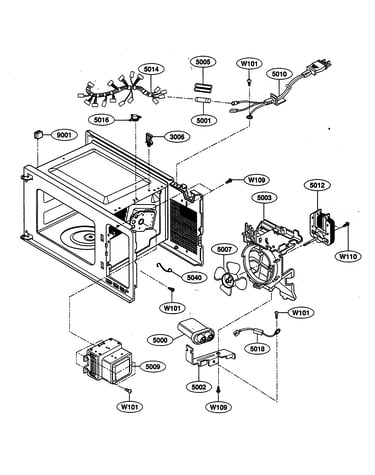

Interior parts diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Diode 6021W3B001N
#5018

Interior parts diagram

Microwave high-voltage diode

Part #6021W3B001N

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001N. Substitute parts can look different from the original.
BEST SELLER
$8.73
10% OFF Phone Price : $9.73
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#5001

Interior parts diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62
12% OFF Phone Price : $8.62
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

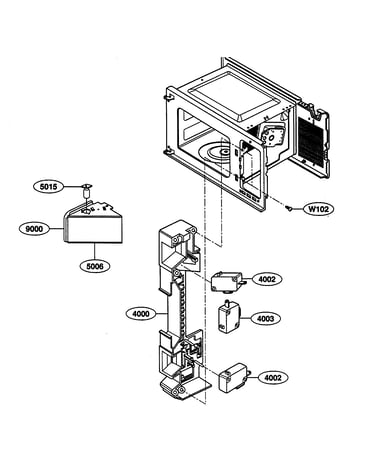

Latch parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Lever (replaces 4510w3l002a) 4510W3L003A
#2003

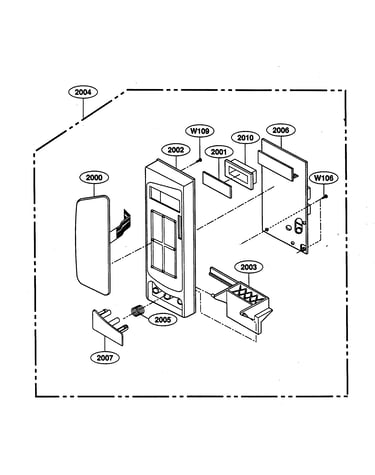

Controller parts diagram

Microwave door latch lever (replaces 4510w3l002a)

Part #4510W3L003A

This item is not returnable
In Stock
Us Pressed Steel Microwave Screw 1TTG0402422
Us pressed steel microwave screw

Part #1TTG0402422

This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Screw 1TTL0402418
#W108

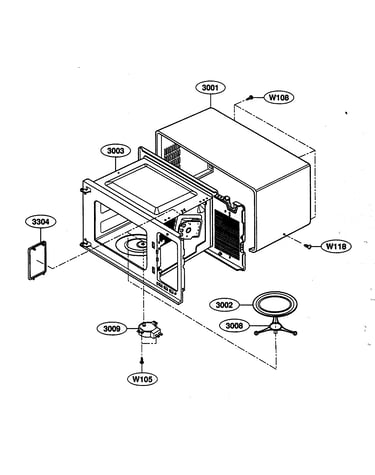

Oven cavity diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Microwave Waveguide Cover 3052W2A021A
#3304

Oven cavity diagram

Microwave waveguide cover

Part #3052W2A021A

Replaced by #3052W1M006A

?
Manufacturer substitution
This part replaces 3052W2A021A. Substitute parts can look different from the original.
In Stock
Microwave Thermostat 6930WRT002F
#5016

Interior parts diagram

Microwave thermostat

Part #6930WRT002F

Replaced by #6930W1A003A

?
Manufacturer substitution
This part replaces 6930WRT002F. Substitute parts can look different from the original.
This item is not returnable
$10.03
17% OFF Phone Price : $12.03
In Stock
Cushion 3B72244C
#9001

Interior parts diagram

Cushion

Part #3B72244C

In Stock
