Model # 119214000 Official Craftsman band saw

Here are the diagrams and repair parts for Official Craftsman 119214000 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 132 parts |

#42

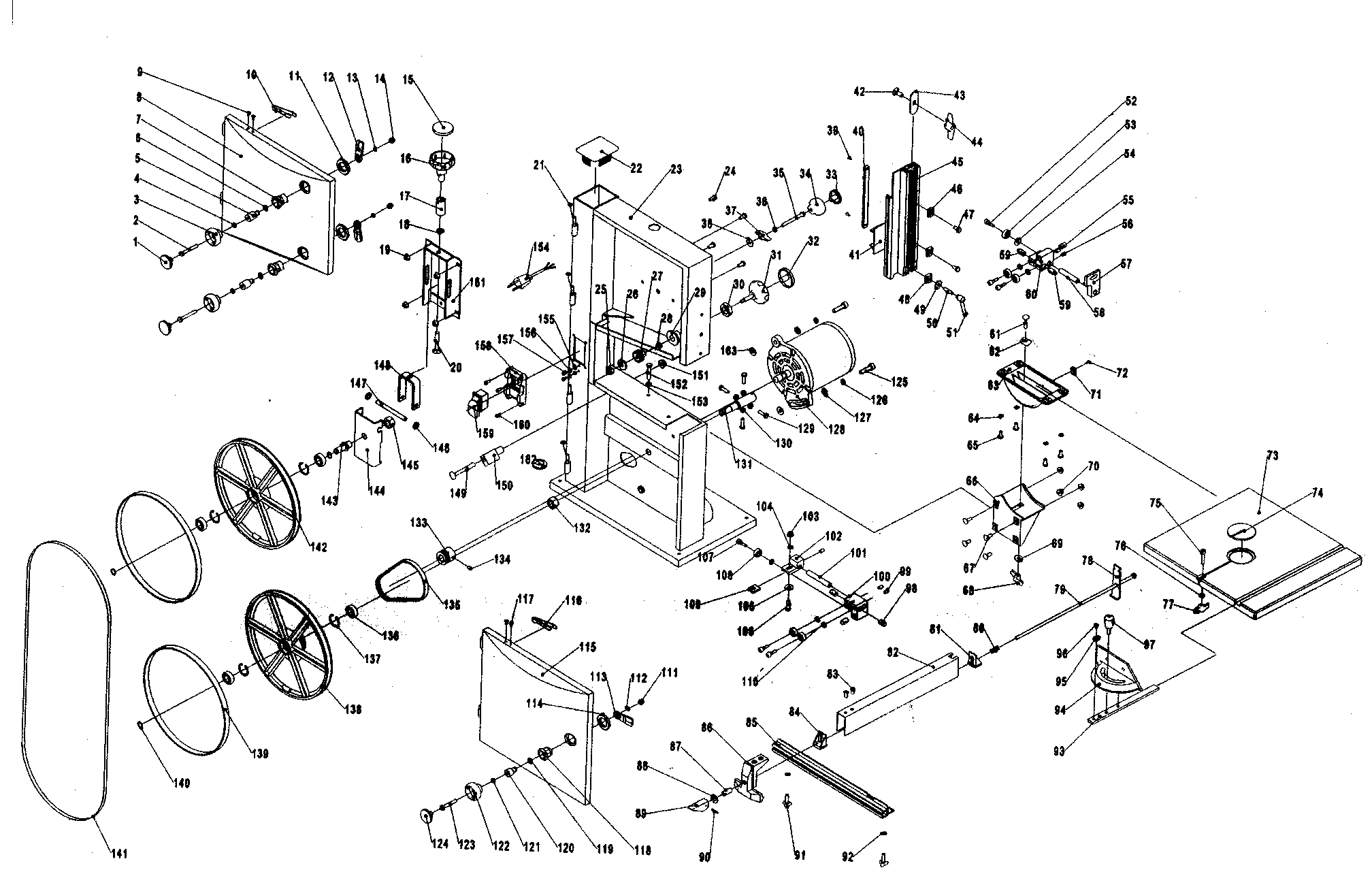

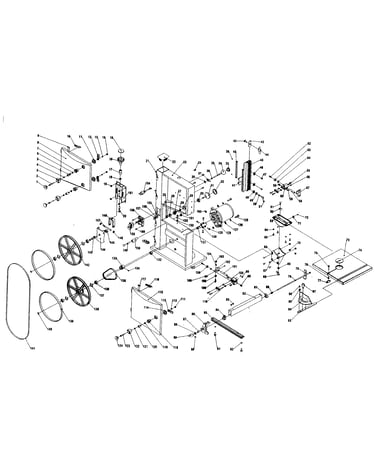

Saw diagram

Bolt, m8 x 20

Part #1-M8X20GB14Z

The manufacturer no longer makes this part, and there's no substitute part

Saw diagram

Slotted insert

Part #1-JL20010010F

The manufacturer no longer makes this part, and there's no substitute part

Band saw miter gauge indicator

Part #1-1506003-01016S

The manufacturer no longer makes this part, and there's no substitute part

#83

Saw diagram

Screw

Part #1-M6X10GB819Z

The manufacturer no longer makes this part, and there's no substitute part

Flange nut

Part #1-M6GB6177Z

The manufacturer no longer makes this part, and there's no substitute part

Wing nut

Part #1-JL22020002-001S

The manufacturer no longer makes this part, and there's no substitute part

#151

Saw diagram

Flange nut, m8

Part #1-M8GB6177B

The manufacturer no longer makes this part, and there's no substitute part

#85

Saw diagram

Band saw guide rail

Part #1-JL22033001B

The manufacturer no longer makes this part, and there's no substitute part

#115

Saw diagram

Lower door

Part #1-JL22013000A001Z

The manufacturer no longer makes this part, and there's no substitute part

#102

Saw diagram

Mount

Part #1-JL22043003

The manufacturer no longer makes this part, and there's no substitute part
