Amana
Wall Oven/Microwave Combo

Model # 896.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana 896A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 221 parts  |
Fan Motor M12D76
#3A

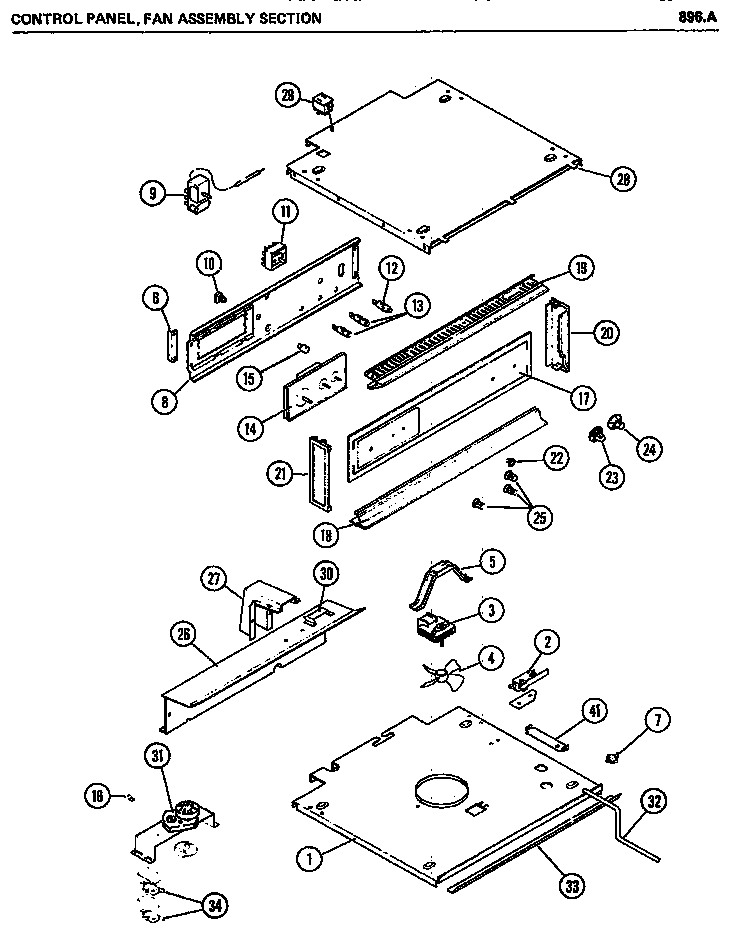

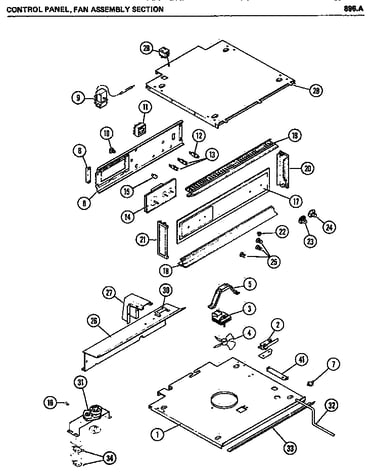

Control panel diagram

Fan motor

Part #M12D76

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Lens M7D790
#5

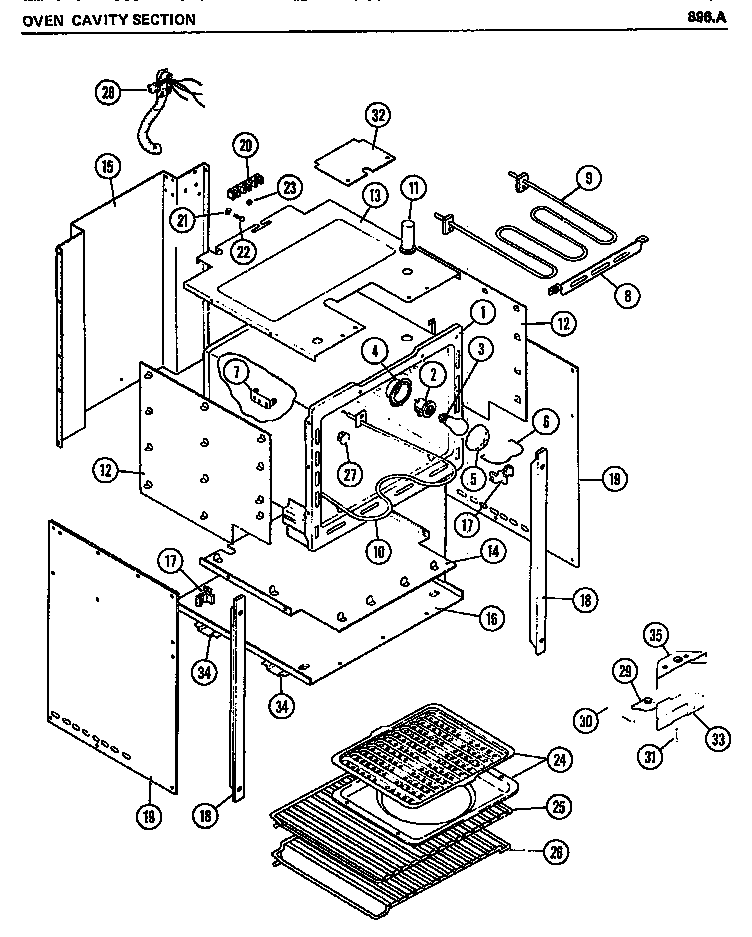

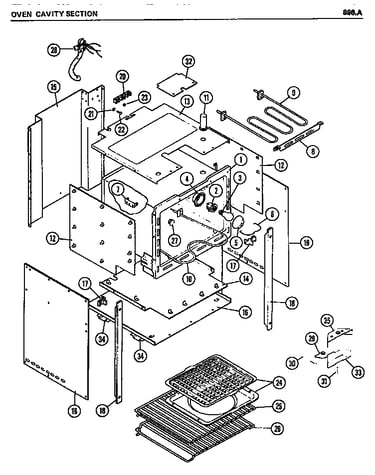

Oven cavity section diagram

Oven light lens

Part #M7D790

The manufacturer no longer makes this part, and there's no substitute part

Broil Element (240 V.) M61D47
#9A

Oven cavity section diagram

Broil element (240 v.)

Part #M61D47

The manufacturer no longer makes this part, and there's no substitute part

Puchnut, Linkage Mounting M1D781
Puchnut, linkage mounting

Part #M1D781

The manufacturer no longer makes this part, and there's no substitute part

Nut, Bracket Mounting M1D763
Nut, bracket mounting

Part #M1D763

The manufacturer no longer makes this part, and there's no substitute part

Rod, Door Interlock Switch M8D171
#32A

Control panel diagram

Rod, door interlock switch

Part #M8D171

The manufacturer no longer makes this part, and there's no substitute part

Bearing M2D664
#8B

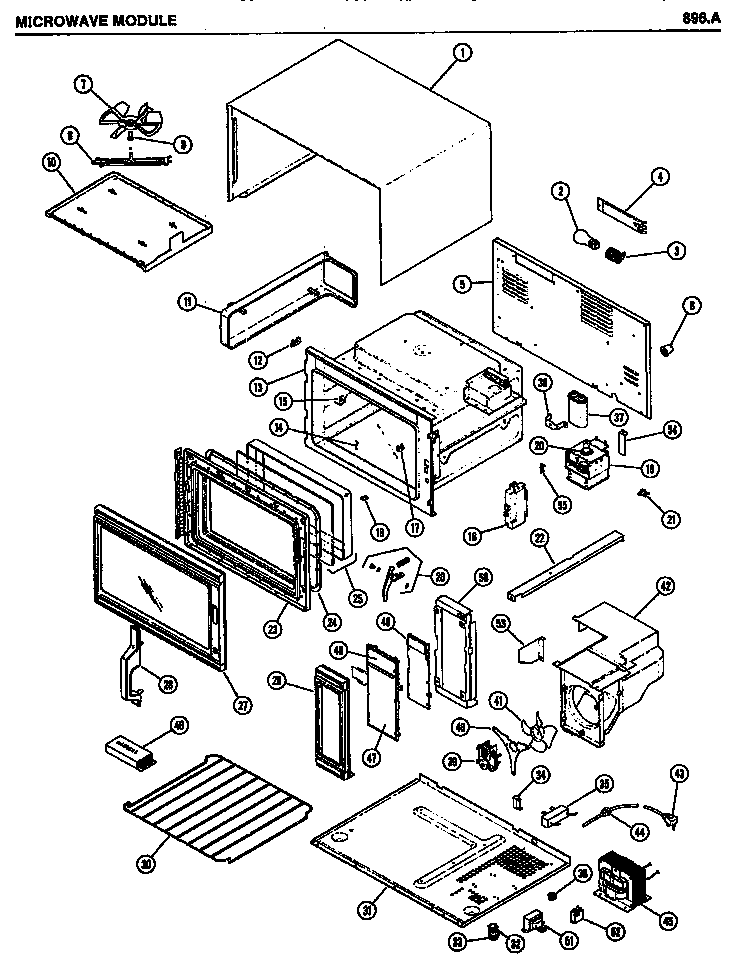

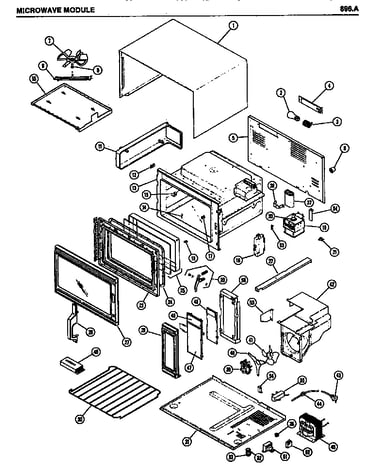

Microwave module diagram

Bearing

Part #M2D664

The manufacturer no longer makes this part, and there's no substitute part

Rear Duct - Cavity Exhaust M65D288
#3

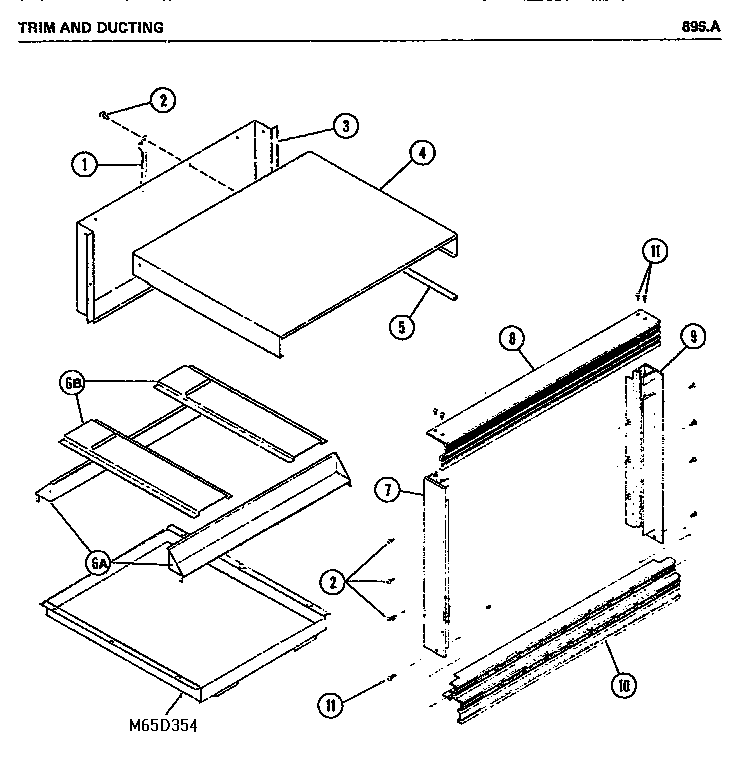

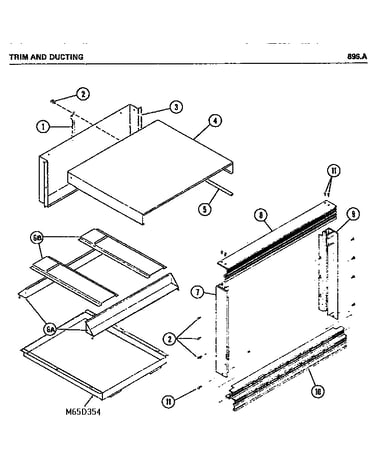

Trim and ducting diagram

Rear duct - cavity exhaust

Part #M65D288

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Frame M75D117
#1A

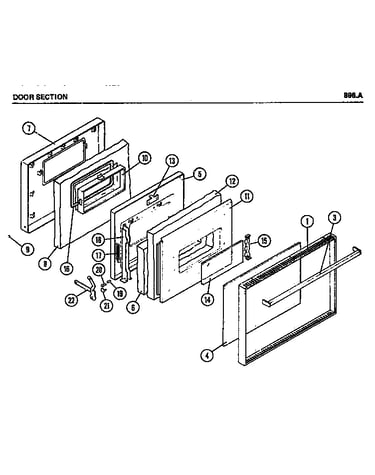

Door section diagram

Oven door frame

Part #M75D117

The manufacturer no longer makes this part, and there's no substitute part

Screw, Protector Mounting M1D719
#7B

Control panel diagram

Screw, protector mounting

Part #M1D719

The manufacturer no longer makes this part, and there's no substitute part
