CONFIRM THE PART FITS
Dishwasher Door Hinge Arm Set (replaces 154691101, 154691201, 5304471888) 5304513274
Part #5304513274
Part Information
This door hinge arm set (part number 5304513274) is for dishwashers.

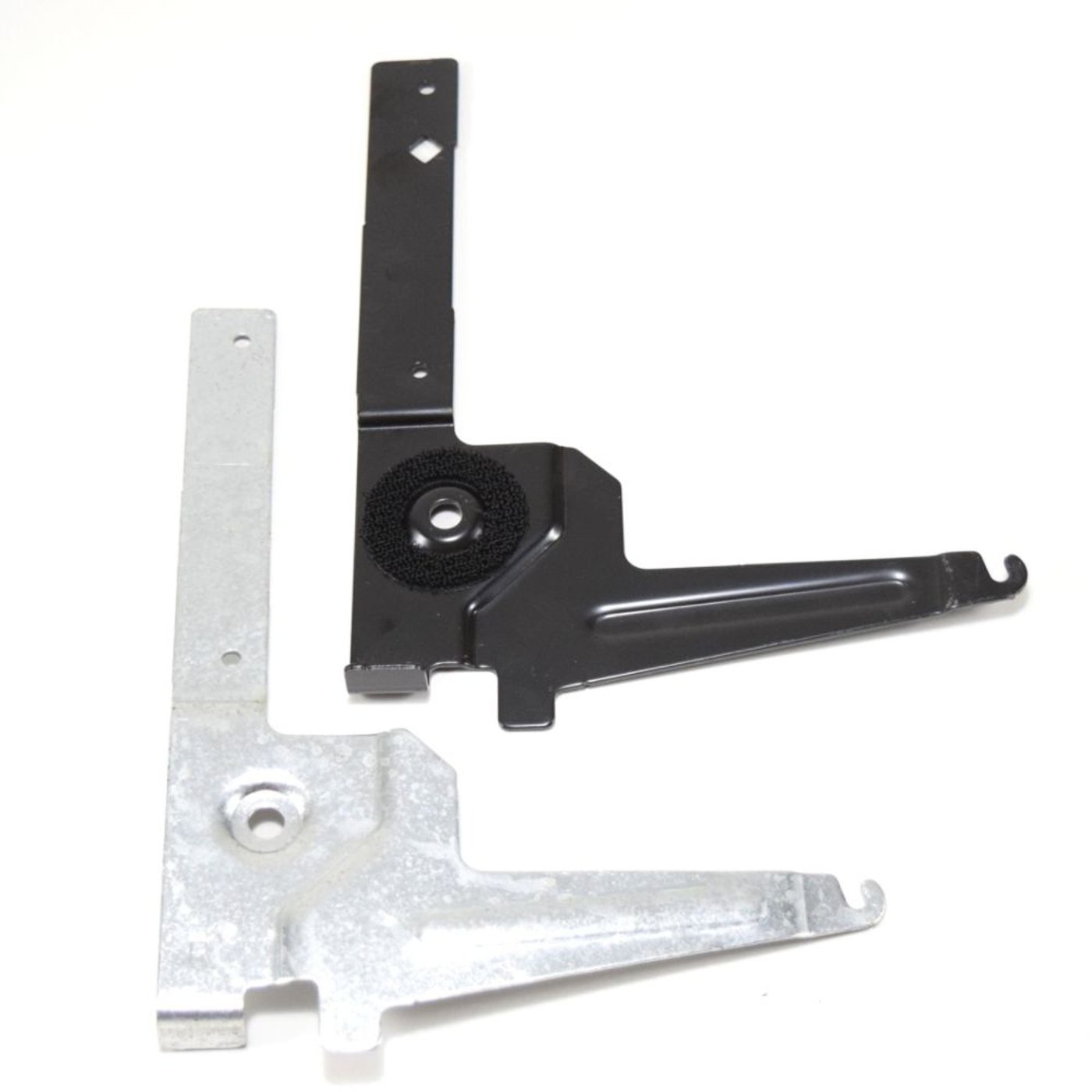

Door hinge arm set 5304513274 is on the bottom of the dishwasher door. It connects to the door hinge bracket on the dishwasher frame to allow the dishwasher door to open. The set includes the left and right hinge arms.
Unplug the dishwasher and shut off the water supply before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $31.02 |26% OFF MSRP : $42.00
- $22.58 |18% OFF Phone Price : $27.58
- $3.66
- $31.09 |14% OFF Phone Price : $36.09
- $25.89 |16% OFF Phone Price : $30.89
- $36.05 |12% OFF Phone Price : $41.05
- $6.29
- $33.86 |13% OFF Phone Price : $38.86
- $5.20 |16% OFF Phone Price : $6.20
- $63.76 |7% OFF Phone Price : $68.76
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #FDB510LCB6 Frigidaire dishwasher | FDB510LCB6 | Door |
Model #FDB510LCS6 Frigidaire dishwasher | FDB510LCS6 | Door |
Model #58715393100A Kenmore dishwasher | 58715393100A | Door |
Model #PLD4375RFC0 Frigidaire dishwasher | PLD4375RFC0 | Door |
Model #FGHD2471KW0 Frigidaire dishwasher | FGHD2471KW0 | Door |
Model #FDBB4365FB2 Frigidaire dishwasher | FDBB4365FB2 | Door |
Model #PLD4555RFC2 Frigidaire dishwasher | PLD4555RFC2 | Door |
Model #GLD4355RFS3 Frigidaire dishwasher | GLD4355RFS3 | Door |
Model #FDB4315LFC1 Frigidaire dishwasher | FDB4315LFC1 | Door |
Model #58715202803A Kenmore dishwasher | 58715202803A | Door |
Reviews
Missing Parts
The picture on line showed the hinges with a fibrous washer included. The hinges were shipped wrapped loosely in a sheet of thin plastic between 2 sheets of cardboard taped together. The package was not secure. Perhaps the washers came out, but I had to search for an alternative for this unusual piece of the part that cost me $5.
Iggy, Allentown, NJ
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Bad Description
I bought 2 sets thinking that each kit was only for 1 side because the description was so poor.
Nick3786, Undisclosed
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
