Oil Seal 9617

Part #9617

Replaced by #921-04030
?
Manufacturer substitution
This part replaces 9617. Substitute parts can look different from the original.
Online Only Price
$15.49 |
11% OFF
Phone Price: $17.49
In Stock
For ZIP codes near Edit
This item is not returnable
This part fits

Part Information

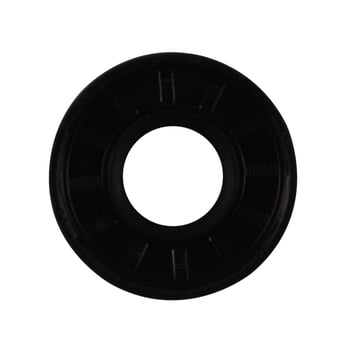

This worm shaft oil seal (part number 921-04030) is for tillers.

Worm shaft oil seal 921-04030 presses into the side of the transmission housing to prevent transmission oil from leaking past the worm shaft.

Wear work gloves to protect your hands when installing this part.

Top models using the same part

Model NameModel NumberDiagram Name
Model #98729908 Craftsman tiller98729908
Power unit transmission assemblies (figure 5)
Model #HORSE SERIAL NO 857037 AND UP Troybilt rear-tine tillerHORSE SERIAL NO 857037 AND UP
Power unit transmission assemblies (figure 5)
Model #PTO HORSE SERIAL #00950727 AND UP Troybilt rear-tine tillerPTO HORSE SERIAL #00950727 AND UP
Tiller attachment transmission assemblies
Model #98729909 Craftsman tiller98729909
Power unit transmission assemblies (figure 5)
Model #12069 Troybilt rear-tine tiller12069
Power unit transmission
Model #TUFFY SERIAL #XD0100 & UP Troybilt rear-tine tillerTUFFY SERIAL #XD0100 & UP
Transmission housing, covers, seals, gaskets, and plug
Model #12065 Troybilt rear-tine tiller12065
Transmission housing, covers, seals, gaskets, and plug
Model #29909 Craftsman tiller29909
Power unit transmission assemblies
Model #21A-644A711 Troybilt rear-tine tiller21A-644A711
Transmission cover
Model #21A-644H766 Troybilt rear-tine tiller21A-644H766
Transmission housing assembly
