Pilot Assembly 183824-160

★★★★★★★★★★
5
4
4
0
3
0
2
0
1
0
BEST SELLER

Part #183824-160

Replaced by #9003540
?
Manufacturer substitution
This part replaces 183824-160. Substitute parts can look different from the original.
Online Only Price
$54.29 |
8% OFF
Phone Price: $59.29
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

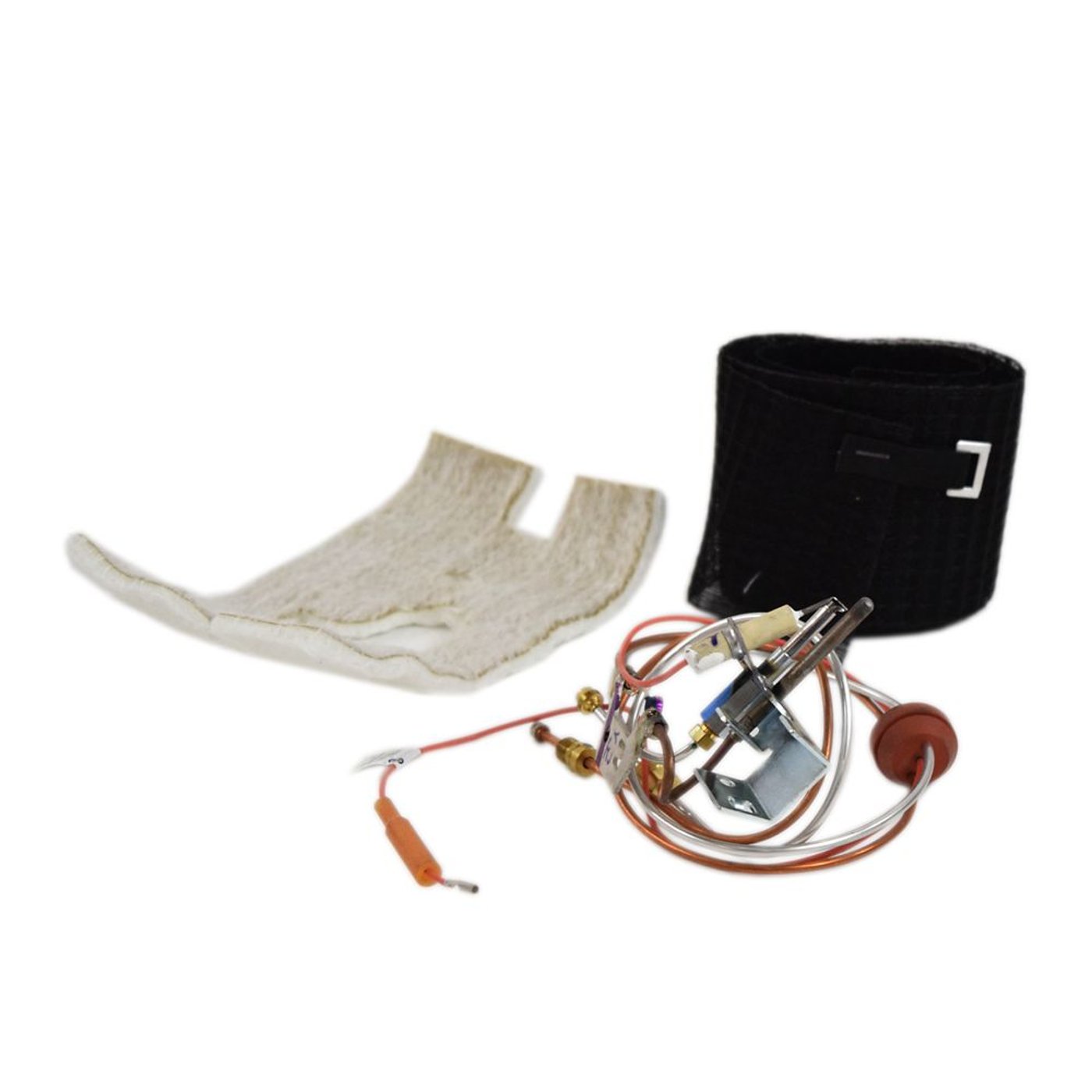

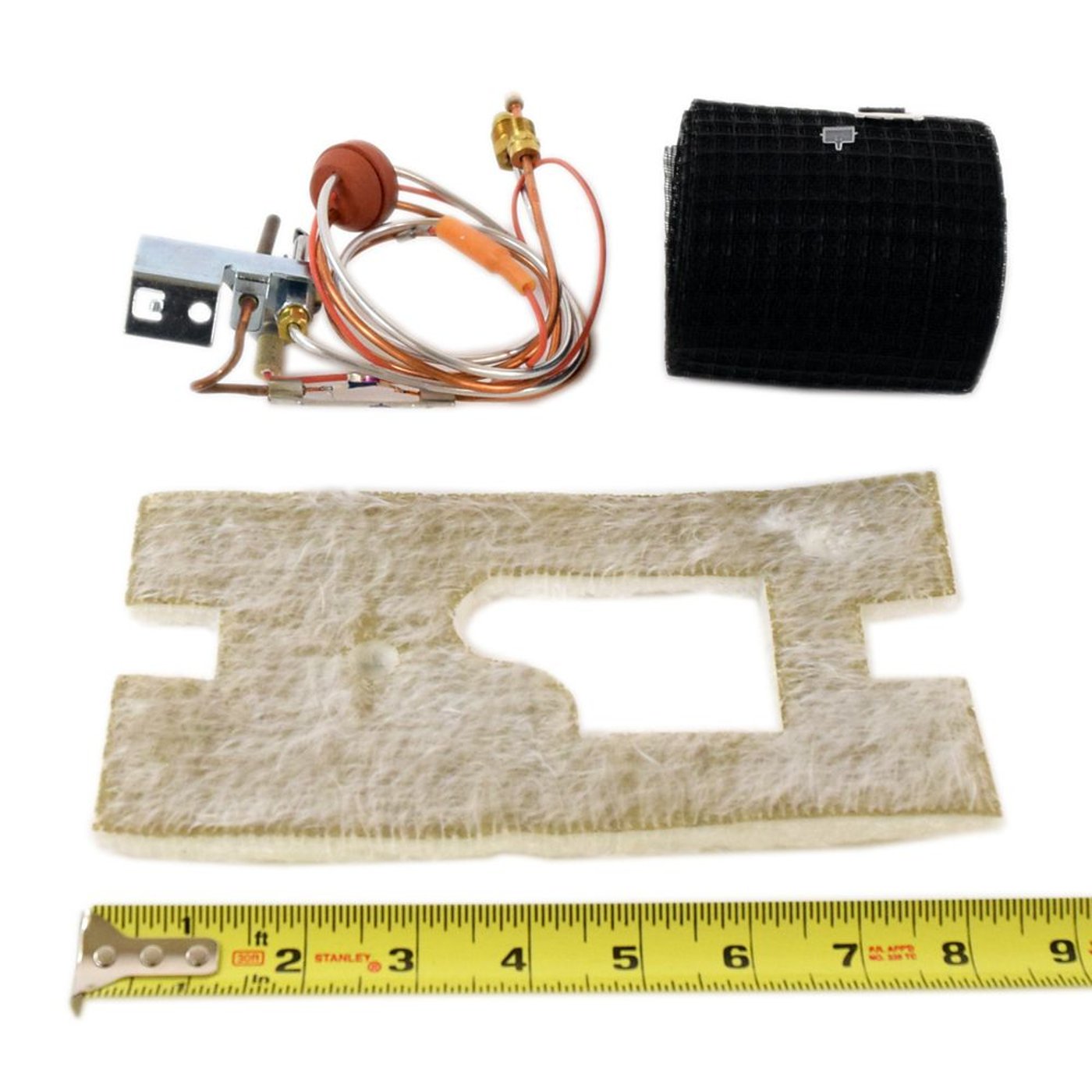

This pilot assembly (part number 9003540) is for water heaters.

Pilot assembly 9003540 supplies the flame for the burner to ignite the gas.

A service technician is recommended for this repair because the gas supply line connections must be checked for leaks after the repair.

Reviews

1-4 of 4 reviews
jkwest
Lincoln, NEReviews 1Votes 0
★★★★★★★★★★
• 1 year ago
jkwest• 1 year ago
Great Quality!

Exactly what we needed! Got here fairly quickly and was in perfect condition.

Response from Sears PartsDirect:
Sears Home Services • 1 year ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears PartsDirect for your part needs!

Motorhead
Moreno Valley,Calif.Reviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Motorhead• 2 years ago
Directions were clear and I had no problems.

The installation of the pilot assy. was very simple. It took only 30 min. to do the entire job. My water heater and I repaired it for less then the cost of a new one and it will last for a few more years.

ATinGold
Cerritos CAReviews 1Votes 0
★★★★★★★★★★
• 3 years ago
ATinGold• 3 years ago
Good instructions

The instructions were detailed and made perfect sense once all the part nomenclature was understood. The included technical bulletin was extremely valuable in understanding the operation of the safety features so it was worth it to get the OEM part instead of a generic part. Only problem after installation was that the igniter did not produce a spark so the pilot could not be lit. Had to uninstall and bend the igniter tip closer to the pilot outlet until a reliable spark could be produced. After that, it all worked great.

Reviews 1Votes 0
★★★★★★★★★★
• 3 years ago
• 3 years ago
Works for me... no problems

This part replaced the broken pilot light just fine. I’m very satisfied with the parts service.
